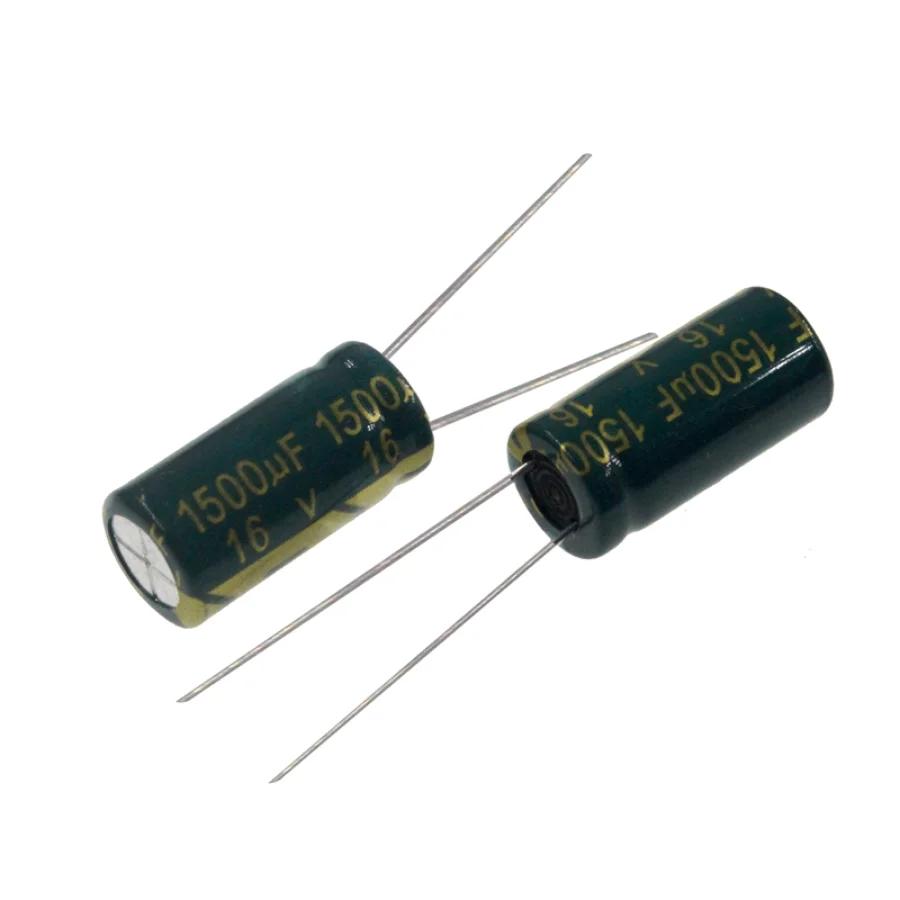

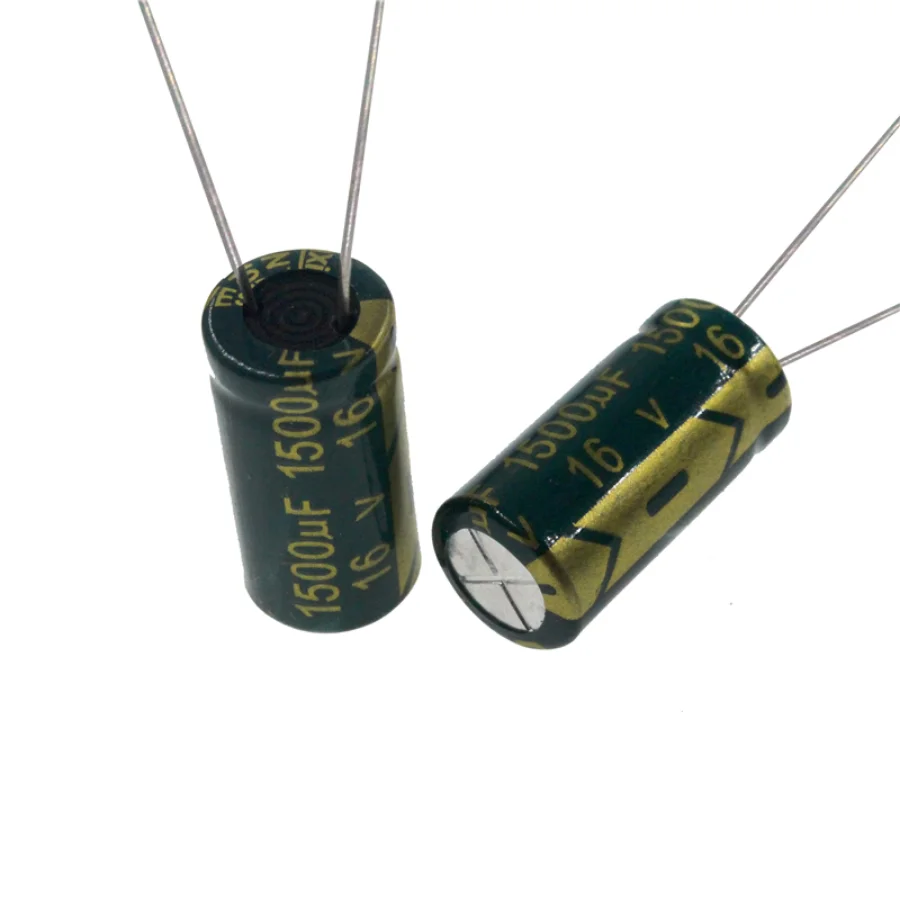

Radial Electrolytic Capacitor | 1500uF 16V | 10x16mm | 50-Piece Professional-Grade Set

Name: Radial Electrolytic Capacitor | 1500uF 16V | 10x16mm | 50-Piece Professional-Grade Set
Brand: Compel Group
SKU: PASS-00065
Price: 32.99 GBP
Availability: InStock

Stock Nr:

SKU:

1 / 5

£32.99inc VAT

Premium 50pcs 1500uF 16V 1500MFD 16WV 10*16mm Aluminum Electrolytic Capacitor Radial. Quality construction with reliable performance for professional and home use....

Capacitance1500UF

Quantity

Secure checkout
All major cards
Tracked delivery

Radial Electrolytic Capacitor | 1500uF 16V | 10x16mm | 50-Piece Professional-Grade Set

£32.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What are these 1500uF 16V capacitors best used for?: These radial electrolytic capacitors are suitable for general-purpose electronic applications. They provide reliable performance for both professional and home use, often found in power supply filtering, coupling, and bypass circuits.
What are the exact dimensions of these capacitors?: Each capacitor has a case diameter of 10 mm and a case height of 16 mm. The lead spacing is 2.5 mm, which is standard for this diameter radial capacitor.
How long will these capacitors last under normal operating conditions?: These capacitors have an endurance rating of 2000 hours at 85°C when operating at their rated voltage. They are designed for continuous use within their specified operating temperature range of -40°C to +85°C.

Passive Components spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £32.99

This product

50-piece pack of 1500uF 16V radial aluminum electrolytic capacitors, showing component size and lead spacing.

Radial Electrolytic Capacitor | 1500uF 16V | 10x16mm | 50-Piece Professional-Grade Set

Price: £32.99
Rating: Not rated
Sold: 3+
Stock: In stock

You're viewing this

Alternative

100uF 50V aluminum electrolytic capacitor radial type, 6x11mm size, pack of 50 pieces for electronic circuit board projects.

Radial Electrolytic Capacitors | 100uF 50V | 6x11mm | 50-Pack for Reliable Circuit Performance

Price: £26.99
Rating: 4.9
Sold: 83+
Stock: In stock

View

Alternative

50pcs lot of 4.7UF 50V radial aluminum electrolytic capacitors, 105C temperature rating and 5x11mm size, on a white background.

Radial Electrolytic Capacitors | 4.7µF 50V 105°C | 5x11mm | 50-Piece Professional Kit

Price: £27.99
Rating: 5.0
Sold: 51+
Stock: In stock

View

Alternative

50-pack of 220uF 16V aluminum electrolytic capacitors, radial type, measuring 6mm by 7mm for circuit board use.

Radial Electrolytic Capacitors | 220uF 16V | 6x7mm Size | 50-Piece Bulk Pack

Price: £26.99
Rating: 5.0
Sold: 76+
Stock: In stock

View

Alternative

10-pack of 2200uF 16V aluminum electrolytic capacitors, radial leads, for power supply and audio circuit filtering

2200uF 16V Radial Capacitor | 10-Pack | High-Performance Aluminum Electrolytic

Price: £31.99
Rating: 5.0
Sold: 70+
Stock: In stock

View

Compare options

More Passive Components

All Passive Components

SMD Capacitor Assortment Kit | 0201 to 1206 Sizes | 1nF to 22µF Values | 50-Piece Sample Packs

5.0

£26.99

SMD Electrolytic Capacitor Assortment | 6.3V-50V | 0.1µF-1000µF | Premium Circuit Repair Kit

5.0

£24.99

1W Metal Film Resistor Kit | 20-Piece Precision Set | 1R to 100K Values

5.0

£25.99

Professional-Grade Safety Capacitor Kit | X2 Class | 250V-275V | 5-Piece Assortment (0.1uF - 0.47uF)

5.0

£24.99

High-Performance Dual Electrolytic Capacitor | 500V 100+100µF | Amplifier & Audio Upgrade

5.0

£42.99

Ceramic Capacitor Assortment Kit | 10pF to 10µF | 180-500 Piece Electronics Repair Set

5.0

£31.99

Professional-Grade 2200µF 25V Electrolytic Capacitor | 13x20mm | High-Temp Stability

5.0

£24.99

Professional-Grade 2.2µF 400V CBB Capacitor | 10-Pack | Polypropylene Film for Audio & Power Circuits

5.0

£24.99

Capacitor Kit | 120-Piece Assortment | 16V-50V, 1uF-470uF | DIP for Reliable Circuit Repair

4.9

£29.99

High-Performance Electrolytic Capacitors | 10V-450V Range | 0.47µF to 1000µF | Premium Aluminum Construction

4.9

£22.99

Professional-Grade 0.1uF 104 Ceramic Capacitors | 50V 2.54mm DIP | 100-Piece Kit

5.0

£25.99

SMD Electrolytic Capacitor Assortment Kit | 13 Values, 130-Piece Set | 1µF-220µF

5.0

£41.99

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

20/50Pcs No Solding Quick 1P 2P Cable Wire Connector No Screw Terminal Block Spring Clamp

4.8

£36.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Cable Set | 7 Pin to SAS 12Gbps | For Server & NAS Hard Drives

4.9(123)

£53.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

Premium 50pcs 1500uF 16V 1500MFD 16WV 10*16mm Aluminum Electrolytic Capacitor Radial. Quality construction with reliable performance for professional and home use.

Rated Voltage: 16 V DC. Capacitance: 1500 µF. Capacitance Tolerance: ±20%. Case Diameter: 10 mm. Case Height: 16 mm. Dielectric Type: Aluminum Electrolytic. Endurance: 2000 hours at 85°C, rated voltage. Lead Spacing: 2.5 mm. Lead Type: Radial. Leakage Current: ≤0.01 CV or 3 µA (whichever is greater) after 2 minutes at 20°C. Operating Temperature Range: -40°C to +85°C. Polarity: Polarized. Quantity per Package: 50 pcs. Ripple Current: 1.1 A at 120 Hz, 85°C. Case Diameter: 10 mm. Case Height: 16 mm. Case Material: Aluminum. Seal Material: Rubber (EPDM or similar). Rated Voltage (WV): 16 V DC. Voltage Type: DC (Direct Current). Operating Temperature Range: -40°C to +85°C (Standard for general-purpose electrolytic capacitors). Capacitance: 1500 µF (Microfarads). Capacitance Tolerance: ±20% (Standard for general-purpose electrolytic capacitors). Dissipation Factor (tan δ): ≤ 0.20 at 20°C, 120 Hz (Standard for this capacitance/voltage range). Electrolyte Type: Non-solid, liquid electrolyte. Endurance: 1000 hours at 85°C (Standard for general-purpose electrolytic capacitors). Equivalent Series Resistance (ESR): Typical 0.045 Ω at 20°C, 100 kHz (Estimated for this size/type). Lead Spacing: 2.5 mm (Standard for 10mm diameter radial capacitors). Lead Type: Radial. Leakage Current: I ≤ 0.01CV or 3 µA (whichever is larger) after 2 minutes at 20°C. Package Quantity: 50 pieces. Polarity: Polarized (Radial, Aluminum Electrolytic). Ripple Current: 650 mA at 120 Hz, 85°C (Estimated for this size/type). Storage Life: 2 years at room temperature without applied voltage. Termination: Tin-plated copper leads. Q: What are the exact dimensions of these 1500uF 16V aluminum electrolytic capacitors? A: These capacitors have a radial lead design with a body diameter of 10mm and a height of 16mm. This 10x16mm size is a standard dimension for this capacitance and voltage rating.. Q: How durable and reliable are these 1500uF 16V radial capacitors for regular use? A: These aluminum electrolytic capacitors are built for reliable performance in common applications. They are suitable for general-purpose filtering, smoothing, and coupling in power supplies and audio circuits.. Q: Can I use these 1500uF 16V capacitors to replace old capacitors in a power supply? A: Yes, these are ideal for replacing old or bulging capacitors in power supplies, amplifiers, and other electronics. Ensure the voltage rating (16V) is equal to or higher than the original, and the 1500uF capacitance matches.. Q: Does this 50-piece pack of capacitors come with any warranty or guarantee? A: This product is covered by a standard manufacturer's warranty against defects. Please refer to the seller's specific policy page for detailed warranty terms and the process for any claims.. Q: Is this 50-pack of 1500uF 16V capacitors a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use and the bulk quantity is cost-effective for repairs and projects..
