Selecting DC Fans for Cabinet and Enclosure Cooling

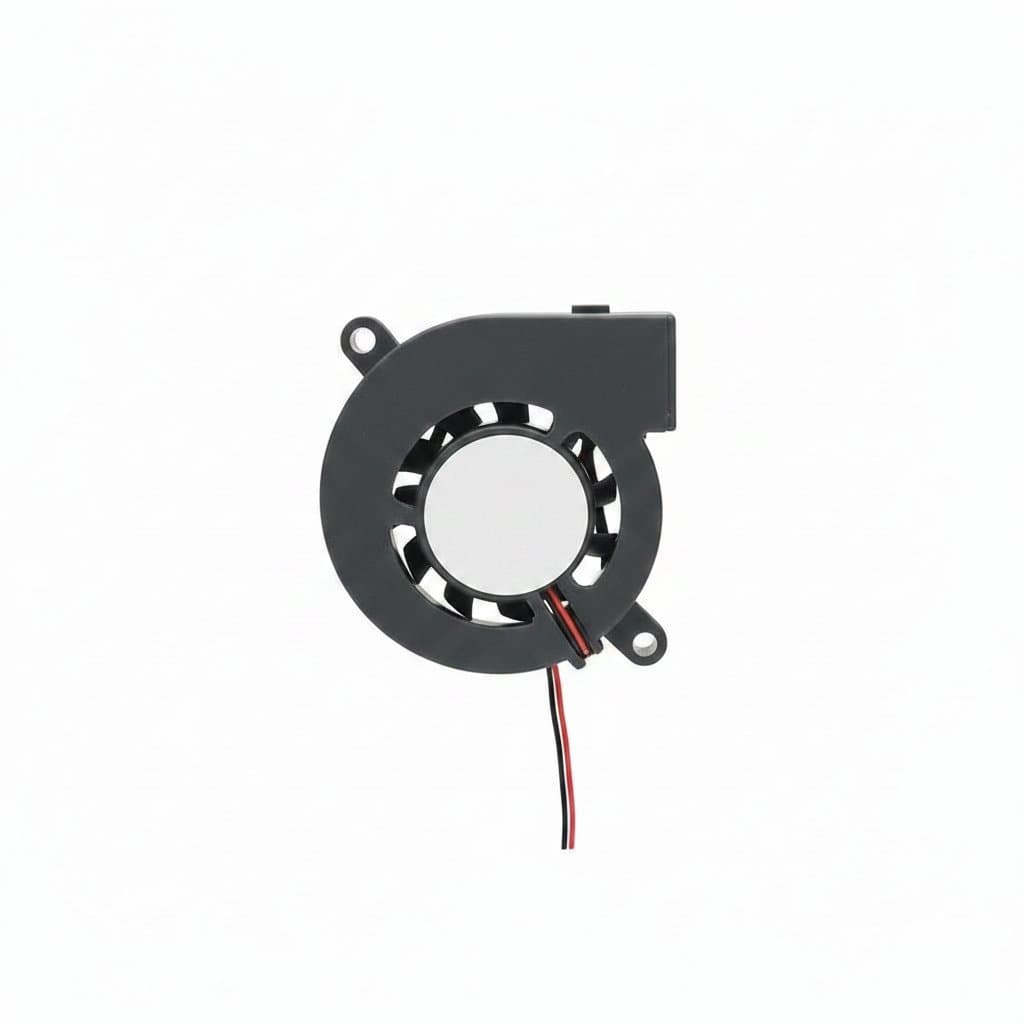

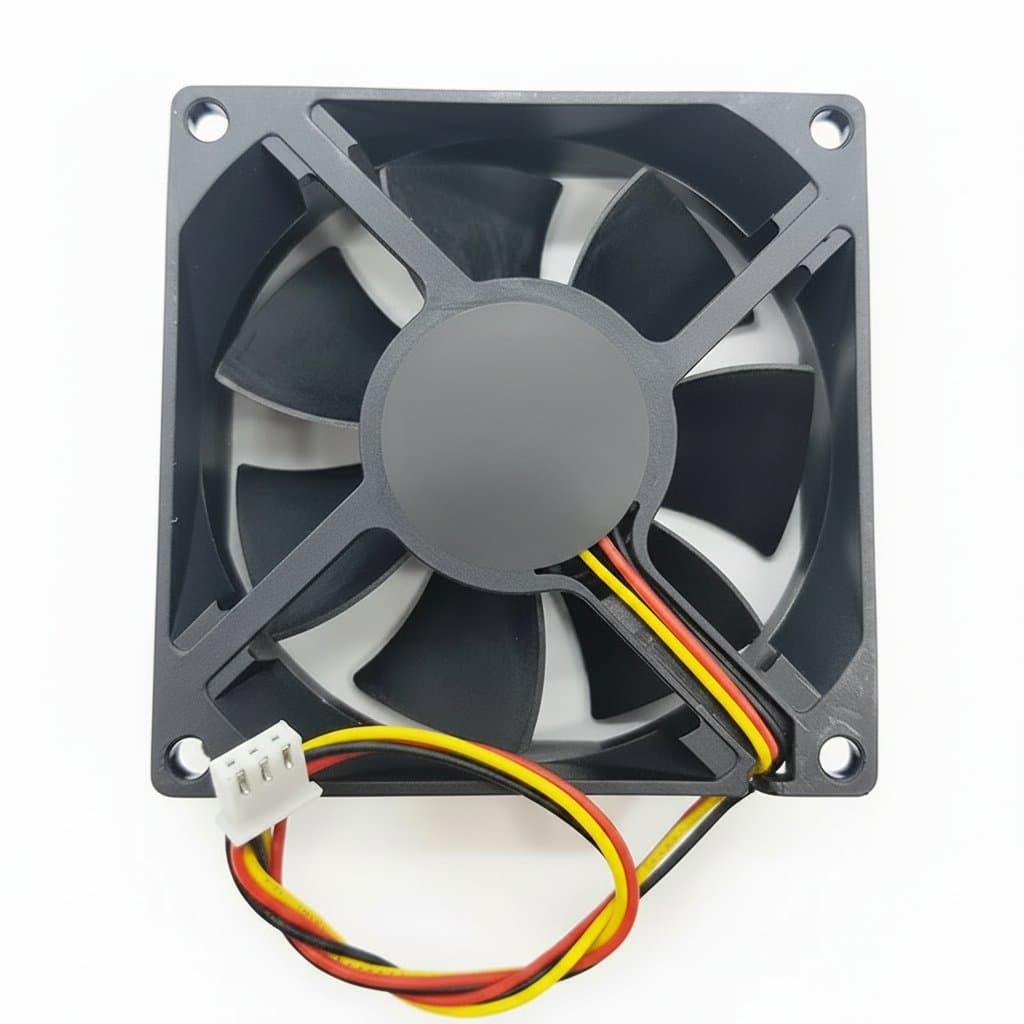

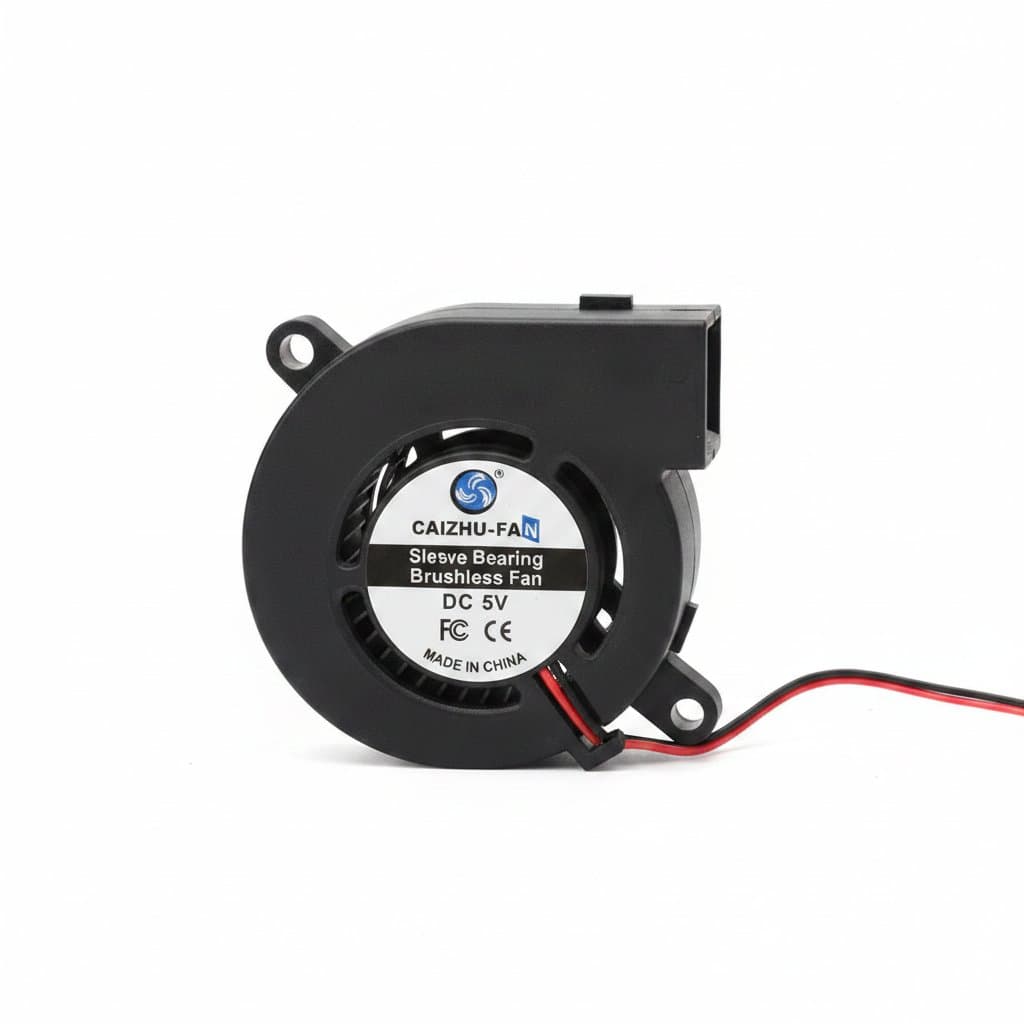

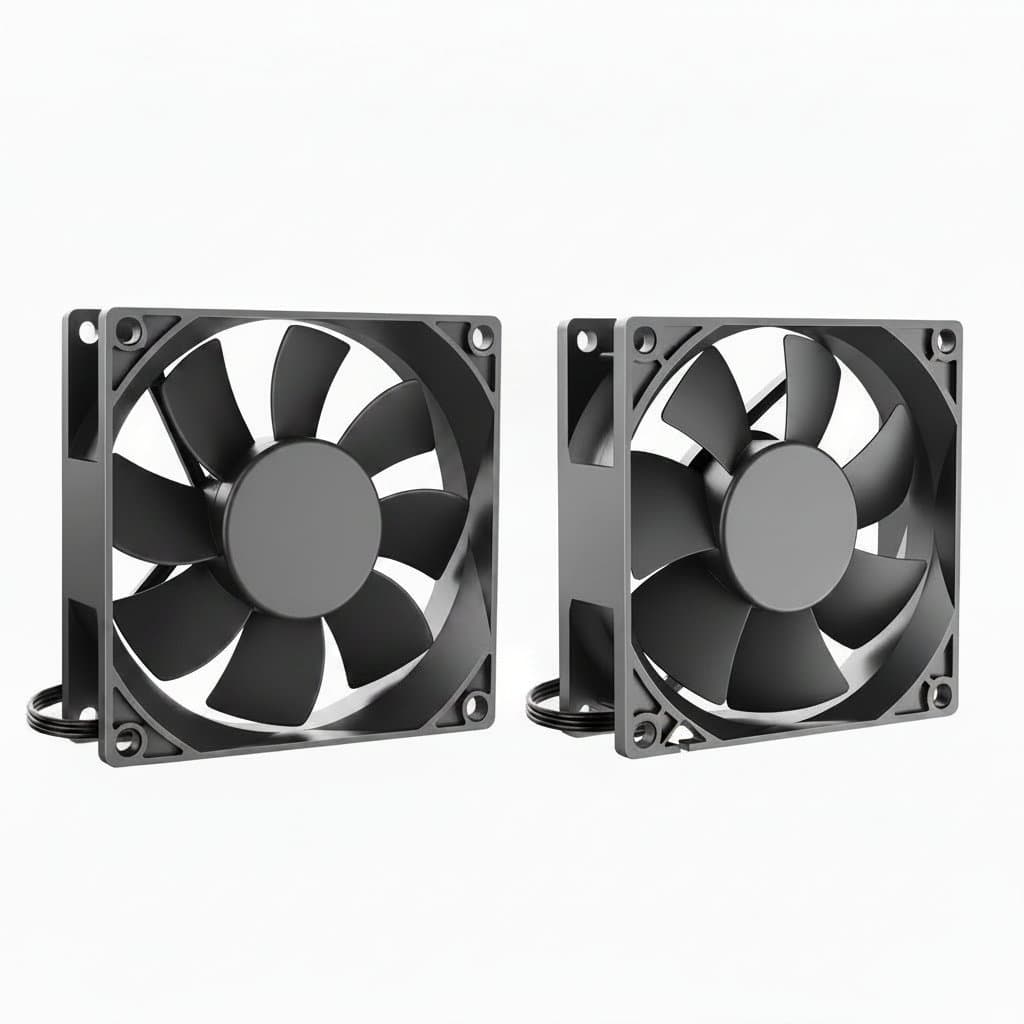

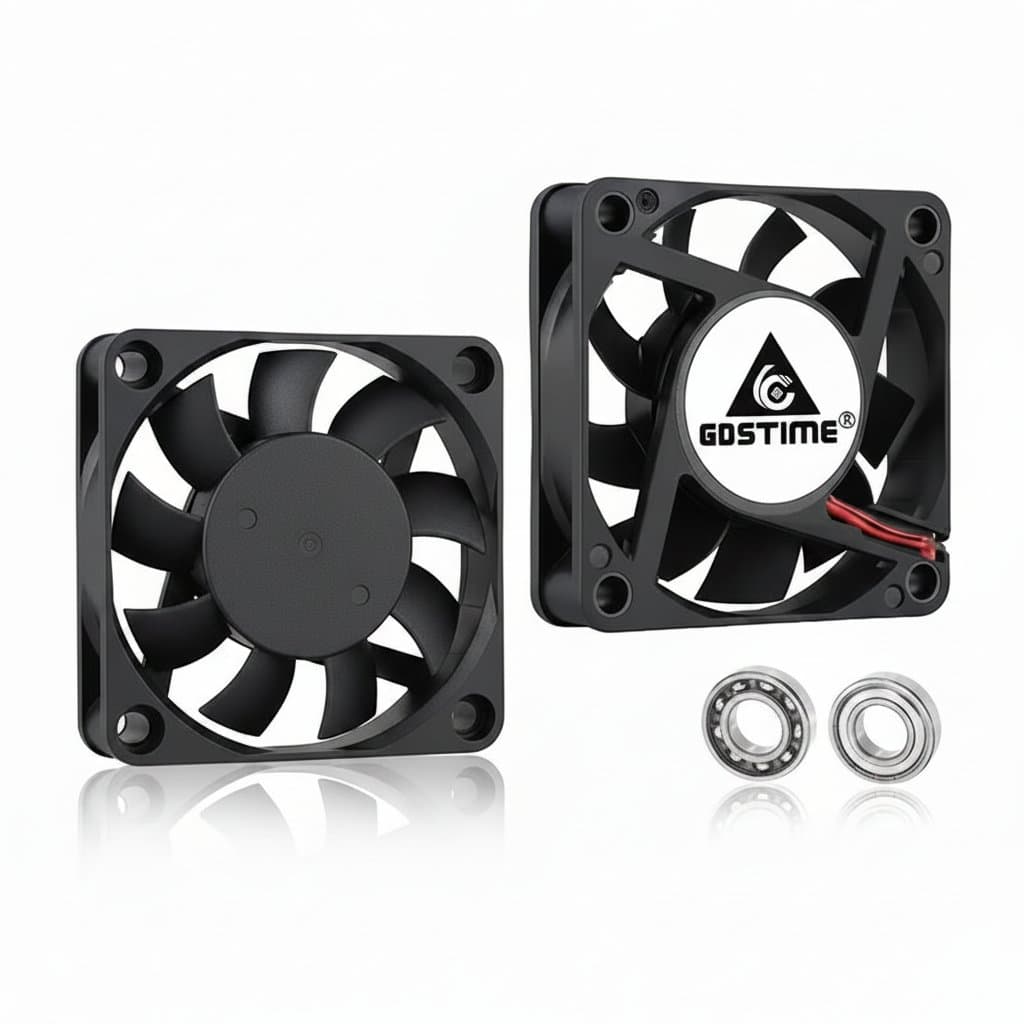

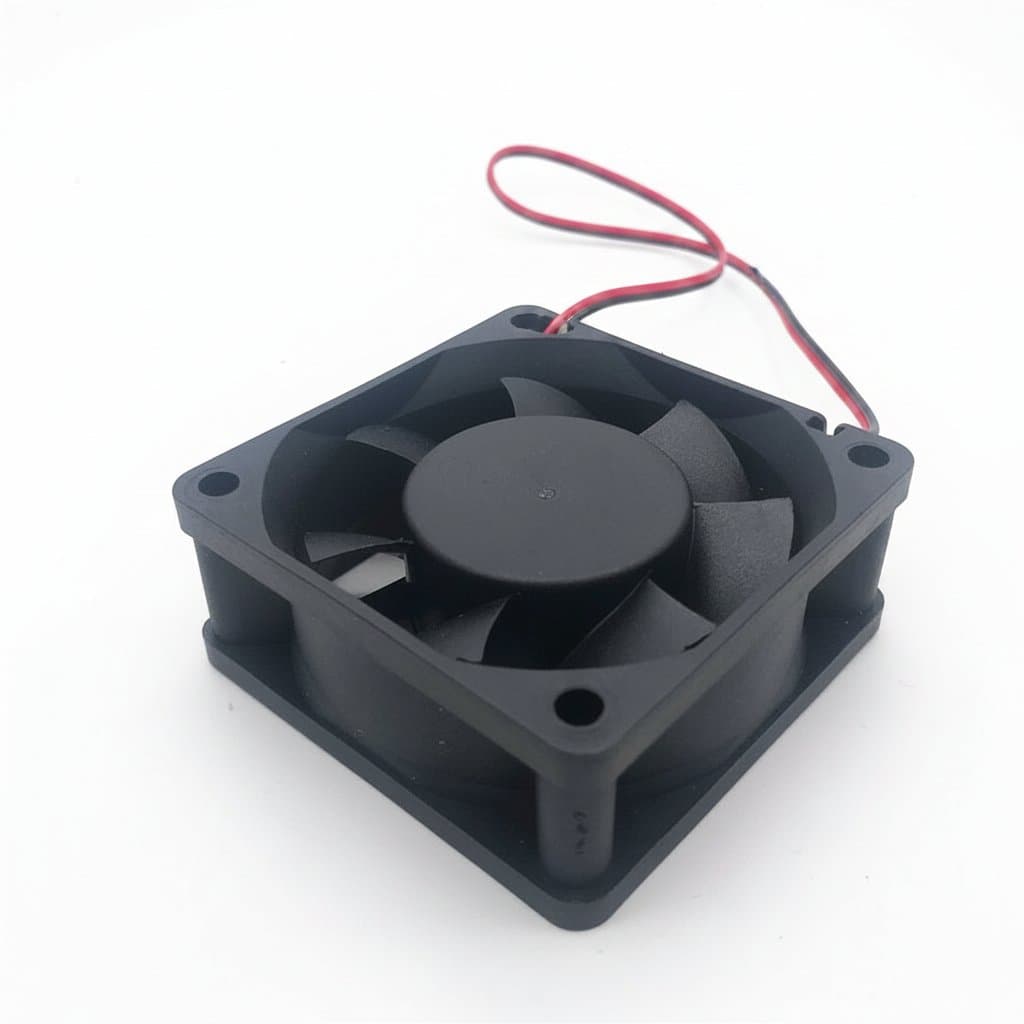

Thermal management requires balancing frame dimensions with system voltage and airflow needs. For compact enclosures like 1U and 2U server power systems, a 40x40x28mm axial flow fan provides high-pressure air movement. Larger enclosures benefit from 80mm to 120mm brushless DC systems, or even 200mm USB-powered fans for low-profile cooling.

Operating voltages must match your system integration limits. Our range includes 5V, 12V, and 24V DC options to simplify your power distribution design.

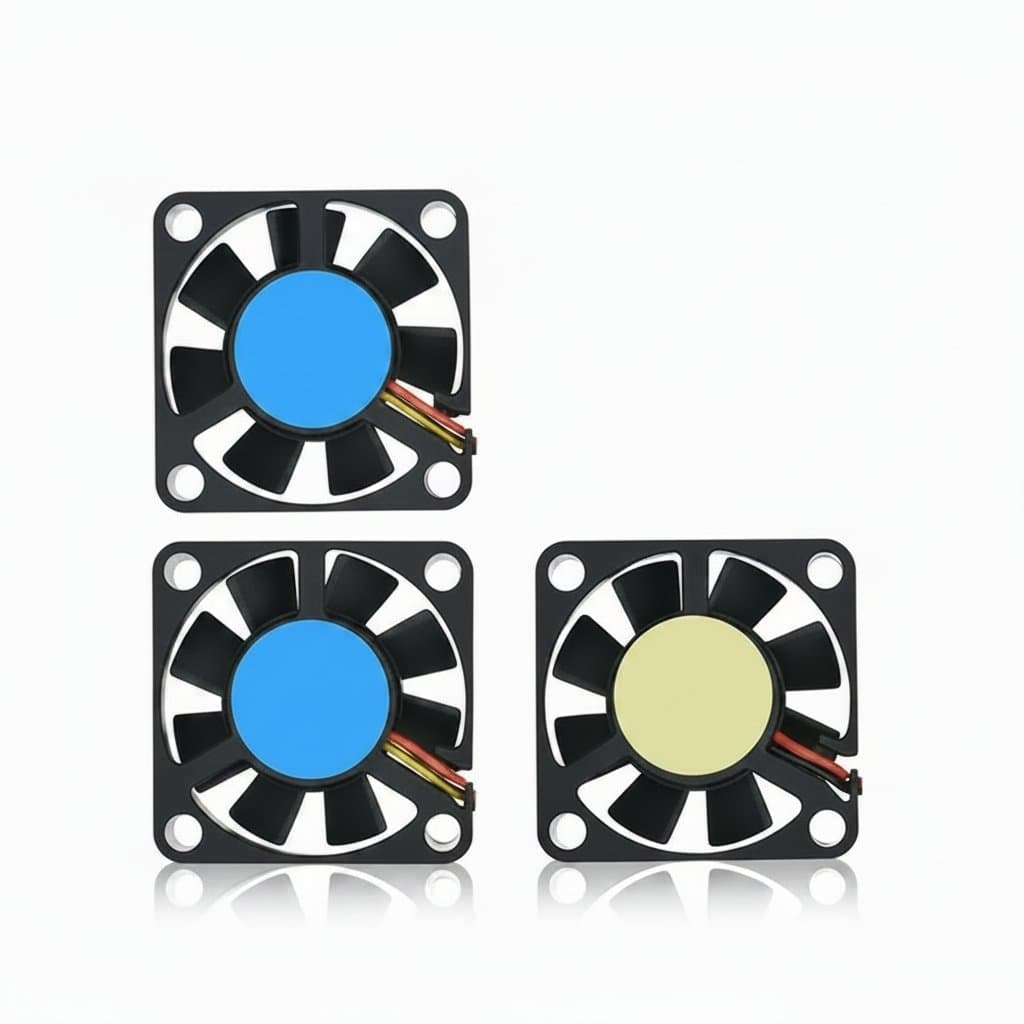

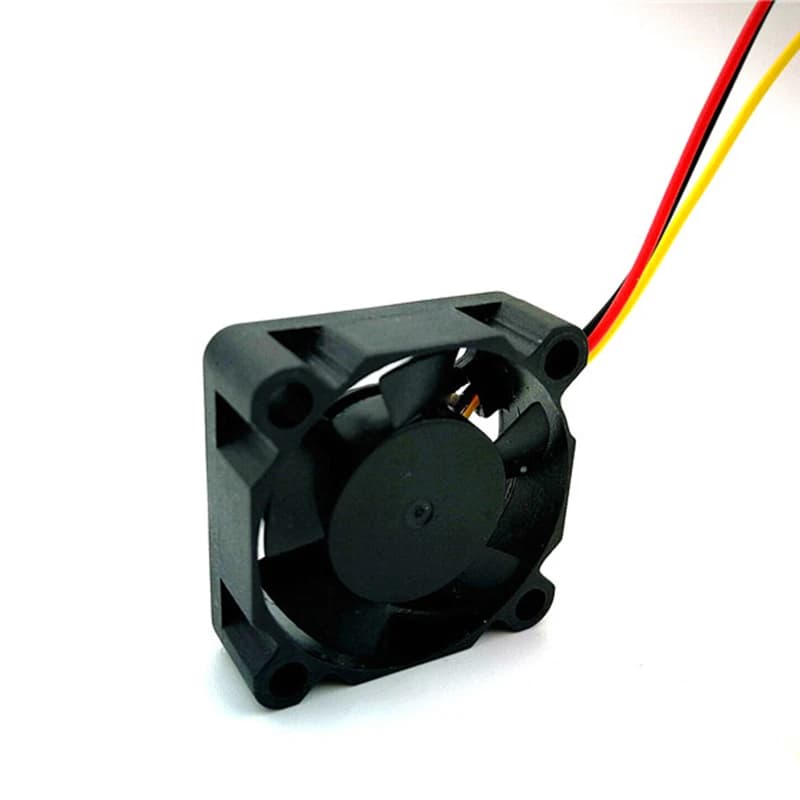

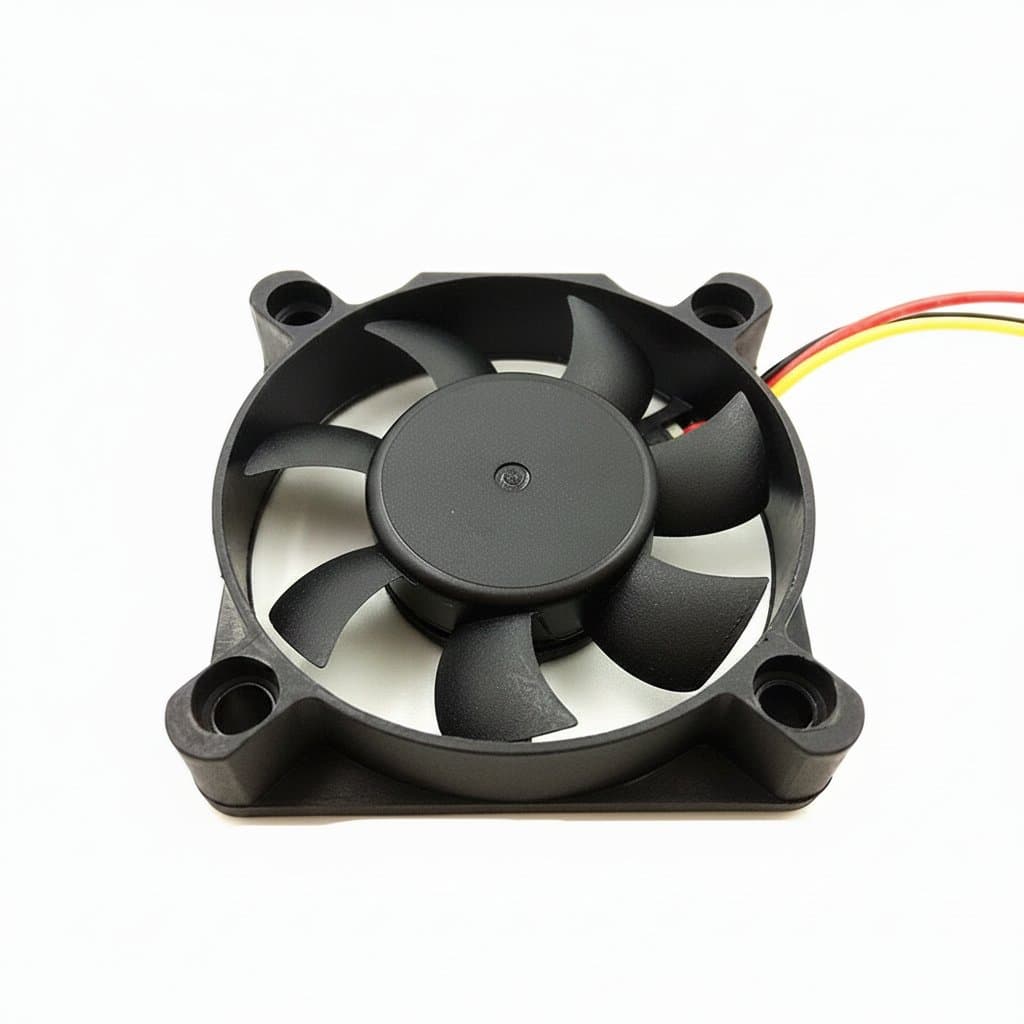

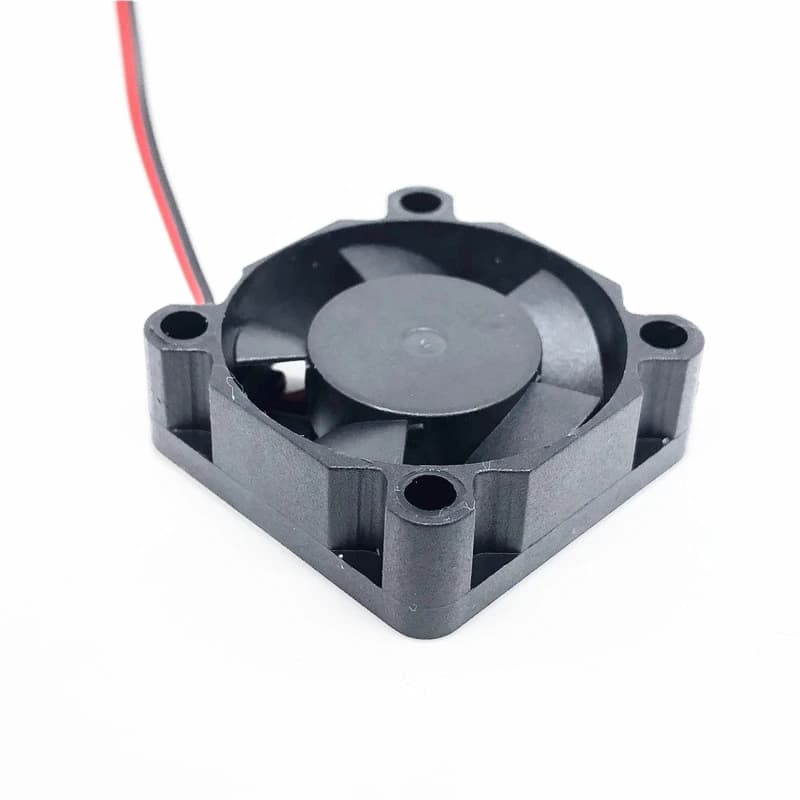

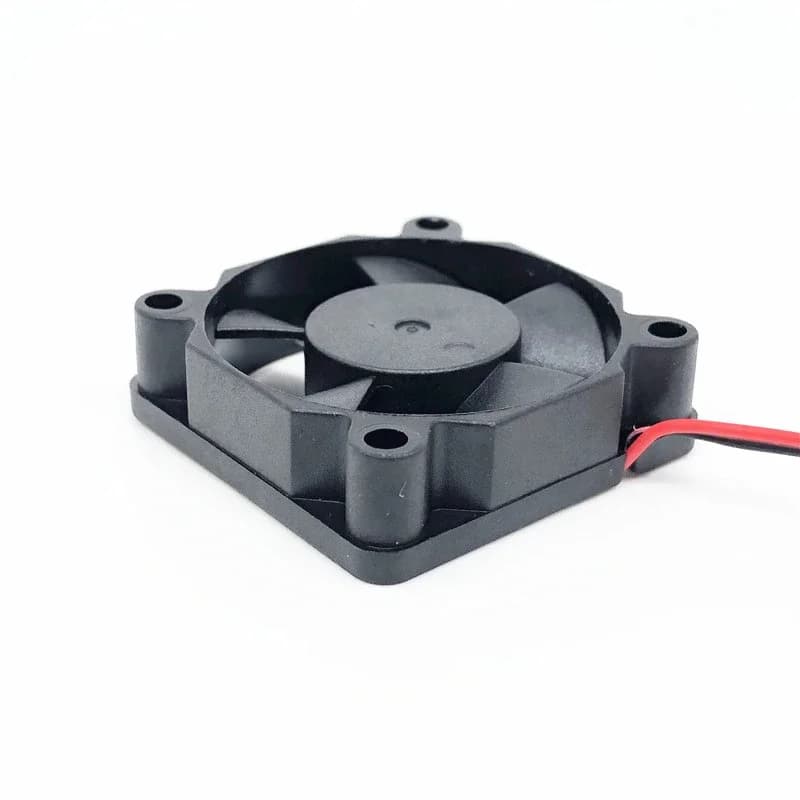

• Frame sizes from 30mm to 200mm to match standard industrial chassis mounting holes.

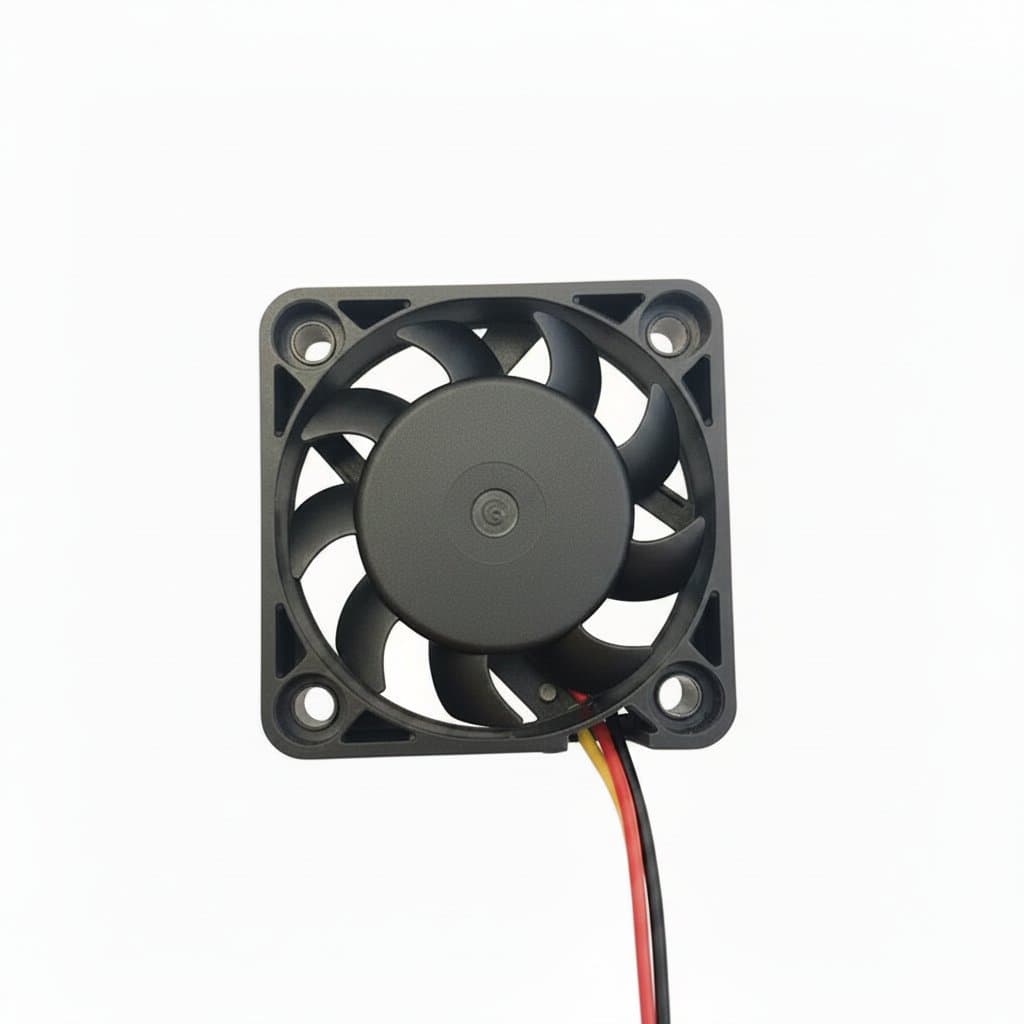

• Voltage compatibility across standard 5V, 12V, and 24V DC rails to match existing power supplies.

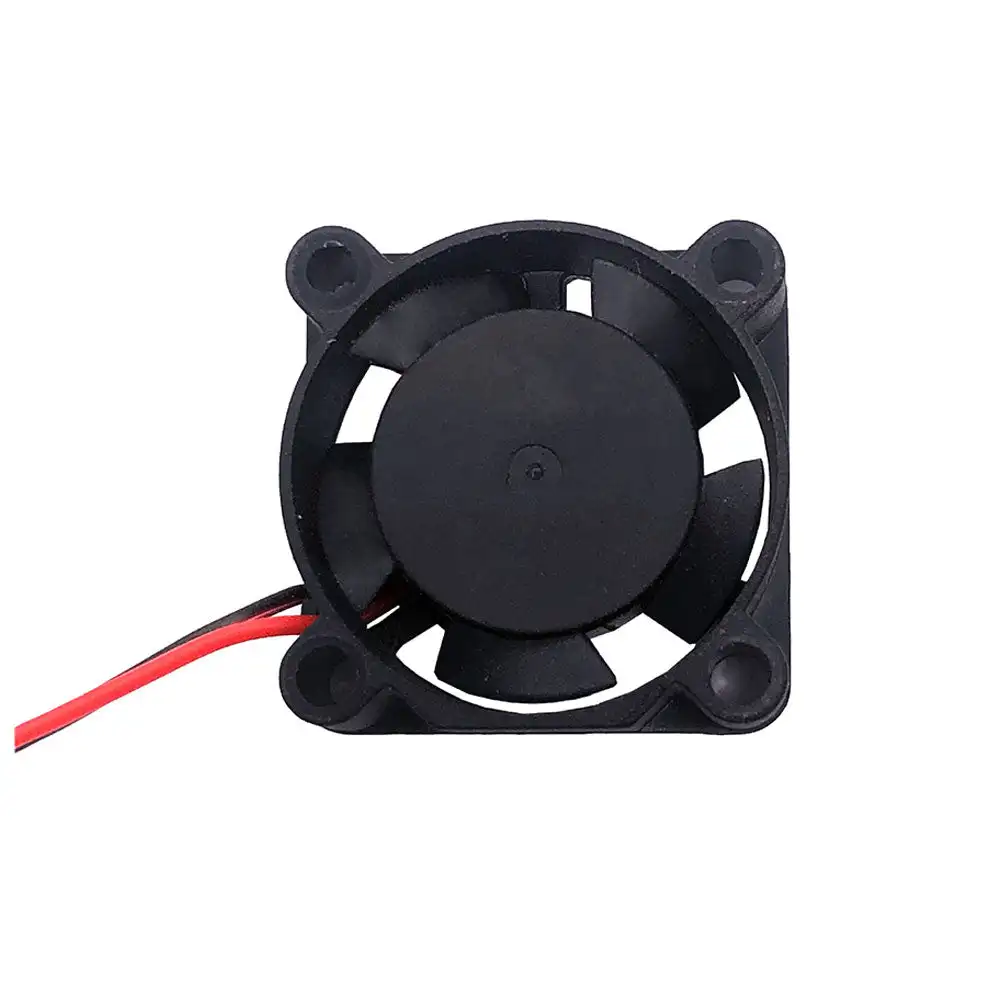

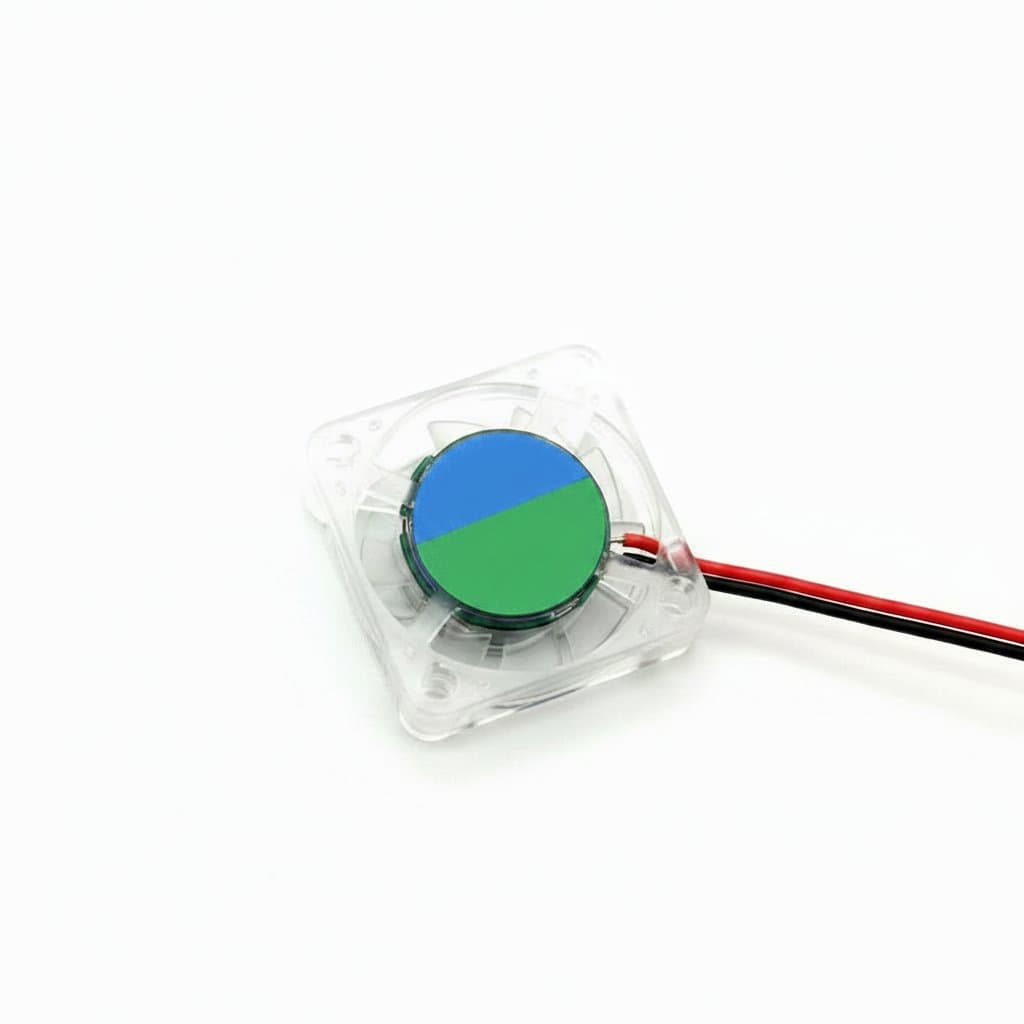

• Bearing types like hydraulic or sleeve options to balance operating life against unit cost.

Gear Train Selection for Digital Servo Motors

When integrating micro servos into robotic assemblies or automated test fixtures, the gear material determines the maximum operating limits. Standard 9g digital servos with nylon gears offer lightweight, cost-effective movement for light-duty applications. Upgrading to all-metal gear servo motors provides the necessary shear resistance and torque handling for high-vibration environments.

• Nylon gears for lightweight positioning where cost and weight are critical.
• All-metal gears for high-torque upgrades and resistance to mechanical shock.
• PWM signal compatibility using standard 3-pin JR or Futaba connectors for direct integration.

Matching Motor Drivers to Control Requirements

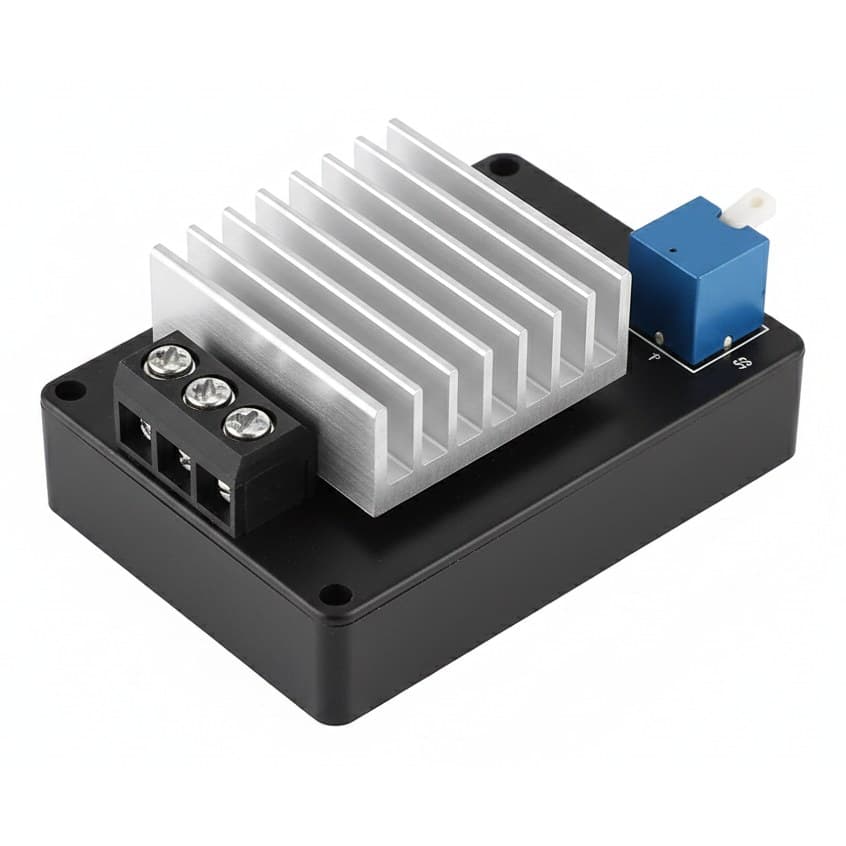

Driving an electric motor, whether a stepper motor or a brushless DC fan, requires compatible control circuitry. Motor drivers translate low-power control signals into high-current power outputs. For speed-sensitive applications, choose drivers or integrated fans that support 4-pin PWM speed control. This setup allows real-time speed adjustments based on thermal sensors, preventing premature component failure.

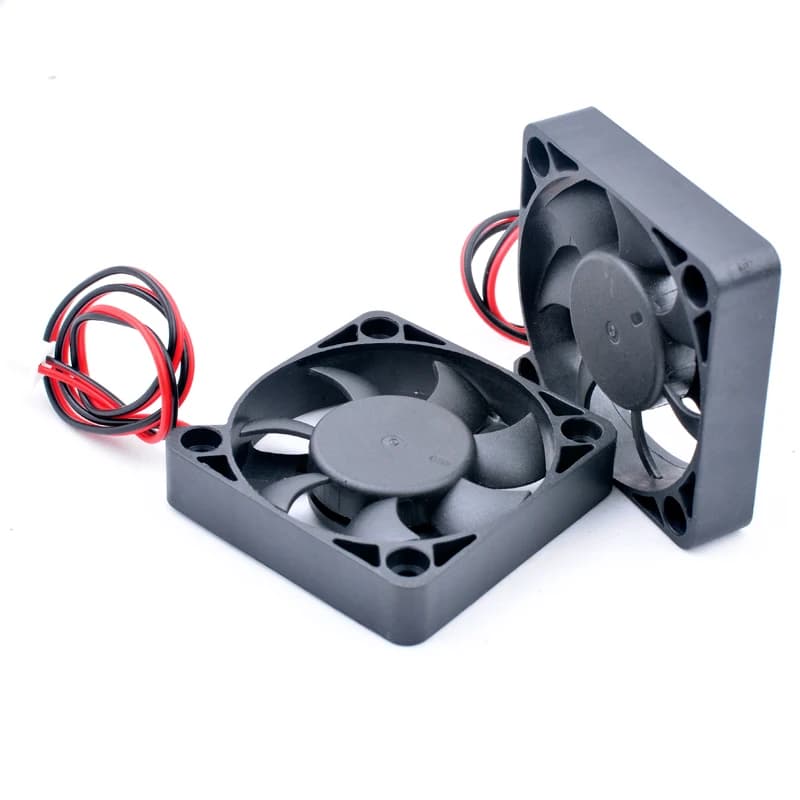

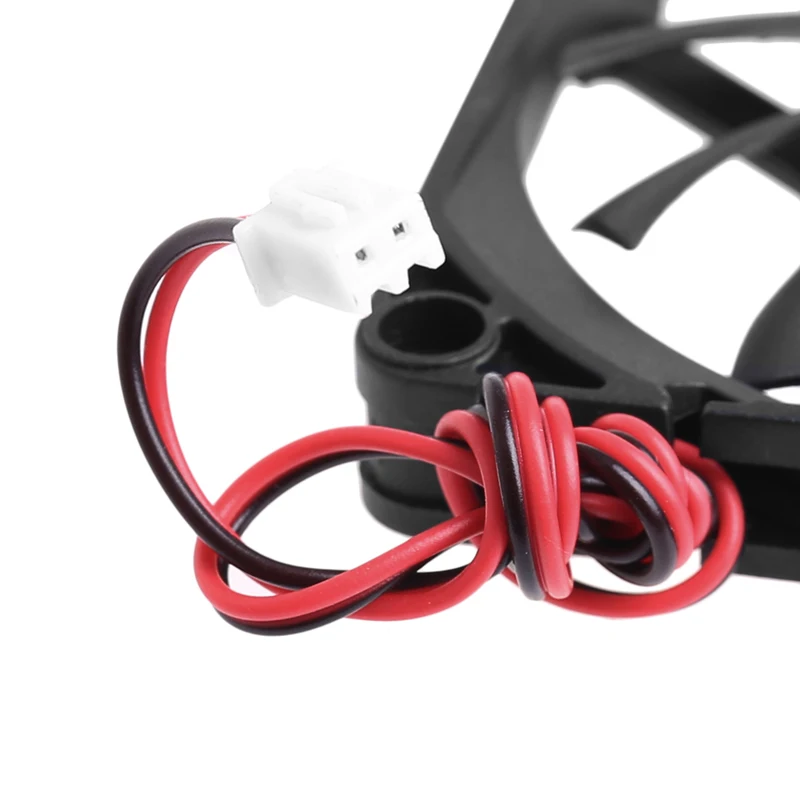

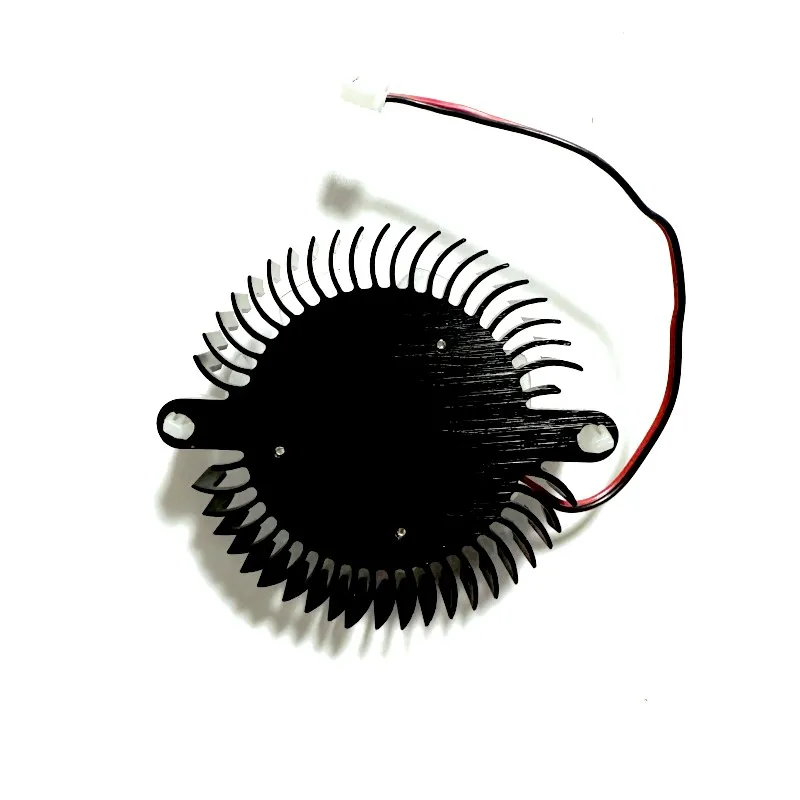

• Dual-pin connectors for simple on/off or constant-speed applications.

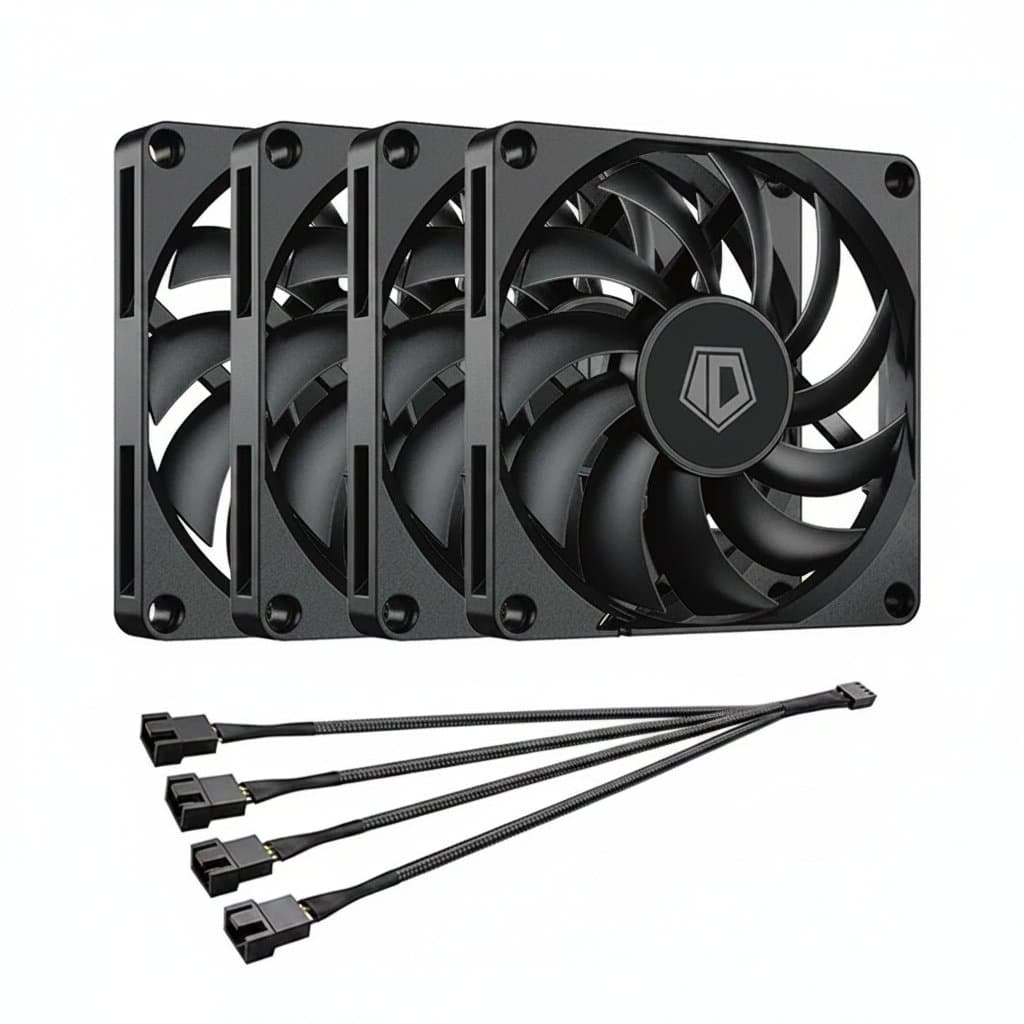

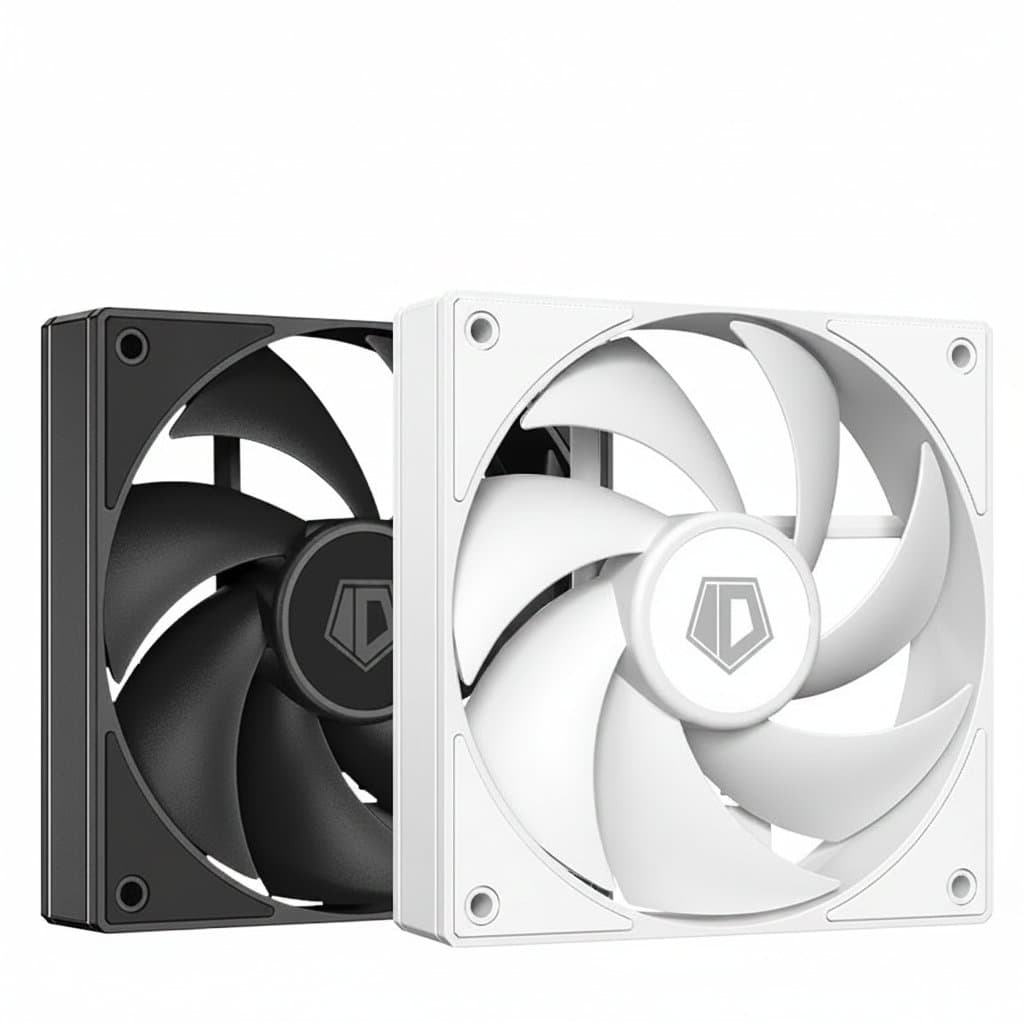

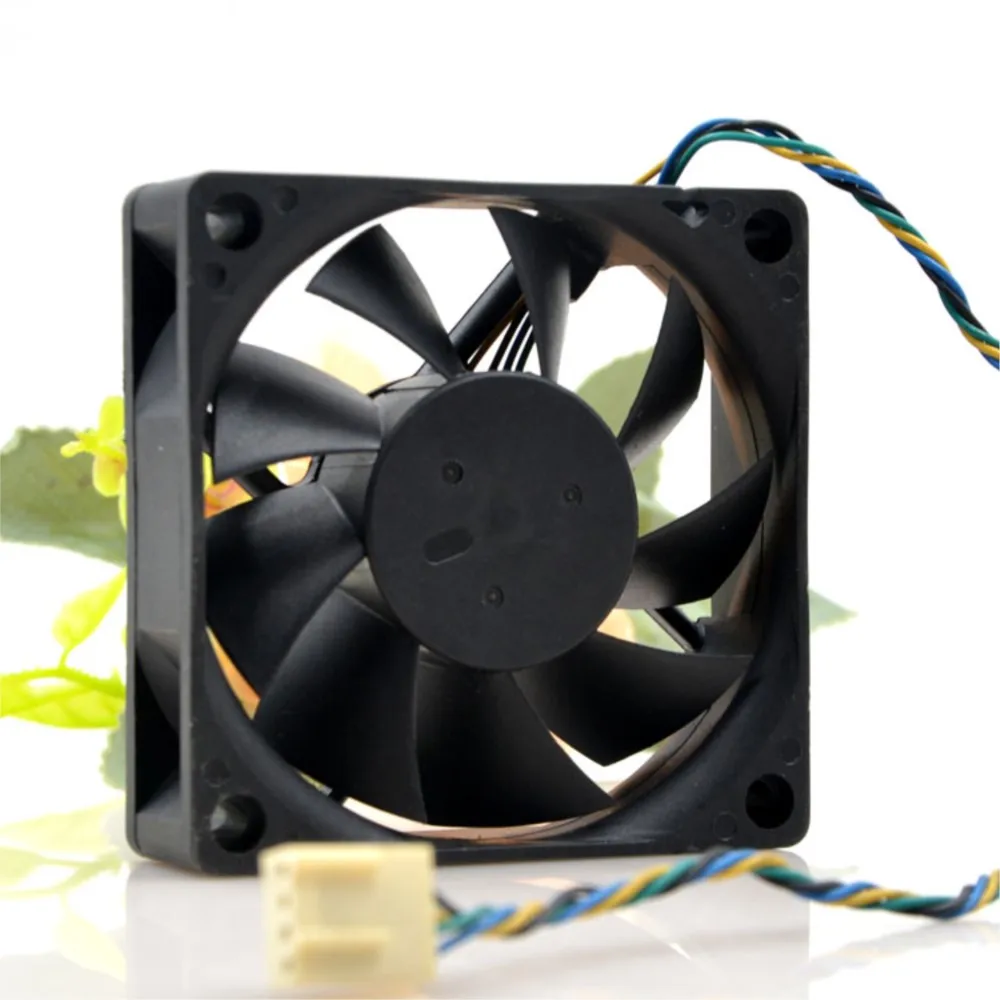

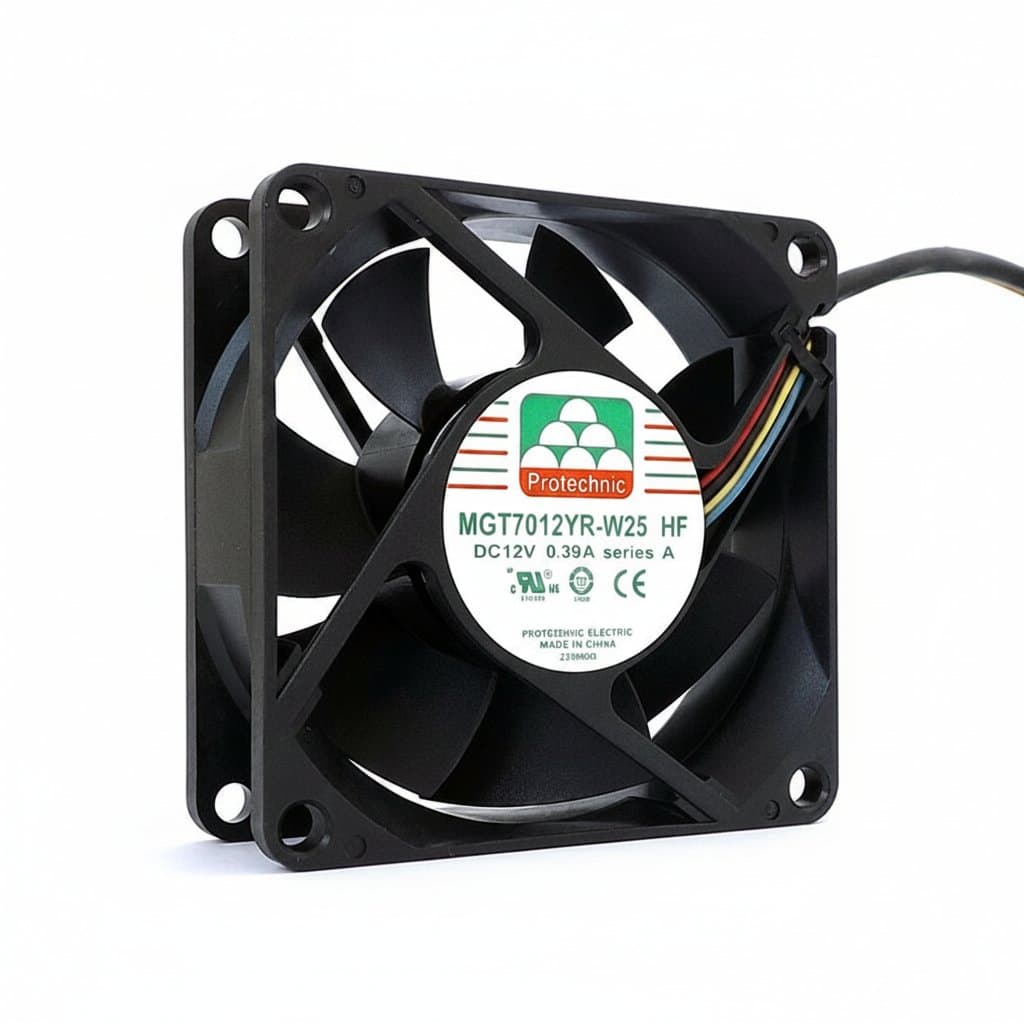

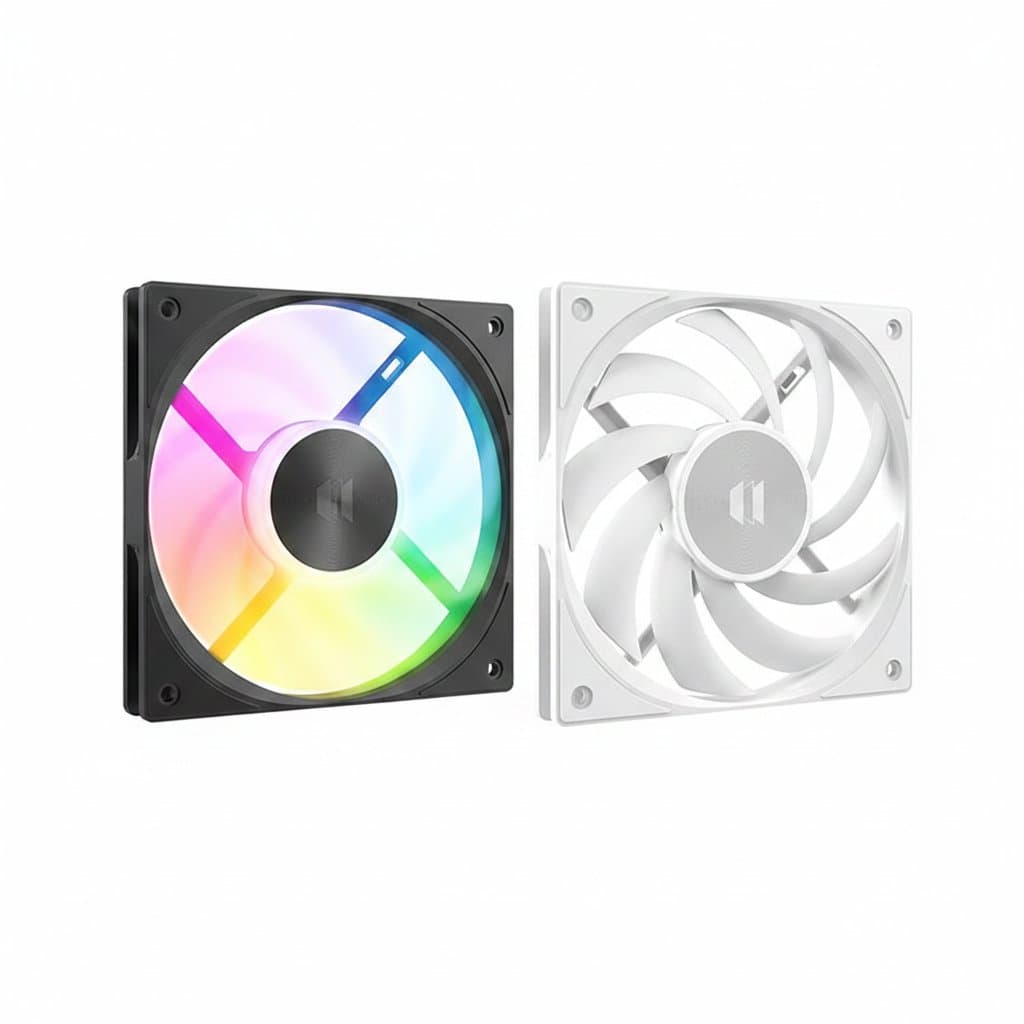

• 4-pin PWM connectors for precise speed regulation and motherboard synchronization.
• Operating speeds from 1500 to 5000 rpm depending on your controller signal input.
