Choosing the Right Termination Method: Solderless vs. Mechanical

Selecting the proper termination method depends on the installation environment and maintenance requirements. Solderless solutions like quick-connect wire terminals and mechanical terminal blocks speed up field installations and allow easy reconfiguration. For high-vibration applications, screw-nut panel mounts or high-current bullet plugs with thermoplastic sheaths ensure mechanical stability without degrading electrical performance.

Consider the voltage and current requirements of your circuit. Quick-connect systems are excellent for rapid wiring changes in control panels, but you must verify that the contact materials can handle the continuous current without overheating.

• Quick-Connect Terminals: Suitable for rapid wiring in distribution boxes, rated up to 250V and 32A.
• Bullet Plugs: Ideal for high-current applications such as lithium battery connections, handling up to 500V and wire gauges from 10 to 12 AWG.

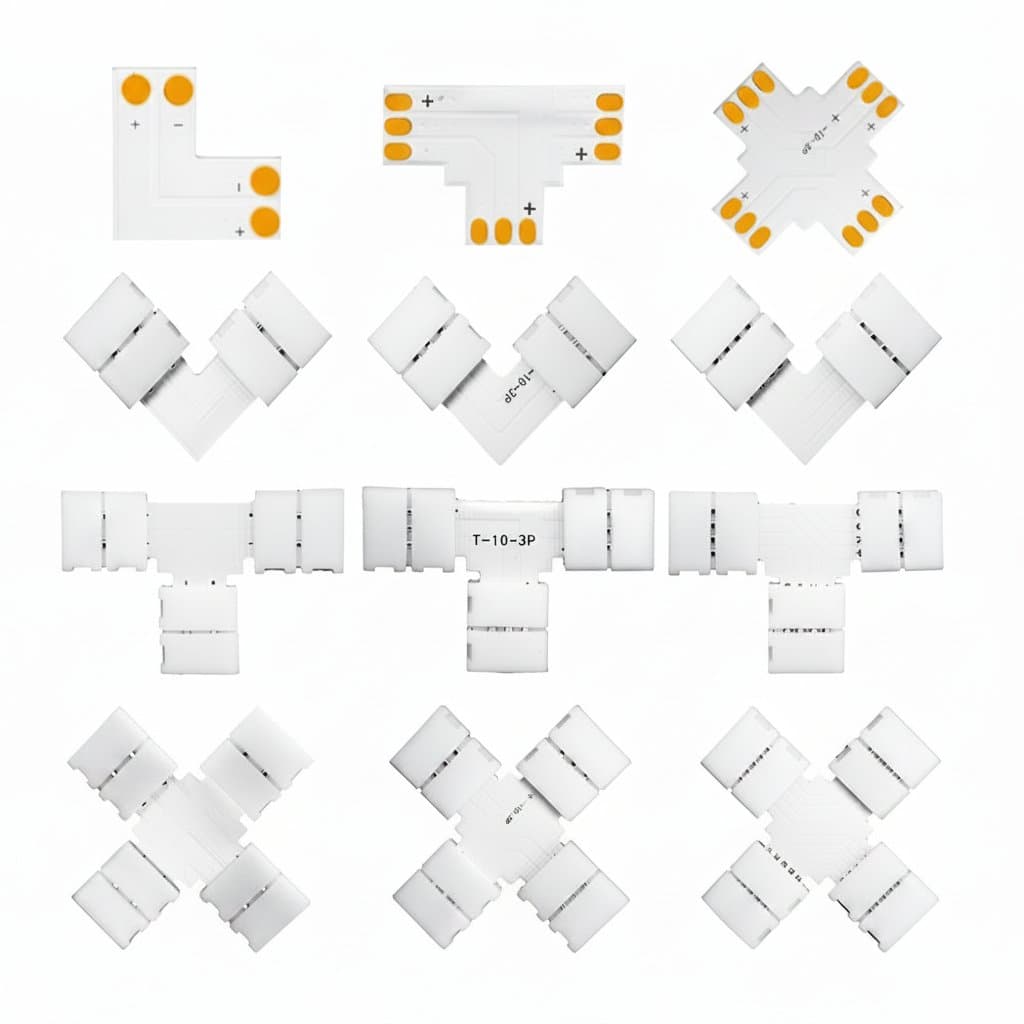

• Solderless Waterproof Joints: Essential for outdoor wiring where on-site soldering is impractical.

Selecting Environmental Protection and Insulation

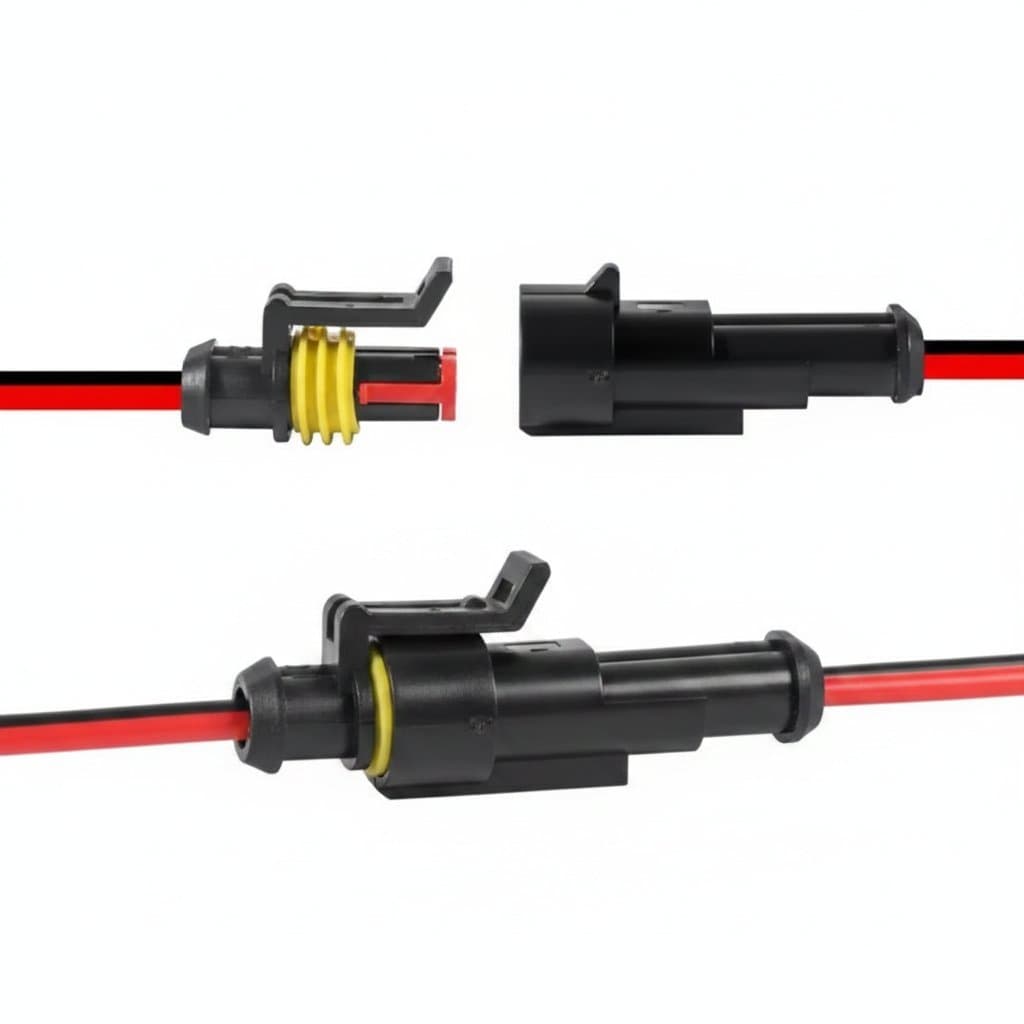

Moisture, dust, and mechanical stress degrade electrical connections over time. For outdoor installations or wet industrial environments, specify components with a verified Ingress Protection rating, such as IP68 waterproof connectors. When protecting exposed wiring splices, choose heat shrink tubing based on the required shrink ratio and sealing capability.

Using the wrong insulation sleeve allows moisture ingress, leading to corrosion and short circuits. Always match the pre-shrink and post-shrink diameters to your wire gauge.

• 4:1 Adhesive-Lined Tubing: Provides a watertight seal and strain relief over highly irregular shapes and multi-diameter transitions.
• 2:1 Polyolefin Sleeves: Suitable for general electrical wiring insulation, color-coding, and basic mechanical protection in dry environments.

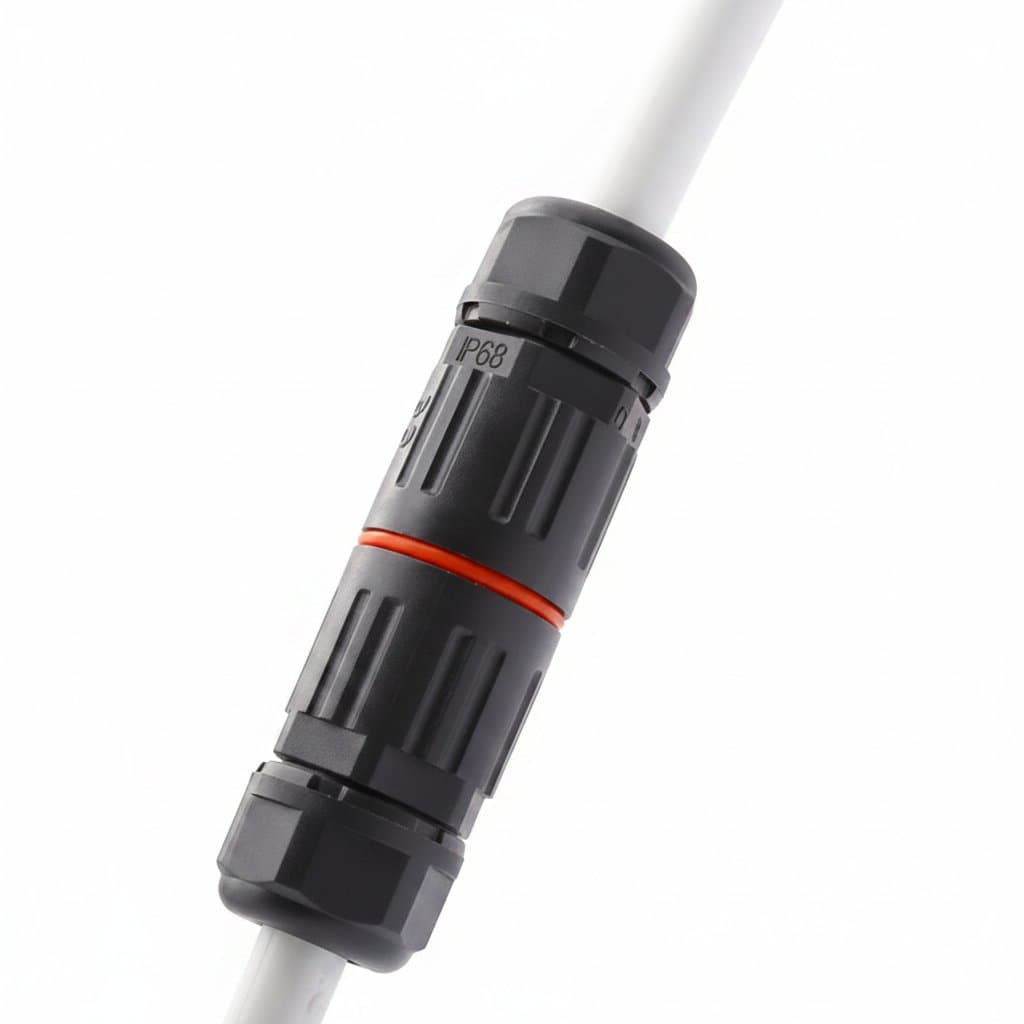

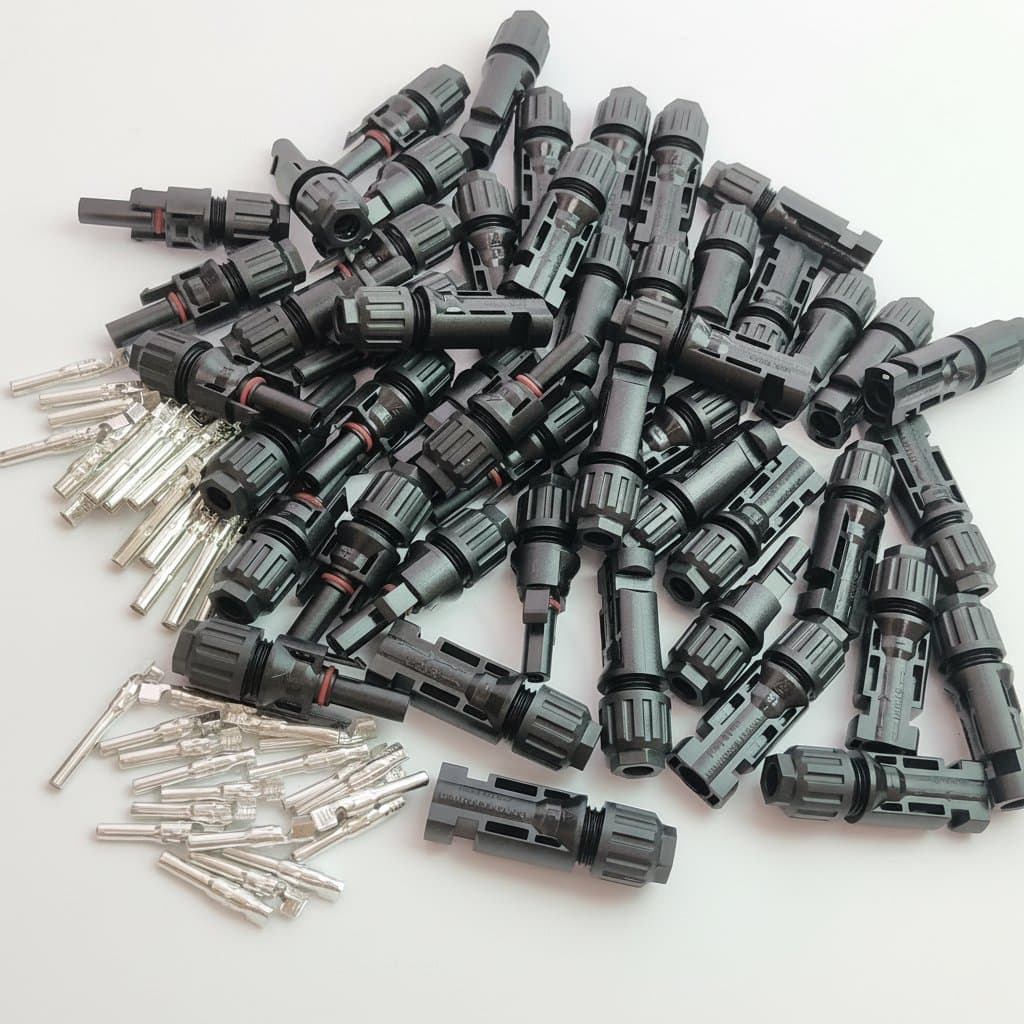

• IP68 Rated Housings: Keeps electrical contacts completely dry under continuous submersion, typical for outdoor lighting and industrial washdown zones.

Evaluating Housing and Contact Materials

Chemical resistance and electrical conductivity are determined by the raw materials of the connector. Poor material choice leads to premature failure, overheating, or corrosion. For structural integrity under thermal stress, look for Polyamide (PA66) or high-grade thermoplastic housings.

The plating on the contacts is equally important for maintaining low contact resistance over the lifespan of the connection.

• Contact Metals: Tin-plated copper alloy or nickel-plated brass offers high conductivity and resists oxidation in humid environments.
• Housing Polymers: Polyamide (PA66) provides excellent flame retardancy, impact resistance, and electrical insulation under continuous heat.
• Mounting Hardware: Nickel-plated steel nuts maintain structural hold on panel mounts without stripping threads.
