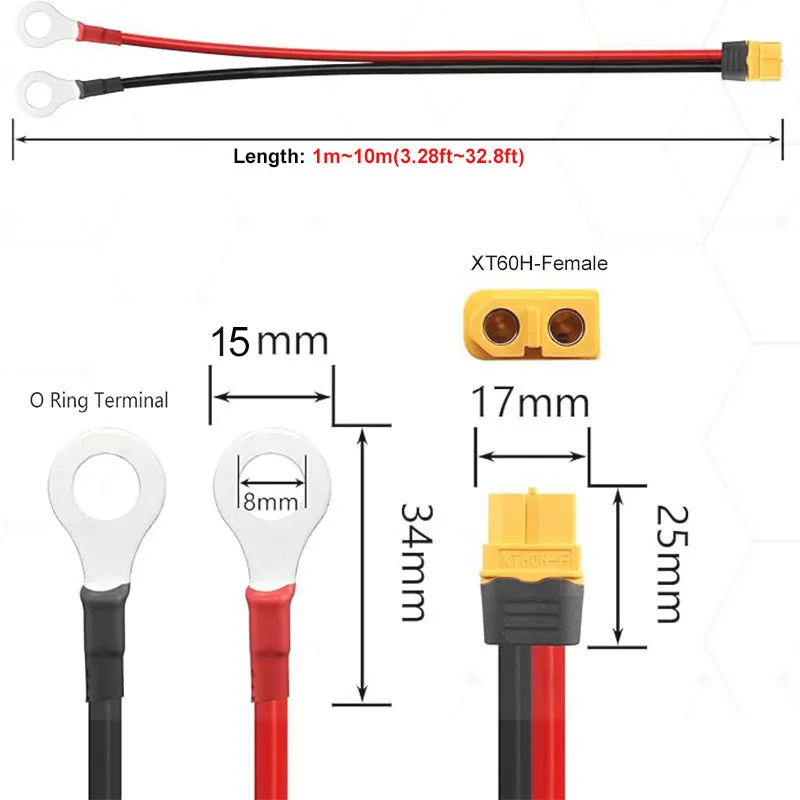

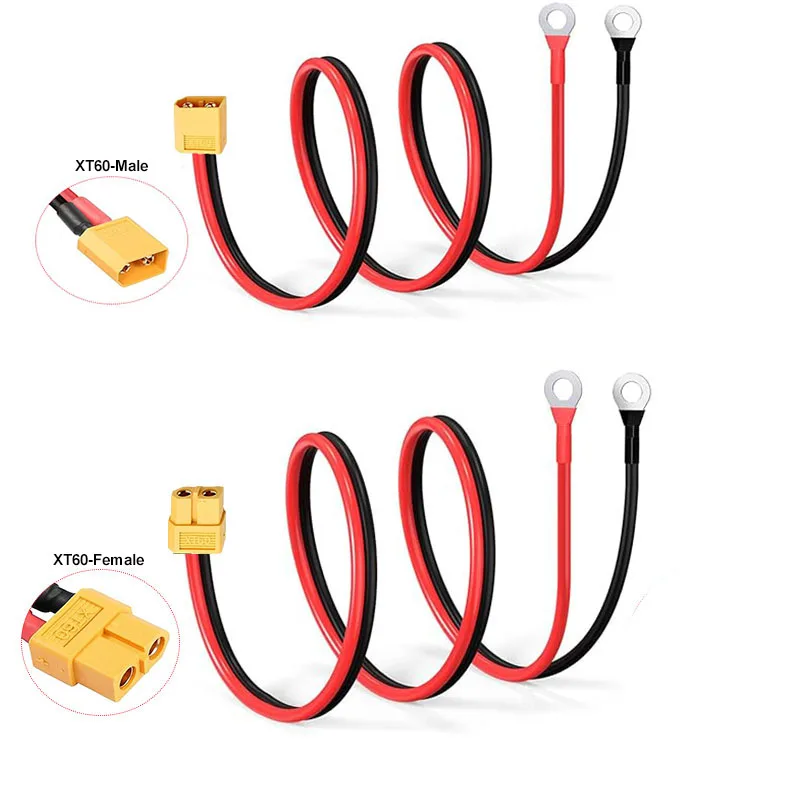

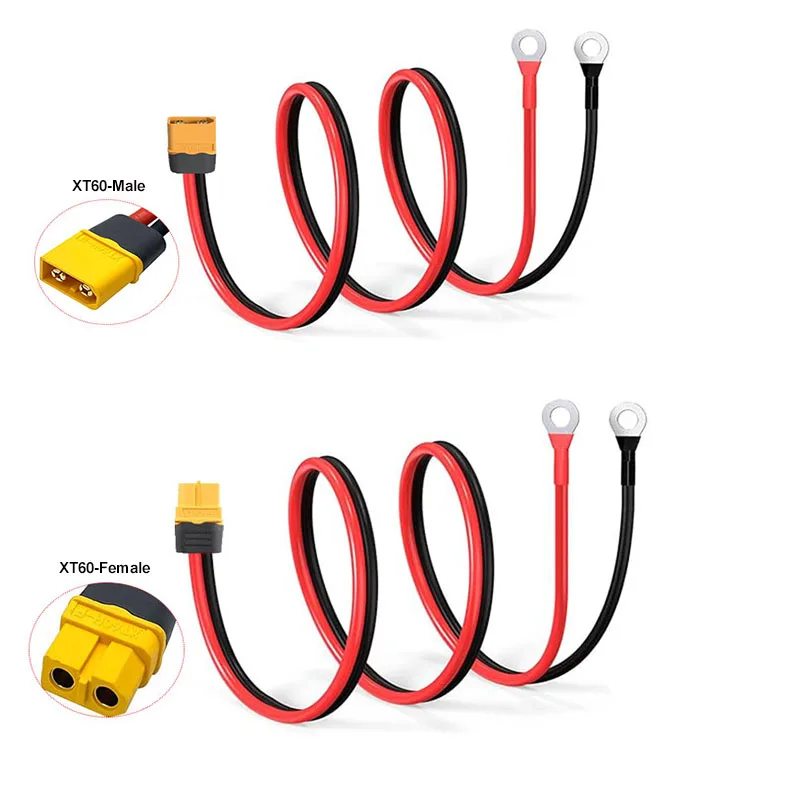

The XT60 to O-Ring Terminal Cable provides a robust, high-current connection between your power source and equipment. Featuring a secure XT60i female connector and a durable M8 O-ring terminal plug, this assembly is built for demanding applications. Choose from 1m to 10m lengths with high-flexibility 12AWG or 10AWG silicone cable to handle up to 60A continuous current with minimal voltage drop. Features and Benefits
- XT60i Female & M8 O-Ring Terminal Plug - Ensures a secure, vibration-resistant connection that prevents accidental disconnection in mobile or high-vibration environments

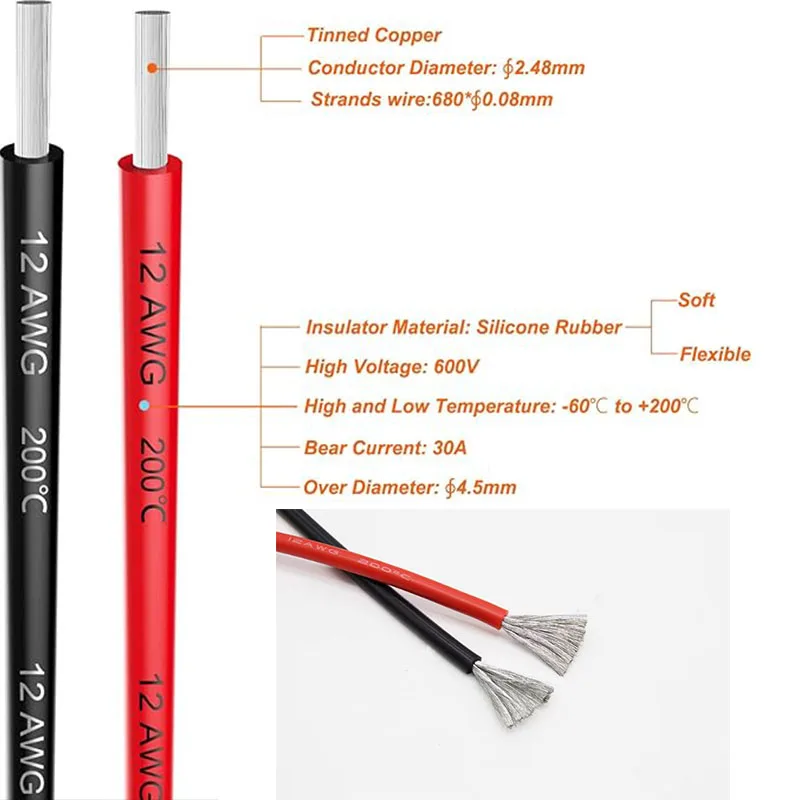

- 12AWG or 10AWG High-Temp Silicone Cable - Offers superior flexibility, extreme temperature resistance (-60°C to 200°C), and excellent current capacity for efficient power transfer
- Precision Soldered & Insulated Connections - Provides reliable, low-resistance joints with heat-shrink insulation for enhanced safety and durability
- Customizable Length (1m to 10m) - Allows you to select the exact cable run needed for your project, reducing clutter and optimizing installation
- Gold-Plated XT60 Contacts - Minimizes connection resistance and prevents corrosion for consistent, long-term performance Applications
- Electric Skateboards & EUCs - Directly connect battery packs to motor controllers for a clean, professional wiring setup
- Custom Drone & FPV Builds - Power high-current video transmitters, LED arrays, or auxiliary systems from your main LiPo battery
- Solar Power & Off-Grid Systems - Link charge controllers to battery banks or inverters with a weather-resistant, high-amperage cable
- RC Car & Boat Modifications - Upgrade power delivery between batteries and speed controllers for improved performance and reliability
Cable Insulation Material: Silicone Rubber. Rated Voltage: 600 V DC. Application: Power Transmission. Cable Gauge: 12 AWG, 10 AWG. Cable Length: 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m. Conductor Type: Stranded. Connector Type: XT60i Female to M8 O-Ring Terminal Plug. Terminal Type: O-Ring (M8 Stud). Cable Length Options: 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m. Terminal Stud Size: M8 (8mm diameter). Cable Insulation Material: Silicone Rubber. Connector Housing Material: Thermoplastic (likely glass-filled nylon for XT60i). Contact Material: Brass, gold-plated (typical for XT60). Rated Voltage: 600V AC/DC. Connector Type (Output): M8 O-Ring Terminal Plug. Operating Temperature Range (Cable): -60°C to +200°C (typical for silicone). Current Rating (10AWG): ~45-55A (estimated based on silicone insulation and typical ratings). Current Rating (12AWG): ~30-40A (estimated based on silicone insulation and typical ratings). Application: High-current DC power transmission (e.g., battery, solar, EV, robotics). Cable Conductor: Stranded Copper. Cable Flexibility: High (inherent property of silicone insulation). Cable Gauge: 12 AWG or 10 AWG. Connector Type (Input): XT60i Female. Flame Resistance: Likely self-extinguishing (common for high-grade silicone). Polarity: Presumed polarized via XT60i keying. Terminal Type: O-Ring (Sealed) Spade Terminal. Water/Dust Resistance (Connector): IP67 or higher (inferred from O-Ring terminal design). Q: What are the specifications for the XT60 to O-Ring Terminal cable? A: This cable features a female XT60i connector on one end and an M8 O-Ring terminal plug on the other. It is available in lengths from 1 to 10 meters, with a choice of 12AWG or 10AWG high-flexibility silicone cable rated for voltages up to 600V.. Q: How durable is the silicone cable and the XT60i connector? A: The cable is built with high-quality, stranded silicone wire that is extremely flexible, abrasion-resistant, and handles a wide temperature range. The XT60i female connector is designed for a secure, anti-spark connection, ensuring long-term reliability in demanding applications.. Q: What is this XT60 to M8 O-Ring cable typically used for? A: This cable is ideal for connecting high-power devices like lithium battery packs, solar charge controllers, or high-output power supplies to equipment with an M8 terminal block. It's commonly used in electric vehicles, robotics, and high-power DIY electronics projects.. Q: Does this product come with a warranty or guarantee? A: Yes, this product is backed by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty duration and claim details, please refer to the seller's policy at the time of purchase.. Q: Is this XT60 to O-Ring Terminal cable a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its robust silicone cable and secure connectors at a competitive price point..
