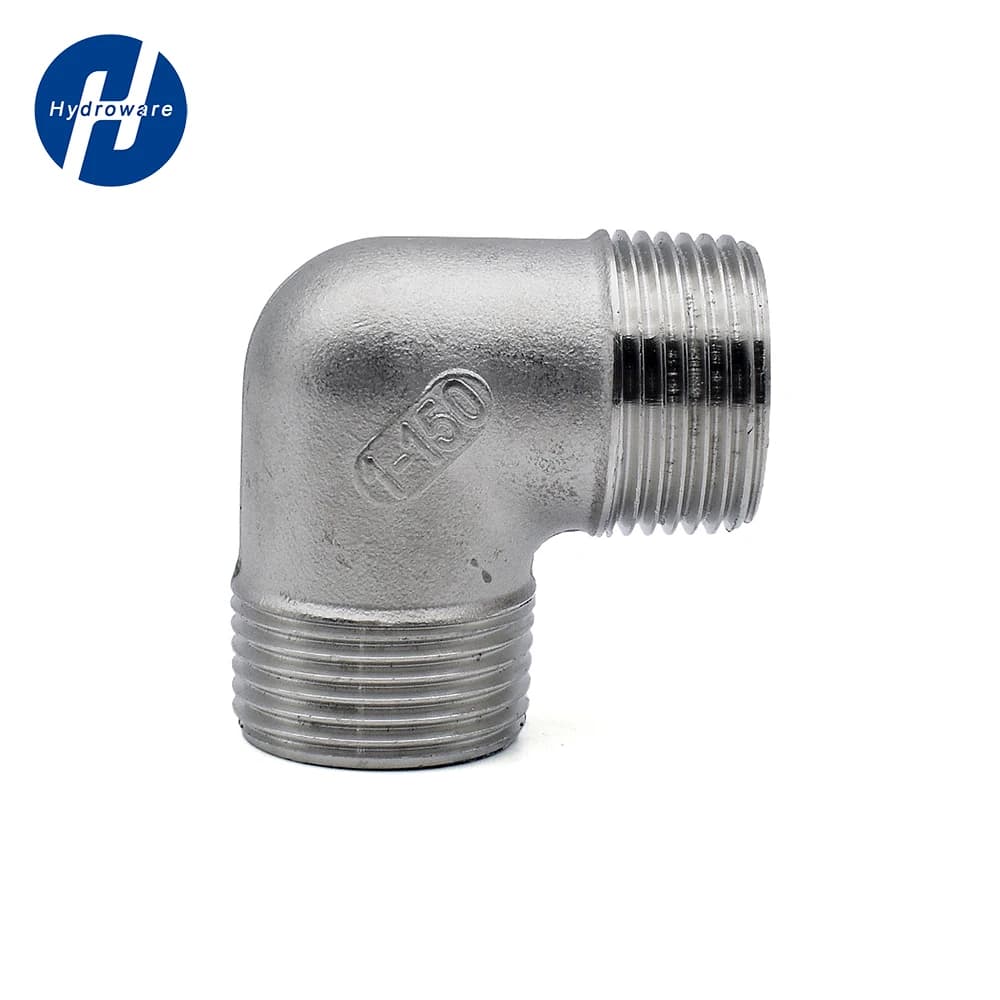

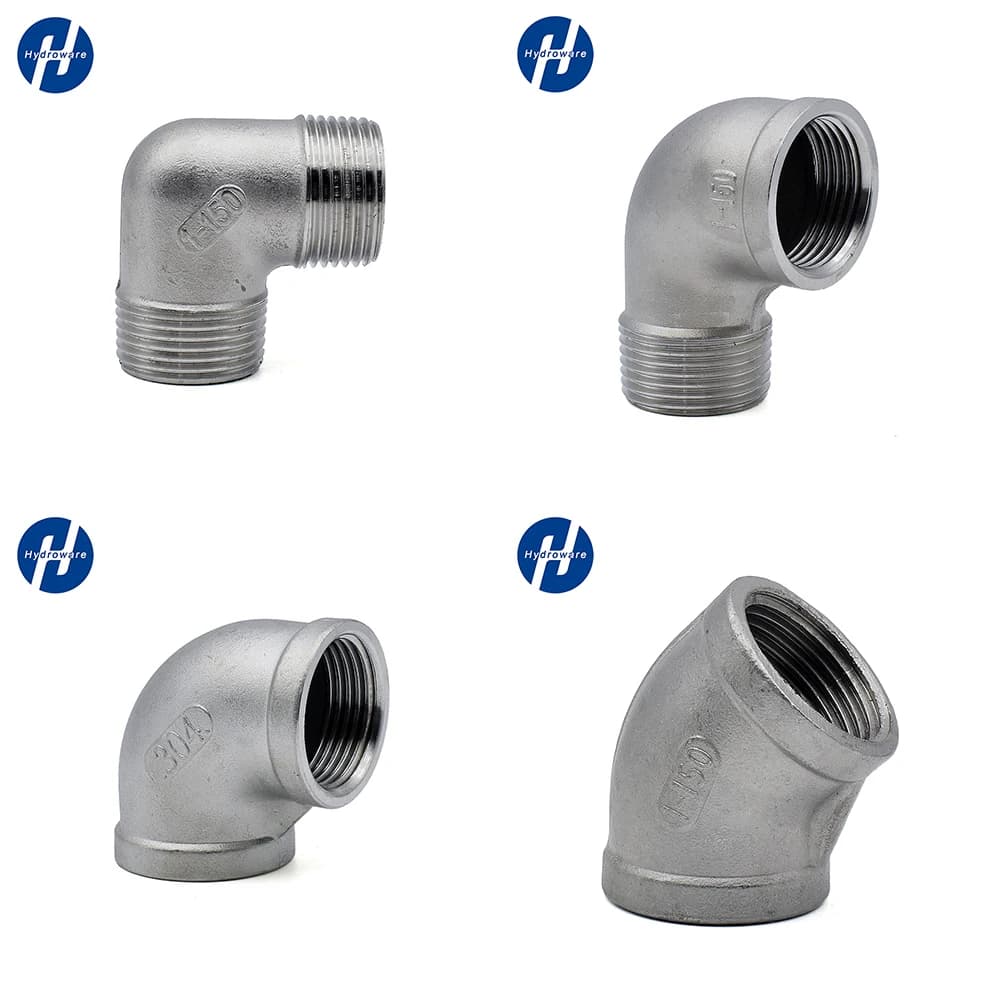

The BSP 304 stainless steel male threaded elbow female connector provides a durable 45 or 90-degree directional change for pressurized fluid systems. Constructed from corrosion-resistant 304 stainless steel, this pipe connector ensures reliable performance in demanding environments with a secure, leak-resistant seal at every connection point. Features and Benefits
- 304 Stainless Steel Construction - Offers superior corrosion resistance compared to standard steel, ensuring long-term durability in wet, chemical, or outdoor applications.
- BSP Male to Female Threaded Design - Creates a secure, pressure-tight seal between pipes and components, preventing leaks in critical system junctions.
- 45 and 90 Degree Elbow Options - Provides precise directional control for complex plumbing, pneumatic, or hydraulic layouts, saving space and reducing hose stress.
- Precision Machined Threads - Ensures smooth, cross-thread-free installation and a perfect seal with compatible BSP threaded fittings and adapters.
- Solid Butt Adapter Design - Features a robust, one-piece construction for maximum strength at the joint, resisting vibration and pressure fatigue. Applications
- Industrial Plumbing and Pneumatics - Ideal for directing air or fluid lines in factory machinery, compressed air systems, and processing equipment.
- Marine and Irrigation Systems - Perfect for corrosion-resistant connections in saltwater environments, agricultural sprayers, and outdoor water distribution.
- DIY and Workshop Projects - An excellent choice for building custom air compressor setups, hydraulic test benches, or high-pressure fluid transfer systems.
Nominal Pipe Size: 3/4 inch NPS. Material: Stainless Steel (Grade 304). Angle: 45° and 90° variants. Connection Type 1: Male Thread (NPT or BSPT). Connection Type 2: Female Thread (NPT or BSPT). Thread Standard: BSP (British Standard Pipe). Pressure: <850 kPa. Hose Inner Diameter: 26mm. Material: Stainless Steel (Grade 304). Compatibility: Connects threaded piping systems to welded piping systems. Temperature Rating (Estimated): -20°F to 400°F (-29°C to 204°C) for continuous service. Dimensional Standard: ASME B16.9 (Factory-Made Wrought Butt welding Fittings). Pressure Rating (Estimated): 150 PSI (1034 kPa) minimum, typical for Schedule 40 fittings. Standards Compliance: ASTM A403 (Wrought Austenitic Stainless Steel Piping Fittings). Thread Standard: Likely NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper). Connection Type 1: Male Thread (NPT or BSPT). Connection Type 2: Female Socket (Butt Weld). Corrosion Resistance: Good resistance to oxidation and mild corrosive environments. Elbow Angle Options: 45 Degree, 90 Degree. Installation Method: Thread engagement and circumferential butt weld. Intended Service: Industrial fluid and gas conveyance systems. Primary Application: Pipe Direction Change and Connection Transition. Product Type: Male Threaded Elbow to Female Connector Butt Adapter. Surface Finish: Mill finish or polished, typical for 304 stainless fittings. Q: What are the specifications and dimensions of the BSP 304 stainless steel threaded elbow? A: This product is a BSP (British Standard Pipe) threaded elbow connector made from 304 stainless steel. It is available in both 45 and 90-degree angles, designed to change the direction of a pipe run with a male-to-female threaded connection.. Q: How durable is this 304 stainless steel pipe elbow connector? A: The 304 stainless steel construction provides excellent durability and corrosion resistance, making it suitable for demanding plumbing and HVAC applications. It is designed to withstand high pressure and temperature variations for long-term reliability.. Q: Is this BSP threaded elbow compatible with NPT pipe fittings? A: No, BSP (British Standard Pipe) and NPT (National Pipe Tapered) threads are not directly compatible. This elbow is specifically designed for systems using BSP thread standards, so ensure your existing pipes and fittings match this specification before purchase.. Q: Does this pipe connector come with any warranty or guarantee? A: This product is backed by a standard manufacturer's guarantee against material and workmanship defects. For specific warranty duration and claim details, please refer to the seller's policy at the time of purchase.. Q: Is this a good value stainless steel elbow compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its durable 304 stainless steel construction..
