What connections does this brass ball valve accept?

It has G1/8 to G3/8 female parallel (BSPP) threaded ports plus 8mm or 10mm barb fittings. So you can join rigid threaded lines or push on flexible tubing without extra adapters. Pick the port size that matches your system.

What pressure and temperature can it handle?

It runs at about 150 PSI working pressure with a higher burst margin around 300 PSI. The PTFE seals hold from -20C up to 120C. That covers most water, air, and general fluid jobs in this size range.

How does this valve control flow?

It is a quarter-turn ball valve, so a 90-degree lever flip opens or closes it fast. The full-bore design keeps flow restriction and pressure drop low. The handle shows open or closed position at a glance.

Brass Ball Valve | G1/8-G3/8 Thread & 8-10mm Barb Fittings for Secure Plumbing Connections

Name: Brass Ball Valve | G1/8-G3/8 Thread & 8-10mm Barb Fittings for Secure Plumbing Connections
Brand: Compel
SKU: PLUM-00013
Price: 11.99 USD
Availability: InStock

Stock #:TBS-03820

SKU:PLUM-00013

Brass Ball Valve | G1/8-G3/8 Thread & 8-10mm Barb Fittings for Secure Plumbing Connections - Image 1

$11.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Thread SpecificationSelect an option

Color17 optionsSelect an option

Quantity

Brass Ball Valve | G1/8-G3/8 Thread & 8-10mm Barb Fittings for Secure Plumbing Connections

$11.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What connections does this brass ball valve accept?: It has G1/8 to G3/8 female parallel (BSPP) threaded ports plus 8mm or 10mm barb fittings. So you can join rigid threaded lines or push on flexible tubing without extra adapters. Pick the port size that matches your system.
What pressure and temperature can it handle?: It runs at about 150 PSI working pressure with a higher burst margin around 300 PSI. The PTFE seals hold from -20C up to 120C. That covers most water, air, and general fluid jobs in this size range.
How does this valve control flow?: It is a quarter-turn ball valve, so a 90-degree lever flip opens or closes it fast. The full-bore design keeps flow restriction and pressure drop low. The handle shows open or closed position at a glance.

Plumbing & HVAC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare plumbing & hvac

This product

Premium brass ball valve with G1/8 to G3/8 threaded ports and 8-10mm barb fittings for secure plumbing and fluid control.

Brass Ball Valve | G1/8-G3/8 Thread & 8-10mm Barb Fittings for Secure Plumbing Connections

Price$11.99

Rating5.0

Sold47+

Stock In stock

You're viewing this

Alternative

Brass barb pipe fitting connector with 2, 3, and 4 way outlets for flexible water tubing in sizes from 4mm to 19mm.

Brass Hose Barb Fittings | 4mm to 19mm Connectors for Water & Air Lines

Price$15.99

Rating5.0

Sold46+

Stock In stock

View

Alternative

Brass hex bushing reducer pipe fitting with 1/8, 1/4, 3/8, 1/2, and 3/4 inch female to male threaded connections for water and gas lines.

Brass Pipe Reducer Fitting | 1/8 to 3/4 NPT Threaded Adapter for Water & Gas Lines

Price$5.95

Rating4.9

Sold2,000+

Stock In stock

View

Alternative

1/8 inch Male to Female Brass Pipe Coupler Adapter with durable threaded fittings for plumbing and HVAC connections.

Brass Pipe Fitting | 1/8 Male to Female Threaded Coupler | Durable Plumbing Adapter

Price$5.95

Rating4.8

Sold1,000+

Stock In stock

View

Alternative

Brass hex bushing reducer pipe fitting with 1/8 to 1/2 inch female to male threads for water and gas line connections

Brass Pipe Fitting | Threaded Reducer Coupler | 1/8 to 3/4 NPT Adapter for Water & Gas

Price$5.95

Rating4.9

Sold700+

Stock In stock

View

Alternative

Brass pipe hex nipple fitting quick adapter with 1/8 inch NPT threads for secure plumbing and HVAC connections.

Brass Pipe Fitting | 1/8 Hex Nipple Quick-Connect Adapter

Price$7.95

Rating5.0

Sold104+

Stock In stock

View

Alternative

Brass R410a air conditioner adapter fitting with 1/4 inch SAE flare connection for HVAC installation and refrigerant service.

HVAC Brass Fitting | R410a AC Adapter | 1/4 SAE Flare Connection

Price$10.99

Rating4.5

Sold9+

Stock In stock

View

Compare options

More Plumbing & HVAC

All Plumbing & HVAC

$LIBRATON Tube Bender, Pipe Bender, 3-IN-1, 1/4\$

LIBRATON Tube Bender, Pipe Bender, 3-IN-1, 1/4\

4.9

$25.95

PEX & PPR Pipe Calibrator | 16mm, 20mm, 25mm Internal/External Reamer | Plumbing Tool Kit

4.9

$11.99

PPR Pipe Fittings | 1/2, 3/4, 1 Hot-Melt Elbow & Tee Joints | Durable Plumbing Connectors

5.0

$7.95

-7%

Heavy-Duty 6-Inch Insulated Dryer Vent Hose | Flexible Aluminum Ducting for Heating & Cooling

4.9

$11.99$12.94

Stove Chimney Flue Pipe Kit | 90-Degree Elbow & Rain Cap | 50-60-70-80mm Sizes

4.9

$5.95

HVAC Copper Tube Expander & Reamer Kit | 1/4 to 3/4 Imperial Sizes | Hex Shank Rotary Tool

4.7

$16.99

-95%

304 Stainless Steel Pipe Fittings | 45° & 90° Male-to-Female Elbow Adapters

$7.95$152.75

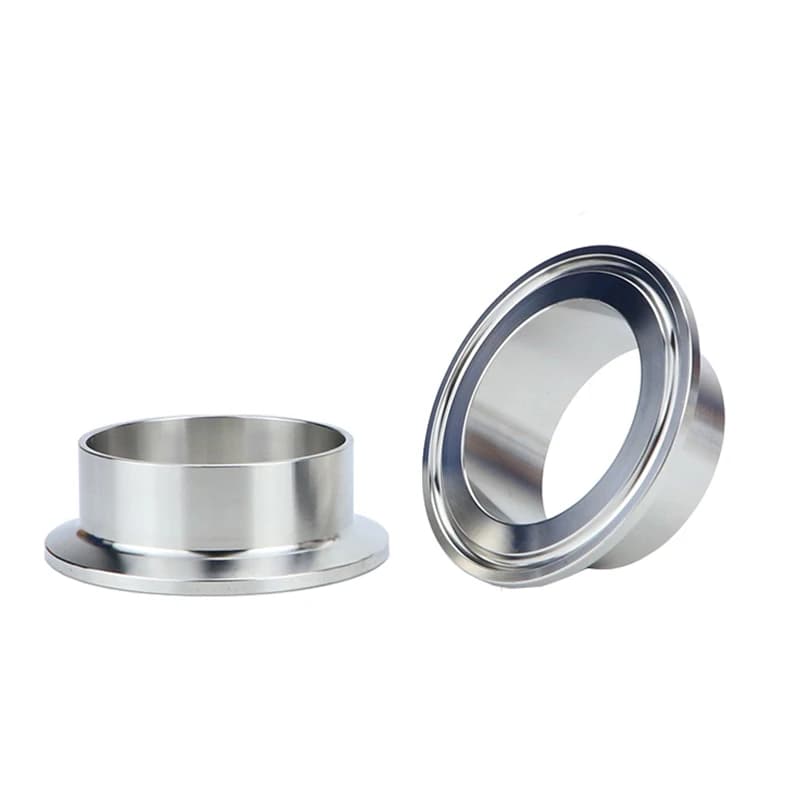

Tri-Clamp Sanitary Fittings | 12.7mm-159mm OD | 304 Stainless Steel for Homebrewing & Food Grade

$23.95

Explore the range

Popular in Construction & Building

Browse Construction & Building

Resistant Gloves | ANSI Level 5 Protection | Nitrile Foam Grip

4.9(1.2K)

$12.99

Liquid Electrical Tape | Wire Sealing Epoxy | Sealants & Adhesives

4.9(3.9K)

$7.95

Brass Ball Valve Assortment | F/M Threaded Connectors | Industrial Pipe Fittings

4.9(2.0K)

$11.99

Steel Toe Boots | Anti-Smash & Stab-Resistant | Men's Heavy-Duty Work & Biker Boots

4.9

$76.99

IP68 Cable Connector | Waterproof Electrical Terminal Adapter

4.9(192)

$5.95

Distribution Box | 200A 220V 12-Port | Single/Three-Phase Junction

4.9(959)

$15.99

EJEAS V4PLUS/V6 PRO+ Earphone | Type-C Plug Motorcycle Helmet Headset | Optional Clip & Base

4.9(1.4K)

$18.99

Auto-Darkening Welding Helmet | True Color Lens | High Temp Resistant

4.9(933)

$25.95

16A/32A Commando Socket | IP44 Waterproof Plug | 3/4/5 Pin Wall Mount

4.9(782)

$9.95

Smart ZigBee 3.0 Radiator Valve Thermostatic | Alexa & Google Home Control | Energy Saving

4.9(2.0K)

$45.95

Defenders for Shooting | Active Noise Reduction | Sound Amplification

4.9(985)

$55.99

Heavy-Duty Outdoor Extension Cord | 16A 3500W IP54 Waterproof Power Strip | 3-Outlet Weatherproof

4.9

$11.99

Engineered for precision control in demanding fluid systems, these brass ball valves feature durable G1/8 to G3/8 threaded ports and 8-10mm barb fittings for a secure, leak-resistant seal. The full-port design ensures minimal flow restriction, providing reliable on/off operation with a simple 90-degree turn for consistent performance in various pressure environments. Features and Benefits - Solid Brass Construction - Offers superior corrosion resistance and long-term durability compared to plastic or composite valves, ensuring reliable service in diverse conditions. - Dual-Port Compatibility (G1/8 - G3/8 Threads & 8-10mm Barbs) - Provides exceptional installation versatility, allowing direct connection to both threaded systems and flexible tubing without the need for multiple adapters. - Full-Bore Flow Design - Minimizes pressure drop and turbulence within the valve body, enabling efficient fluid transfer and reducing strain on connected pumps or compressors. - Chromed Brass Handle with Clear Open/Close Indicator - Delivers a positive, non-slip grip and immediate visual confirmation of valve position for safe and accurate operation. - High-Temperature Buna-N Seals - Ensure a reliable seal and smooth operation across a wide temperature range, maintaining integrity in both hot and cold fluid applications. Applications - Compressed Air and Pneumatic Systems - Ideal for installing reliable shut-off points in workshop air lines, control panels, or tool feeds. - Liquid Cooling Loops and Hydraulics - Perfect for managing flow in PC water cooling systems, industrial machinery cooling, or low-pressure hydraulic setups. - Irrigation and Fluid Transfer Systems - Provides dependable flow control for garden irrigation, aquarium plumbing, or DIY fluid transfer projects. - Automotive and Marine Fuel/Oil Lines - Suitable for auxiliary fuel systems, oil catch cans, or other low-pressure fluid management tasks where brass compatibility is required.

Thread Size Range: G1/8 to G3/8. Barb Size Range: 8 mm to 10 mm. Body Material: Brass. Seal Material: PTFE (Standard for brass ball valves). Connection Type 1: Threaded (Female). Connection Type 2: Barbed. Flow Pattern: Full Port (Standard for ball valves). Handle Type: Lever. Maximum Temperature: 120 °C (Standard for brass valves). Operating Pressure: 1.0 MPa (Standard for brass valves). Port Configuration: 2-Port (2-Way). Valve Operation: Quarter-Turn. Valve Type: Ball Valve. Barb Sizes: 8 mm, 10 mm (inner diameter). Inlet Thread Sizes: G1/8, G1/4, G3/8. Ball Material: Chrome-plated brass. Body Material: Brass (C36000 or equivalent free-machining alloy). Handle Material: Plastic or coated metal. Seat/Seal Material: PTFE (Polytetrafluoroethylene) or reinforced PTFE. Stem Material: Brass with O-ring seal. Operating Temperature Range: -20°C to 120°C (for PTFE seals). Connection Compatibility: Compatible with BSPP-threaded systems and flexible tubing. Maximum Pressure Rating: 300 PSI (20.7 bar) (inferred for brass construction). Operating Pressure: 150 PSI (10.3 bar) minimum working pressure. Thread Standards: BSPP (G) parallel threads. Corrosion Resistance: Natural corrosion resistance of brass; suitable for water, air, oil applications. End Connection Configuration: Male thread to barb. Flow Direction: Bi-directional. Handle Type: Lever handle (inferred for manual operation). Leakage Class: Class IV (Bubble-tight) per ANSI/FCI 70-2 (inferred standard). Outlet Connection Type: Barbed hose fitting. Port Type: Full port (inferred for standard ball valves). Product Type: Quarter-Turn Ball Valve. Valve Action: 90-degree turn for full open/close. Valve Pattern: 2-way, straight pattern. Q: What are the exact thread and barb fitting sizes for these brass ball valves? A: These brass ball valves feature versatile connection options with G1/8, G1/4, G3/8 internal threads and barb fittings sized for 8mm, 10mm, and 12mm tubing. This range allows for flexible integration into various plumbing and pneumatic systems.. Q: How durable is the brass construction of these ball valves for regular use? A: The valves are constructed from solid brass, which provides excellent corrosion resistance and long-term durability. This ensures reliable performance and leak-free operation in standard water, air, and gas applications.. Q: Can I use these brass ball valves for both plumbing and compressed air systems? A: Yes, these versatile brass ball valves are suitable for a wide range of applications. They are commonly used for controlling water flow in plumbing, as well as for managing air lines in pneumatic and compressor setups.. Q: Does this product come with any warranty or guarantee? A: This product is backed by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product listing or seller for the specific warranty period and terms.. Q: Is this brass ball valve a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its solid brass construction and versatile fitting sizes..
