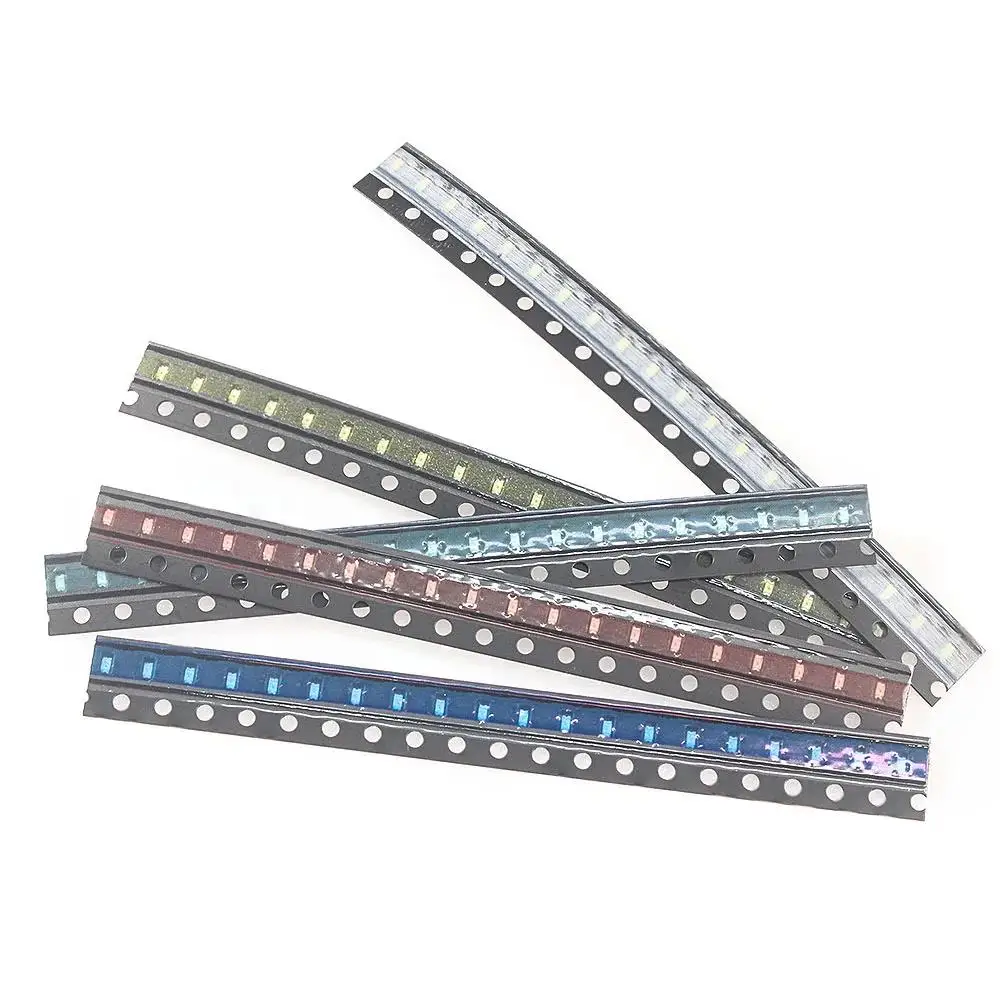

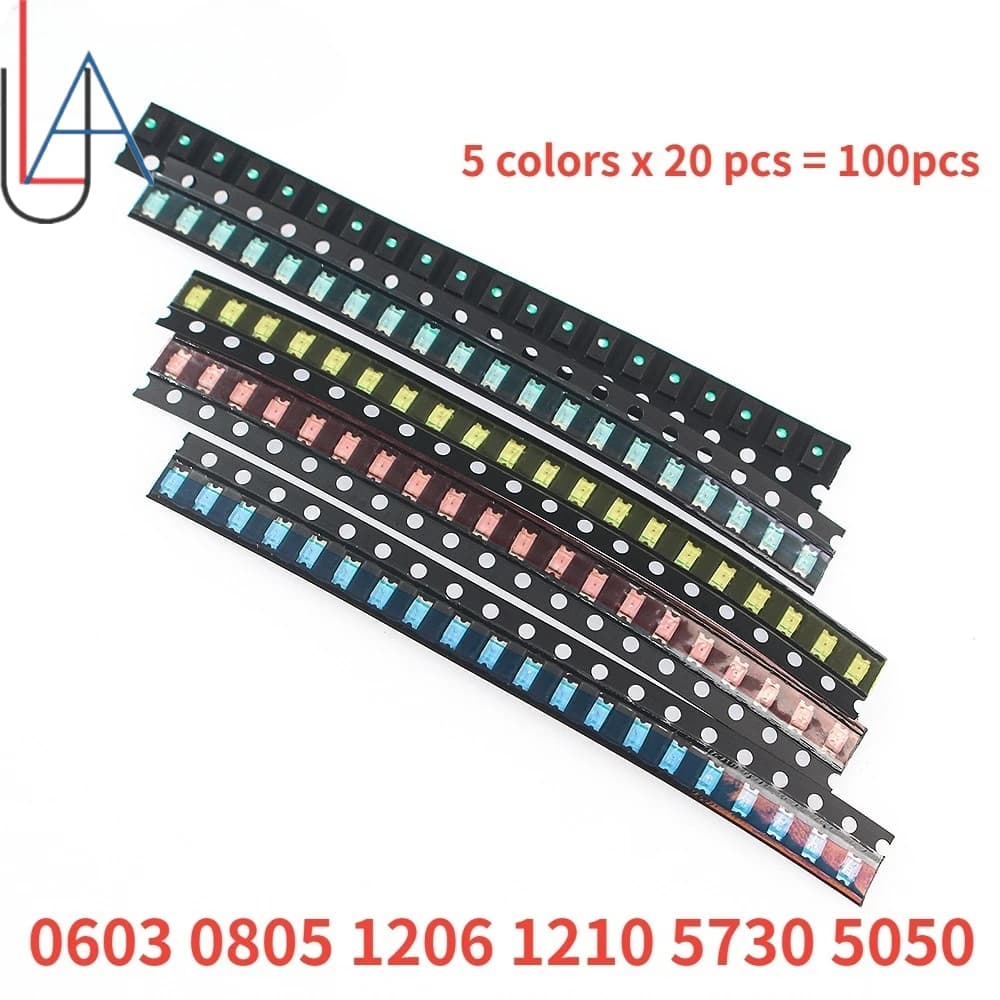

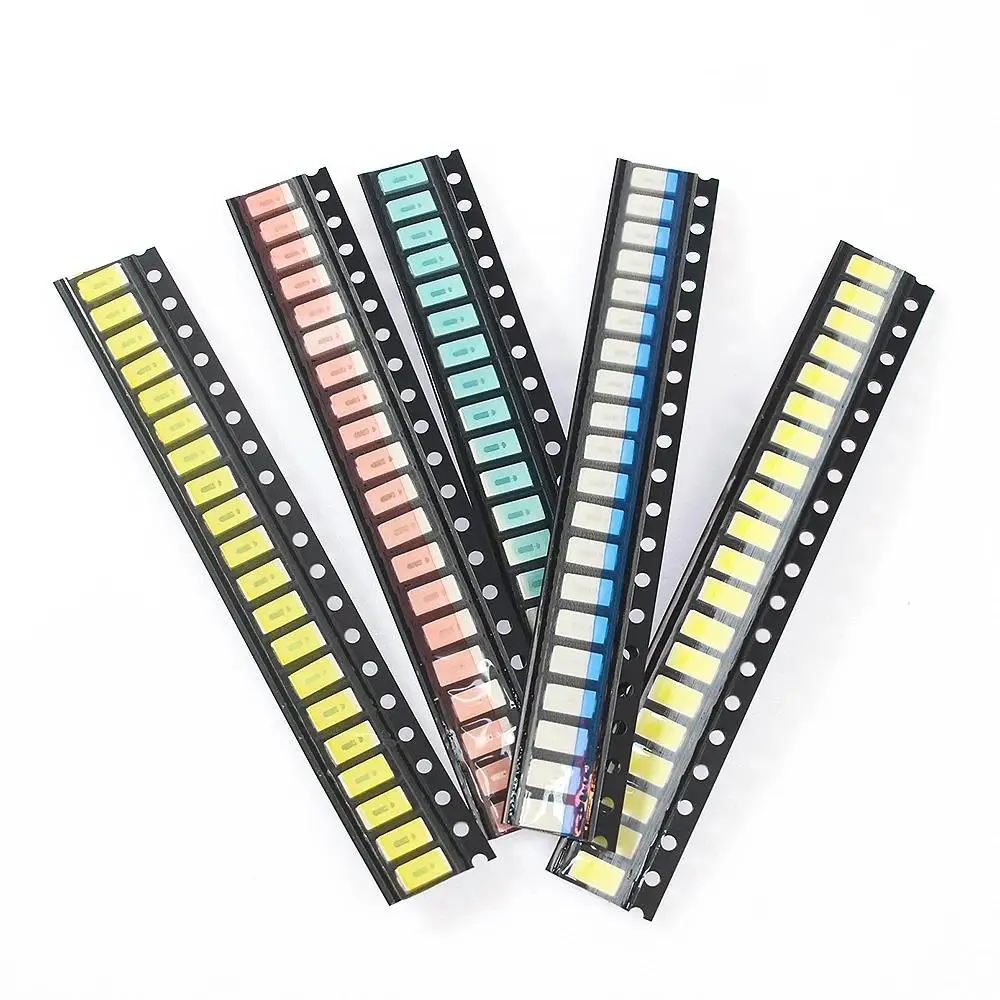

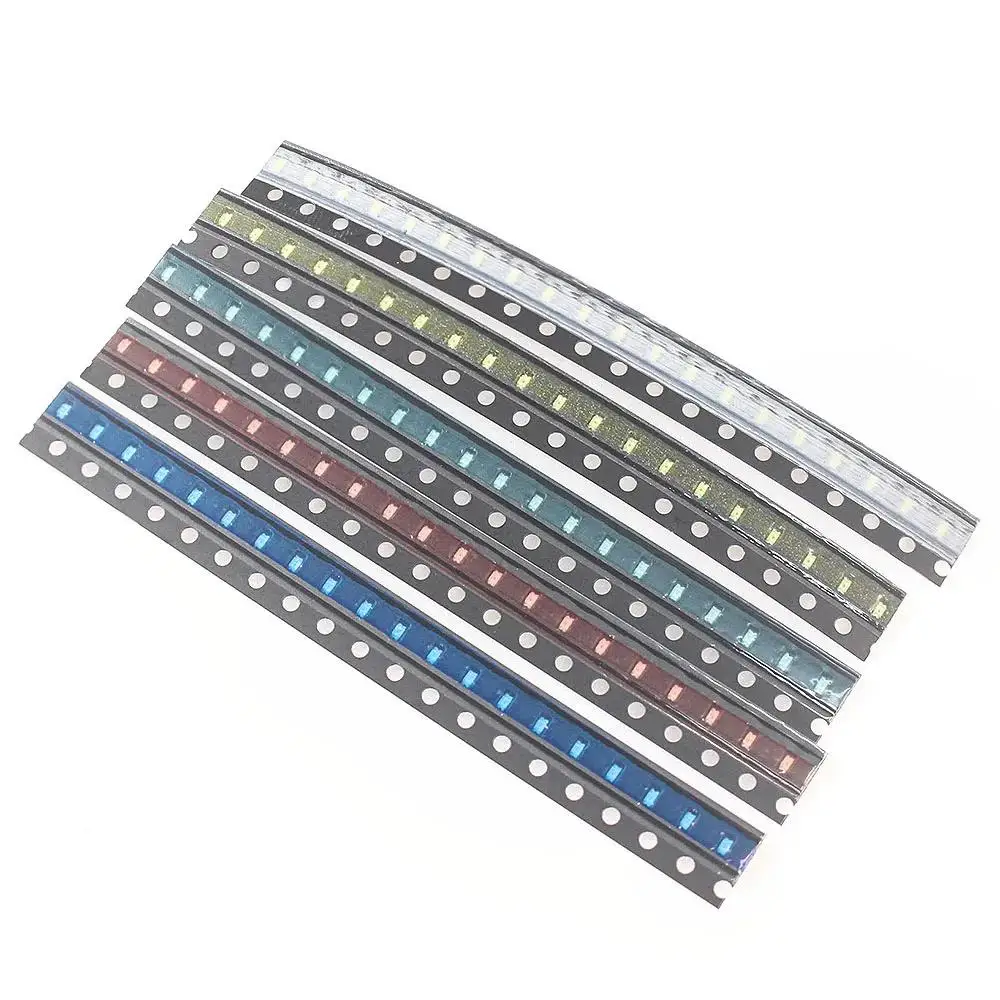

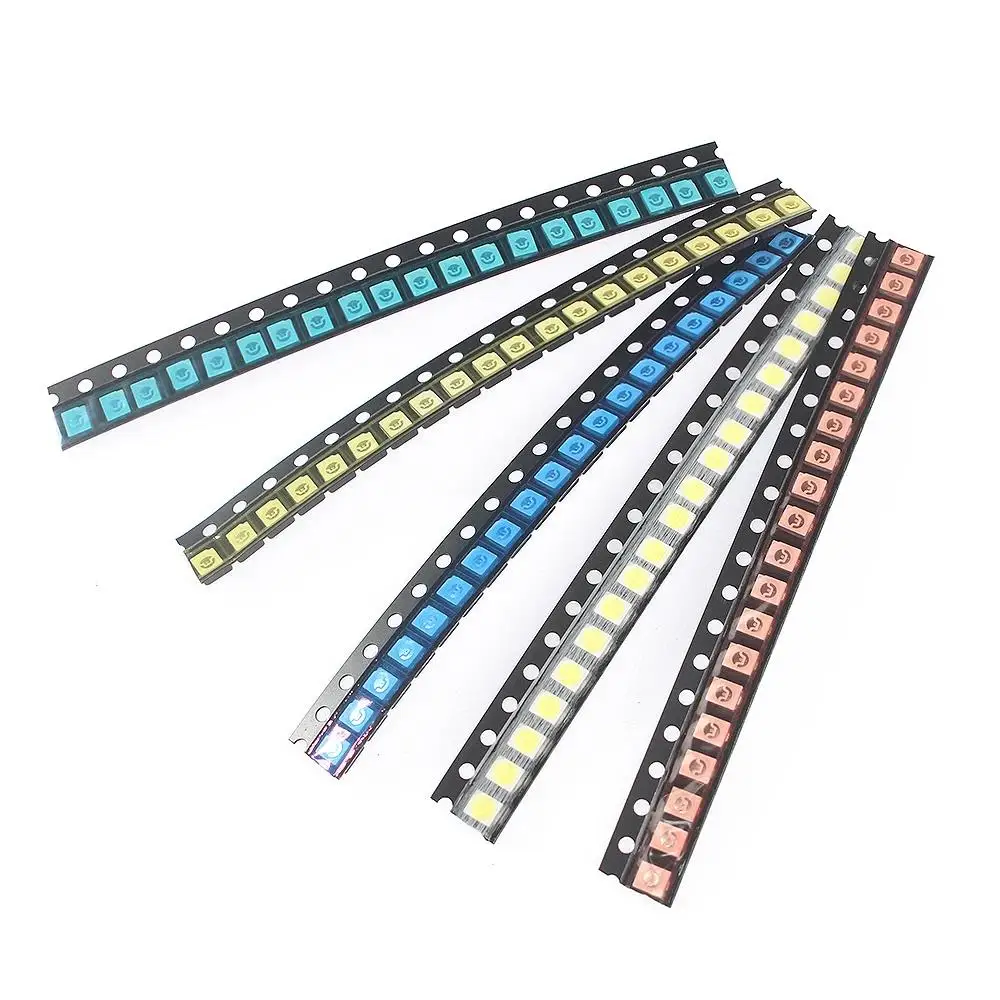

SMD LED Assortment Kit | 0603, 0805, 1206, 1210, 5730, 5050 Sizes | 5 Colors (Red, White, Yellow, Green, Blue)

Stock #:TBS-02840
SKU:PASS-00050
SMD LED Assortment Kit | 0603, 0805, 1206, 1210, 5730, 5050 Sizes | 5 Colors (Red, White, Yellow, Green, Blue) - Image 1
1 / 6
$7.95
Ships to United States · standard est. 10-20 business days
Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

The LUABEI 100pcs SMD LED kit provides a versatile selection of miniature LEDs in five essential colors and four industry-standard sizes. This comprehensive kit is ideal for prototyping, repairs, and ...

Select an option
1
$7.95
Fast Shipping
Secure Payment
Easy Returns

Good to know

Questions about this product

What specific SMD sizes and quantities do I get in this 100-piece kit?
You get a mix of six industry-standard sizes: 0603, 0805, 1206, 1210, 5730, and 5050. The kit contains 100 pieces total, distributed across five different colors. They arrive packaged on cut tape for easy storage and organized handling.
What are the voltage and current limits for these LEDs?
These LEDs run at a typical forward current of 20mA, so you must use current-limiting resistors. Red requires 1.8V to 2.2V, while white and blue need 2.8V to 3.4V. Keep your reverse voltage under the 5V maximum limit to prevent burning them out.
How hot can my soldering iron be when installing these SMD LEDs?
Keep your soldering iron or reflow oven temperature at or below 260°C during installation. Do not apply heat for longer than 10 seconds to avoid damaging the components. We also recommend standard electrostatic precautions, as these parts have a 2kV ESD limit.
