How does the 2-in-1 design make it easier to install this motor in my rig?

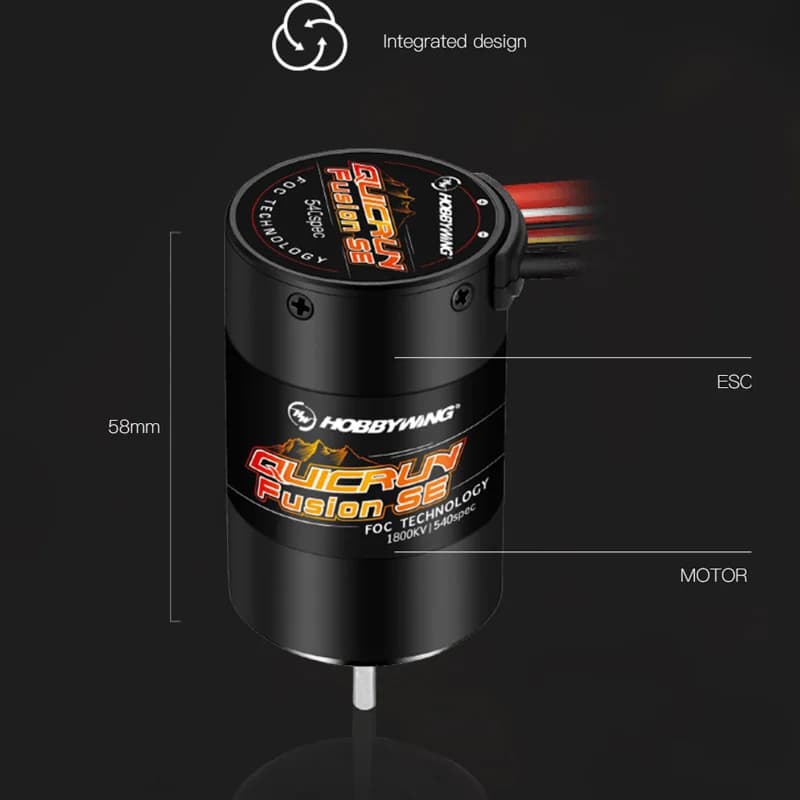

This unit combines the brushless motor and the 40A ESC into a single housing. You will not have to find a mounting spot for a separate speed controller. It dramatically cuts down on messy wiring inside your chassis and keeps your layout clean.

What batteries and gear sizes are compatible with this motor system?

You can power this system with a 2S or 3S LiPo battery using the pre-installed XT60 connector. It fits most 1/10 and 1/8 scale trail trucks. The motor features a standard 3.175mm shaft, so it works with common 1/8-inch pinion gears.

Can I run this motor in wet conditions, and what are its limits?

Yes, the unit is waterproof with an IPX4 or higher rating to handle mud and wet trails. However, you should avoid fully submerging the vehicle for long periods. Be sure to dry the components thoroughly after running in wet environments.

QuicRun Fusion SE Motor & ESC | 1200KV/1800KV Waterproof 2-in-1 | For 1/10 1/8 RC Car

Name: QuicRun Fusion SE Motor & ESC | 1200KV/1800KV Waterproof 2-in-1 | For 1/10 1/8 RC Car
Brand: Compel
SKU: REMO-00047
Price: 228.99 USD
Availability: InStock

Stock #:TBS-04816

SKU:REMO-00047

QuicRun Fusion SE Motor & ESC | 1200KV/1800KV Waterproof 2-in-1 | For 1/10 1/8 RC Car - Image 1

1 / 6

$228.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

OptionSelect an option

Quantity

QuicRun Fusion SE Motor & ESC | 1200KV/1800KV Waterproof 2-in-1 | For 1/10 1/8 RC Car

$228.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How does the 2-in-1 design make it easier to install this motor in my rig?: This unit combines the brushless motor and the 40A ESC into a single housing. You will not have to find a mounting spot for a separate speed controller. It dramatically cuts down on messy wiring inside your chassis and keeps your layout clean.
What batteries and gear sizes are compatible with this motor system?: You can power this system with a 2S or 3S LiPo battery using the pre-installed XT60 connector. It fits most 1/10 and 1/8 scale trail trucks. The motor features a standard 3.175mm shaft, so it works with common 1/8-inch pinion gears.
Can I run this motor in wet conditions, and what are its limits?: Yes, the unit is waterproof with an IPX4 or higher rating to handle mud and wet trails. However, you should avoid fully submerging the vehicle for long periods. Be sure to dry the components thoroughly after running in wet environments.

Remote Control spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Compare options

More Remote Control

All Remote Control

MCCB Circuit Breaker | 2-Pole 10-250A | Overload & Short Circuit Protection

5.0

$95.99

-46%

DIN Rail Terminal Block Kit | PT2.5 Push-In Connectors | Modular Jumper & Marker Set

5.0

$109.99$205.46

Manual Hydraulic Rebar Bender | Heavy-Duty Steel Bar Bending for 10-14mm Threaded Rod

5.0

$202.99

6C PRO Flight Controller | 32-Bit Autopilot with 4G | For Copter, Plane, Rover

4.0

$469.99

-42%

50A Plasma Cutter | Dual Voltage 110V/220V | Digital IGBT Inverter with Pilot Arc

$366.99$634.08

Schaukel-Spielset mit Seilleiter | 5,6 Fuß, 5 Stufen, 220 Pfund | Kinder-Kletterseilleiter aus Holz

$109.99

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

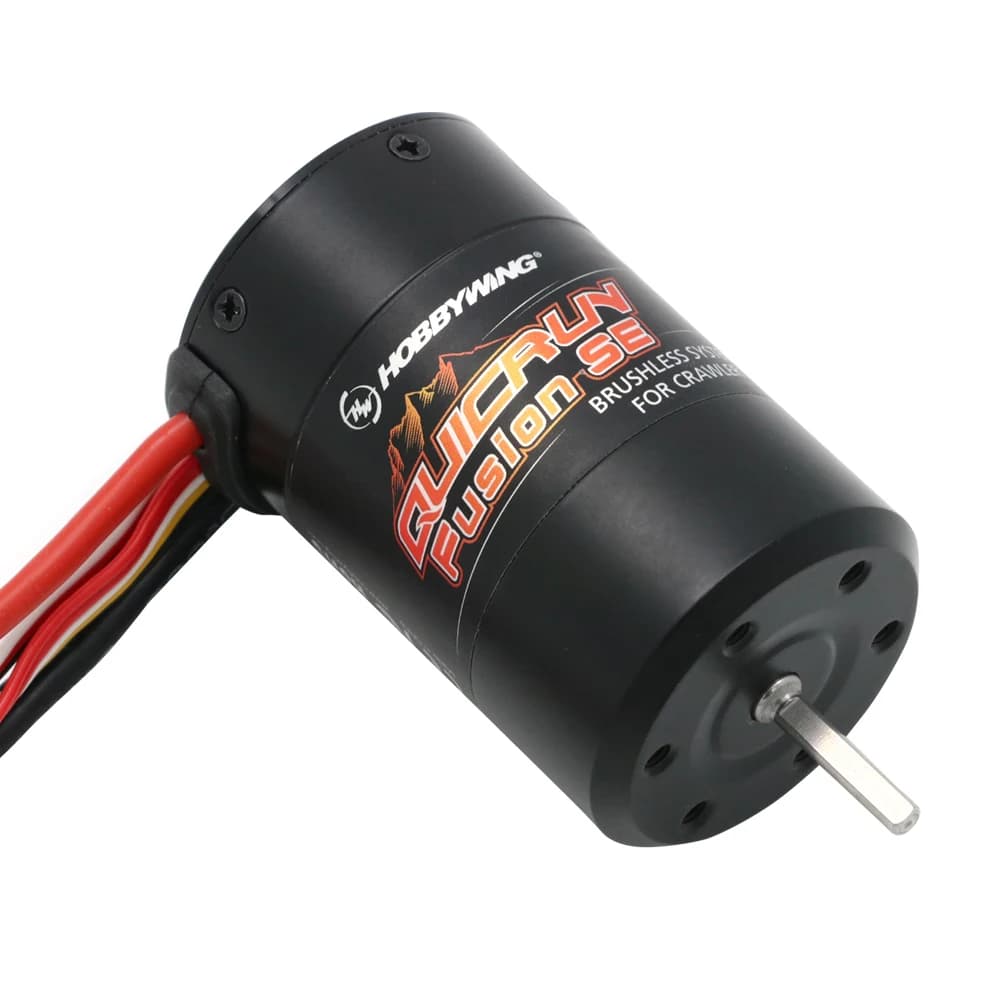

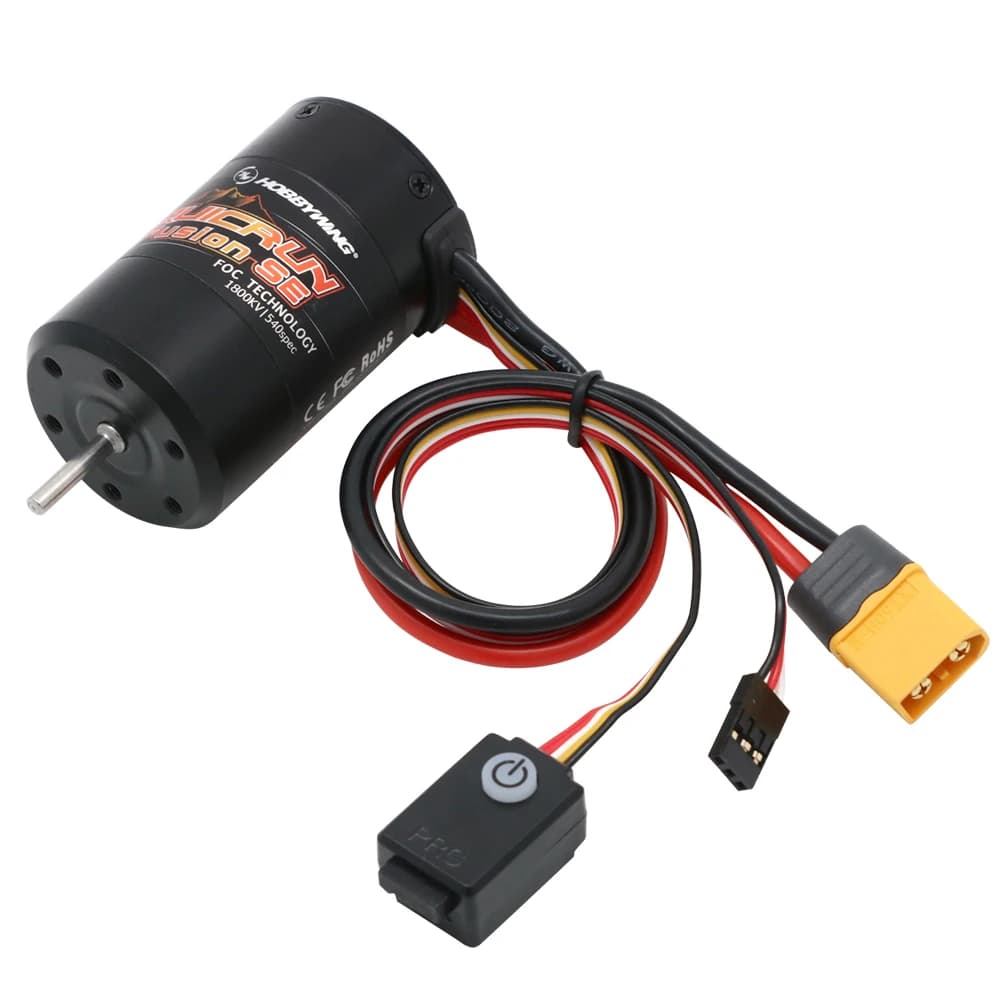

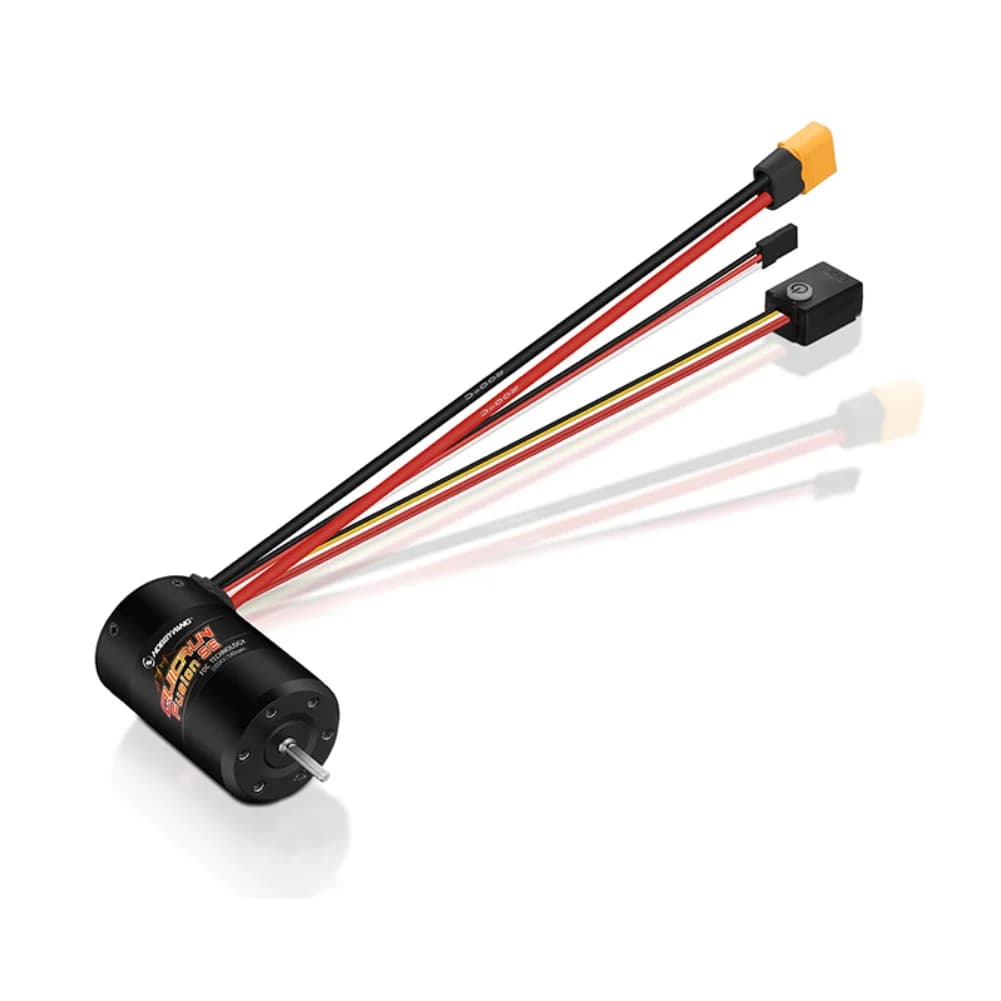

The Hobbywing QuicRun Fusion SE is a revolutionary 2-in-1 power system integrating a sensored brushless motor with a 40A ESC. This waterproof unit delivers smooth, torque-rich power from low to high speeds, making it perfect for 1/10 to 1/8 scale crawlers and trail trucks where control and reliability are paramount. Features and Benefits - Integrated Sensored Brushless Motor and 40A ESC - Simplifies installation, reduces wiring, and ensures perfect electronic compatibility. - Waterproof and Dustproof Design - Provides robust protection for reliable operation in wet, muddy, or dusty off-road conditions. - Selectable 1200KV or 1800KV Options - Allows customization for high-torque crawling (1200KV) or faster trail running (1800KV). - Smooth Low-Speed Control and High Torque - Enables precise throttle modulation for technical climbs and stable, controlled descents. Applications - Primary drive system for 1/10 scale rock crawlers and trail trucks - Powering scale adventure and overlanding RC vehicles - Upgrading entry-level monster trucks or short-course trucks for improved low-speed control

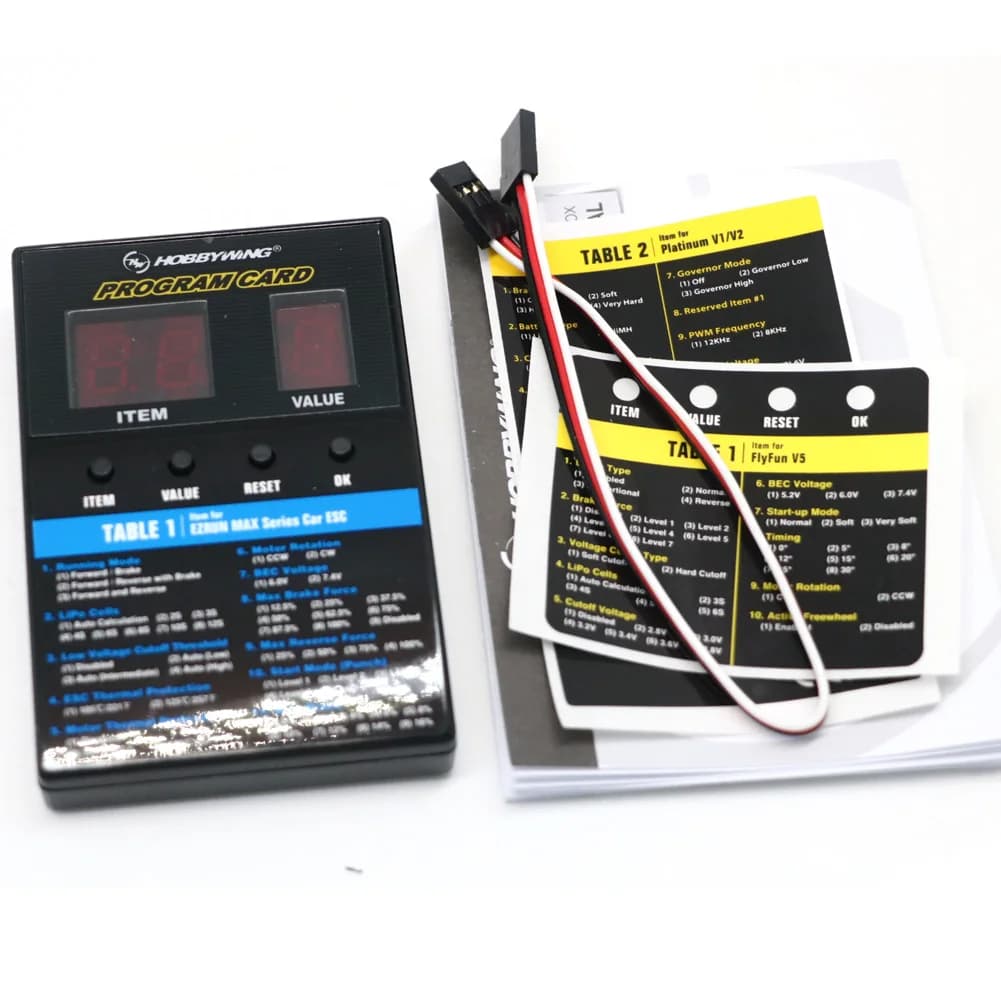

Dimensions: 36 x 58.1 mm. Model Number: QuicRun Fusion SE. Compatible Scale: 1/10, 1/8 RC Cars. Product Type: Brushless Motor with Integrated ESC. KV Rating: 1200KV / 1800KV. ESC Current Rating: 40A. Sensor Type: Sensored. Waterproof: Yes. Material: Metal. Quantity: 1. Dimensions: 36mm diameter x 60mm length. Motor Size: 3650 or 3660 (36mm diameter). Shaft Diameter: 3.175mm (1/8 inch). Weight: Approx. 300-350g. Input Voltage: 2-3S LiPo (7.4-11.1V). BEC Output: 6V/3A. Waterproof Rating: IPX4 or higher. ESC Rating: 40A continuous. Application: 1/10 to 1/8 scale RC cars/trucks. Connectors: XT60 power, 3.5mm bullet motor. Cooling: Integrated heatsink with fan. ESC Peak Current: 240A (for 10 seconds). KV Options: 1200KV or 1800KV. Product Type: Sensored Brushless Motor with Integrated ESC. Programming: Program card compatible. Q: What are the technical specifications of the Hobbywing QuicRun Fusion SE? A: This integrated system features a sensored brushless motor available in 1200KV or 1800KV versions with a built-in 40A ESC. It's designed as a waterproof 2-in-1 unit suitable for 1/10 and 1/8 scale RC vehicles.. Q: How durable is this motor and ESC combination? A: The unit features waterproof construction for all-weather operation and robust components for reliable performance. The sensored brushless design provides smooth low-speed control and efficient power delivery.. Q: Which RC vehicles is this system compatible with? A: This system is compatible with 1/10 and 1/8 scale remote control cars and trucks. Users should verify their vehicle's mounting requirements, battery specifications, and gearing compatibility before installation.. Q: What warranty comes with the QuicRun Fusion SE system? A: Hobbywing provides a manufacturer's warranty covering defects in materials and craftsmanship. The specific warranty period and claim procedures are detailed in the product documentation included with purchase.. Q: Is this integrated motor/ESC system a good value? A: The 2-in-1 design eliminates separate ESC mounting and wiring, offering convenience and space savings. The waterproof sensored brushless performance at this price point represents excellent value for intermediate to advanced RC enthusiasts..
