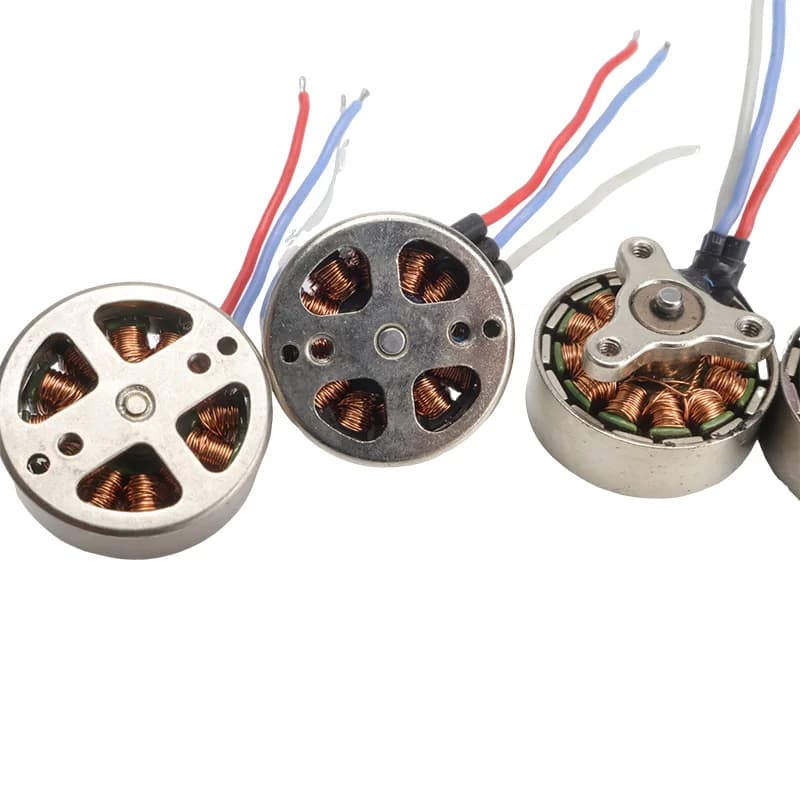

Matching Brushless Motors and ESCs to Scale and Thermal Load

Commercial RC applications demand precise motor speed and reliable thermal management. Choose integrated motor and ESC units to save space and simplify wiring in tight chassis. Evaluate the KV rating against your system voltage to achieve the correct RPM. High-torque operations require dedicated cooling. Pair your brushless motors with aluminum alloy heatsinks and active cooling fans to prevent thermal shutdown during continuous runs.

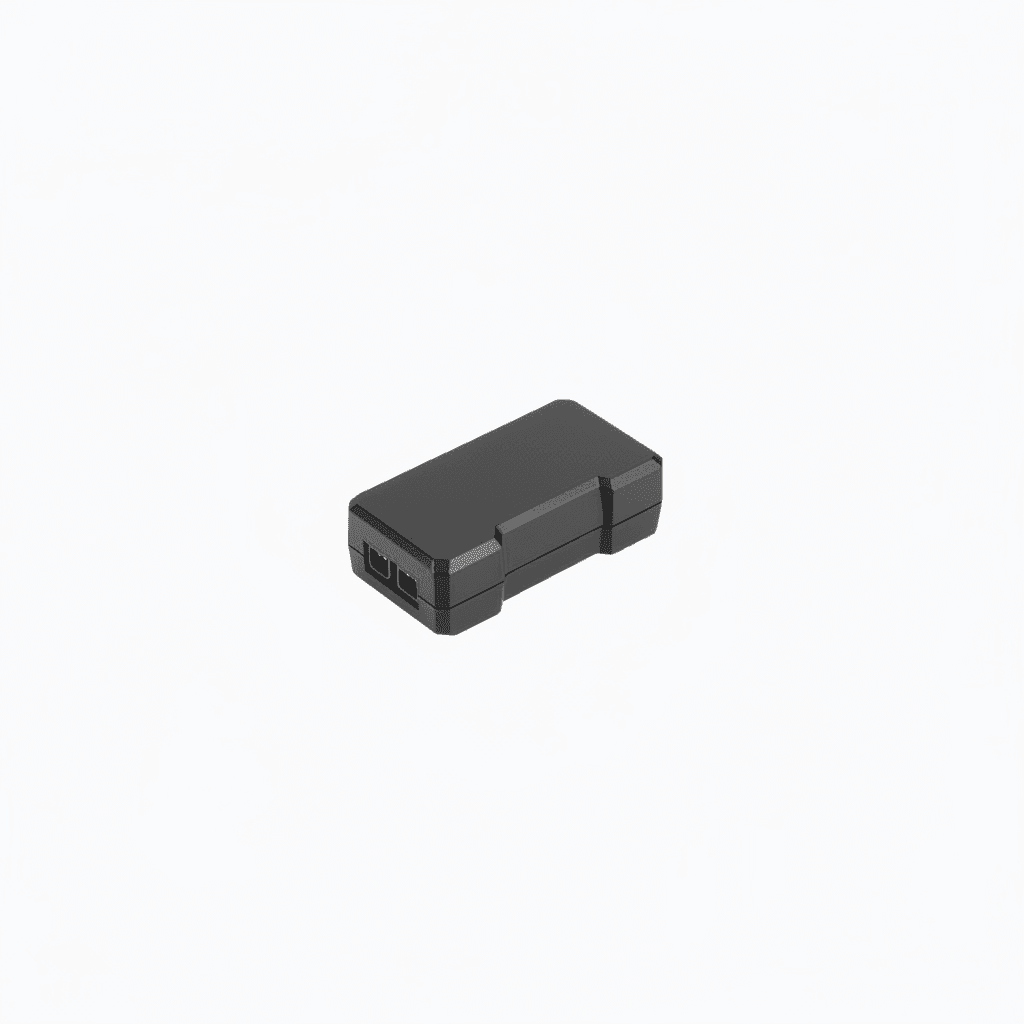

• Select 40A integrated ESCs for 1/10 and 1/8 scale platforms to reduce chassis clutter.
• Use dual-material cooling assemblies with aluminum heatsinks and plastic fan housings for lightweight thermal dissipation.
• Verify voltage compatibility for cooling fans, typically standardized at 5V for receiver power.

Sizing DC Circuit Protection for Remote and Solar Power Inputs

Remote control stations and solar PV power feeds require specialized DC circuit breakers to handle continuous high-voltage loads. Standard AC breakers cannot extinguish DC arcs reliably. Select miniature circuit breakers rated up to 1000V DC for standard solar arrays, choosing current ratings from 6A to 63A based on your conductor capacity. For heavier commercial installations, opt for molded case circuit breakers rated up to 250A with thermal-magnetic trip units.

• Specify 2-pole 1000V DC MCBs for dual-line isolation in photovoltaic setups.
• Use 300V to 600V DC MCCBs with a 50kA breaking capacity for high-fault current environments.

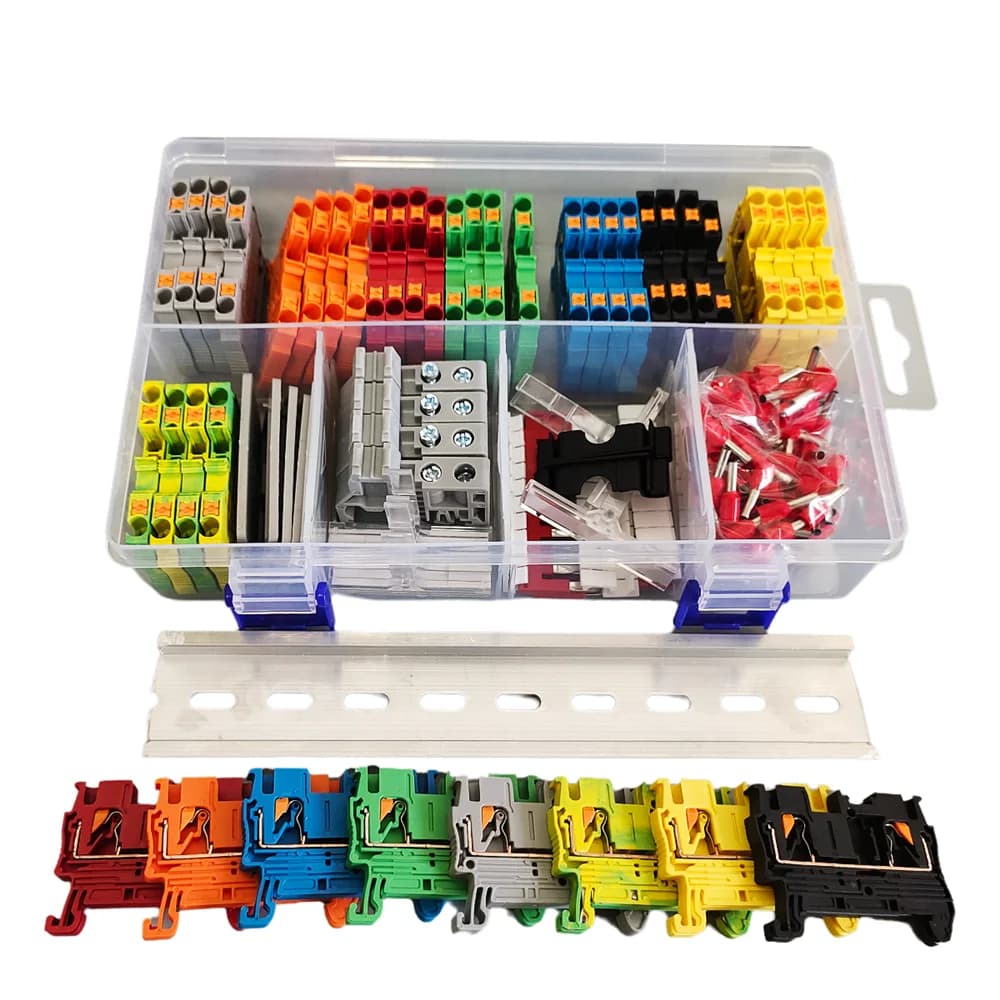

• Ensure 35mm DIN rail compatibility for fast installation in standard control enclosures.

Integrating AC Protection and Manual Transfer Switches

When remote control systems run on grid or generator AC power, integrate combined overcurrent and leakage protection. A residual current breaker with overcurrent protection provides complete safety in a compact 18mm width, saving valuable rail space. For switching between primary utility power and backup generator feeds, install a manual transfer switch rated for 40A or 63A at 400V AC.

• Look for IP20 protection ratings on AC breakers destined for enclosed industrial panels.
• Verify an operating range of -25°C to +55°C for outdoor or unconditioned control cabinets.
• Check for a rated short-circuit breaking capacity of 6 kA on AC MCBs to handle line surges.
