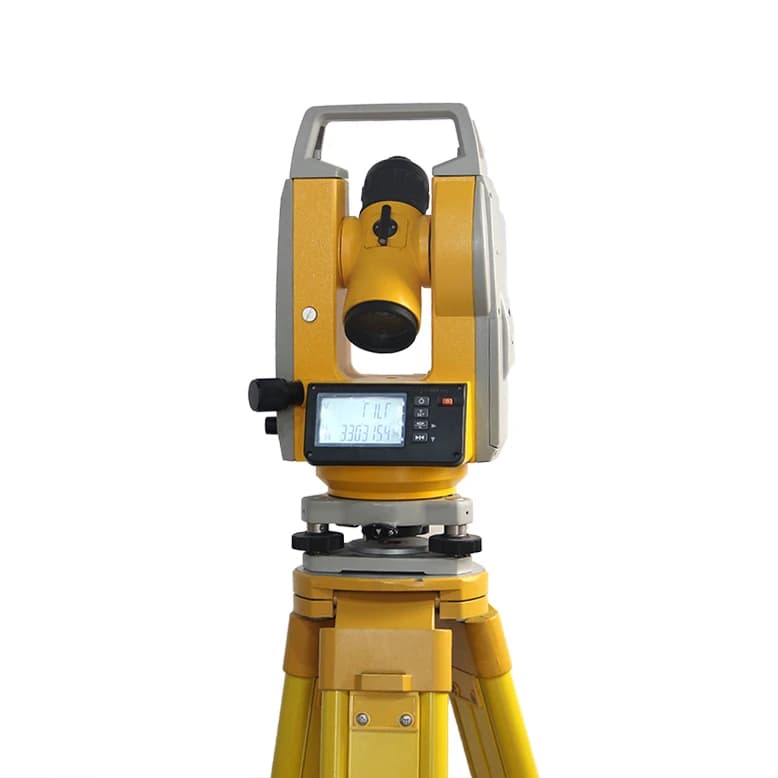

This Reflectorless Total Station Theodolite set is a cost-effective, all-in-one surveying solution that maximizes productivity. It integrates advanced electronic distance measurement (EDM) technology with traditional theodolite functions, enabling fast, accurate data collection of angles, distances, and coordinates without the need for a prism at the target. Features and Benefits
- Reflectorless EDM technology - Measures distances to any surface quickly and safely, ideal for hazardous or hard-to-reach points.
- Integrated data collection and storage - Streamlines workflow by recording measurements directly for later download and processing.
- High-precision angle measurement system - Delivers reliable angular data for detailed mapping and precise layout work.
- Complete professional set - Includes tripod, prism, and carrying cases for immediate deployment right out of the box. Applications
- Detailed as-built surveys of structures and facades
- Mining volume calculations and stockpile measurements
- Forensic scene mapping and accident reconstruction
Power Source: Rechargeable battery. Display: LCD. Data Storage: Internal memory. Product Type: Reflectorless Total Station. Type: Electronic Theodolite with EDM. Dimensions: 200mm × 200mm × 350mm. Weight: 6.2 kg (including battery). Battery Life: 8 hours continuous angle and distance measurement. Battery Type: Rechargeable Li-ion battery pack. Reflectorless Range: Up to 500 meters to a single prism. Operating Temperature: -20°C to +50°C. Ingress Protection Rating: IP55. Angular Accuracy: ±2 arcseconds. Data Storage: Internal memory: 10,000 points, SD card support. Display: Graphic LCD with touchscreen interface. Distance Measurement Accuracy: ±(2mm + 2ppm) with prism, ±(3mm + 2ppm) reflectorless. Field of View: 1° 30'. Magnification: 30x. Measurement Technology: Electronic distance measurement (EDM) with reflectorless capability. Product Type: Reflectorless Total Station. Q: What specifications define this Reflectorless Total Station Theodolite? A: This total station combines a theodolite with reflectorless EDM (Electronic Distance Measurement) capable of measuring distances without a prism. It features angle measurement accuracy of 5 seconds, distance measurement up to several hundred meters, and a data collector interface. The set typically includes the instrument, battery, charger, and carrying case.. Q: How reliable is the quality of measurements from this total station? A: The instrument uses a reliable coaxial optics system and stable servo motors to ensure consistent angle and distance measurements. The reflectorless function is calibrated for accuracy on most common surfaces, making it suitable for topographic surveys, construction layout, and detail mapping where prism use is impractical.. Q: Is the total station compatible with standard surveying software? A: Yes, it includes standard data output formats that are compatible with most surveying and CAD software packages. The instrument can typically connect to data collectors or computers via cable or wireless interface for efficient data transfer and project management.. Q: What warranty terms apply to this total station set? A: The set comes with a comprehensive one-year warranty covering the electronic components, optics, and mechanical parts. The warranty includes calibration support and technical assistance to ensure the instrument performs to its specified accuracy throughout the coverage period.. Q: Does this total station offer strong value as a bundled set? A: As a complete set with reflectorless capability, this total station provides significant value by reducing the need for additional accessories and prisms. It is an economical solution for surveyors needing efficient one-person operation and versatile measurement functions in a single package..
