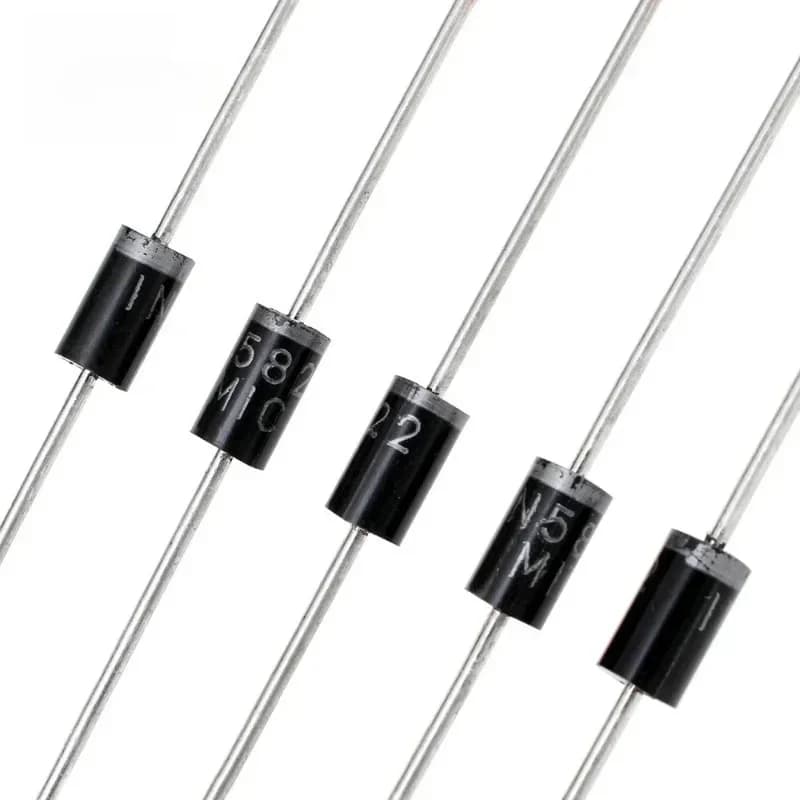

Schottky & Rectifier Diode Kit | 1N4007, 1N5819, 1N5408 | Fast Switching for Electronics Repair

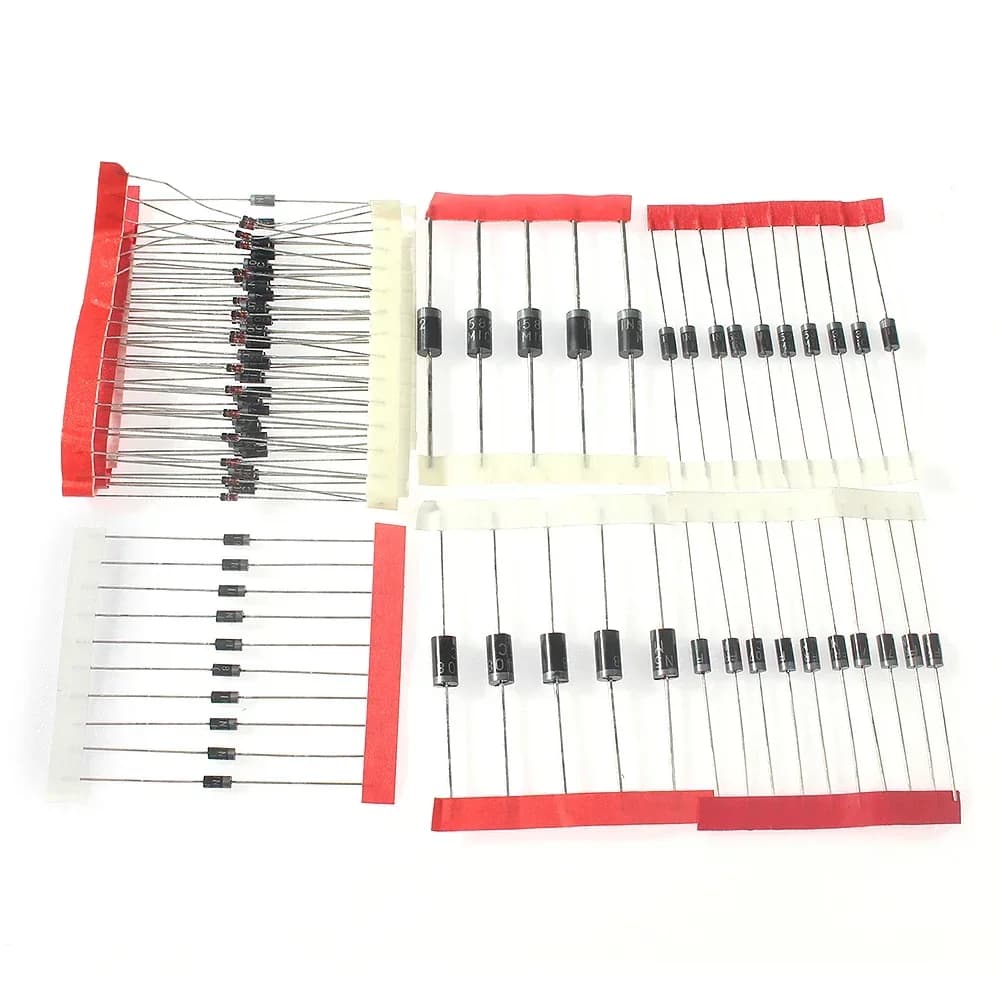

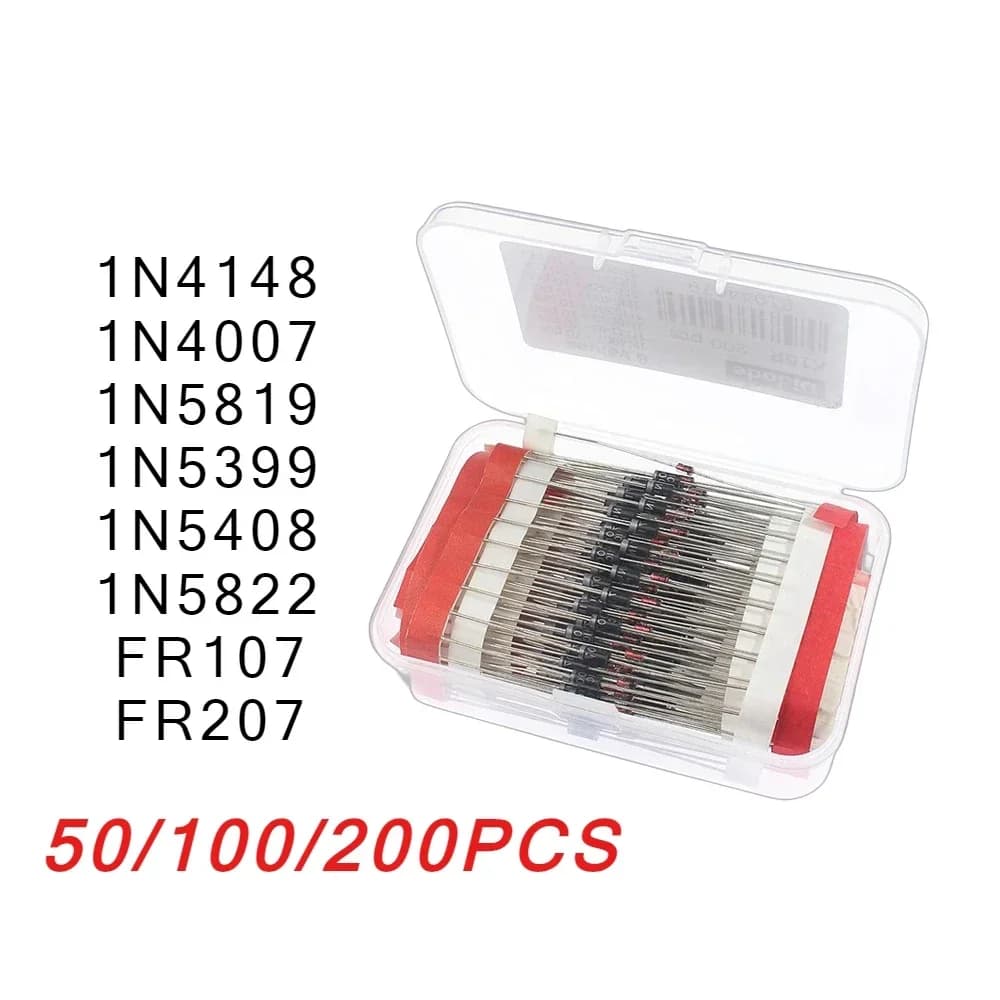

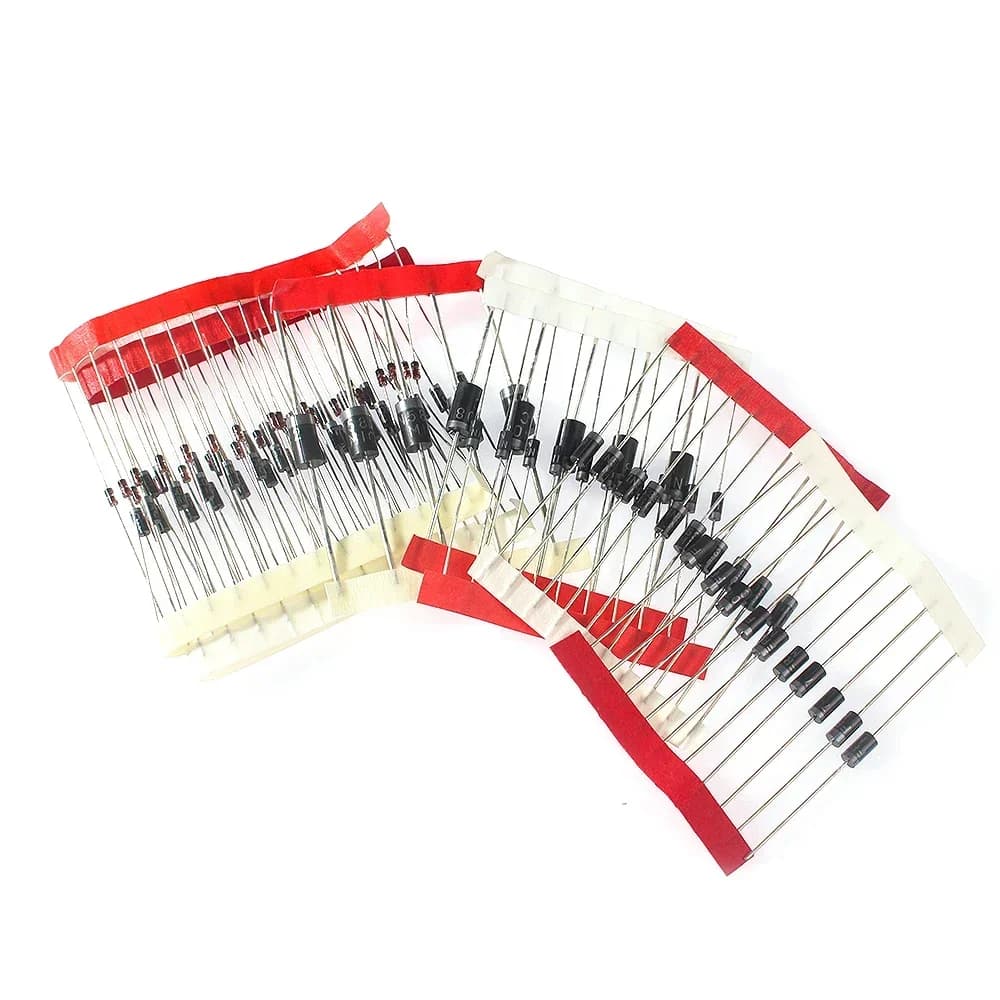

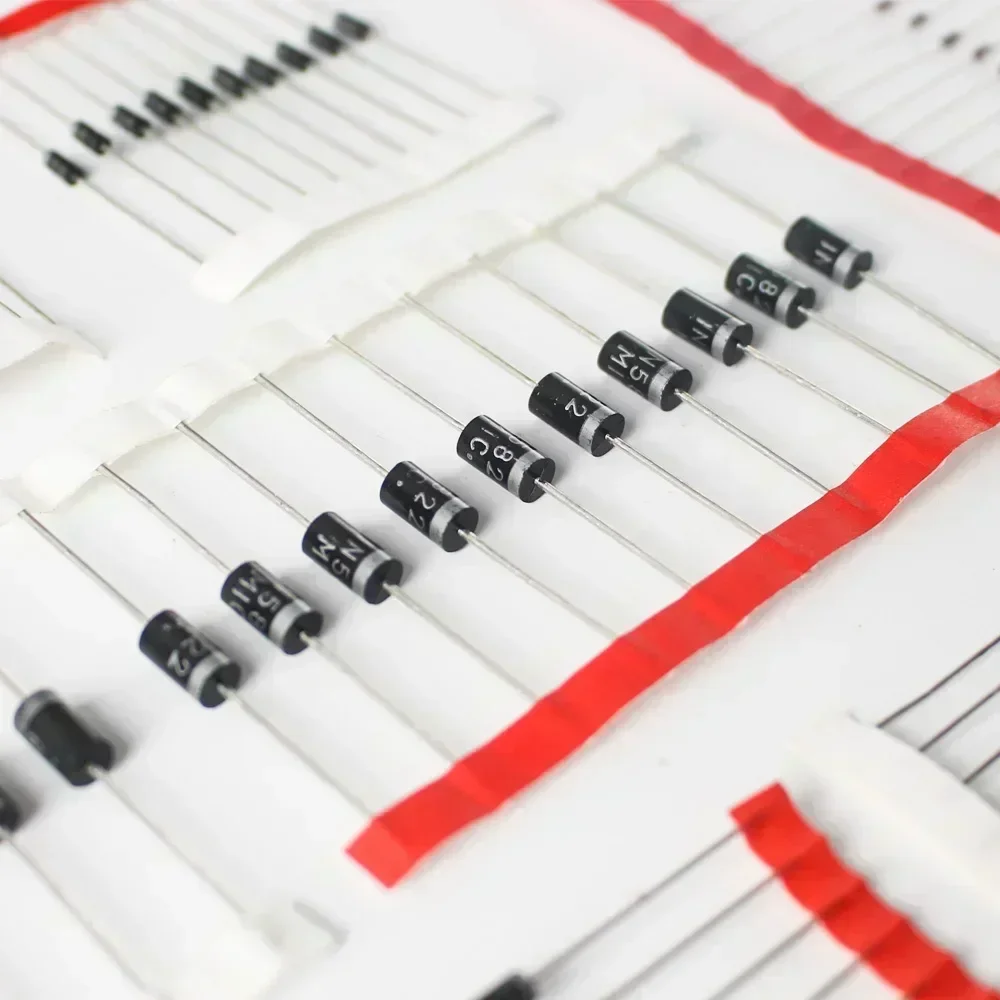

This comprehensive rectifier diode kit provides essential components for electronics projects, featuring high-performance Schottky and fast-switching diodes like the 1N5819 and 1N5822 for low forward voltage drop and efficient power conversion. The collection includes standard recovery (1N4007, 1N5408) and fast recovery (FR107, FR207) types, offering a versatile solution for prototyping and repairs. Features and Benefits - Mixed Diode Selection - Includes Schottky, standard, and fast recovery diodes to cover a wide range of voltage, current, and switching speed requirements for diverse circuit designs. - Low Forward Voltage (Schottky Diodes) - Diodes like the 1N5819 feature a typical Vf of 0.45V, reducing power loss and heat generation compared to standard PN-junction diodes. - Fast Recovery Times - Diodes such as the 1N4148 and FR107 offer rapid switching, essential for high-frequency applications and minimizing reverse recovery current. - High Current Ratings - Includes diodes like the 1N5408 rated for 3A, providing robust options for power supply rectification and other high-load circuits. - Organized Component Kit - A practical assortment of common diode values saves time sourcing individual parts and is ideal for building a well-stocked electronics bench. Applications - Power Supply Design & Repair - Use the 1N4007 or 1N5408 series for AC to DC rectification in linear power supplies, adapters, and appliance repairs. - Circuit Protection & Signal Demodulation - Employ the fast-switching 1N4148 for clipping, clamping, and protecting sensitive inputs in audio or digital logic circuits. - Efficient DC-DC Converters - Utilize the low Vf Schottky diodes (1N5819, 1N5822) in buck, boost, or flyback converter designs to maximize efficiency. - Automotive & Hobbyist Electronics - The FR207 and other robust diodes are suitable for automotive rectifiers, battery protection circuits, and general hobbyist projects.
