Protect your critical network equipment with this POE Gigabit Network Lightning Arrester. It provides robust surge protection for 12V to 57V Power over Ethernet systems, ensuring stable 1000Mbps data transmission while shielding connected devices from damaging voltage spikes caused by lightning and electrical surges. Features and Benefits
- 12V to 57V Wide Voltage Range - Compatible with a vast array of standard POE and POE+ network devices, from cameras to access points.
- Gigabit 1000Mbps Data Rate - Maintains full network speed without creating a data bottleneck for high-resolution video streams.

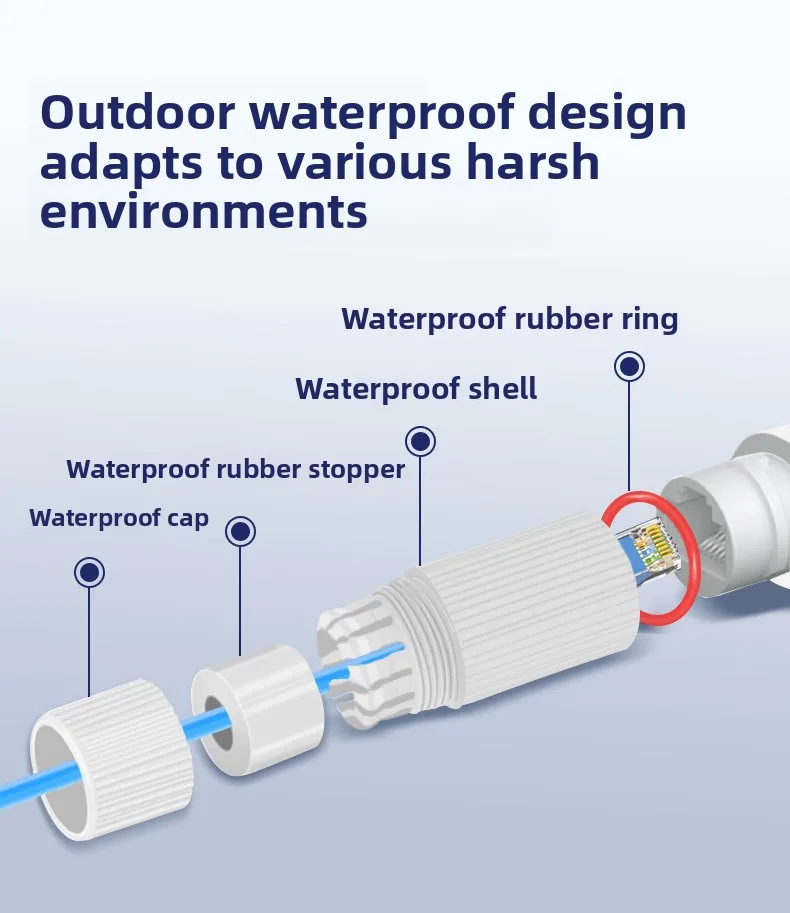

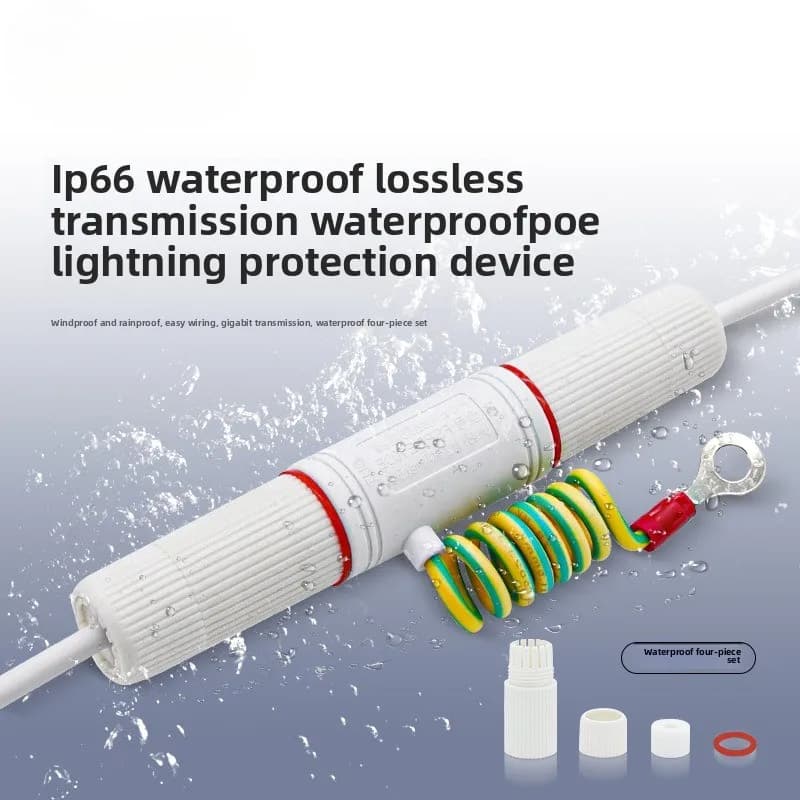

- Outdoor Waterproof IP Rating - Engineered housing protects internal components from rain and moisture for reliable installation in exposed locations.

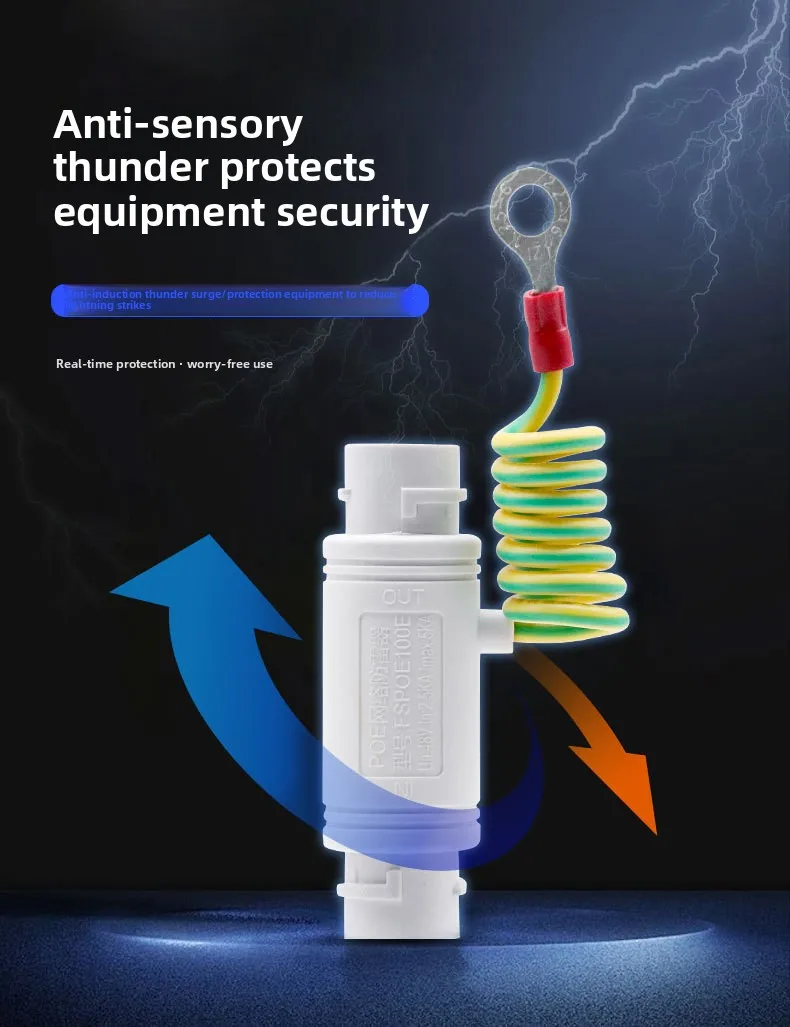

- Professional Grade Surge Protection - Diverts dangerous transient currents away from sensitive electronics, dramatically extending equipment lifespan.
- Standard RJ45 Ports - Simple inline installation between your network switch and the outdoor device using common Ethernet cables. Applications
- Outdoor CCTV Security Systems - Essential protection for POE security cameras mounted on poles, buildings, or perimeter fences.
- Wireless Network Infrastructure - Safeguard outdoor wireless access points and bridges from surge damage.
- Industrial and Agricultural IoT - Protect sensors and automation equipment deployed in remote, exposed field locations.
- Perimeter and Gate Access Control - Ensure reliability of network-powered intercoms, keypads, and gate controllers. Note

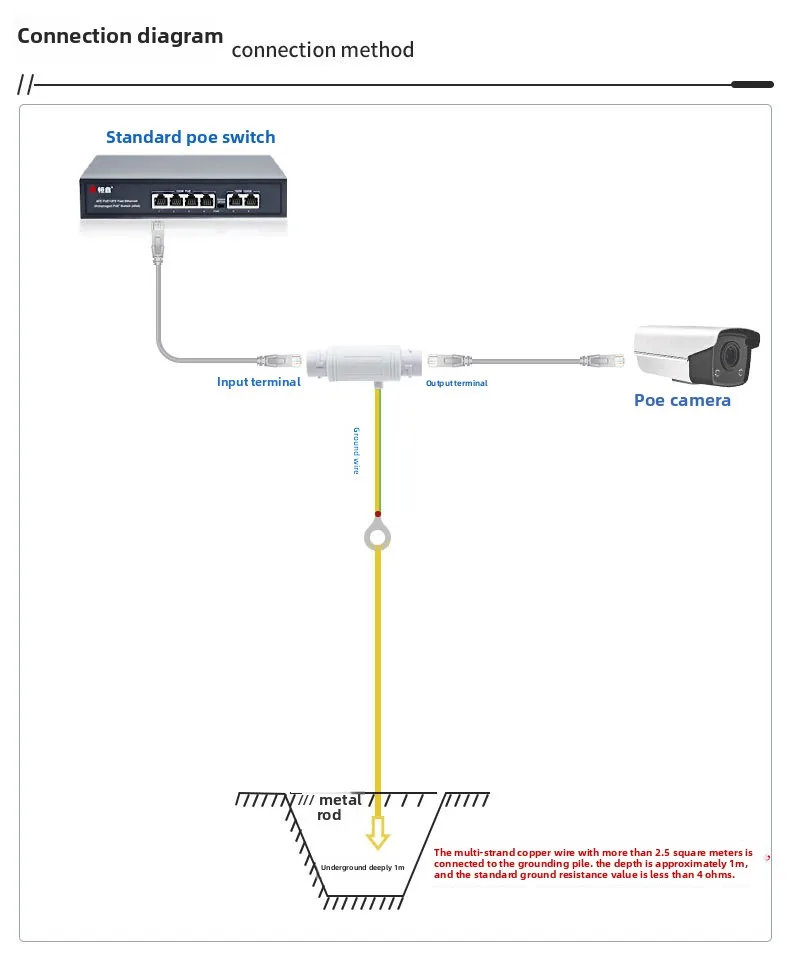

For optimal protection, this device should be properly grounded during installation according to local electrical codes.

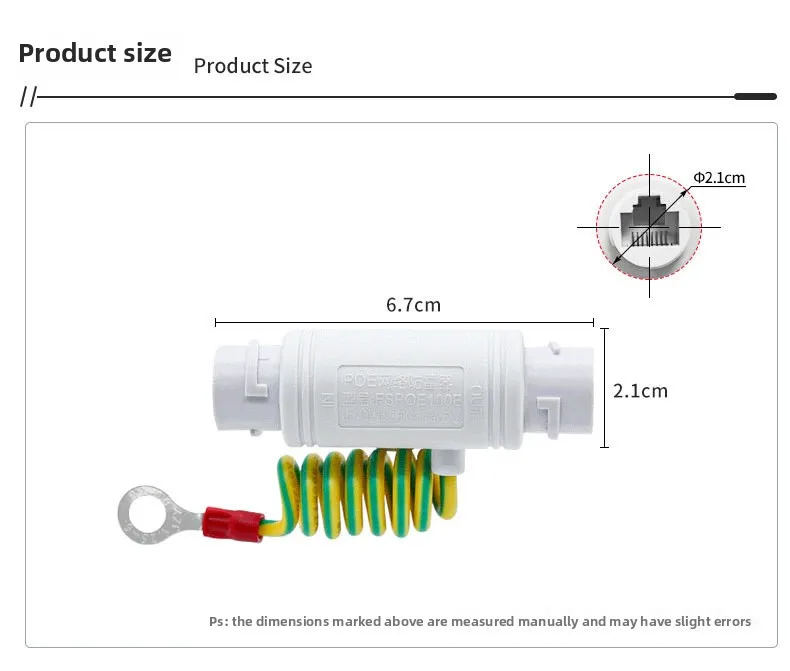

Housing Material: Metal. PoE Input Voltage Range: 12V to 57V DC. Data Rate: 1000 Mbps. Ingress Protection: IP66. Interface: RJ45. Lightning Protection Rating: ≥ 20 kA. Mounting: DIN Rail. Operating Temperature: -40°C to 85°C. Ports: 2. Surge Protection Rating: ≥ 6 kV. Dimensions (Approx.): 90 x 70 x 30 mm. Housing Material: Flame-Retardant PC (Polycarbonate) or ABS. PoE Voltage Range: 12V to 57V DC. Voltage Protection Level (Up): ≤ 600V. Operating Temperature Range: -40°C to +85°C. Ingress Protection Rating: IP66 or IP67. Network Standard: IEEE 802.3af/at (PoE). Protection Standard: IEC 61643-21, IEEE 802.3. Surge Current Rating (Iimp): ≥ 5 kA (8/20 µs). Application: Outdoor CCTV, Security, and Wireless Access Point (AP) Protection. Connection Type: Screw Terminal or RJ45 Plug. Data Rate: 1000 Mbps (Gigabit Ethernet). Maximum Discharge Current (Imax): ≥ 10 kA (8/20 µs). Mounting Type: DIN Rail or Wall Mount. Port Configuration: 1 x RJ45 Input, 1 x RJ45 Output. Product Type: Gigabit PoE Surge Protection Device (SPD). Response Time: < 1 nanosecond (ns). Q: What are the exact dimensions and specifications of this POE lightning arrester? A: This POE Gigabit Network Lightning Arrester is designed for standard RJ45 connections and supports a wide input voltage range from 12V to 57V. It is rated for 1000Mbps data transfer and features a waterproof outdoor design for durability.. Q: How durable and waterproof is this outdoor POE surge protector? A: This unit is built for outdoor installation with a waterproof housing to protect against the elements. It is specifically engineered to absorb and divert high-voltage surges from lightning strikes, safeguarding your connected CCTV cameras or access points.. Q: Is this POE surge protector compatible with my existing 48V security camera system? A: Yes, it is fully compatible. This arrester supports a broad PoE voltage range from 12V to 57V, making it suitable for 48V standard systems as well as other common voltages used in CCTV, security APs, and network devices.. Q: Does this product come with a warranty or guarantee? A: Yes, this POE lightning arrester comes with a standard manufacturer's warranty. Please check the product listing or contact the seller for the specific warranty period and coverage details for your purchase.. Q: Is this a good value POE surge protector compared to more expensive brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing essential surge protection for your outdoor network equipment at a competitive price..
