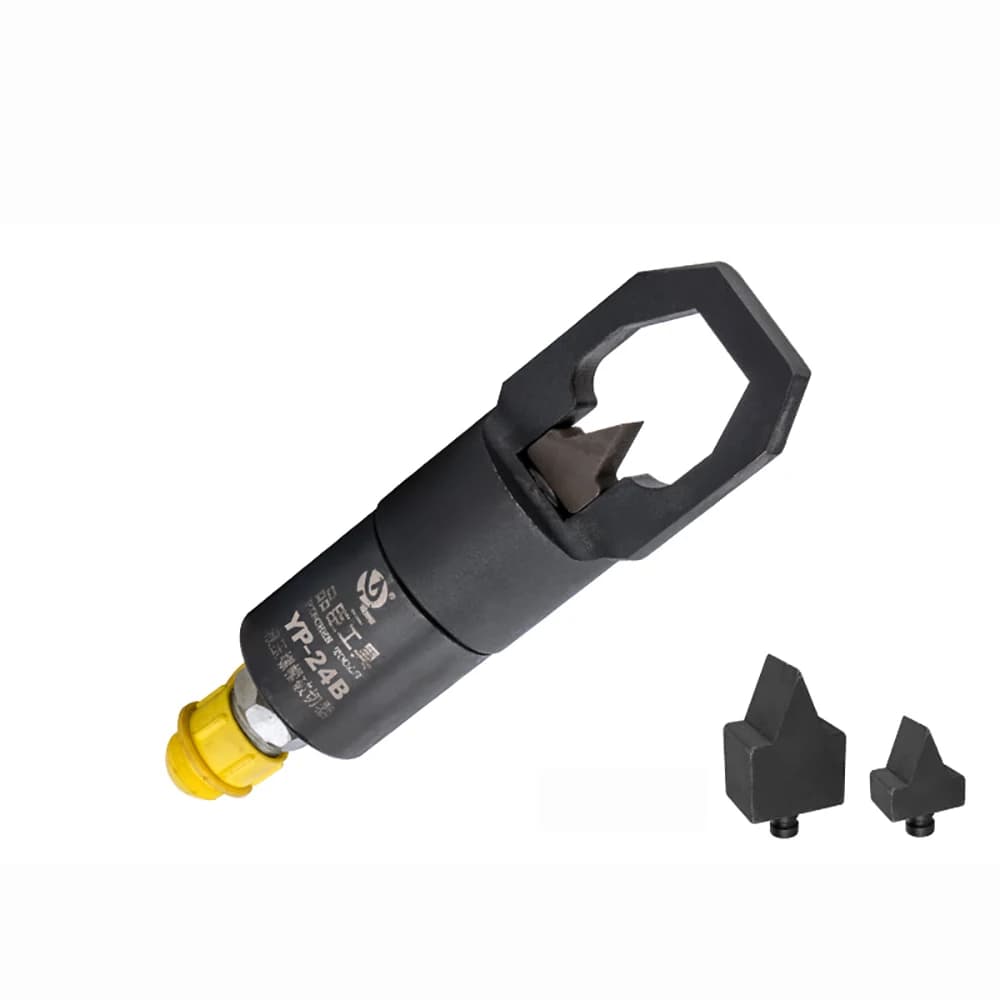

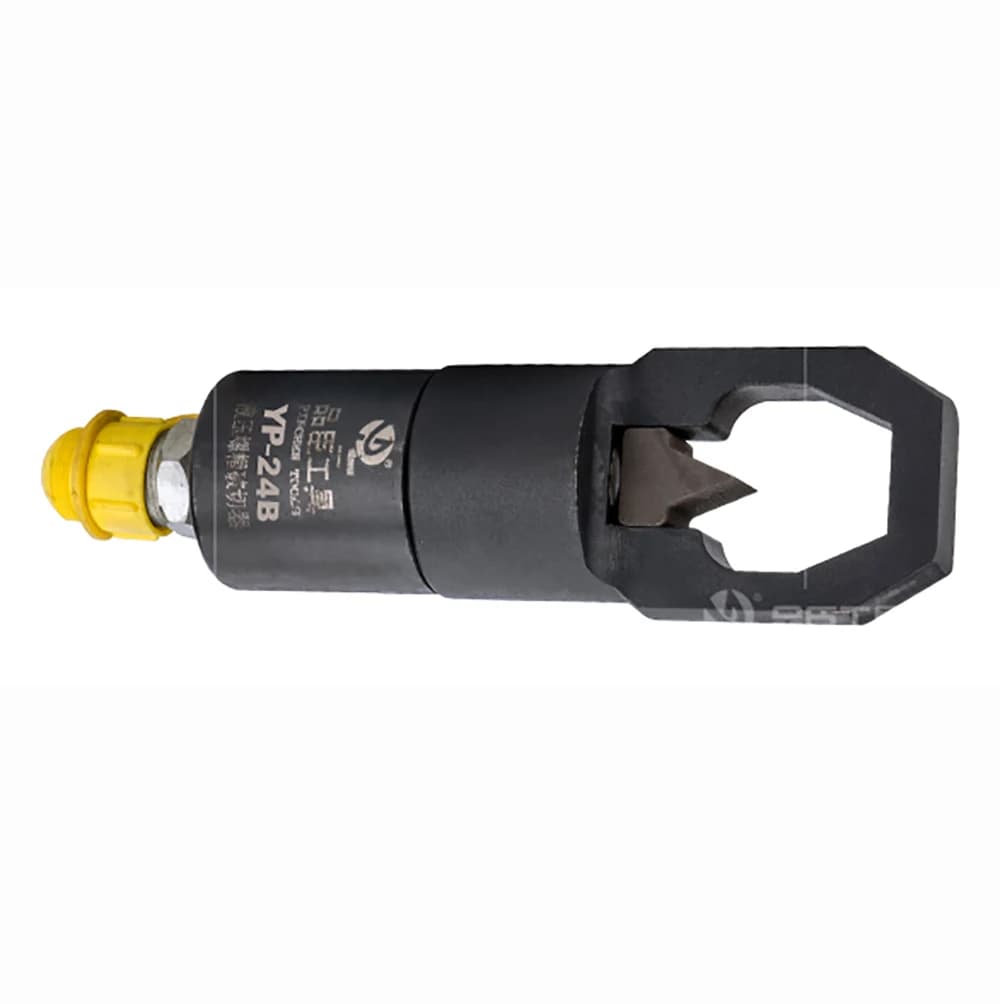

The YP-24B Split Type Hydraulic Nut Cutter delivers 10 tons of cutting force to cleanly shear through seized, rusted, or damaged fasteners up to M24. This professional-grade screw cap cutter features a split head design for easy positioning in tight spaces, eliminating the need for torches or angle grinders and preventing damage to surrounding threads. Features and Benefits
- 10-Ton Hydraulic Power - Provides reliable, consistent force to cut through hardened steel nuts and bolts up to M24 without operator strain.
- Split Head Design - Allows the cutter to be positioned around the fastener without needing to thread it through, ideal for confined or awkward workspaces.
- Dual Capacity Range - Covers M8-M14 and M16-M24 nut sizes with one tool, offering versatility for a wide array of industrial and repair jobs.
- Replaceable Blades - High-carbon steel cutting blades are built for durability and can be replaced, extending the tool's service life and reducing long-term cost.
- Integrated Safety Valve - Prevents over-pressurization and potential tool failure, ensuring safe operation during demanding use. Applications
- Industrial Maintenance and Repair - Quickly remove corroded or rounded nuts on machinery, pipelines, and structural steel without spark risks.
- Automotive and Heavy Equipment - Safely cut through suspension components, exhaust manifold studs, and other seized fasteners in the workshop.
- Emergency Services and Demolition - A vital tool for first responders and demolition crews to rapidly cut through bolted restraints or damaged structures.
- Marine and Agricultural Equipment - Tackle severely rusted fasteners common in high-moisture environments, saving time on critical repairs. Note: For optimal performance and longevity, keep the hydraulic system clean and use the recommended fluid. Always wear appropriate PPE, including safety glasses and gloves, when operating this tool.
Dimensions: 400 x 150 x 100 mm. Weight: 6.5 kg. Material: Steel. Capacity: 10 Tons. Oil Capacity: 160 ml. Certification: CE. Cutting Range: M8-M14, M16-M24. Model: YP-24B / FYP-24. Operating Pressure: 700 bar. Stroke: 20 mm. Type: Split Type Hydraulic Nut Cutter / Screw Cap Cutter. Overall Length: 450-550 mm (inferred). Net Weight: 4.5-6.5 kg (inferred). Blade Material: High-Carbon Tool Steel or Chromium-Vanadium Alloy Steel. Frame Material: Forged Alloy Steel. Cutting Capacity (Flat Bar): 30 mm x 12 mm Maximum. Cutting Capacity (Round Bar): 24 mm Maximum Diameter. Cutting Range (Bolts/Nuts): M8 to M14, M16 to M24. Oil Capacity: Approximately 200-300 ml (inferred). Operating Temperature Range: -20°C to 60°C (inferred for hydraulic oil). Certification: CE. Operating Pressure: 700 bar (inferred, typical for 10T capacity). Blade Hardness: 58-62 HRC (inferred). Brand: BEIZE. Customization: Yes. Hydraulic System Type: Manual Hydraulic Pump (inferred). Maximum Cutting Force: 10 Tons (98 kN). Model: YP-24B / FYP-24. Piston Stroke: Approximately 25-30 mm (inferred). Product Type: Split Type Hydraulic Nut Cutter / Screw Cap Cutter. Safety Factor: Minimum 2:1 (inferred). Seal Type: High-Pressure Nitrile Rubber O-Rings. Q: What are the specifications and cutting range of the YP-24B Hydraulic Nut Cutter? A: The YP-24B is a 10-ton capacity split-type hydraulic nut cutter. It has two distinct cutting ranges: M8 to M14 and M16 to M24, making it versatile for various bolt and nut sizes.. Q: How durable is the BEIZE YP-24B nut cutter for professional use? A: Built with a robust hydraulic mechanism and hardened steel blades, the YP-24B is designed for durability and repeated use. Its CE certification indicates it meets recognized safety and performance standards for reliable operation.. Q: Can the YP-24B hydraulic nut cutter be used for cutting screws or caps? A: Yes, this tool is specifically designed as a nut cutter, screw cutter, and cap cutter. Its powerful 10-ton hydraulic action and replaceable blades are effective for cleanly shearing through hardened fasteners within its specified M8-M24 range.. Q: Does the BEIZE FYP-24 nut cutter come with a warranty or guarantee? A: The product is listed as customized, which often includes manufacturer support. For specific warranty details, it is best to confirm with the seller at the time of purchase, as terms can vary.. Q: Is the BEIZE YP-24B a good value compared to premium brand nut cutters? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its 10-ton capacity and dual cutting ranges..
