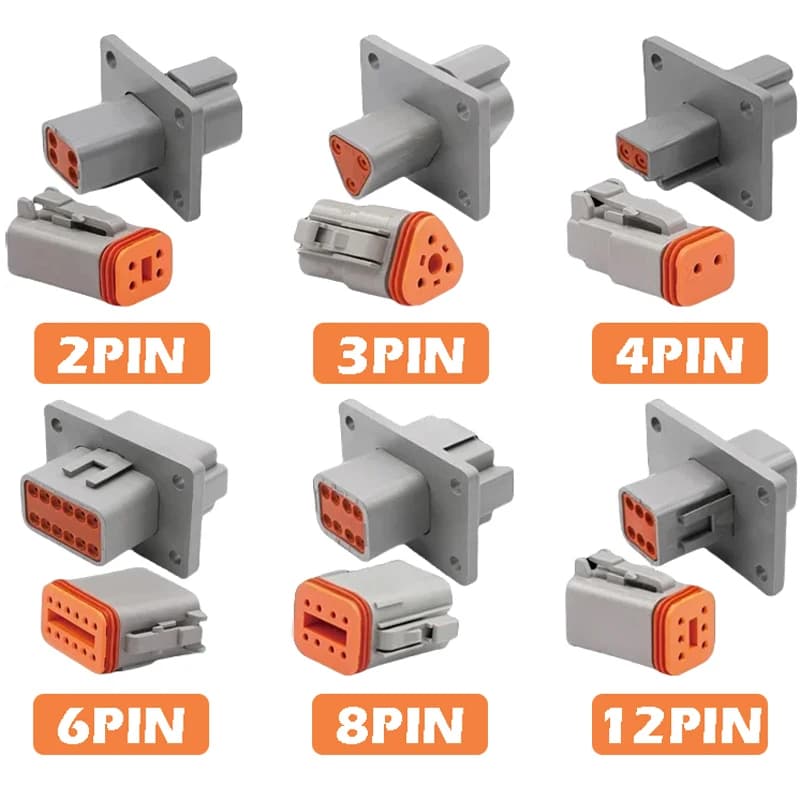

Tap Connector | Deutsch DT Series | 2-Pin Waterproof Automotive Plug
Stock #:CMP-02252
SKU:PIPE-00007
1 / 6
$709.99
Ships to United States · standard est. 10-20 business days
Free standard shipping on orders over $59 (under 2kg). Express available at checkout.
This Deutsch DT series waterproof connector kit is a common choice for sealed inline connections. It's a good Deutsch DT automotive connector for fixing harnesses or building new ones. It holds up to ...
Select an option
Select an option
1
$709.99
1
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product
- What's the difference between the DT, DTM and DTP connectors?
- The main difference is the size and amperage rating. This DT series uses size 16 contacts rated for up to 13 amps each. The DTM series is smaller for lower-power circuits, while the DTP series is larger and handles higher currents up to 25 amps.
- What wire size do the terminals in these DT kits fit?
- The size 16 terminals supplied in these DT connector kits are made for wire from 14 to 20 AWG (roughly 2.0mm² to 0.5mm²). It's important to match the terminal to your wire size to ensure a proper crimp and a good environmental seal.
- Do I need a special tool just to get the pins into the plug housing?
- No, once the terminal is crimped onto the wire, it just pushes into the back of the housing and clicks into place. However, a specific removal tool is needed if you want to take a pin out again without damaging the connector's locking tang.
Pipe Fittings & Connectors spec sheet (PDF)
Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.
Compare options
More Pipe Fittings & Connectors
Tap Connector with Valve | Waterproof DT04 Plug | Flanged Housing
5.0(3)
$647.99
3/4 Pressure Reducing Valve | PP Plastic One-Way Check Valve | 1/4 Spring
5.0(7)
$344.99
Sanitary Double Check Valve 19-102mm SUS304/316L | Vertical Non-Return | Brewery Grade
5.0(3)
$318.99
3/4 Pressure Reducing Valve Monitor | Hydrostatic Level Sensor | 4-20mA RS485
5.0(11)
$1,480.99

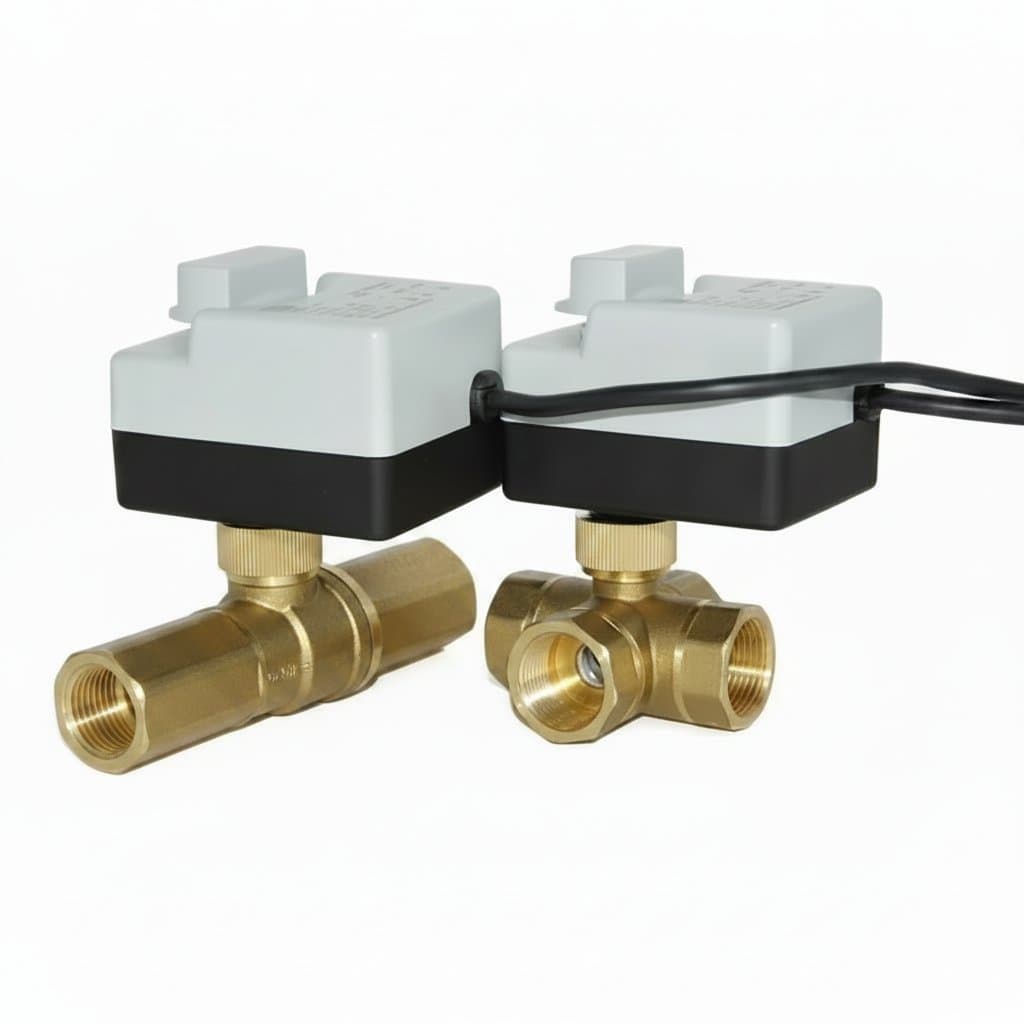

Brass Gate Valve | Motorised 3-Way DN15-40 | 3-Wire Electric Actuator
