High-Performance Brushless Motor | 4274 800-3600KV | For ARRMA TRAXXAS RC Cars & Boats
Stock #:TBS-04843
SKU:MOTO-00105
1 / 6
$119.99
Ships to United States · standard est. 10-20 business days
Free standard shipping on orders over $59 (under 2kg). Express available at checkout.
Engineered for extreme performance, this high-power brushless motor offers multiple KV options for versatile RC applications. It delivers exceptional torque and efficiency for 1/8 and 1/7 scale vehicl...
Select an option
1
$119.99
1
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product

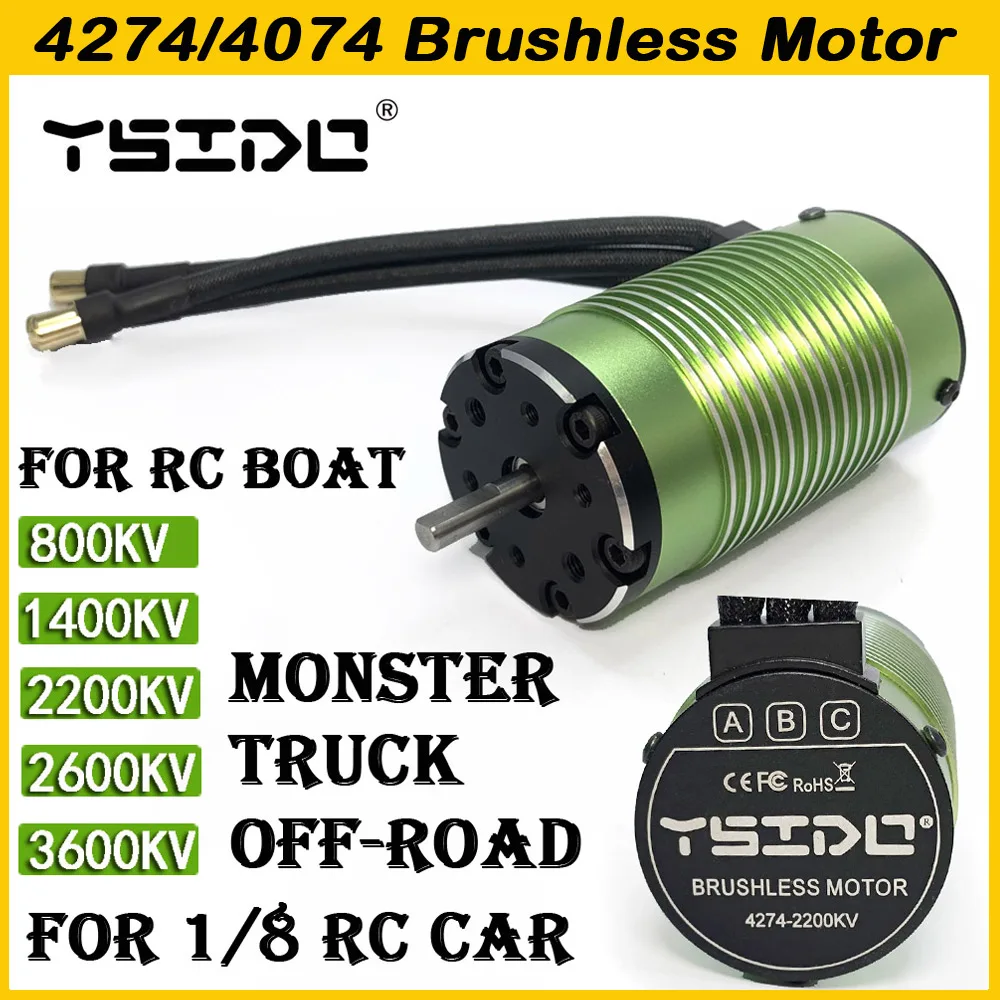

- Which KV rating should I pick for my build?
- Lower KV like 800 gives high torque for crawling and trail trucks. Higher KV like 3600 trades torque for top-end speed runs. Mid options, 1400 and 2200, suit balanced bashing. Match the KV to how you drive, since this 4274 can pushes up to 2000W.
- Does this motor fit ARRMA and TRAXXAS vehicles?

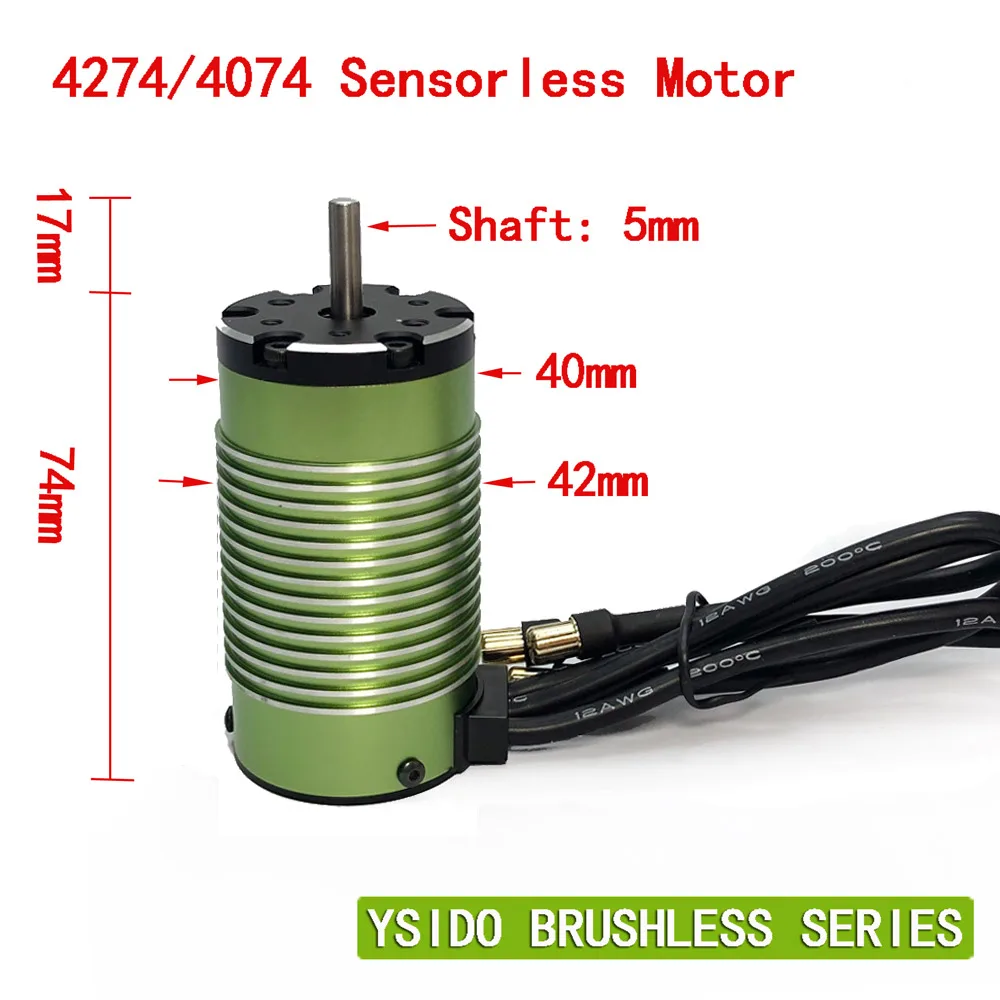

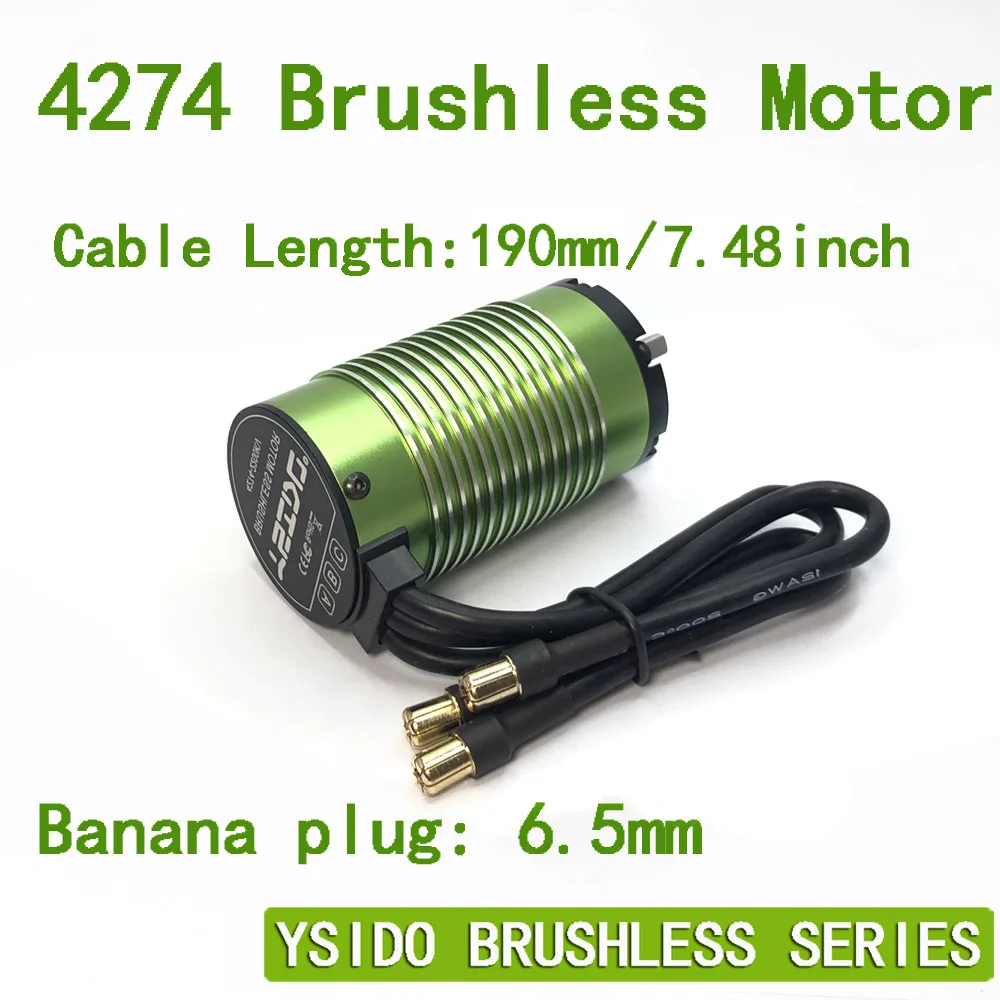

- Yes. The 4274 size is built for 1/8 and 1/7 scale ARRMA and TRAXXAS platforms, plus RC boats and EDF units. It has a 5mm shaft and 4mm bullet connectors. Confirm your ESC handles up to 90A max current before pairing it.
- What are the power and current limits on this motor?
- It peaks at 2000W and 90A max current, with a very low 0.02 ohm resistance for efficient power delivery. Sealed bearings and a balanced rotor help it run smooth at high RPM. Keep your gearing and ESC within those numbers to avoid overheating.
Motors & Drivers spec sheet (PDF)
Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.
