Pipe Fittings & Connectors

Selecting BSP Fittings and Thread Types

Selecting the correct thread profile prevents cross-threading and fluid bypass under system pressure. Threaded pipe fittings in our inventory use standard BSP thread sizing, available across 1/8", 1/4", 3/8", 1/2", 3/4", 1", and 1.2" diameters. Male and female threaded interfaces feature hexagon head coding for positive engagement with common mechanical hand tools during installation.

For rigid line connections, confirm if the mating port requires parallel or tapered engagement before torquing. Mismatched threads lead to premature thread stripping and seal failure in pressurized liquid and gas distribution manifolds.

• Thread sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", and 1.2" BSP thread size
• Port profiles: Male and female threaded connectors with hexagon head coding
• Structure options: Ball, check, pressure reducing, control, gate, regulating, and needle valves

Sizing Hose Barb Fittings and Tail Connectors

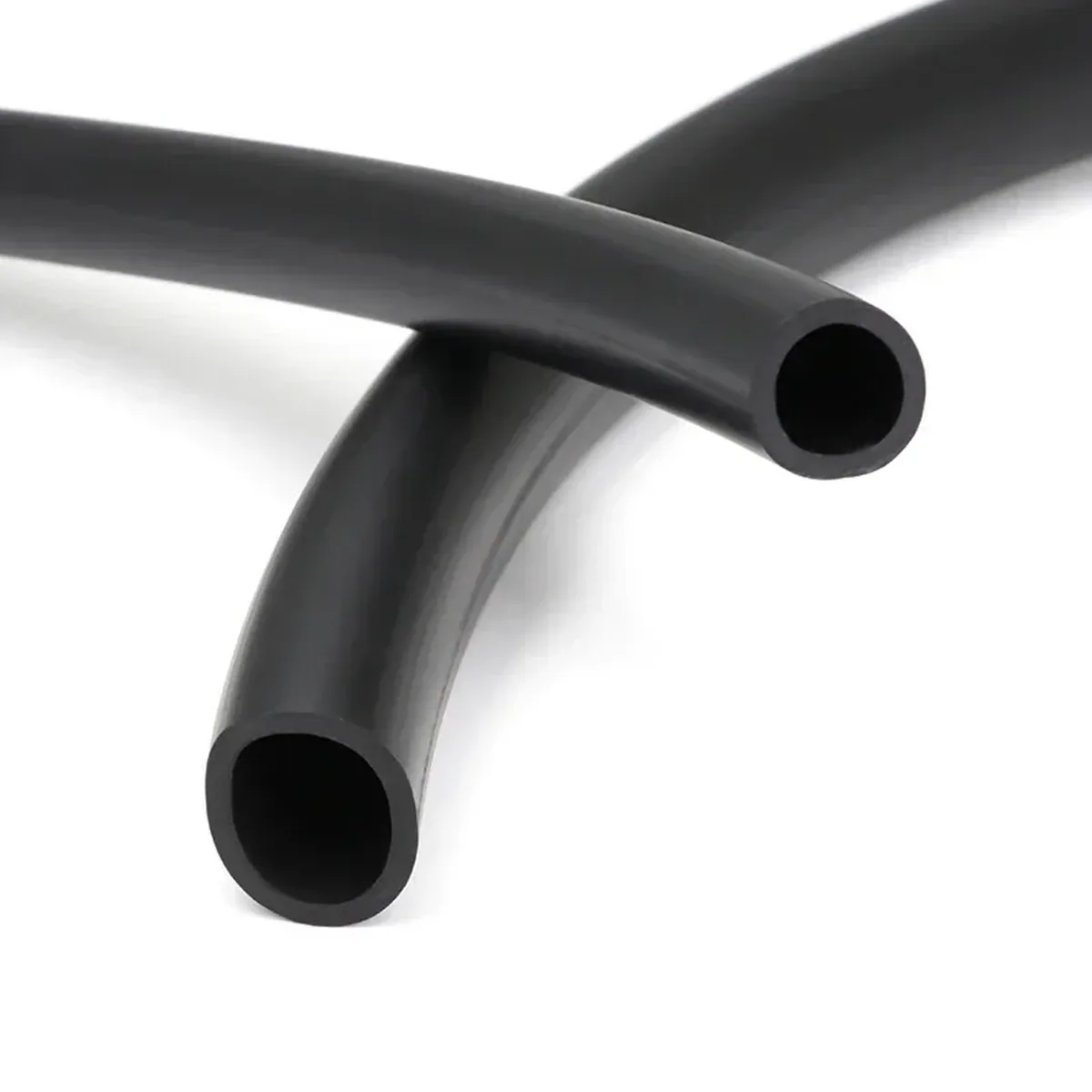

Hose tail fittings require an exact match between the barb outside diameter and the flexible hose inside diameter to maintain an airtight seal. Compel offers hose barb fittings designed to accept tubing between 0.5-12mm ID and hose lines between 6-25mm. Smaller push-on lines, such as clear food grade tubing with 60 hardness ratings, seat smoothly over barb ribs for low-pressure fluid handling.

When installing barb tails on stainless steel or copper lines, secure flexible hose with mechanical clamps to prevent slip-off under operating surges. For drainage and wash systems, stainless steel connectors resist corrosion from detergents and industrial process washwater.

• Barb tail diameters: 6-25mm for drain lines and industrial hoses
• Small bore tubing: 0.5-12mm ID with operating limits from -60 Deg.C ~ 180 Deg.C
• Plastic push-fit irrigation: Multi-size PE pipe fittings fitting 20mm, 25mm, 32mm, 40mm, and 50mm outer diameters

Material Selection and Pressure Ratings

Matching fitting metallurgy or polymer composition to the conveyed media prevents stress cracking and chemical erosion. Brass fittings offer dependable service in manual water shut-off systems, pneumatic tools, gas lines, and non-corrosive media. For corrosive plant atmospheres, steam lines, chemical wash, and high-heat manifolds, 304 stainless steel delivers superior durability.

System working pressures dictate fitting structure and body wall thickness. Our catalog includes fittings and valves rated for Low Pressure, Medium Pressure, and High Pressure conditions, including benchmarks like ＜850 kPa, 0.2-10kg, ≥850 kPa, and up to 2.5Mpa, 358 PSI. Verify line pressure against the component datasheet before final installation.

• Available materials: Stainless steel, brass, plastic, metal, zinc, silica gel, and fluorine rubber
• Pressure ranges: Low Pressure, Medium Pressure, High Pressure, ＜850 kPa, 0.2-10kg, ≥850 kPa, and 2.5Mpa, 358 PSI
• Media compatibility: Water, gas, liquid, and vacuum
