Choosing the Correct Wire Gauge and Conductor Material

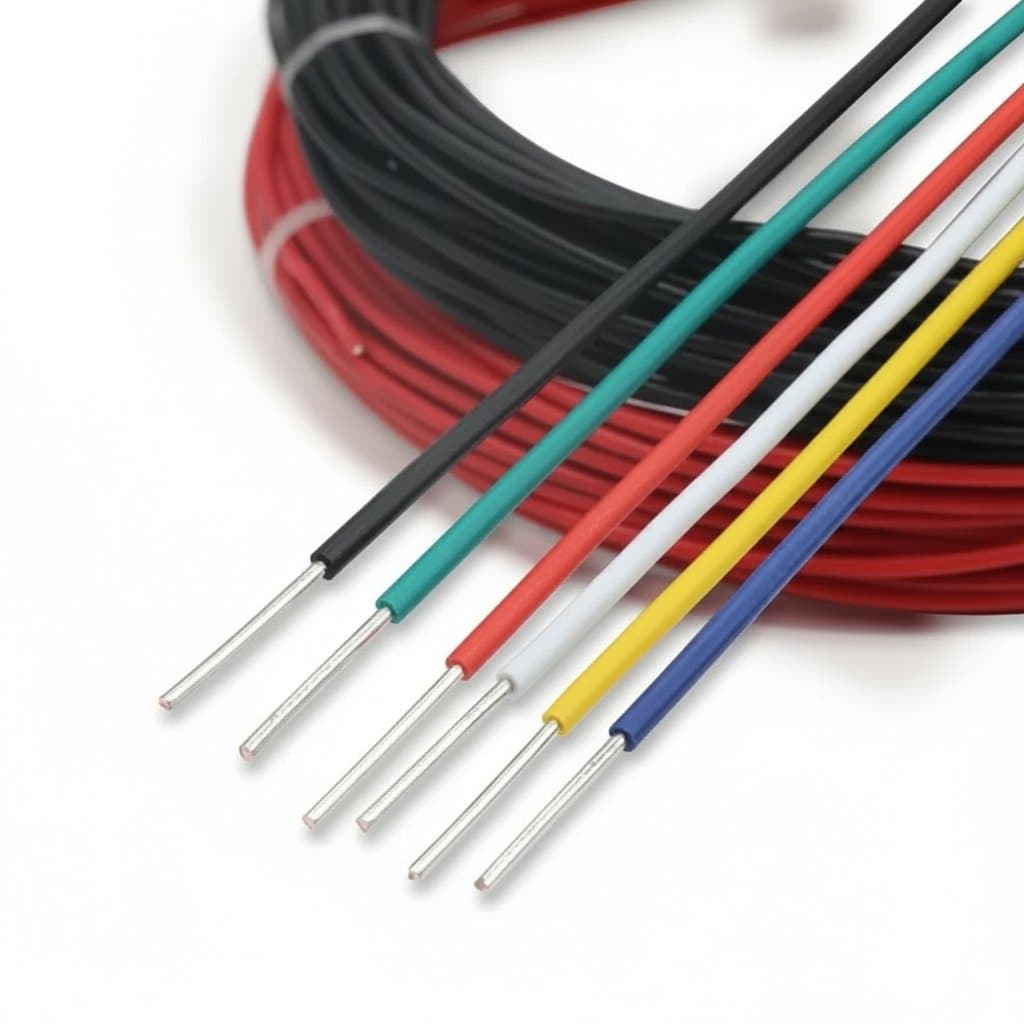

Selecting the proper wire and cable depends on your current load and environmental exposure. For low-voltage circuits, a 22 AWG tinned copper wire with PVC insulation provides excellent corrosion resistance. For general electrical wiring, solid copper conductors ranging from 14 AWG to 26 AWG ensure stable power delivery.

• 14 to 18 AWG: Best for standard power distribution and heavier load applications up to 300 V.
• 20 to 26 AWG: Ideal for signal transmission, control circuits, and low-voltage LED installations.
• Tinned Copper: Tinned conductors resist corrosion, making them easier to solder and longer-lasting in high-moisture environments.

Determining the Required IP Rating for Cable Management

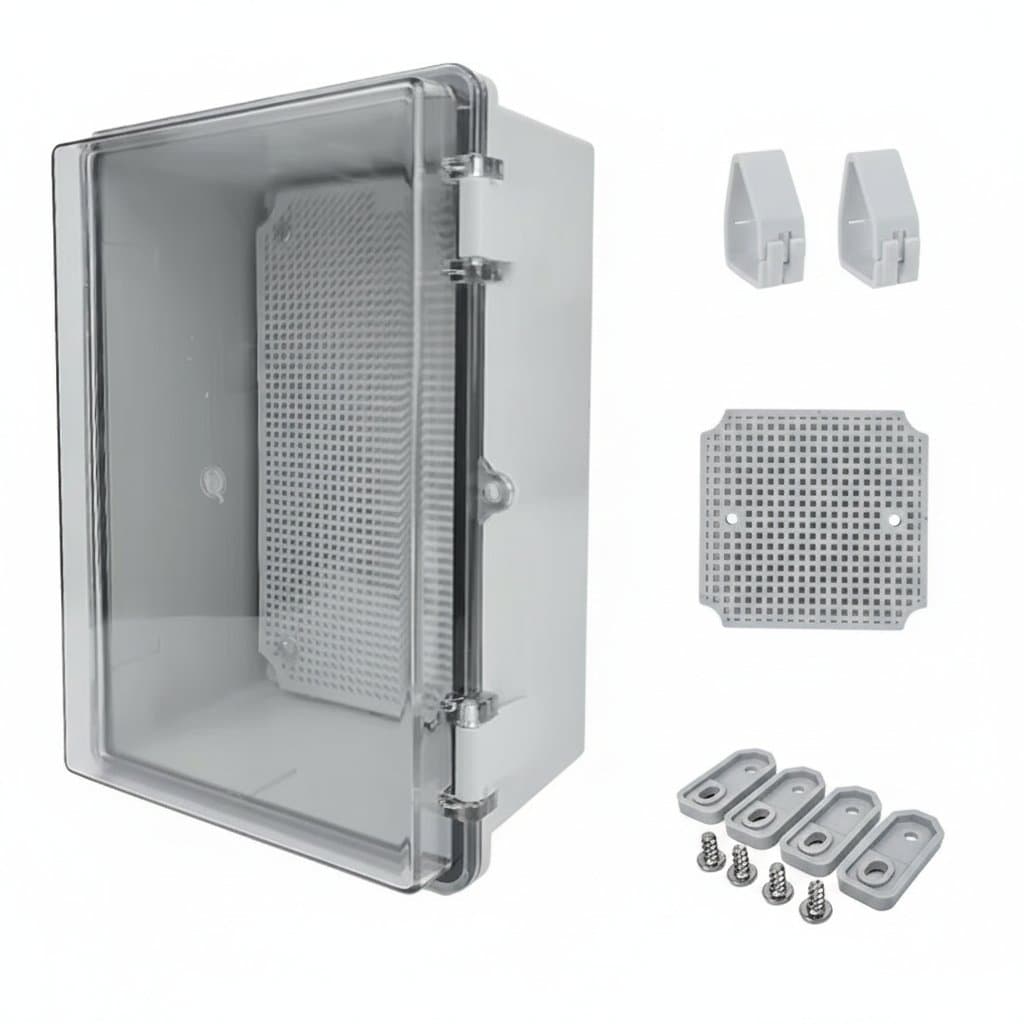

Cable management in outdoor or industrial areas requires reliable protection against dust and moisture. Junction boxes are rated by their Ingress Protection (IP) level to help you match the enclosure to the environmental hazards of your site.

• IP55 Enclosures: Protect against dust entry and low-pressure water jets. Best for indoor industrial spaces.
• IP65 and IP66 Enclosures: Completely dust-tight and protected against high-pressure water jets. Ideal for washdown areas.
• IP67 Enclosures: Provide dust-tight seals and survive temporary immersion in water, ensuring maximum safety for highly exposed locations.

Matching Enclosure Materials to the Installation Environment

The material of your junction box affects its impact resistance, chemical tolerance, and lifespan. For standard outdoor wiring, ABS plastic offers a lightweight, cost-effective solution with good dust and water resistance.

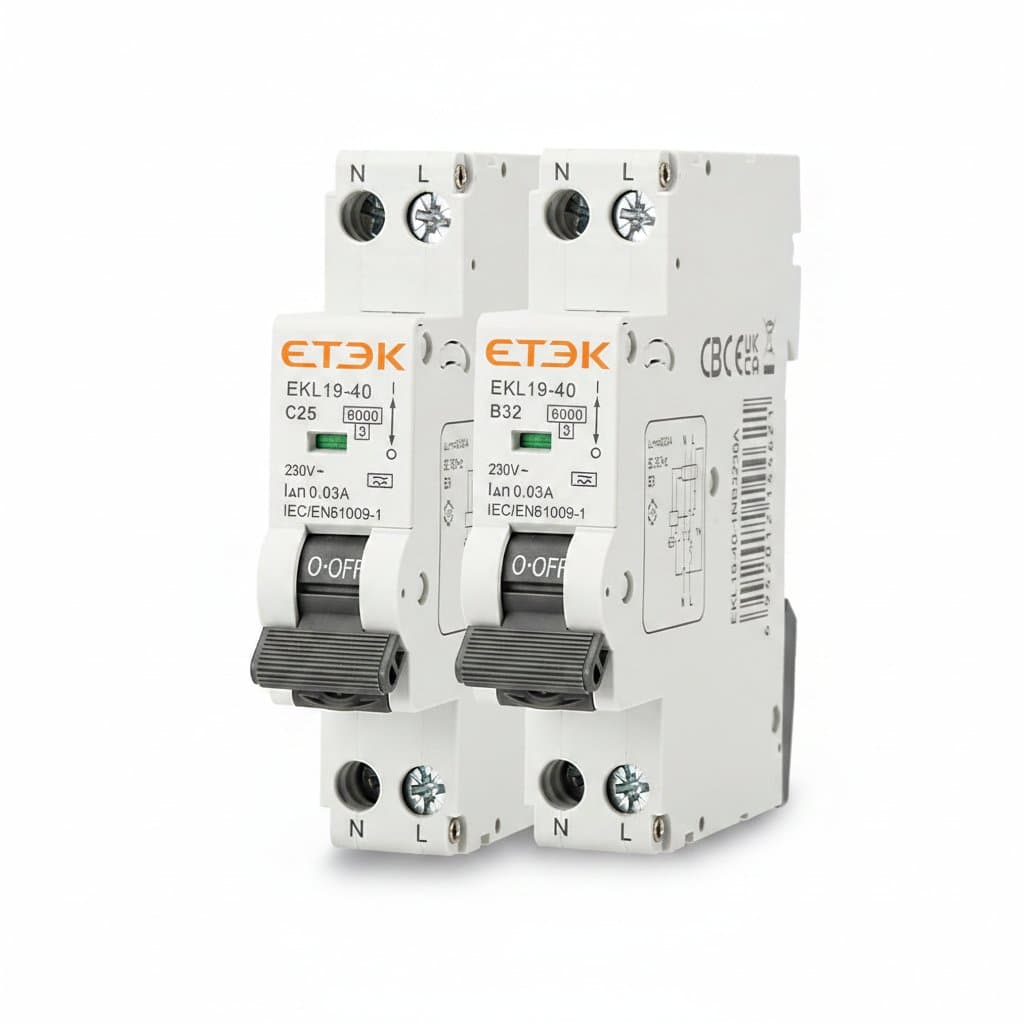

If your installation faces extreme temperatures or requires fire-resistant properties, polycarbonate (PC) or PC-ABS blends provide superior durability and flame retardancy for critical solar or MCB panel setups.
