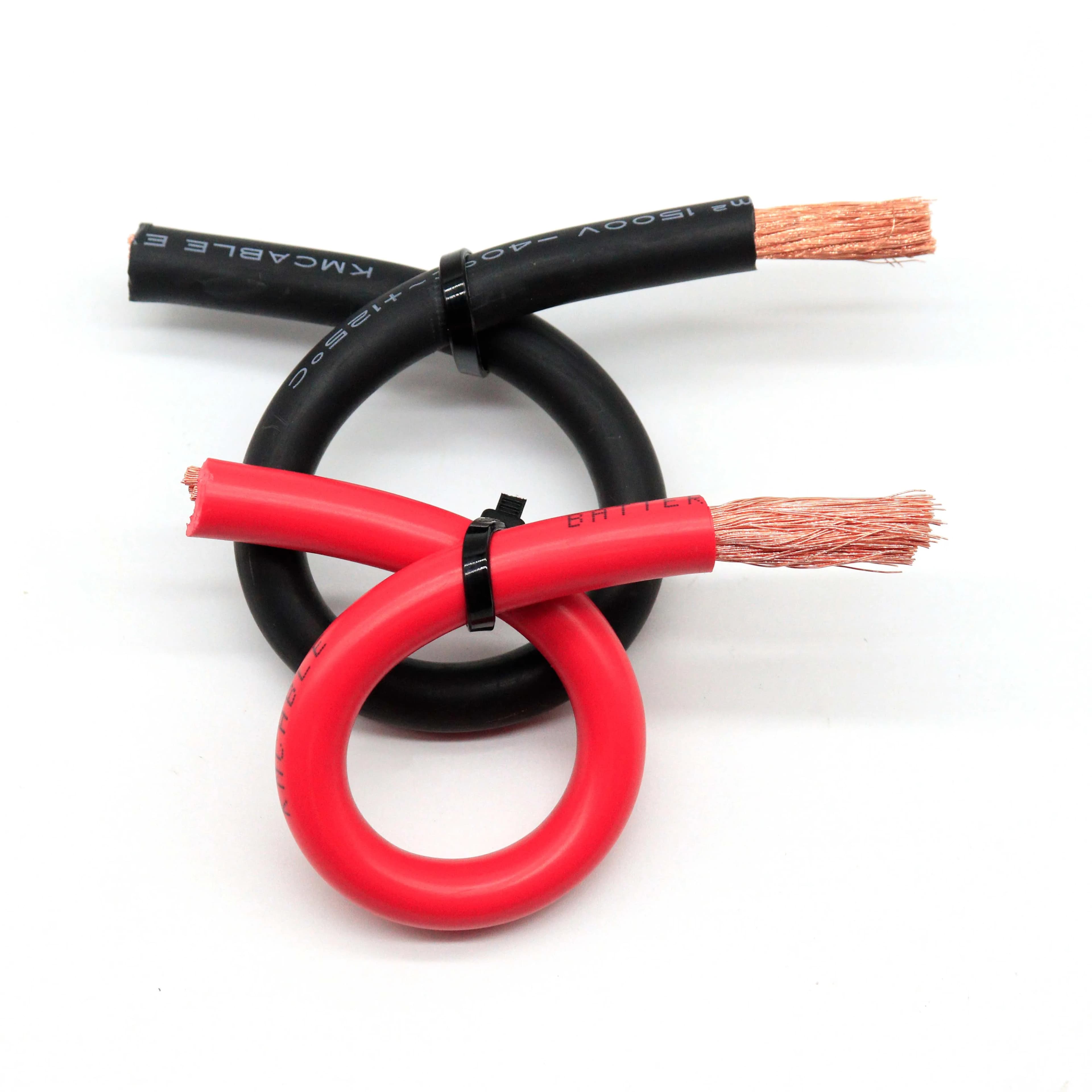

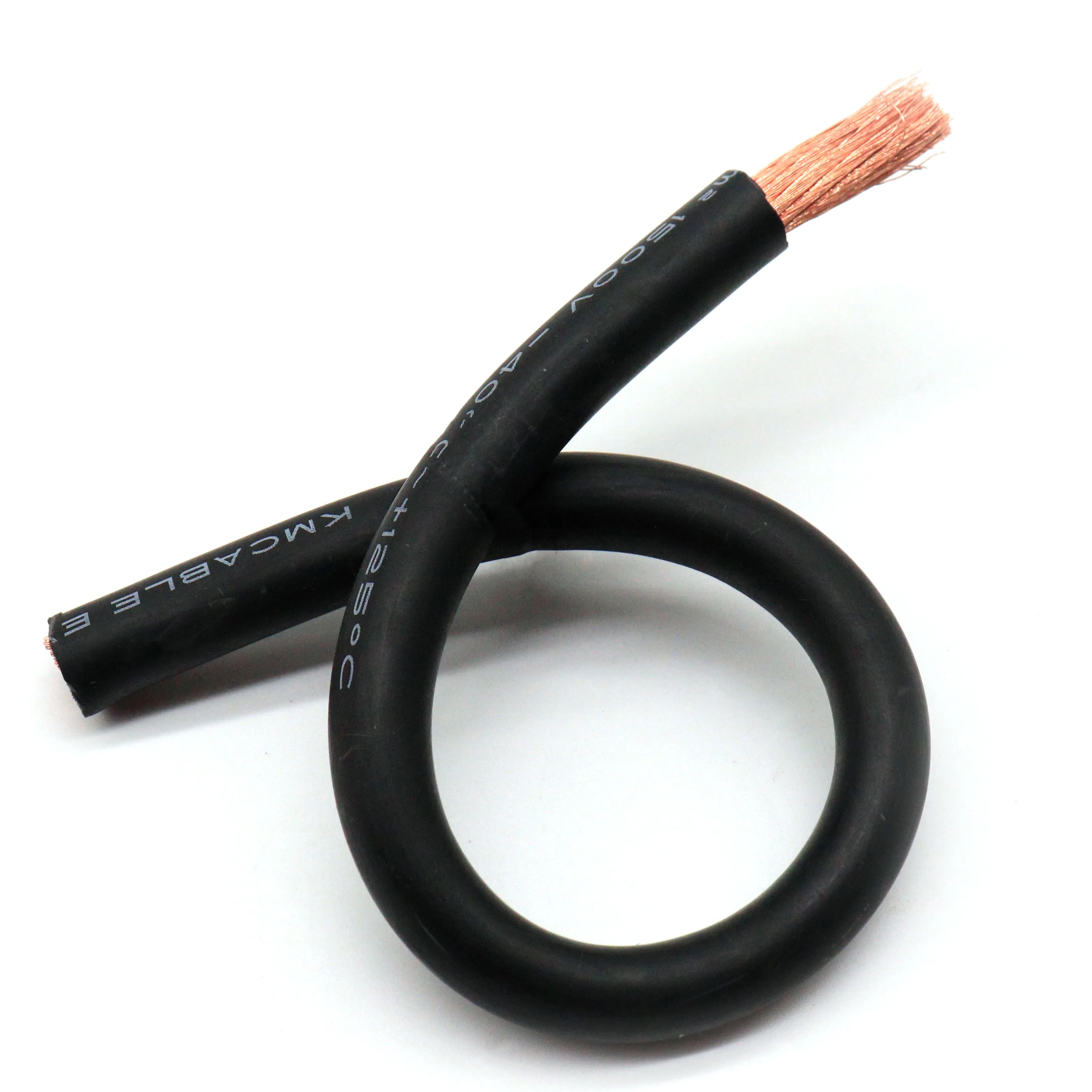

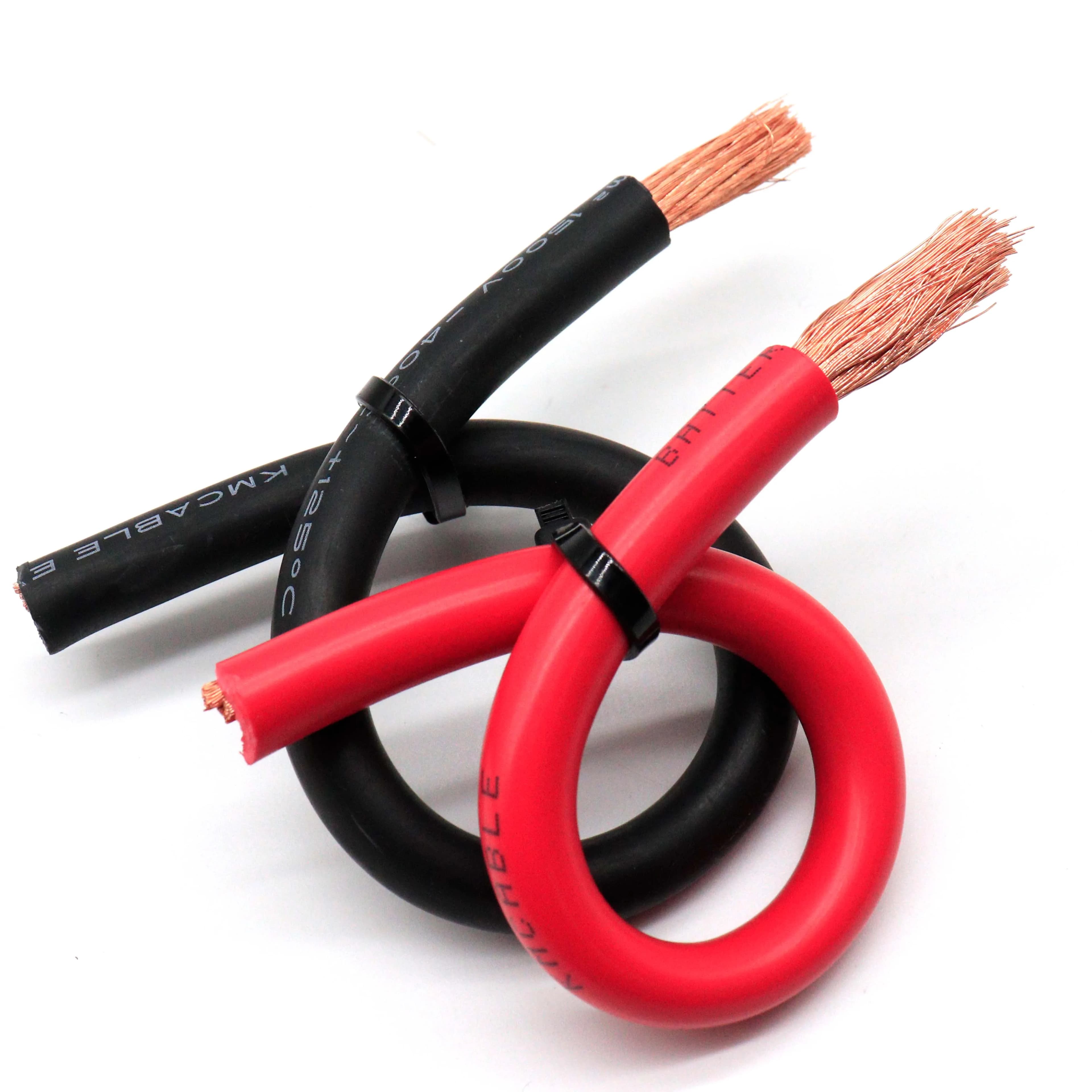

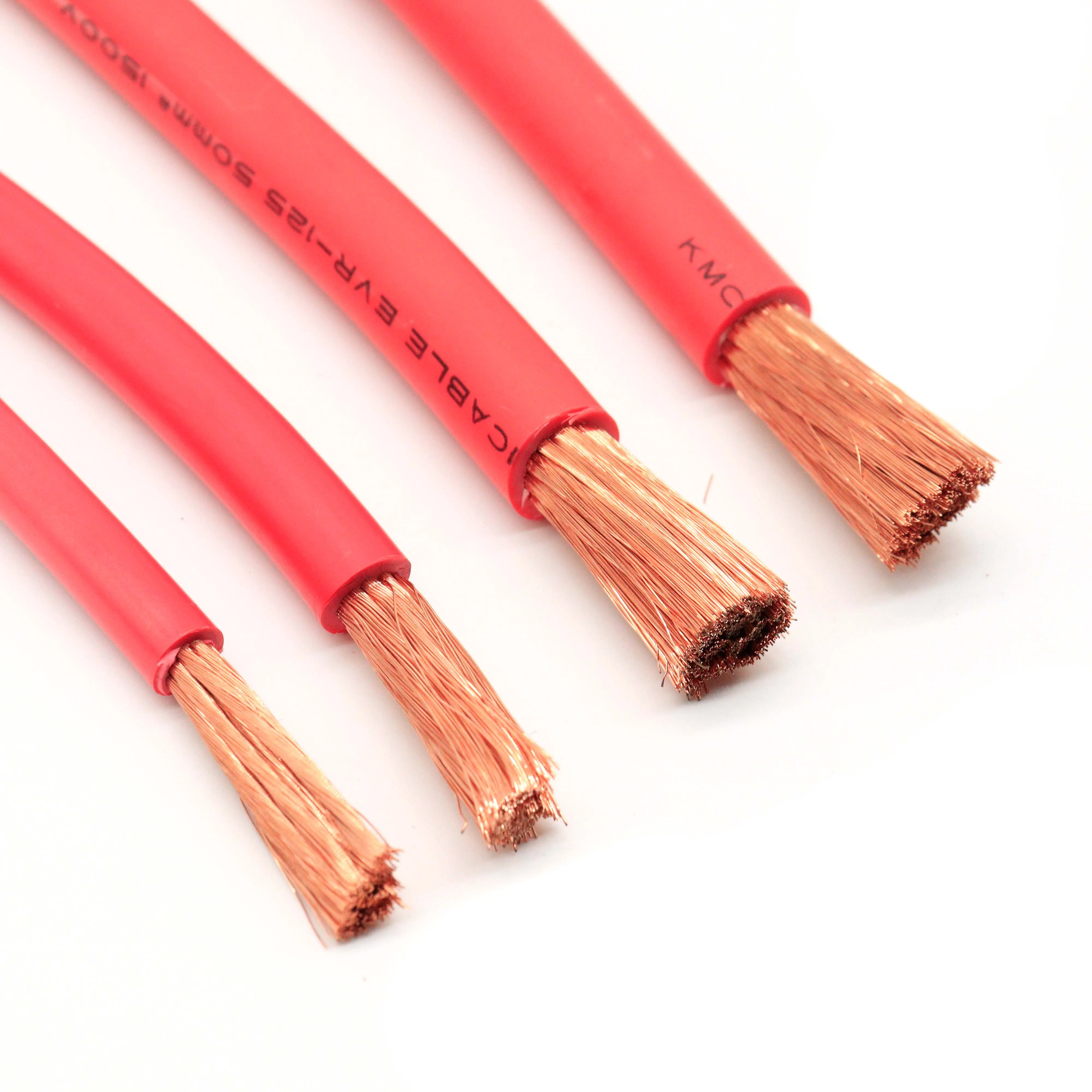

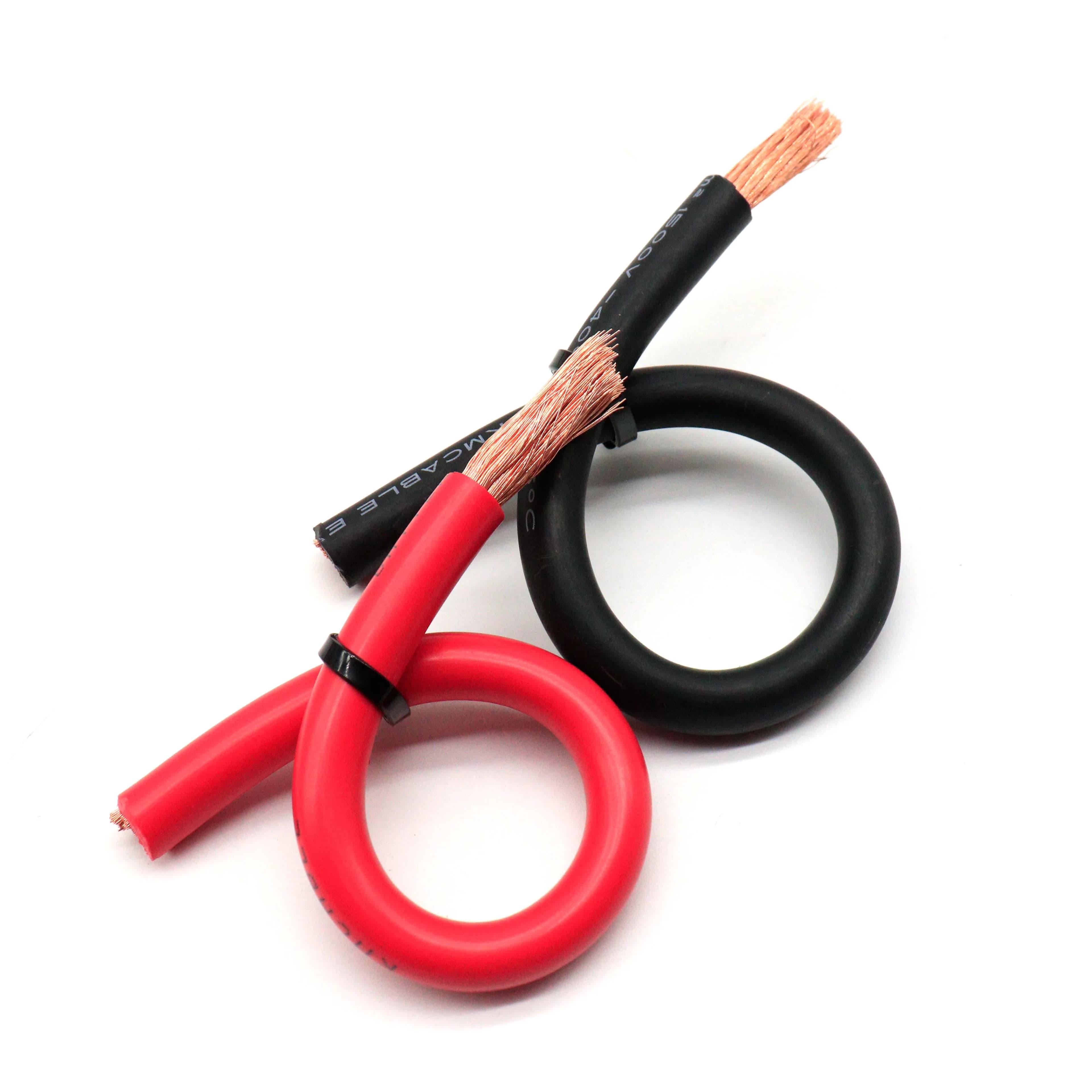

Engineered for maximum current flow and minimal voltage drop, this 1M H07V-K battery cable delivers reliable power transfer for demanding applications. Available in 10mm² to 95mm² cross-sections (8AWG to 3/0AWG), its 99.9% oxygen-free copper (OFC) core ensures superior conductivity and corrosion resistance for long-term performance. Features and Benefits
- 99.9% Oxygen-Free Copper (OFC) Core - Provides exceptional electrical conductivity, minimizing energy loss as heat and ensuring maximum power reaches your device or battery.
- H07V-K PVC Insulation - Offers excellent flexibility, durability, and resistance to abrasion, oils, and common chemicals for reliable protection in tough environments.
- Wide Cross-Section Range (10mm²-95mm² / 8AWG-3/0AWG) - Allows precise selection for your amperage requirements, from high-power audio systems to primary battery and starter circuits.
- Black and Red Color Coding - Simplifies installation and maintenance by enabling clear polarity identification, reducing the risk of incorrect connections. Applications
- Automotive and Marine Battery Cables - Ideal for primary battery connections, starter motor leads, and grounding straps requiring high current capacity.
- High-Power Audio System Installations - Perfect for running power from the battery to amplifiers and distribution blocks where low resistance is critical for clean power.
- Solar Power and Off-Grid Systems - Suitable for connecting battery banks, charge controllers, and inverters in renewable energy setups.
- Industrial Machinery and Equipment - Used for internal power distribution, motor connections, and as replacement cables in maintenance and repair scenarios.
AWG Size Range: 8 AWG to 3/0 AWG. Conductor Material: 99.9% Oxygen-Free Copper (OFC). Insulation Material: PVC (Polyvinyl Chloride). Insulation Color: Black, Red. Nominal Voltage: 600 V. Cable Type: H07V-K. Conductor Cross-Sectional Area Range: 10 mm² to 95 mm². Conductor Type: Solid. Length: 1 meter. Standards Compliance: Harmonized (H) designation indicates compliance with European (HD) standards for fixed wiring.. AWG Size Range: 8 AWG to 3/0 AWG (000 AWG). Insulation Thickness: Per IEC 60227 / HD 21.3 S3 standards for H07V-K. Packaging Length: 1 Meter (Per "1M" in title, indicative of unit sale length). Conductor Construction: Stranded, Fine-Wire, Class 5 per IEC 60228. Conductor Material: 99.9% Oxygen-Free Copper (OFC). Insulation Material: Polyvinyl Chloride (PVC). Rated Voltage: 81-600V AC (Up to and including 600V). Nominal Cross-Sectional Area Range: 10 mm² to 95 mm². Maximum Operating Temperature: +70°C. Cable Standard: H07V-K (Harmonized European Standard). Application: Fixed installations, internal wiring of equipment, battery connections. Conductor Class: Class 5 (Highly Flexible). Flame Retardancy: Compliant with IEC 60332-1 (Single Wire Flame Test). Insulation Color: Black and Red (Dual Color Coding). Intended Use: Power transmission, not for telecommunication. Minimum Bending Radius: 4 x Overall Cable Diameter. Product Type: Battery Cable / Flexible Power Cable. Q: What are the exact dimensions and AWG sizes available for this H07V-K battery cable? A: This battery cable is sold in a 1-meter length and is available in a range of cross-sectional areas from 10mm² to 95mm². This corresponds to common AWG sizes including 8AWG, 6AWG, 4AWG, 2AWG, 1AWG, 2/0AWG, and 3/0AWG.. Q: How durable is this H07V-K battery cable, and what is the copper quality? A: This cable is built for durability with a tough PVC insulation rated for voltages up to 600V. The conductor is made from 99.9% Oxygen-Free Copper (OFC), which ensures excellent conductivity, minimal resistance, and long-term reliability.. Q: Can I use this black and red battery cable for automotive or solar power applications? A: Yes, this H07V-K cable is perfectly suited for high-current DC applications like automotive battery connections, solar panel wiring, and other 12V/24V systems. The dual-color coding (black for negative, red for positive) makes installation and identification straightforward.. Q: Does this battery cable come with any warranty or guarantee? A: While specific warranty terms depend on the seller, this product is manufactured to the H07V-K standard, which is a recognized specification for flexible power cables. This ensures a baseline of quality and performance you can rely on.. Q: Is this H07V-K battery cable a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The combination of 99.9% OFC copper, a full range of AWG sizes, and robust H07V-K construction delivers reliable performance for regular use at a competitive price..
