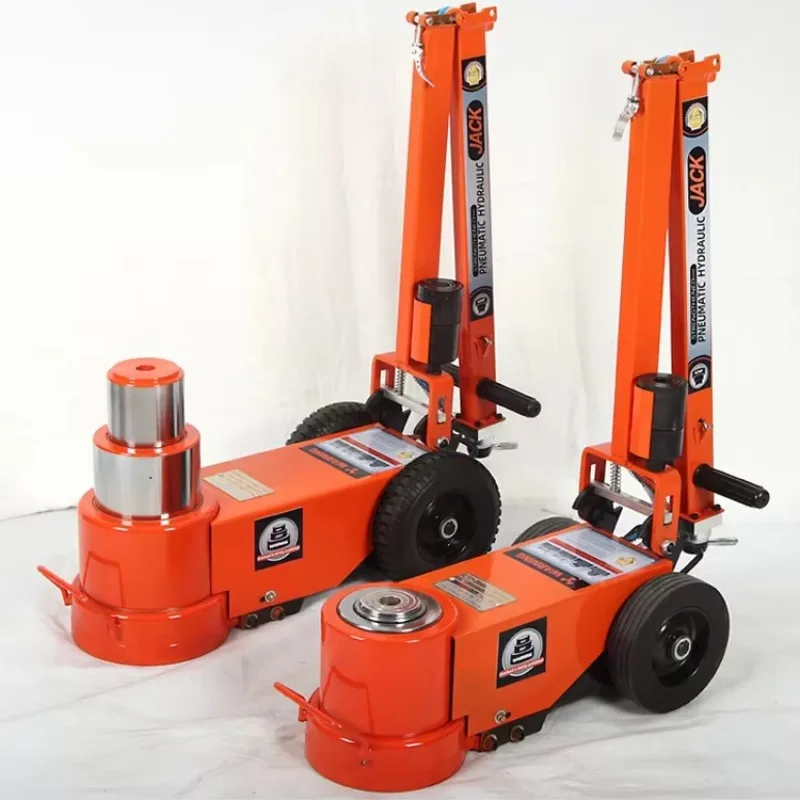

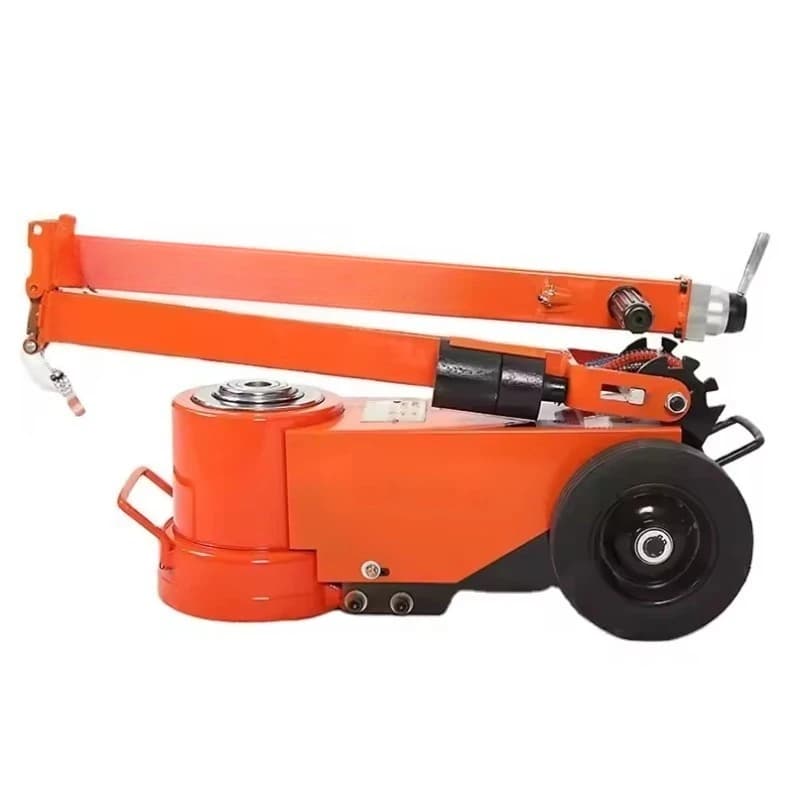

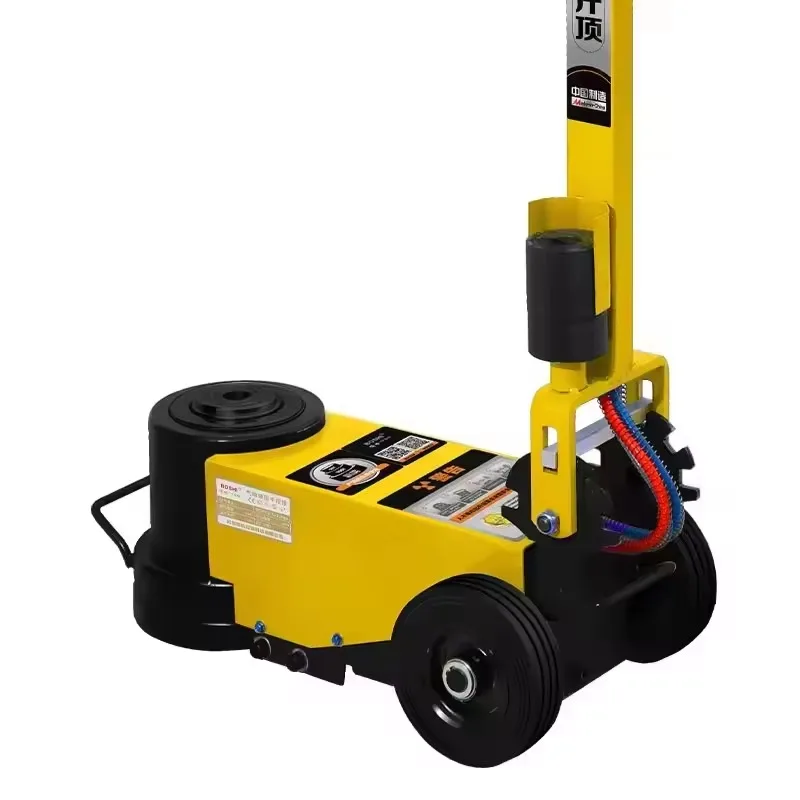

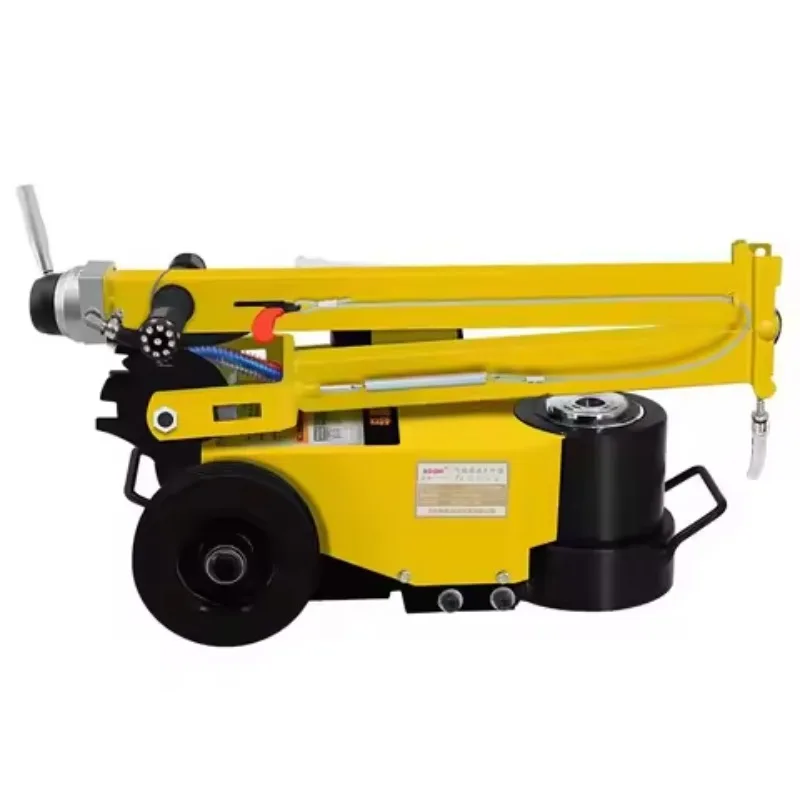

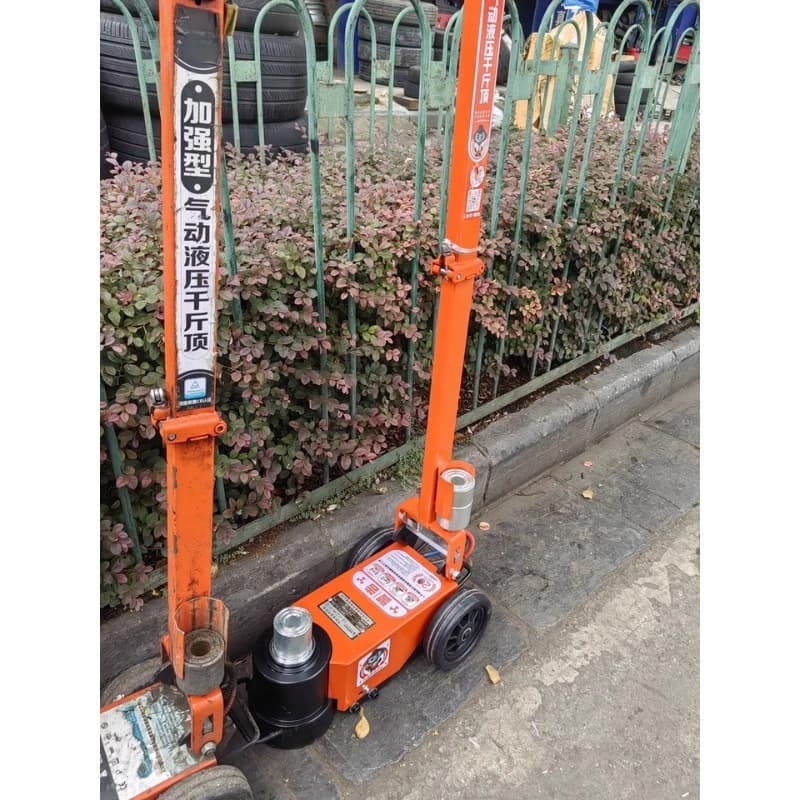

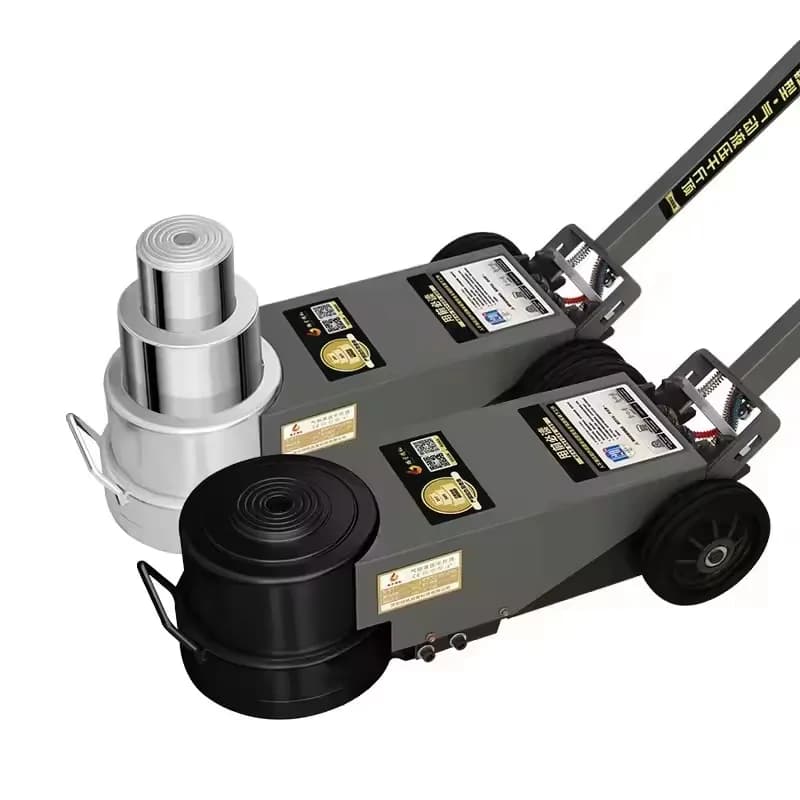

Engineered for heavy-duty service, this Pneumatic Hydraulic Floor Jack delivers reliable lifting power from 30 to 100 tons via an air-operated system. It provides fast, effortless lifting for the heaviest commercial vehicles, reducing operator fatigue and increasing shop efficiency with its robust, low-profile design for easy positioning. Features and Benefits
- Air-Operated Hydraulic System - Enables rapid, one-handed lifting with minimal physical effort by connecting to a standard shop air compressor.
- High-Capacity Range (30T-100T) - Offers versatile lifting power suitable for everything from large trucks to buses and heavy machinery.
- Reinforced Steel Construction with Low Profile - Provides exceptional durability and stability while allowing easy access under vehicles with low ground clearance.
- Large Saddle and Heavy-Duty Wheels - Ensures secure contact points and smooth maneuverability across shop floors, even under full load.
- Built-in Safety Bypass Valve - Automatically prevents over-pressurization to protect both the jack and the vehicle during operation. Applications
- Commercial Truck and Bus Repair Shops - Essential for routine maintenance, brake work, and axle service on heavy fleet vehicles.
- Agricultural and Construction Equipment Maintenance - Handles the substantial weight of tractors, loaders, and other industrial machinery.
- Fleet Maintenance Facilities - Ideal for consistent, high-volume lifting operations in professional automotive and transport service centers. Note: Always consult the vehicle manufacturer's lifting points and use appropriate jack stands. Ensure your air compressor meets the minimum PSI and CFM requirements for optimal performance.
Net Weight (Approx. 100T model): 180 kg. Shipping Weight (Approx. 100T model): 210 kg. Frame Material: High-Strength Steel. Hydraulic Cylinder Material: Hardened Chrome-Plated Steel. Capacity (Model Range): 30T, 50T, 60T, 80T, 100T. Minimum Lifting Capacity: 30 metric tons. Maximum Lifting Capacity: 100 metric tons. Power Source: Compressed Air. Air Inlet Connection: 1/4" NPT (Standard). Chassis Height: 90 mm. Handle Type: Detachable Push/Pull Handle. Hydraulic Fluid Type: Standard Hydraulic Oil. Intended Use: Heavy Truck and Bus Repair. Maximum Lift Height: 500 mm. Maximum Working Air Pressure: 0.8 MPa (8 bar, 116 psi). Minimum Saddle Height: 120 mm. Minimum Working Air Pressure: 0.6 MPa (6 bar, 87 psi). Operational System: Air Operated. Product Type: Pneumatic Hydraulic Floor Jack. Saddle Diameter: 150 mm (Standard). Safety Feature: Overload Protection Valve. Wheel Type: Polyurethane Casters. Maximum Saddle Height: Approximately 600 mm (23.6 inches). Minimum Saddle Height: Approximately 150 mm (5.9 inches). Net Weight (Approx. 100T Model): 250-350 kg (551-772 lbs). Frame Construction: Reinforced Steel Alloy. Saddle Material: Forged Steel with Rubber Pad. Primary Power Source: Compressed Air (Pneumatic). Available Capacity Models: 30T, 50T, 60T, 80T, 100T. Lift Speed (Approx.): 15-25 mm per second under load. Maximum Lifting Capacity: 100 Tons (100,000 kg / 220,462 lbs). Certification Compliance: Meets ANSI/ASME PALD Safety Standards. Air Inlet Connection: Standard 1/4" NPT or 3/8" NPT. Handle: Detachable or Foldable Steel Handle. Hydraulic Fluid Type: Standard Hydraulic Jack Oil (ISO VG 15-32). Hydraulic System Type: Air-Operated Hydraulic Pump. Intended Application: Heavy-Duty Vehicle Repair (Trucks, Buses). Lift Arm Configuration: Dual-Piston or Multi-Piston Design. Lowering Control: Precision Screw Release Valve. Product Type: Pneumatic-Hydraulic Floor Jack. Required Air Pressure: 90-120 PSI (6.2-8.3 Bar). Safety System: Integrated Overload Bypass Valve. Wheel Type: Heavy-Duty Polyurethane or Steel Casters. Q: What are the key specifications and dimensions for this pneumatic hydraulic floor jack? A: This air-operated floor jack is available in capacities ranging from 30 tons to 100 tons, suitable for heavy-duty applications. As specific dimensions are not provided, we recommend checking the product listing for detailed specs or contacting the seller directly for the exact measurements and weight.. Q: How durable is this 100-ton capacity air-operated floor jack for professional shop use? A: Built for heavy truck and bus repair, this pneumatic hydraulic floor jack is constructed from high-strength steel to withstand rigorous daily use. Its robust design and hydraulic system are engineered for reliable, long-term performance in demanding professional environments.. Q: Can this pneumatic hydraulic floor jack be used on a standard 2-post vehicle lift? A: Yes, this air-operated floor jack is an excellent companion for 2-post lifts, allowing you to precisely position and support heavy axles, transmissions, or other components during repairs. Its pneumatic operation provides smooth, controlled lifting for buses and heavy trucks that are already elevated.. Q: Does this heavy-duty air-operated floor jack come with a warranty? A: Warranty details are not specified for this product. We advise reviewing the seller's information page or contacting them directly to inquire about any available guarantee or warranty coverage for the pneumatic hydraulic system and components.. Q: Is this pneumatic hydraulic floor jack a good value compared to other heavy-duty jacks? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use on heavy trucks and buses, providing substantial lifting capacity through its efficient air-operated system..
