Engineered for high-volume water extraction, this 3HP deep well submersible pump delivers a powerful 37 GPM flow with a remarkable 640 ft max head. The 4-inch stainless steel construction and integrated external control box ensure reliable, long-term performance in demanding deep well applications. Features and Benefits

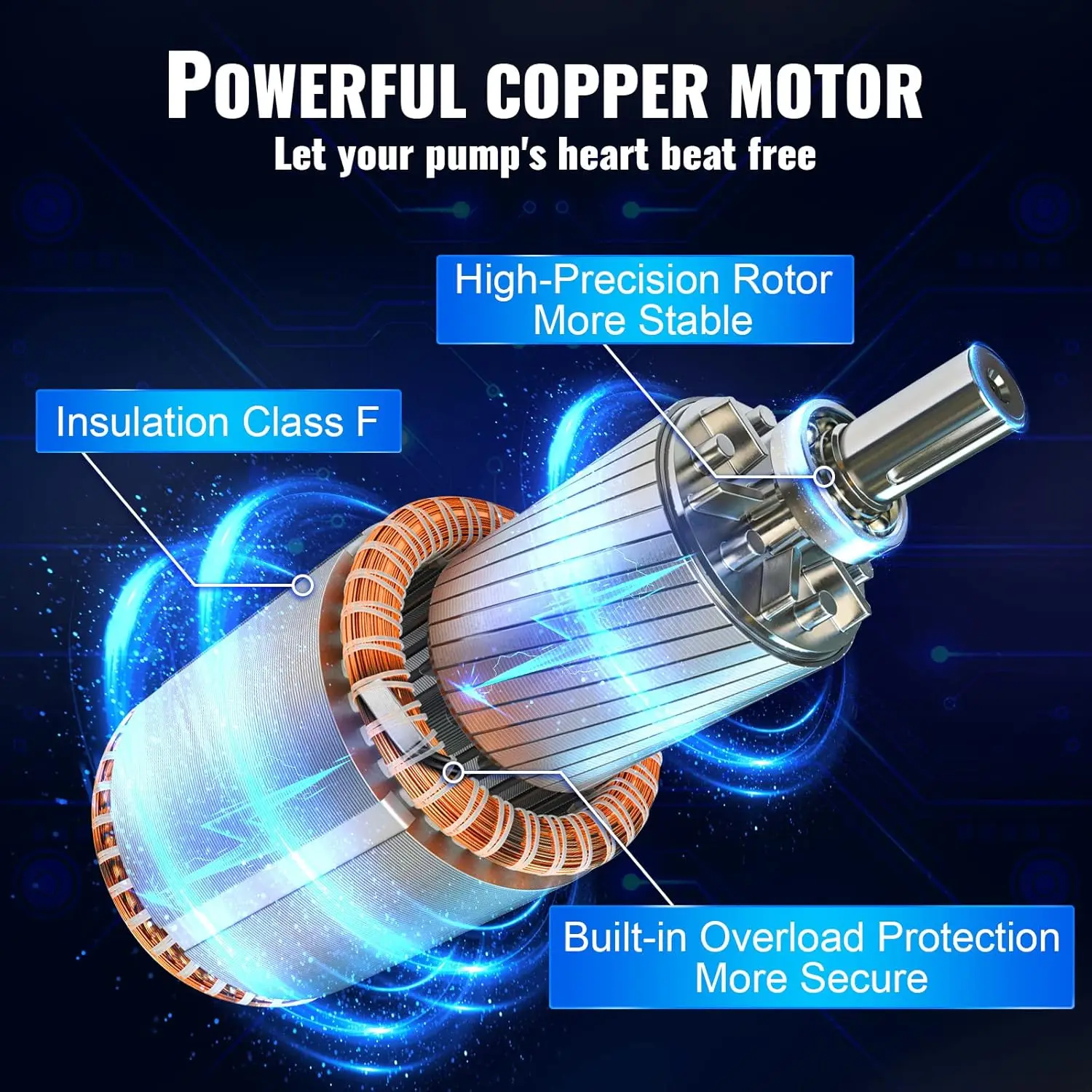

- 3HP 230V/60Hz Motor & 37 GPM Flow - Provides robust power and high water output for efficient deep well water supply and irrigation.
- 640 ft Maximum Head - Capable of lifting water from extreme depths, making it ideal for deep residential, agricultural, or commercial wells.

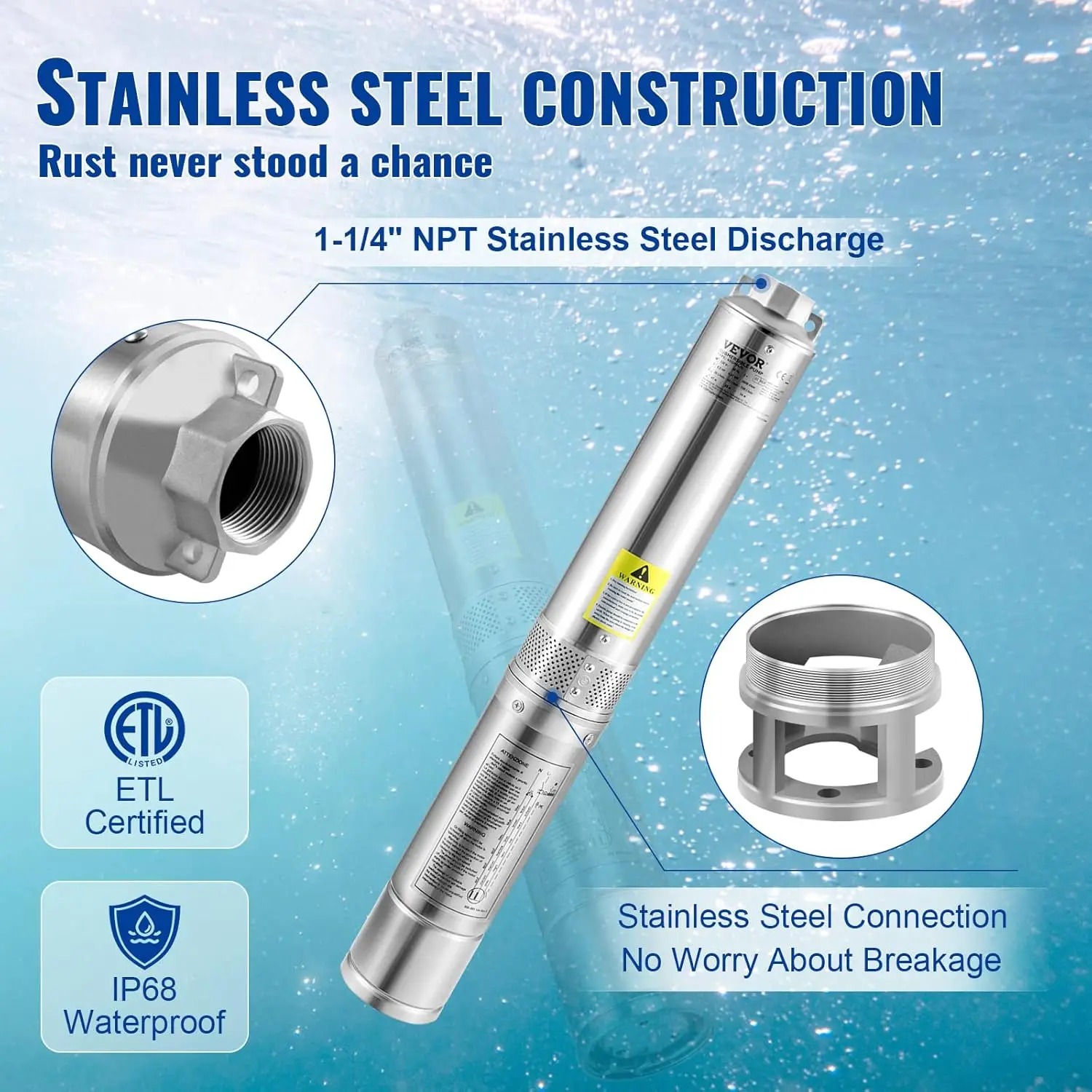

- 4-Inch Stainless Steel Housing - Offers superior corrosion resistance and durability for extended service life in harsh underwater environments.

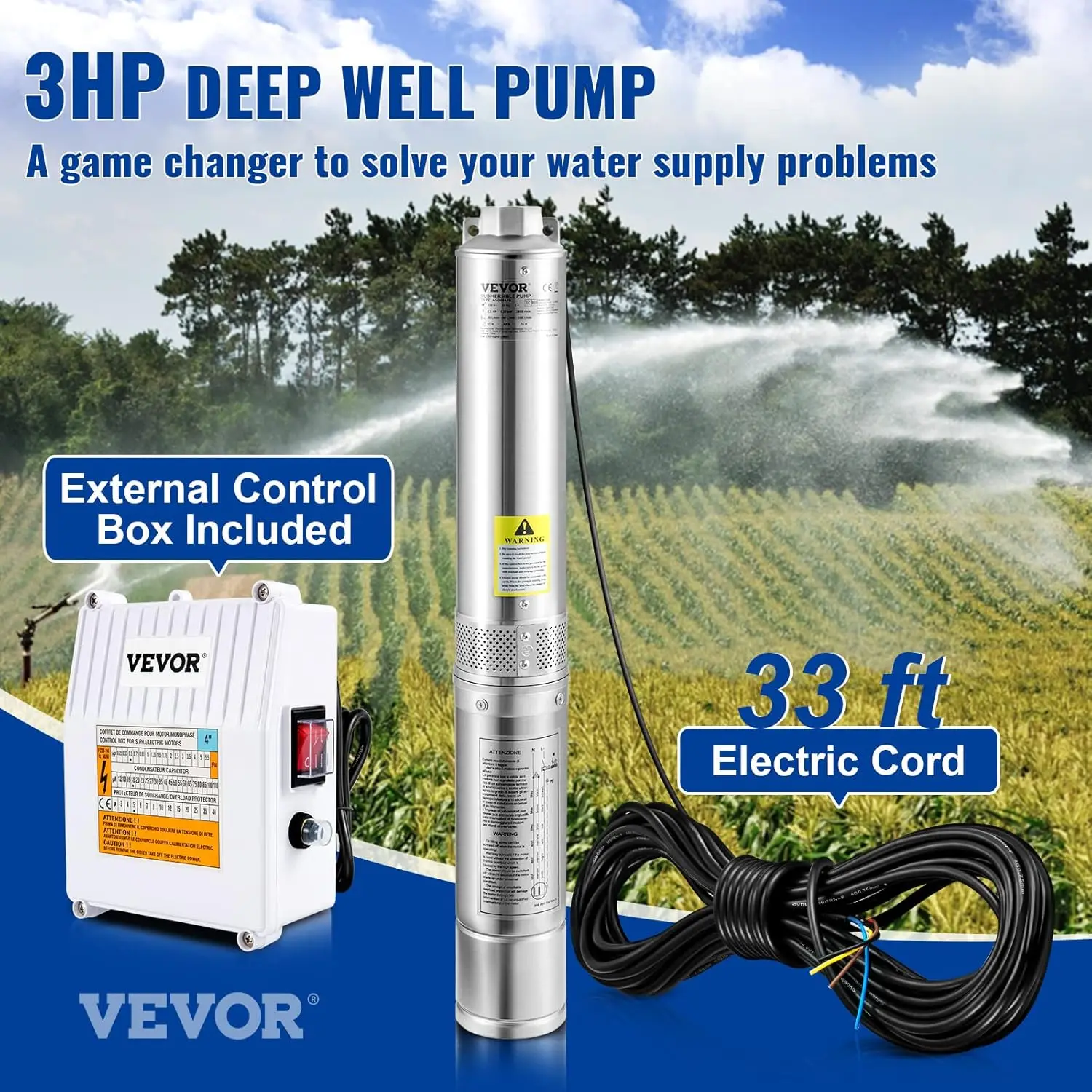

- External Control Box with 33 ft Cord - Simplifies installation, protects electrical components, and allows for easier maintenance and system monitoring. Applications
- Supplying water to remote homes, farms, or cabins from deep private wells.
- Large-scale agricultural irrigation systems requiring consistent, high-volume water delivery.
- Dewatering and water transfer for construction sites or industrial projects.
Housing Material: Stainless Steel. Rated Power: 2.2 kW (3 HP). Operating Voltage: 230 V AC. Cable Length: 10 m (33 ft). Control Box: External. Frequency: 60 Hz. Maximum Flow Rate: 140 L/min (37 GPM). Maximum Head: 195 m (640 ft). Maximum Operating Depth: 150 m. Product Type: Deep Well Submersible Pump. Protection Rating: IP68. Pump Diameter: 102 mm (4 inch). Cable Length: 33 ft (10 m). Connection Size: 1.25 inch NPT. Housing Diameter: 4 inch (101.6 mm). Housing Material: Stainless Steel. Motor Power: 3 HP (2.24 kW). Voltage/Frequency: 230V / 60Hz. Operating Temperature Range: 32°F to 104°F (0°C to 40°C). Maximum Operating Depth: Approx. 650 ft (198 m). Control System: External Control Box. Impeller Type: Multi-stage centrifugal. Maximum Flow Rate: 37 GPM (140 L/min). Maximum Head: 640 ft (195 m). Motor Protection: Thermal overload protection. Phase: Single Phase. Product Type: Deep Well Submersible Pump. Q: What are the key specifications of this submersible pump? A: This pump is rated at 3 horsepower, operates on 230 volts at 60Hz, and delivers a flow rate of 37 gallons per minute with a maximum head of 640 feet. It features a 4-inch stainless steel housing and comes with a 33-foot power cord and an external control box for operation.. Q: What are the key specifications of this submersible pump? A: This pump is rated at 3 horsepower, operates on 230 volts at 60Hz, and delivers a flow rate of 37 gallons per minute with a maximum head of 640 feet. It features a 4-inch stainless steel housing and comes with a 33-foot power cord and an external control box for operation.. Q: How is the build quality and durability of this pump? A: The pump is constructed with a corrosion-resistant stainless steel housing, designed for long-term submersion in deep well applications. The inclusion of an external control box helps protect the motor from electrical issues, contributing to reliable performance in demanding conditions.. Q: How is the build quality and durability of this pump? A: The pump is constructed with a corrosion-resistant stainless steel housing, designed for long-term submersion in deep well applications. The inclusion of an external control box helps protect the motor from electrical issues, contributing to reliable performance in demanding conditions.. Q: What is the compatibility for installation? A: The 4-inch diameter makes it compatible with standard residential and agricultural well casings. It requires a 230V/60Hz power supply and is designed to be used with the provided external control box for proper operation and protection.. Q: What is the compatibility for installation? A: The 4-inch diameter makes it compatible with standard residential and agricultural well casings. It requires a 230V/60Hz power supply and is designed to be used with the provided external control box for proper operation and protection.. Q: What warranty is offered with this product? A: The manufacturer provides a standard warranty covering defects in materials and workmanship. Specific warranty duration and terms are typically detailed in the product documentation included with the purchase.. Q: What warranty is offered with this product? A: The manufacturer provides a standard warranty covering defects in materials and workmanship. Specific warranty duration and terms are typically detailed in the product documentation included with the purchase.. Q: Does this pump offer good value for its performance? A: Given its 3HP motor, 640-foot head capability, and stainless steel construction, this pump provides strong performance for deep well applications. The included cord and control box add to its value as a complete ready-to-install system.. Q: Does this pump offer good value for its performance? A: Given its 3HP motor, 640-foot head capability, and stainless steel construction, this pump provides strong performance for deep well applications. The included cord and control box add to its value as a complete ready-to-install system..
