Strain Gauges

Selecting Bridge Configuration and Circuit Integration

Foil patterns fall into distinct bridge circuits based on measurement goals. Single-element patterns evaluate unidirectional surface strain along a designated line. For complex loading conditions, a 45° three-axis foil configuration determines principal stress directions across machinery housings.

Connecting a bare foil strain gauge to industrial instrumentation requires bridge completion. Full-bridge designs balance internally, canceling thermal noise and simplifying connection to external signal conditioners. For rapid integration, pre-wired modules like the YONGLONGGE Y3 include built-in amplification for direct connection to digital processing hardware.

• Full bridge strain gauge patterns: BF350-3EB models provide self-contained bridge circuits with high precision for pressure sensor tasks.

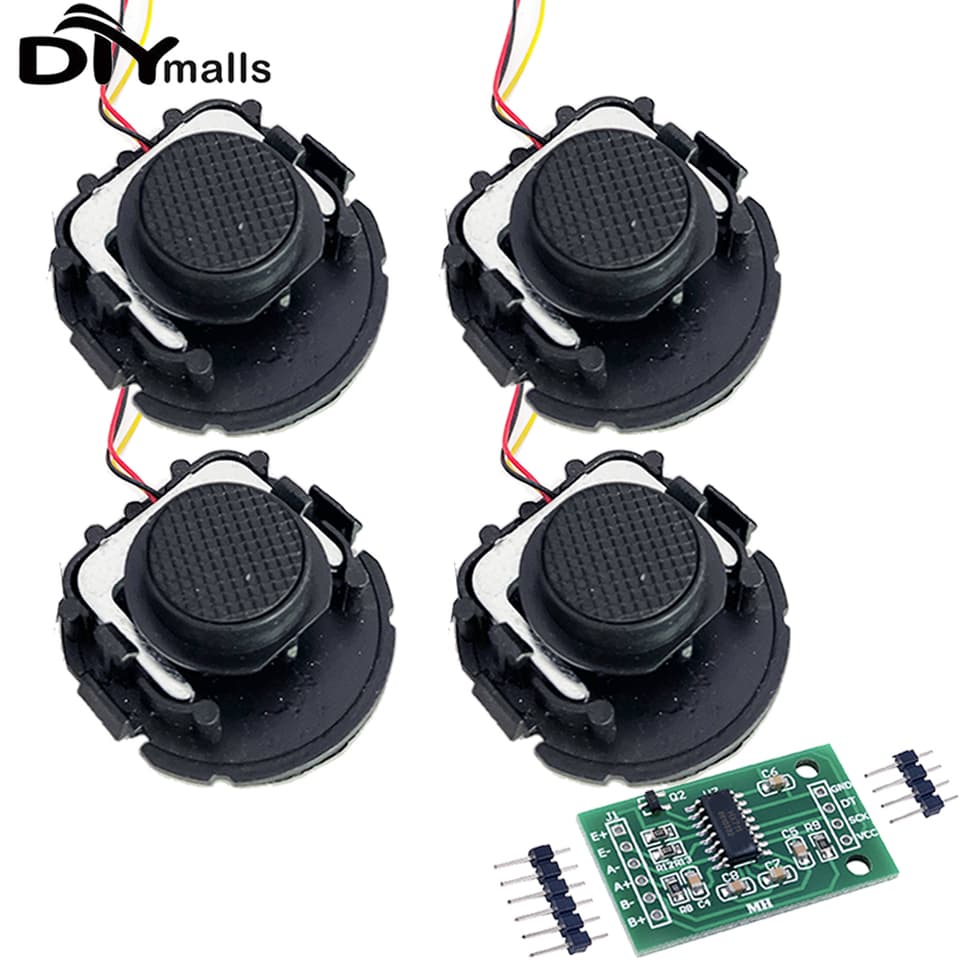

• Half-bridge sensors: Compact units with mounting brackets handle baseline force measurements up to 50 kg capacity.
• Bending sensor modules: Integrated boards complete with amplifiers interface directly into Arduino hardware.

Matching Resistance Ratings and Base Materials

Selecting the appropriate resistance ensures signal integrity across long plant cabling. Standard options include 120 Ohm, 350 Ohm, and 1000 Ohm ratings. Higher resistance reduces excitation current, curbing sensor self-heating on materials with low heat dissipation.

Carrier materials dictate thermal performance and bonding adhesion. Polymer backings provide flexible electrical insulation for flat or curved substrates. For demanding assembly runs, bare sensors come with optional soldering services to secure reliable electrical terminations without damaging delicate foil grids.

• 120 Ohm resistance: Traditional electrical resistance for standard test instrumentation.
• 350 Ohm and 350 Ω ratings: Industrial standard BF350-3AA and BF350-6AA patterns minimize thermal drift.
• 1000 Ohm resistance: Low-current sensing elements suited for power-limited monitoring installations.

Sizing Load Cell Sensors and Mechanical Assemblies

When bare foil grids do not suit harsh industrial environments, fully packaged load cell sensor assemblies provide mechanical protection. Shear beam units machined from alloy steel protect the sensing matrix from moisture, dirt, and side loads.

For bulk materials and heavy logistics, beam assemblies handle capacities from 0.5-10 T with standard 2.0mV/V output. These units meet C3 accuracy class standards for static weighing across platform and hopper scale structures. Smaller mechanical setups benefit from specialized brackets or direct nozzle-mounted sensors designed for Anycubic S1C auto-leveling systems.

• Shear beam assemblies: Alloy steel construction rated at 0.5-10 T capacity for hopper scale use.
• Accuracy rating: C3 class performance delivers repeatable measurement across harsh operational cycles.
• Specialized fixtures: Purpose-built leveling sensors interface cleanly with Anycubic S1C equipment.
