Humidity Sensors

Selecting Communication Protocols and Signal Outputs

The interface determines how directly your sensor integrates into existing control hardware. Microcontroller installations, test benches, and custom OEM circuit boards typically rely on board-level digital buses. Field automation loops instead require noise-immune communication across long wiring runs.

Transmitter modules convert native element readings into industrial bus protocols, preventing the signal attenuation seen on unshielded digital lines over long distances.

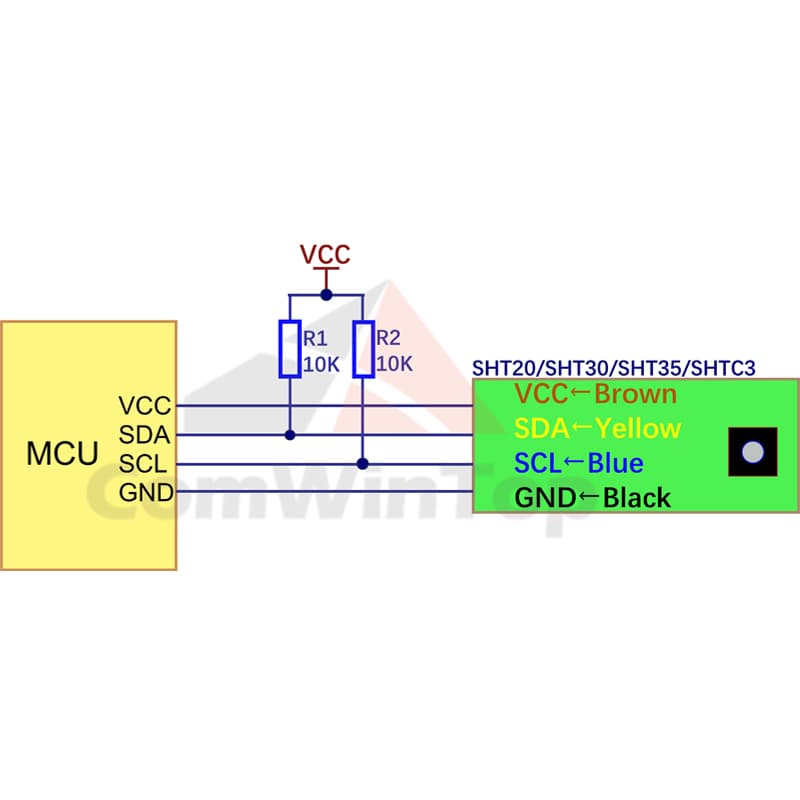

• Digital board interfaces: Units utilizing I2C or SPI connect directly to local controllers with minimal processing overhead.
• Industrial serial networks: A humidity transmitter equipped with RS485 Modbus connects straight to factory PLCs, remote terminal units, and SCADA networks.

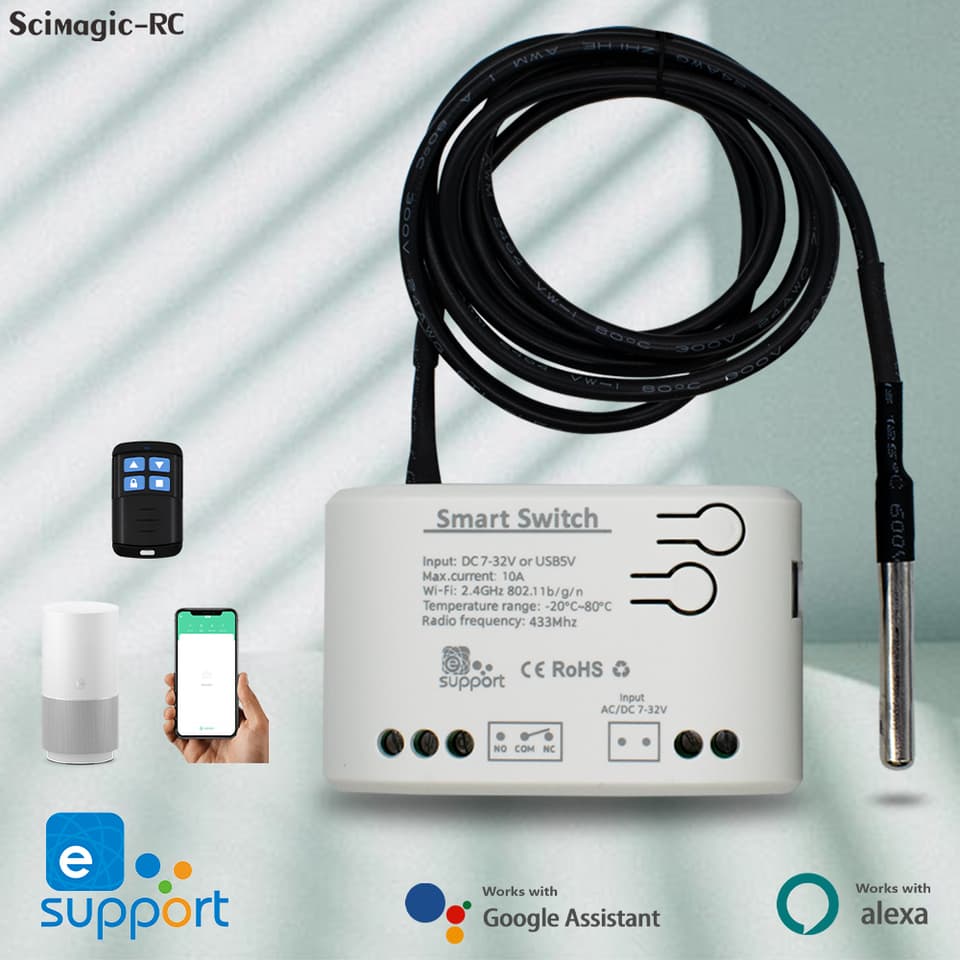

• Direct switches: Smart units provide direct AC switching, handling ratings up to 2000W at 10A current rating for rapid fan or heating control.

Matching Sensor Modules to Operating Voltage and Accuracy

Sensor accuracy and span must match your process tolerance. Basic monitoring setups frequently deploy modules like the DHT11, which provides ±5% RH accuracy across a 20% to 90% RH range. Higher-precision installations require advanced digital devices such as the AHT10 or the SHT40 probe.

Supply voltage varies across hardware formats. Component modules operate across 3.3V, 5V, or a wider 3V-5.5V span. Verify your supply rail beforehand, as certain board types run strictly at 3.3 V without onboard regulation.

Housing Construction and Remote Probe Options

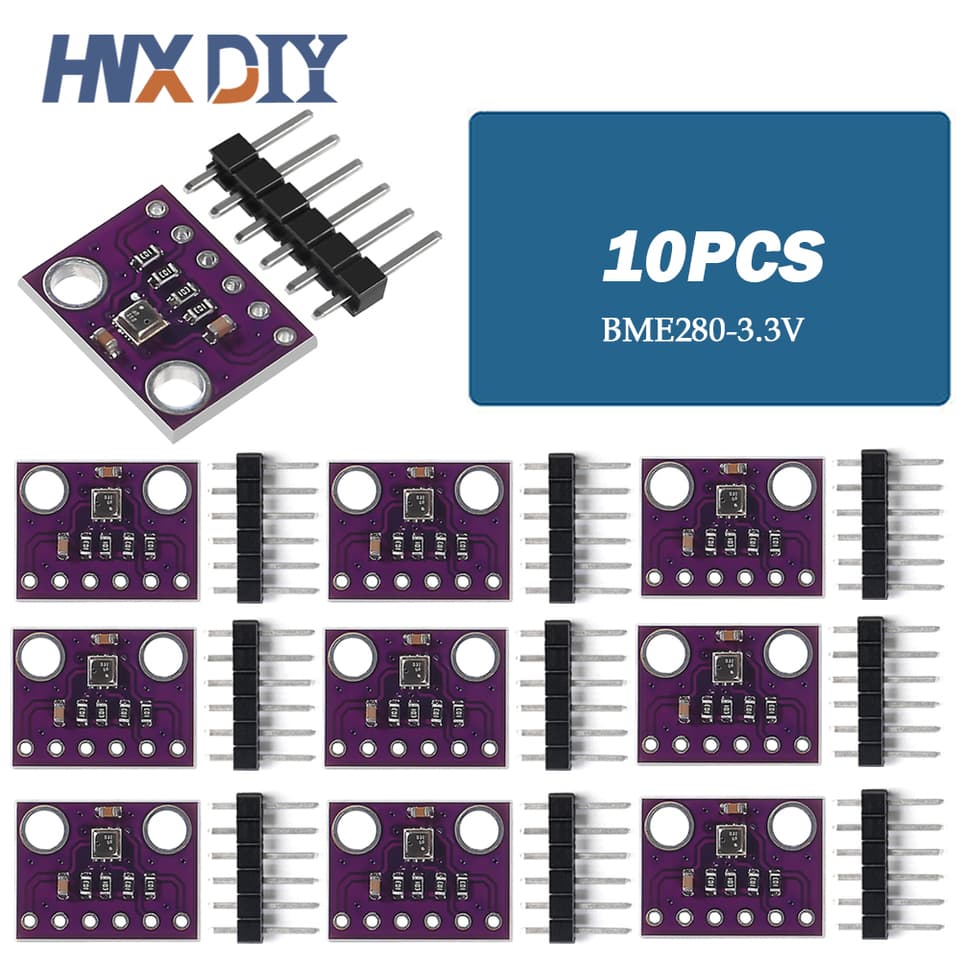

Environmental exposure dictates the physical package required for your installation. Raw PCB breakout modules suit clean control cabinets, electrical enclosures, and internal machinery pockets. They take up minimal room but lack shielding against liquid splashing or fine debris.

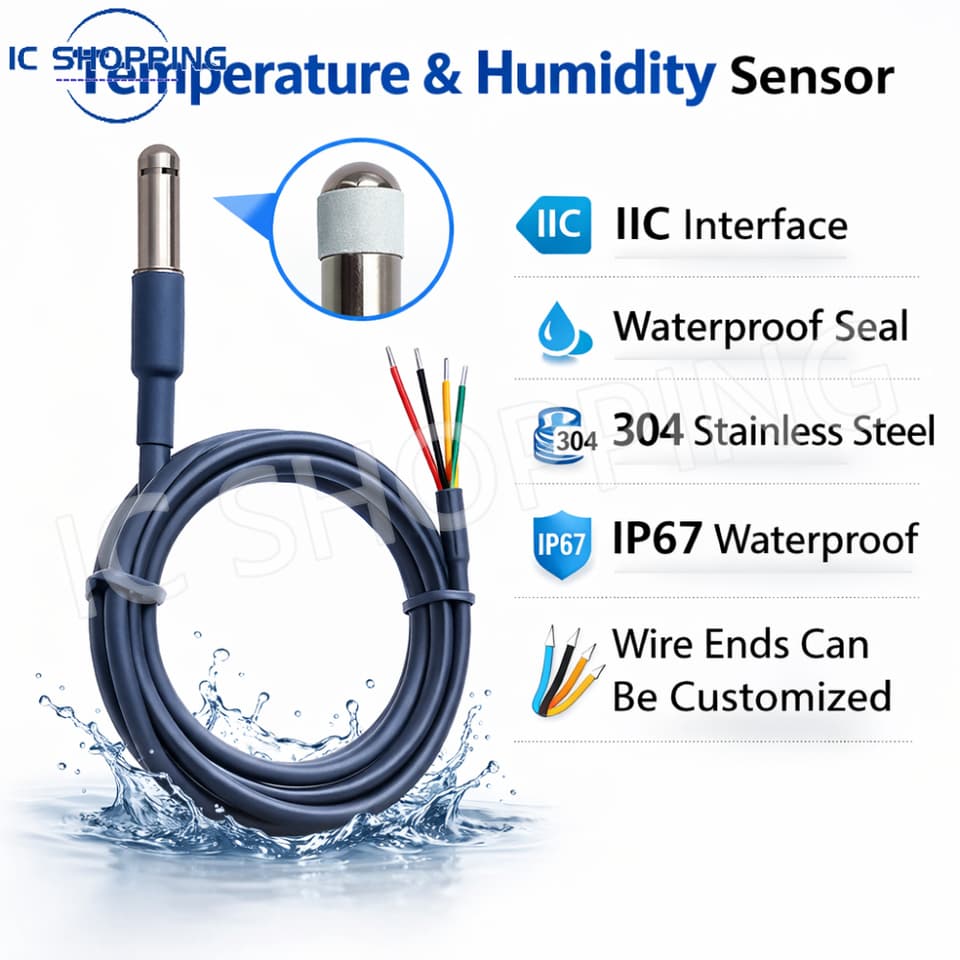

Exposed process streams or HVAC ducts demand sealed remote probes. Compel supplies assemblies built with polymer shells, waterproof plastic housing designs, and protective stainless steel components. These shields protect delicate sensing dies from contamination while permitting vapor circulation.
