Selecting the Right Capacitor Dielectric: Aluminum vs. Ceramic

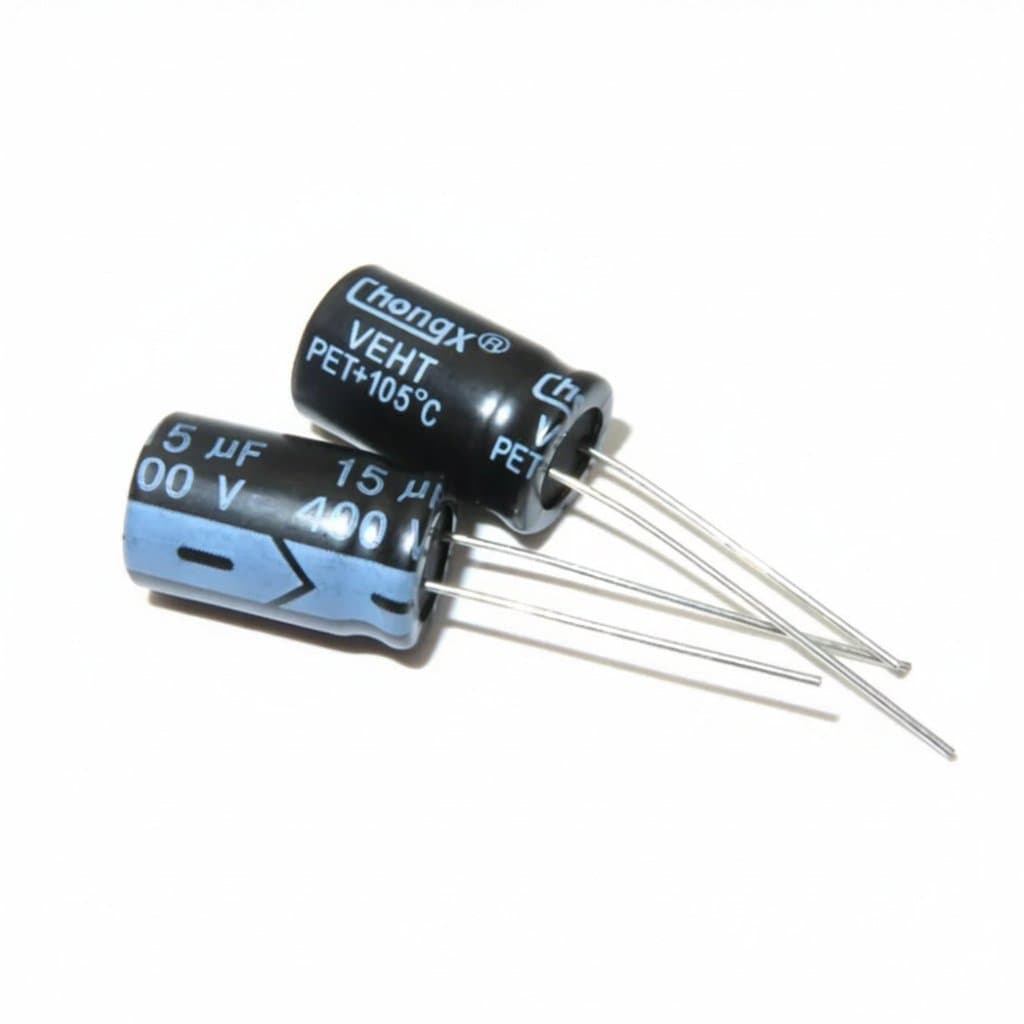

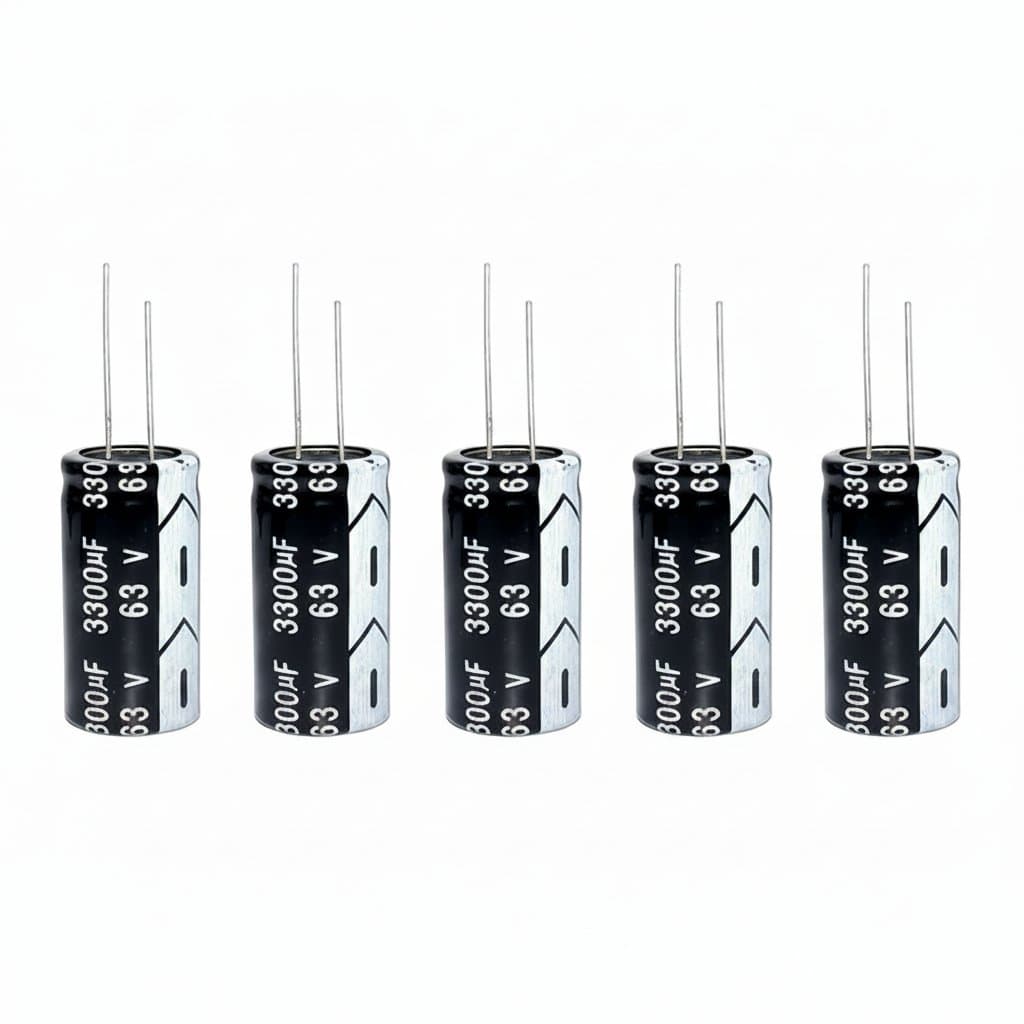

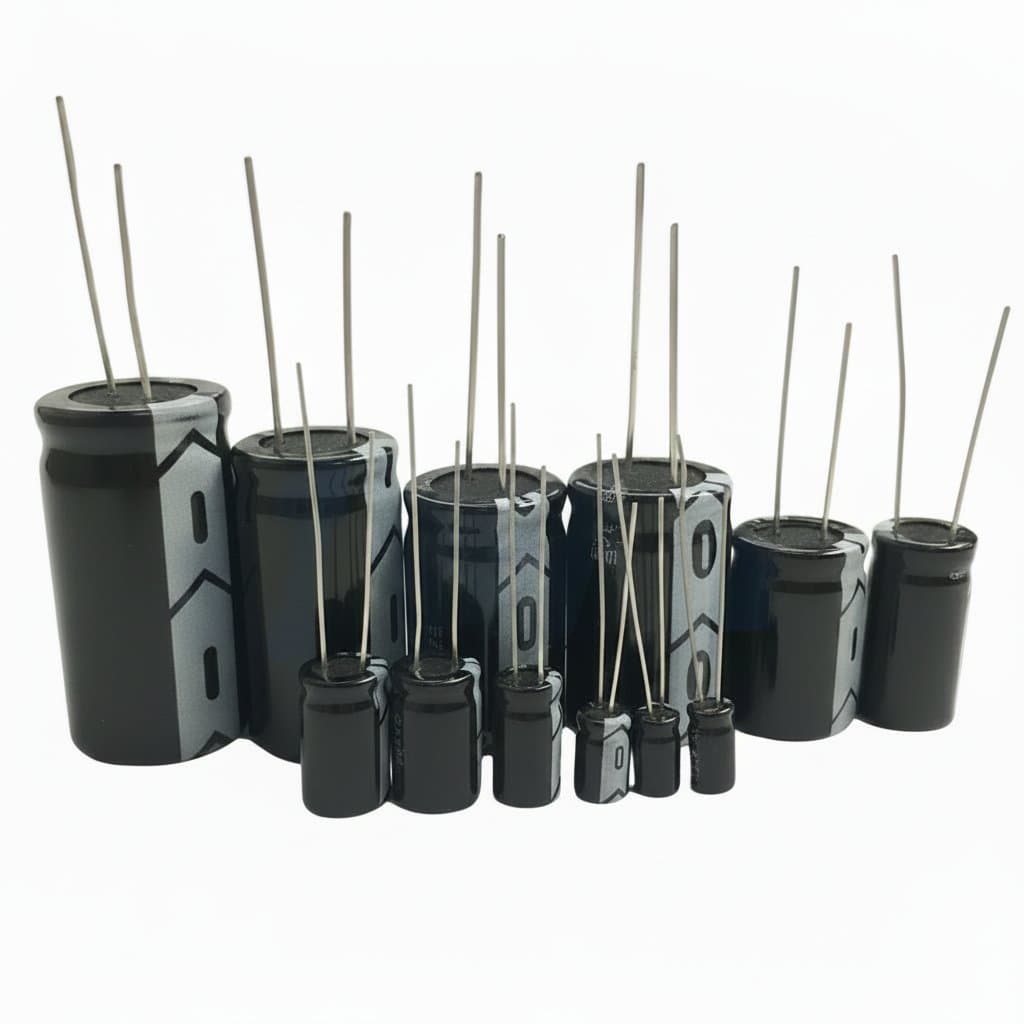

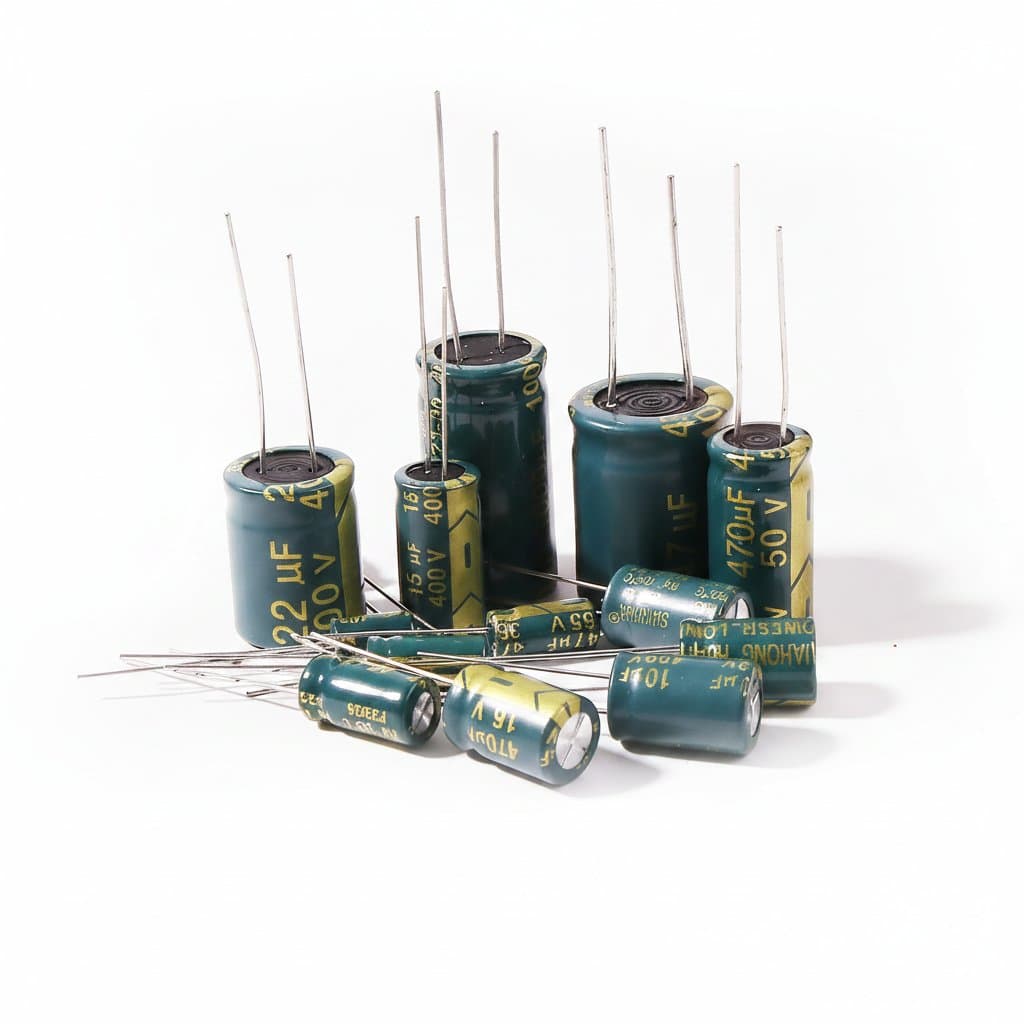

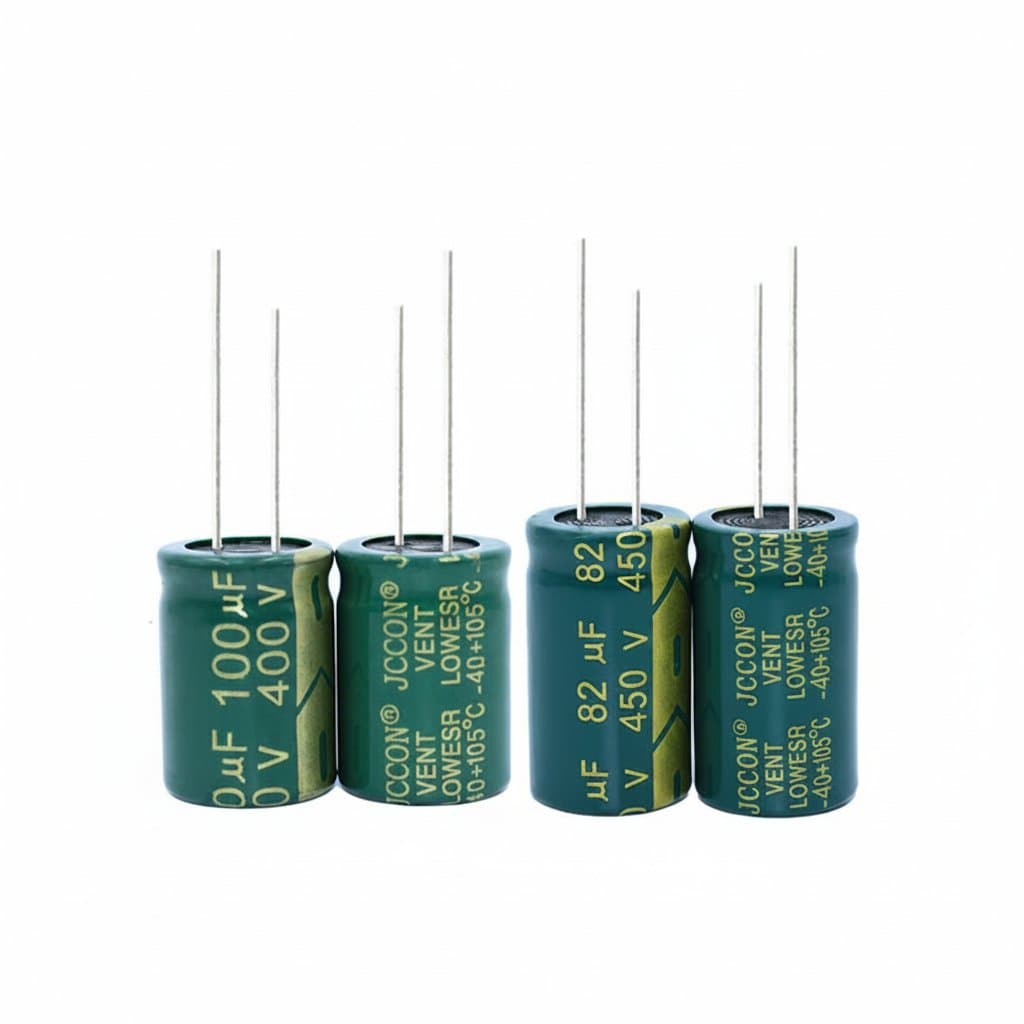

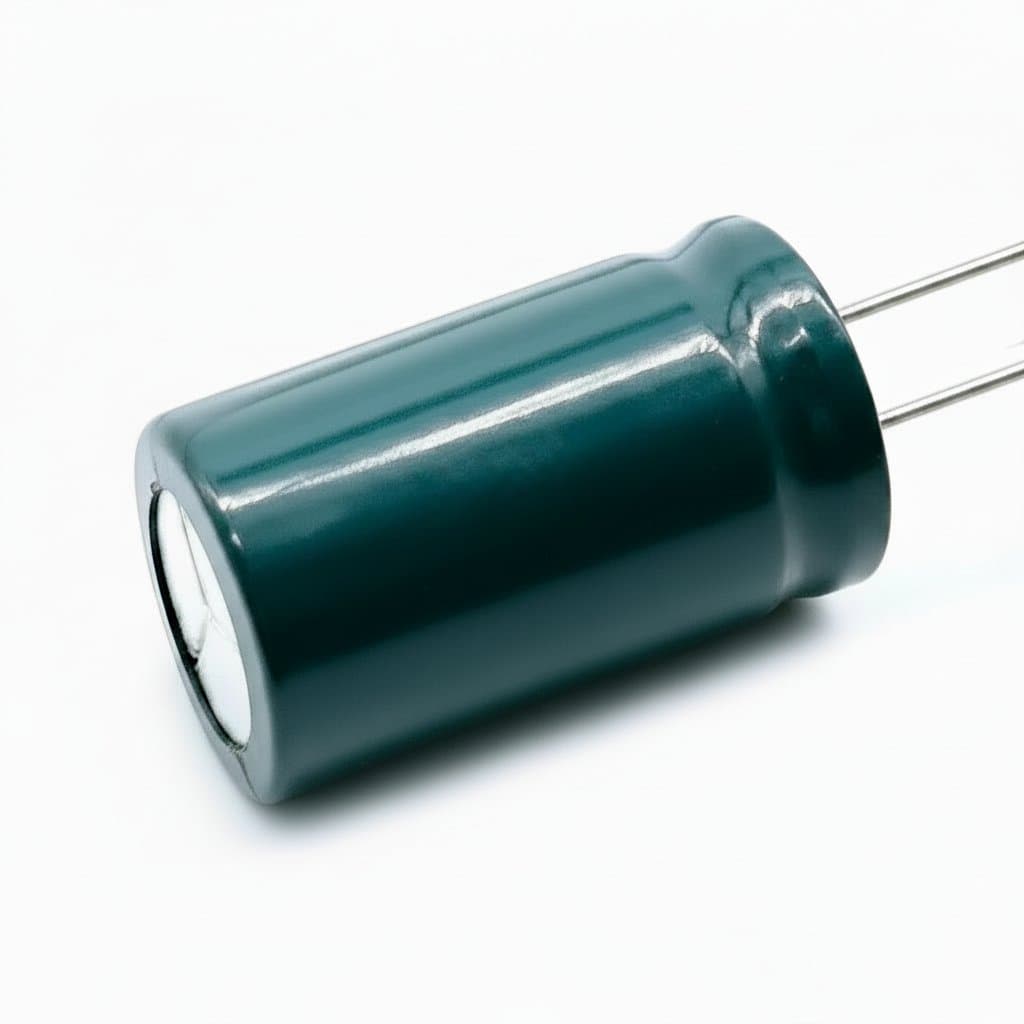

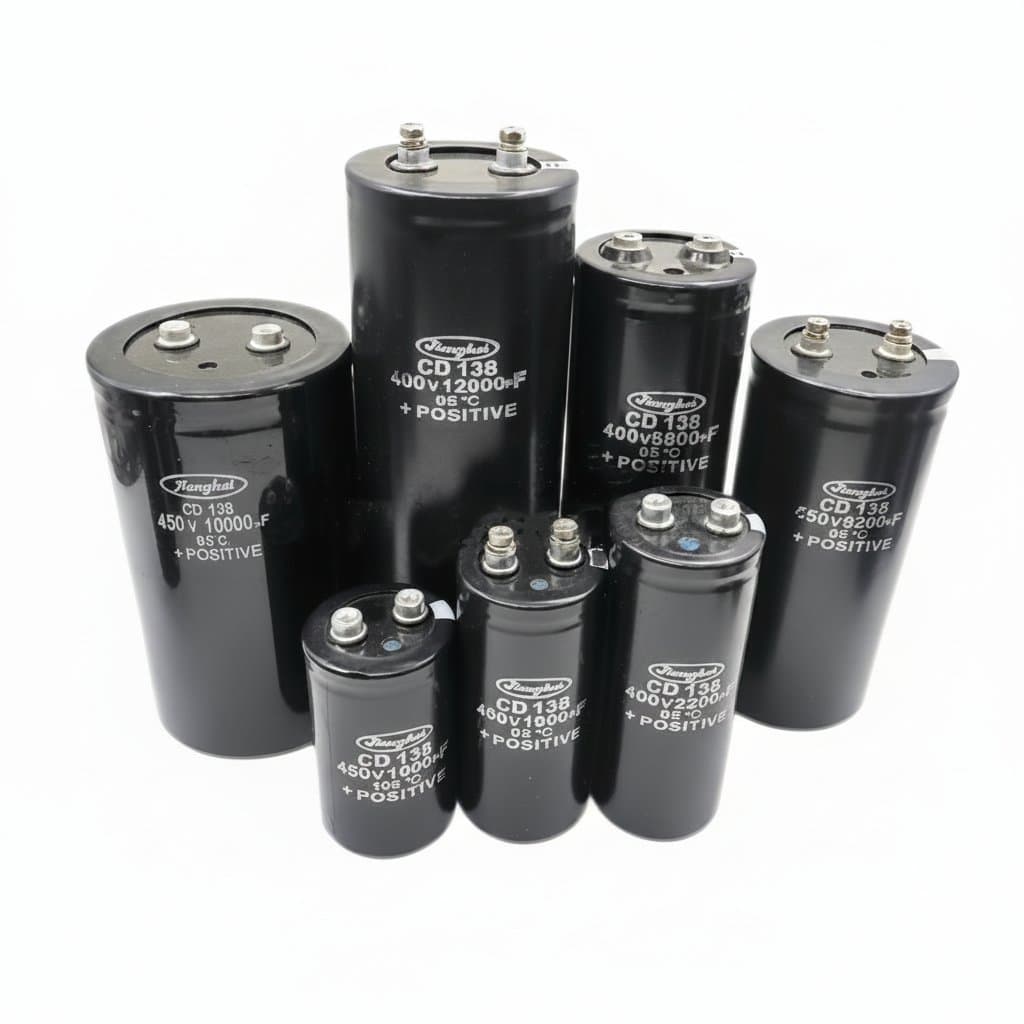

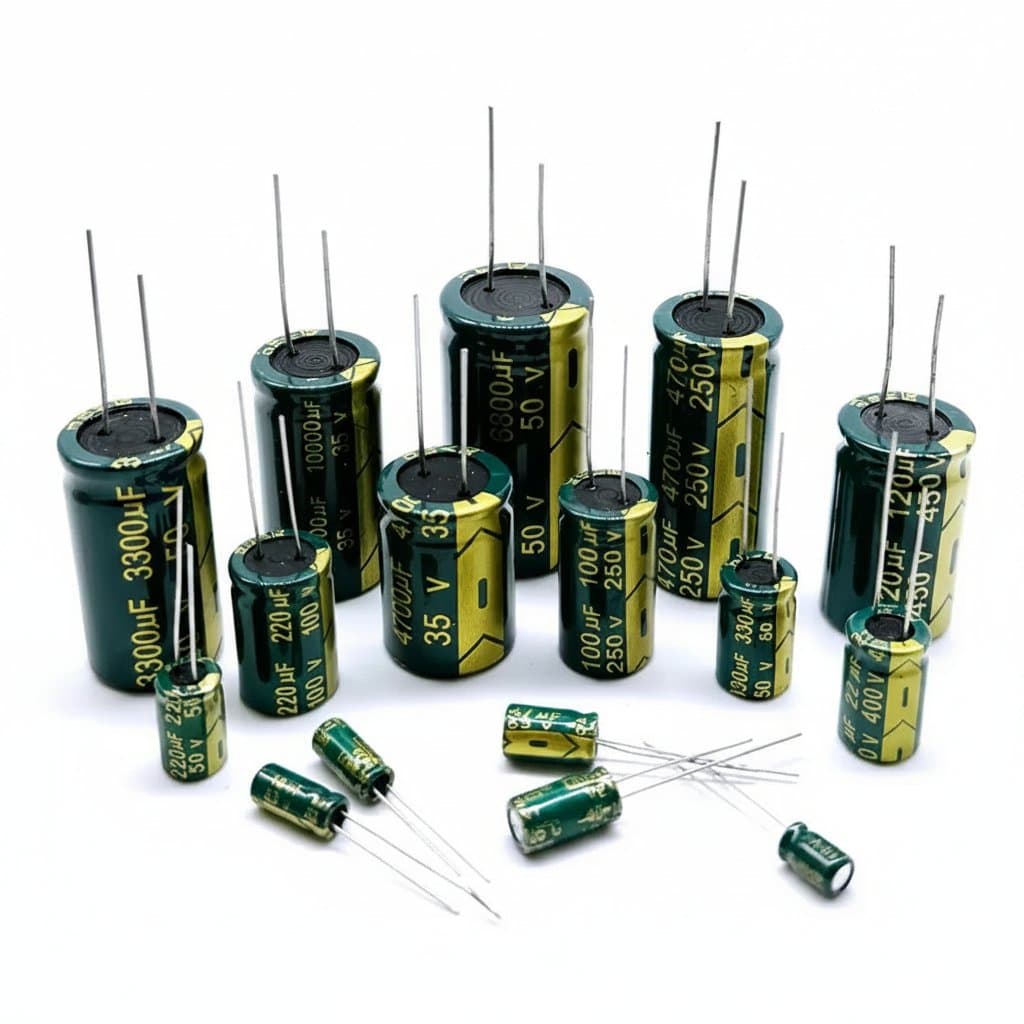

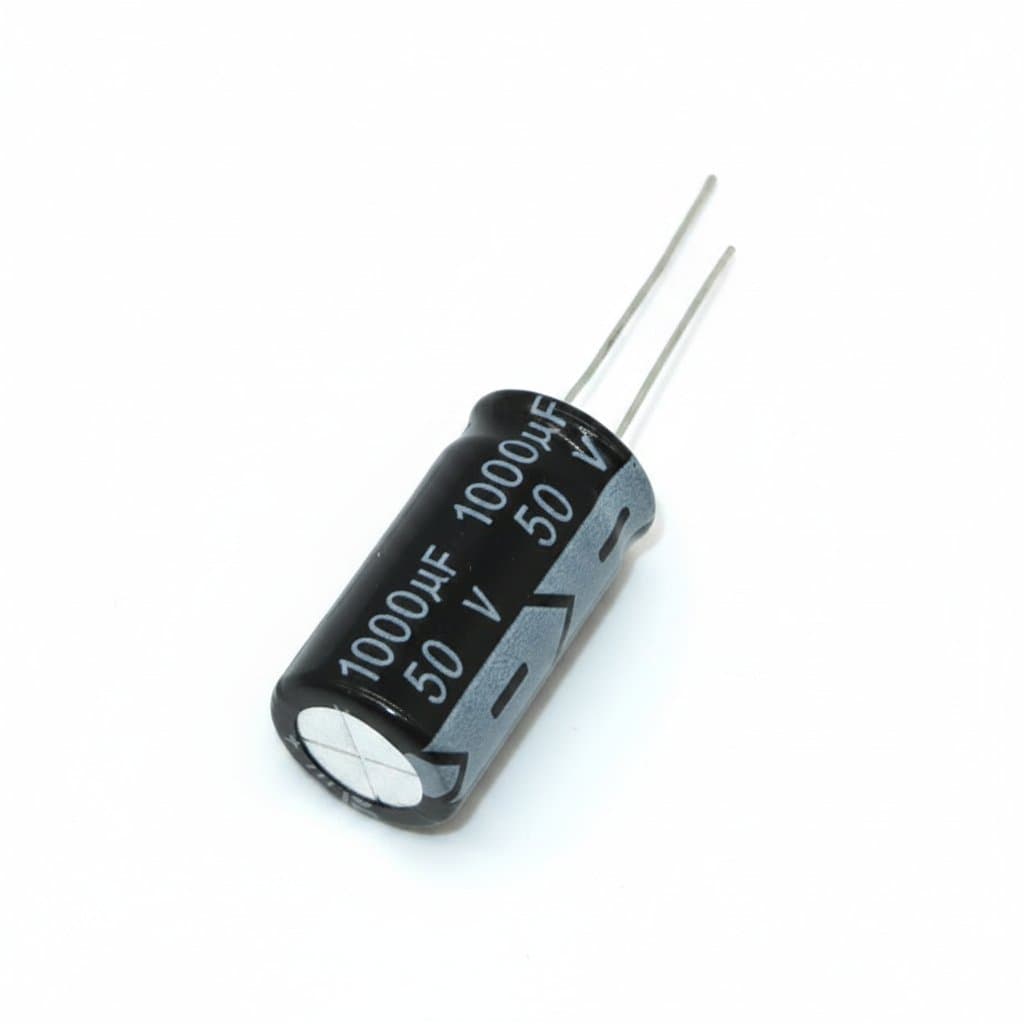

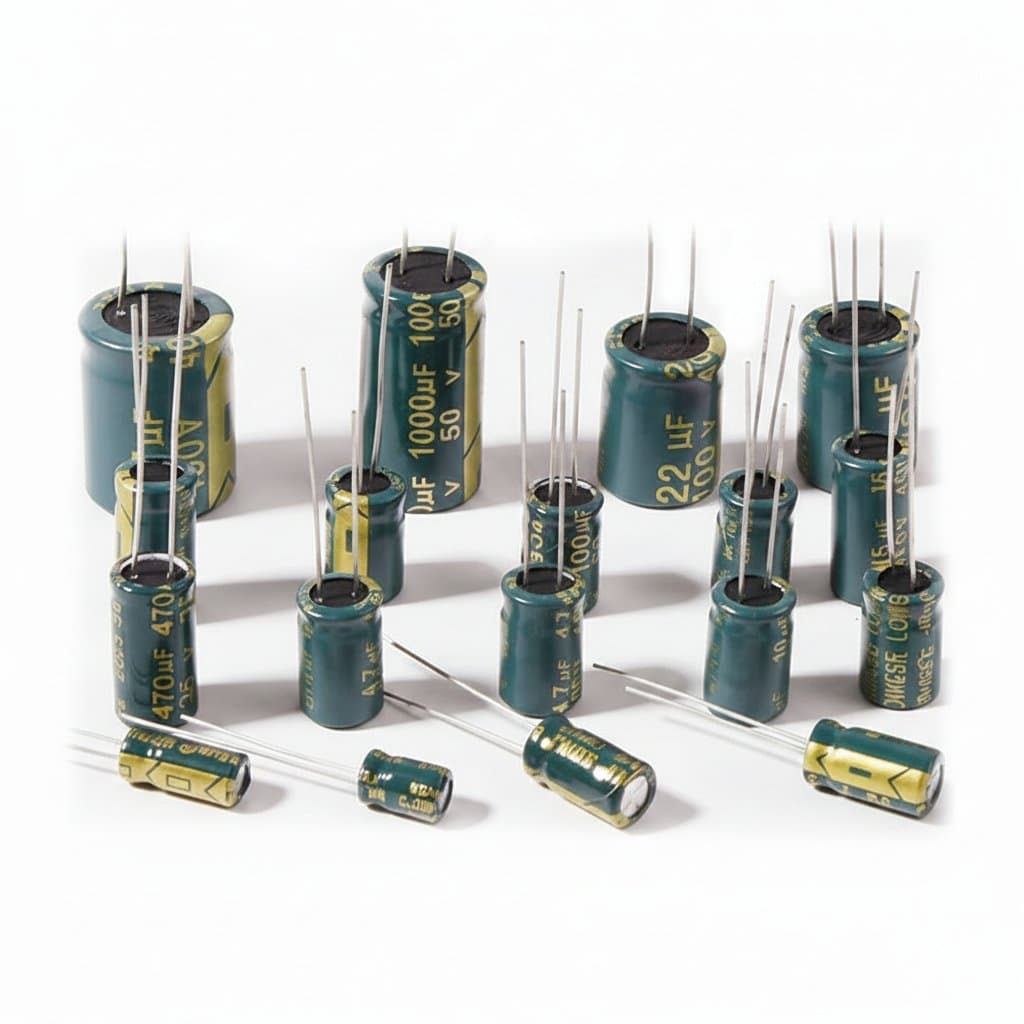

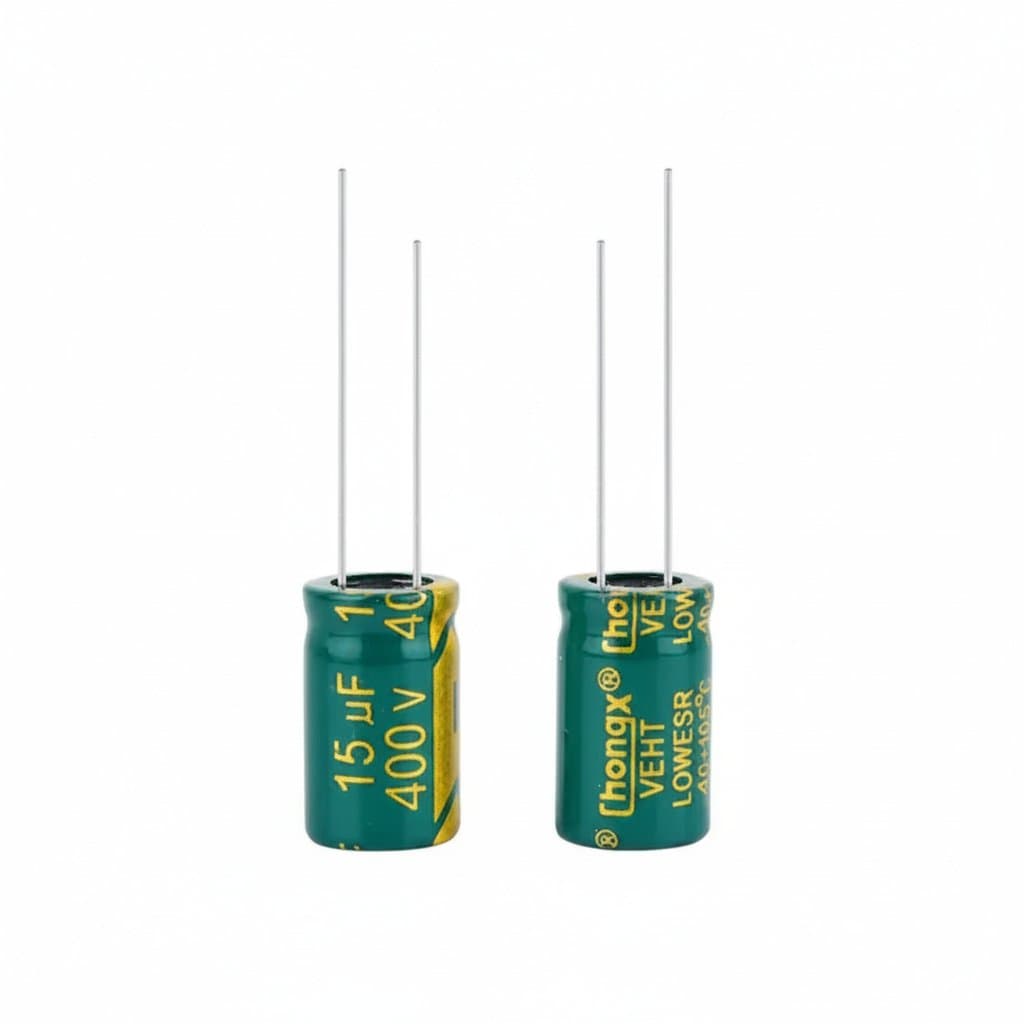

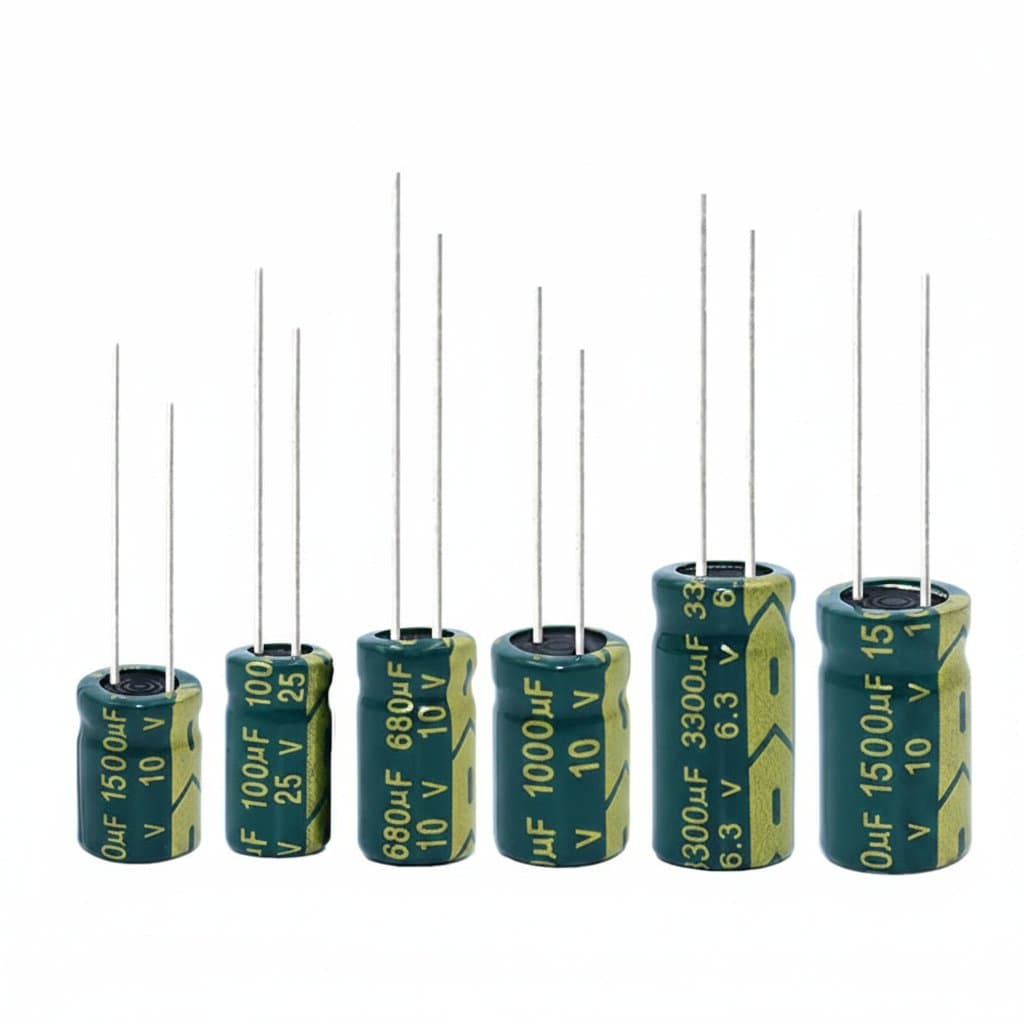

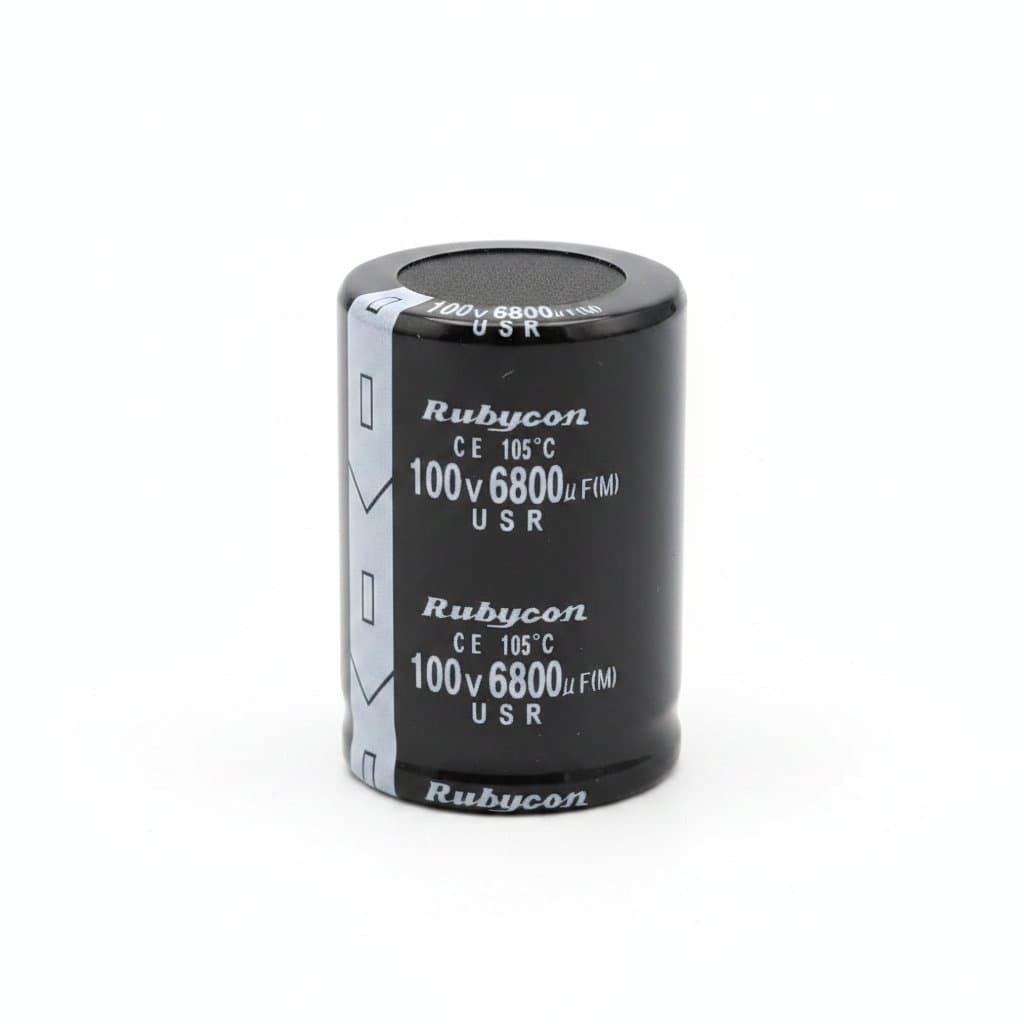

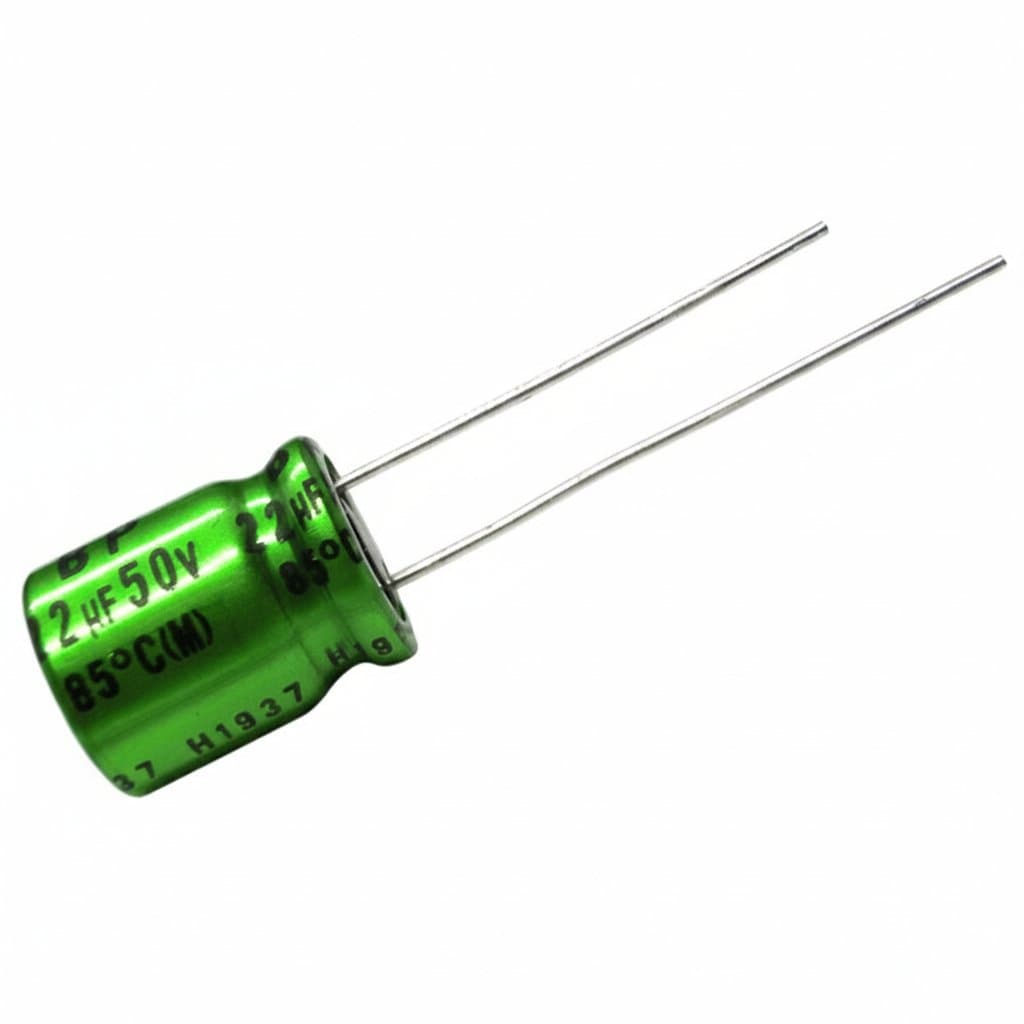

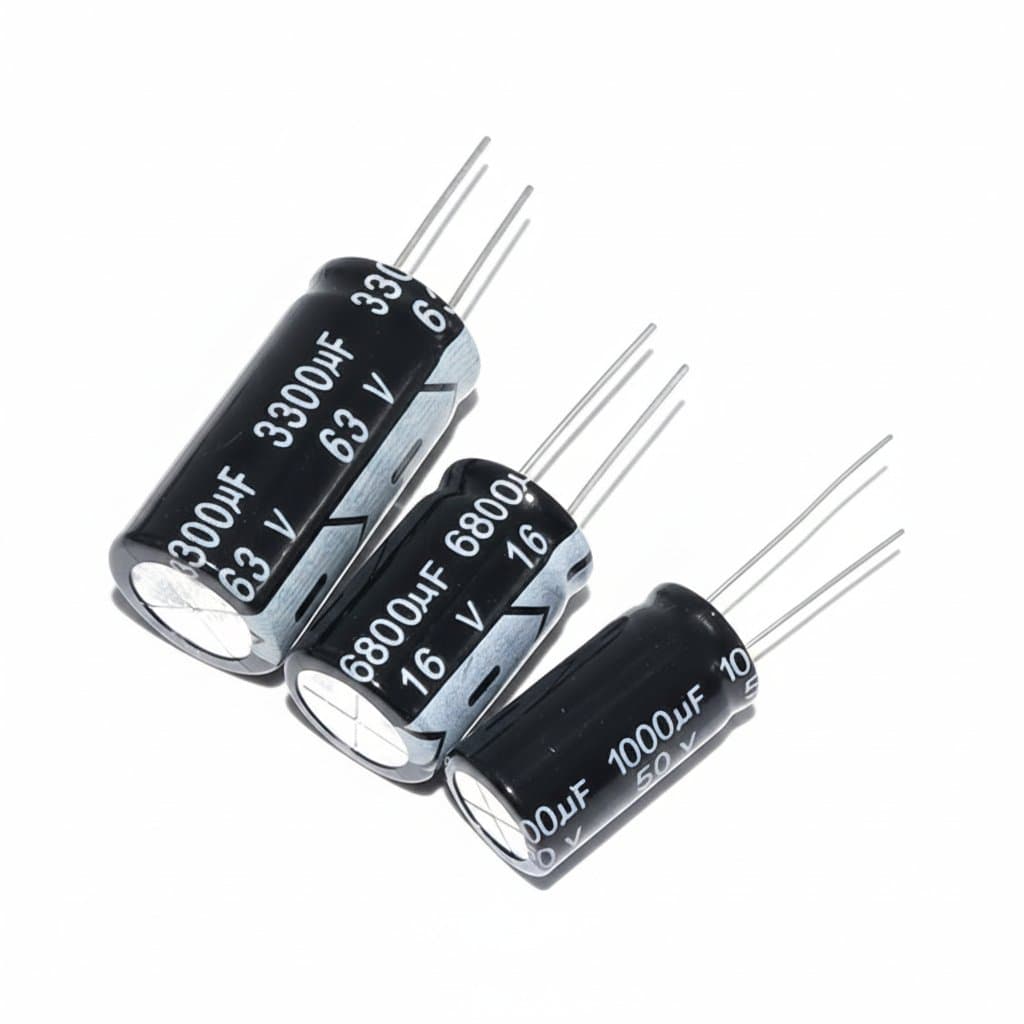

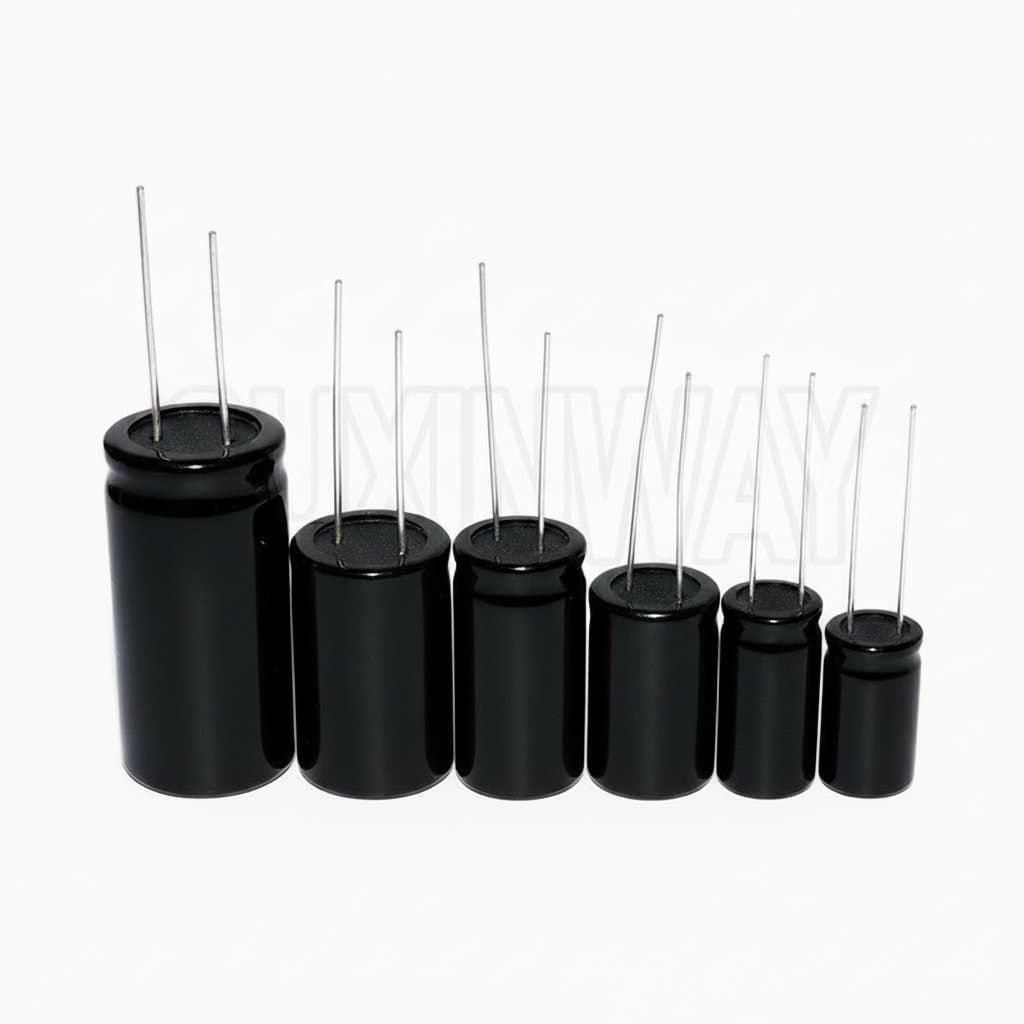

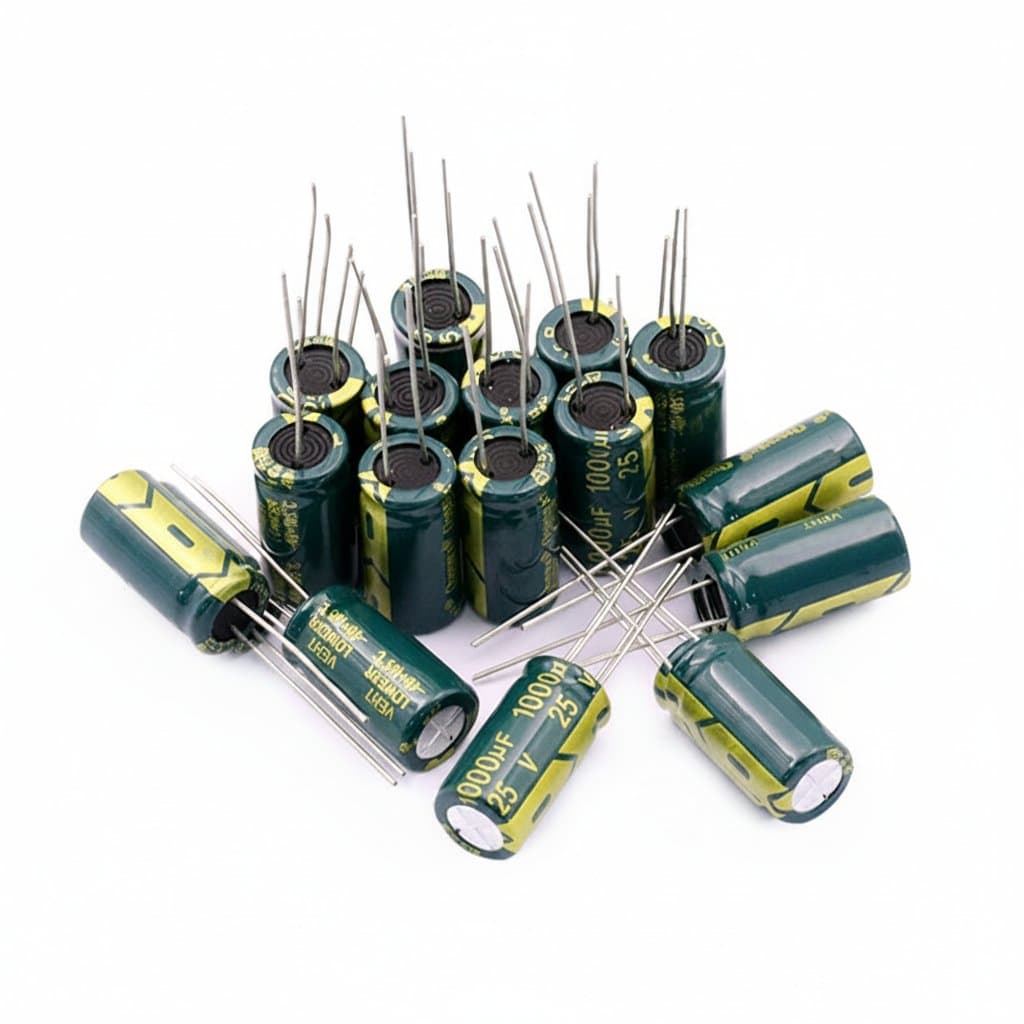

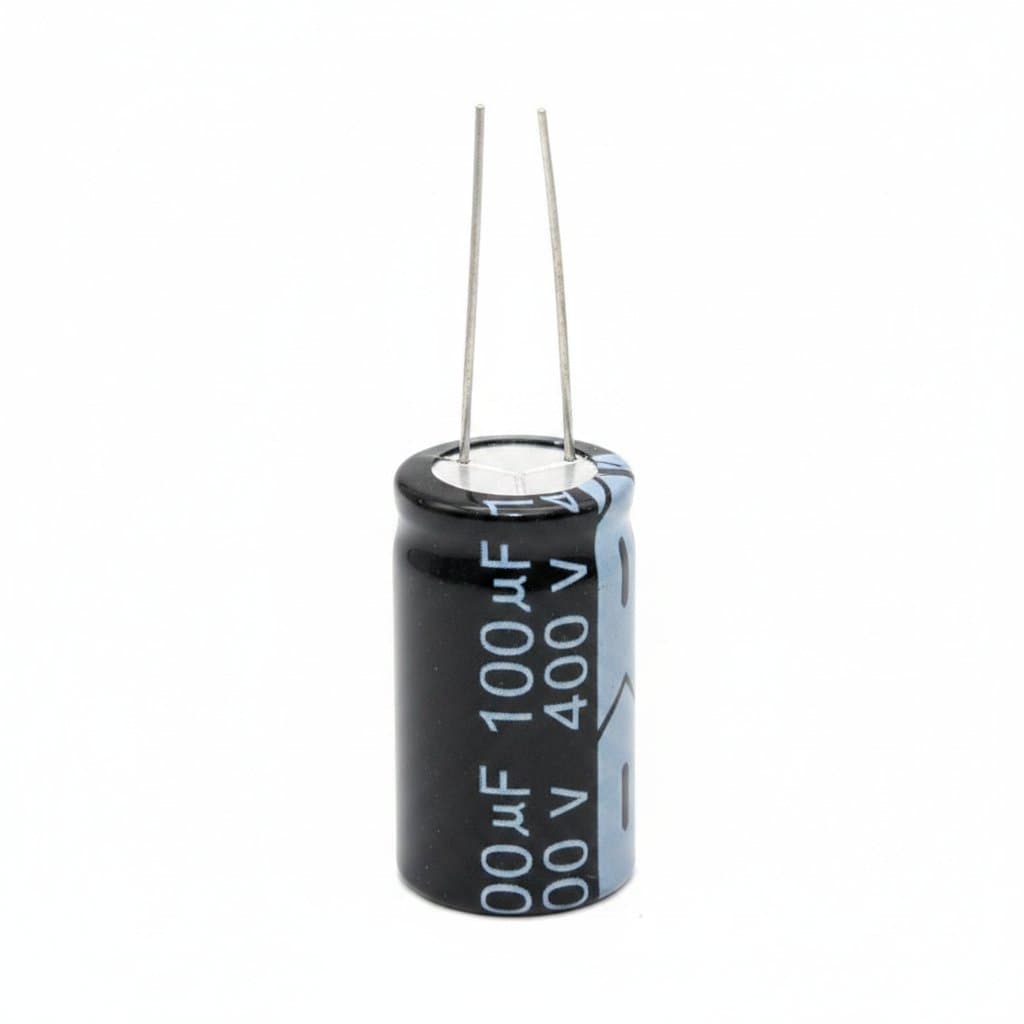

Choosing the correct dielectric material is the first step in circuit stability. Aluminum electrolytic capacitors are the standard choice when you require high capacitance values, ranging from 0.47µF up to 4700µF. These components are ideal for power supply filtering, decoupling, and energy storage where high-capacity energy reservoirs are necessary.

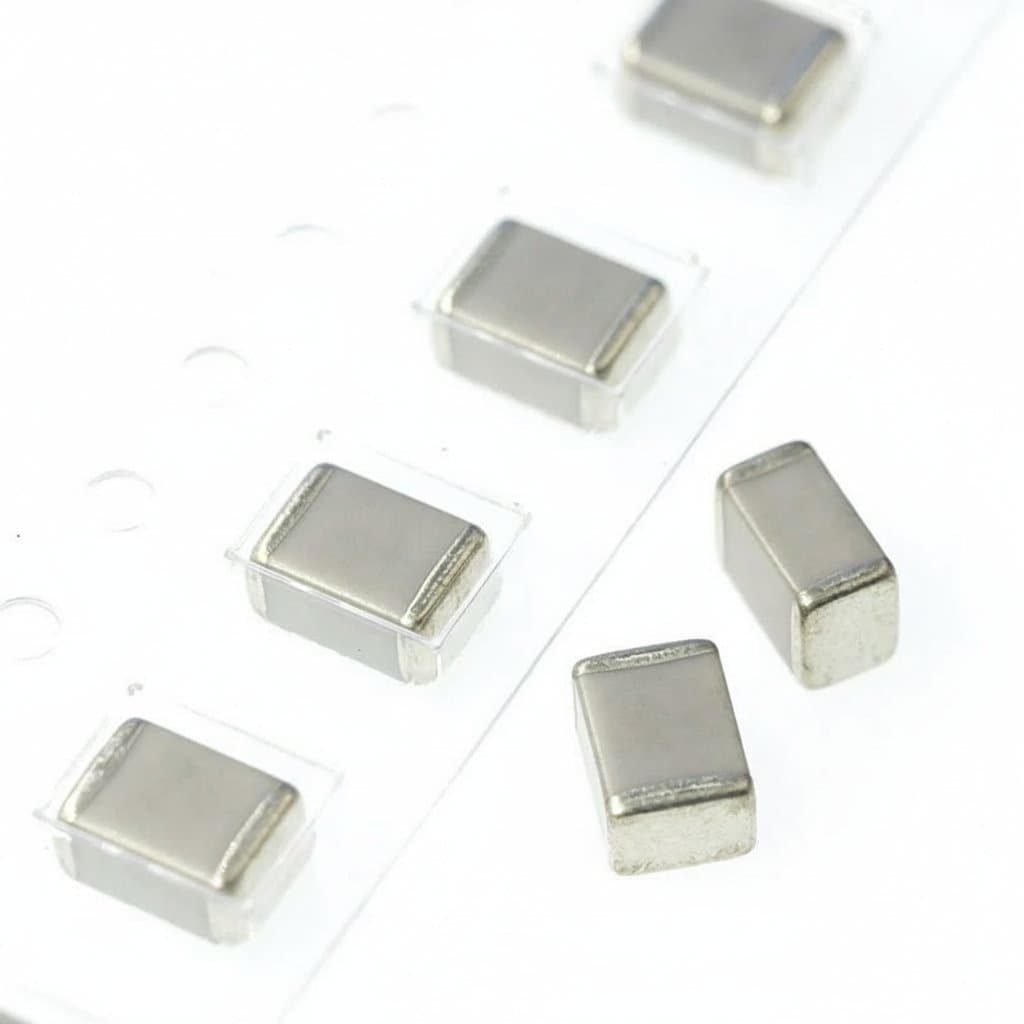

For high-frequency applications, signal bypass, and low-capacitance needs, ceramic disc and monolithic capacitors are more suitable. Our ceramic kits cover values from 2pF to 10µF. Ceramic capacitors offer lower equivalent series resistance and excellent high-frequency performance, especially when using stable dielectrics like X7R, which perform reliably across wide temperature ranges.

• Use aluminum electrolytic for high-capacitance power filtering (10V to 450V DC range).
• Select ceramic disc or monolithic types for low-capacitance RF and bypass circuits (typically rated at 50V DC).
• Check the temperature coefficient, such as X7R, to ensure capacitance remains stable under thermal fluctuation.

Evaluating Voltage Ratings and Thermal Endurance

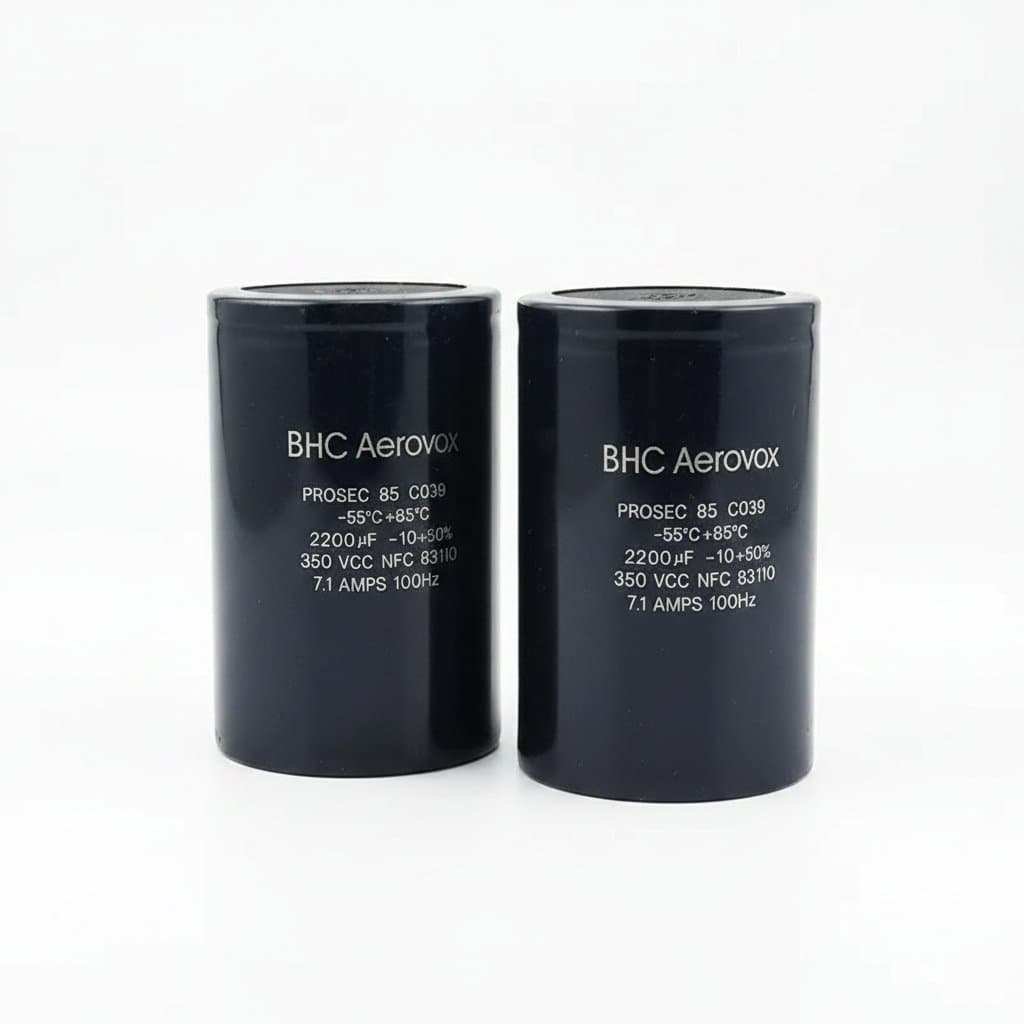

Operating passive components close to their absolute limits reduces system reliability. When selecting capacitors, always choose a rated voltage that exceeds the maximum circuit operating voltage. Our stock includes voltage ratings from 10V DC up to 450V DC, allowing you to design in a safe operating margin for voltage spikes and surges.

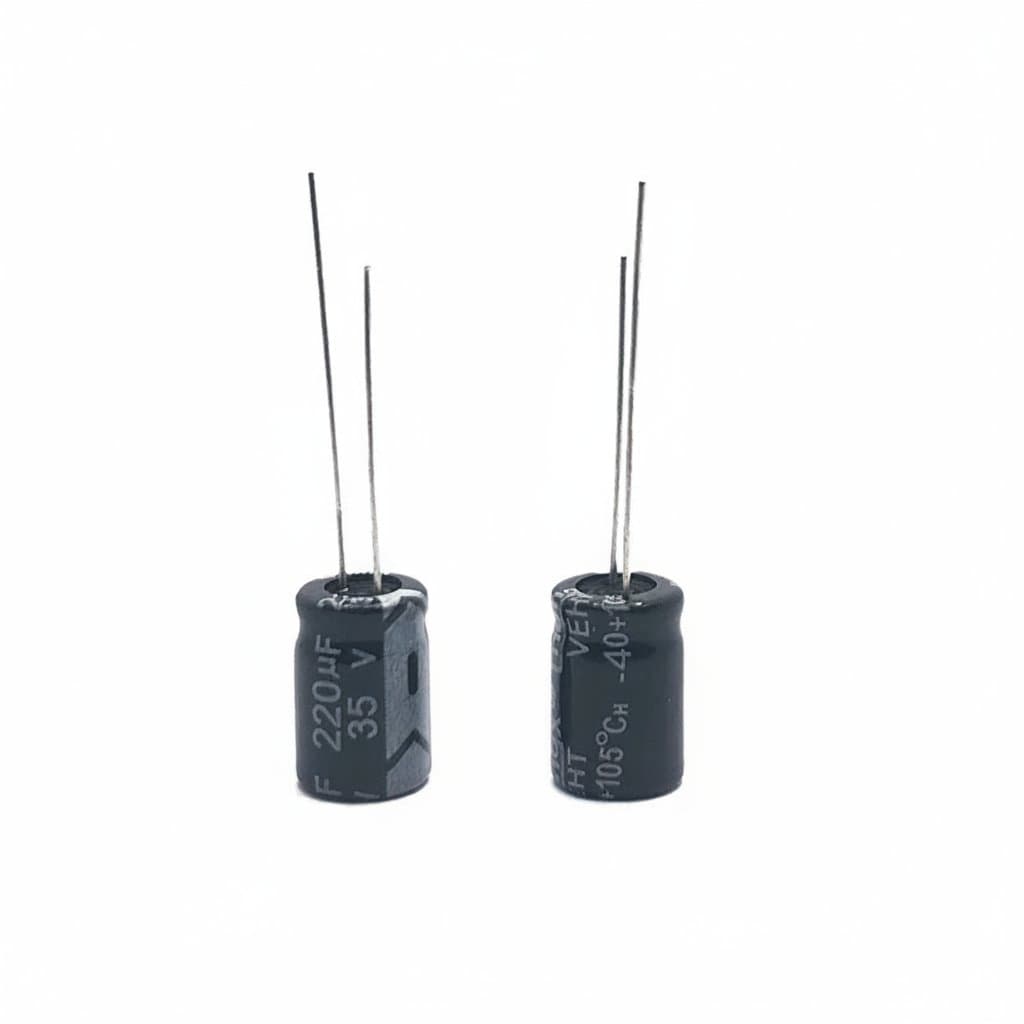

Thermal performance directly determines the lifespan of your electronic assemblies. Industrial environments subject components to high ambient heat, making operating temperature ranges a critical specification. Premium electrolytic options in our inventory support operating temperatures from -40°C to +105°C, ensuring stable electrical characteristics even under continuous thermal load.

• Maintain a voltage safety margin of at least 20 percent above the maximum circuit voltage.
• Select components rated for 105°C for heavy-duty industrial enclosures and power supplies.
• Verify the endurance rating, such as 2000 hours at rated temperature, to calculate system maintenance intervals.

Matching Physical Form Factors and Lead Spacing

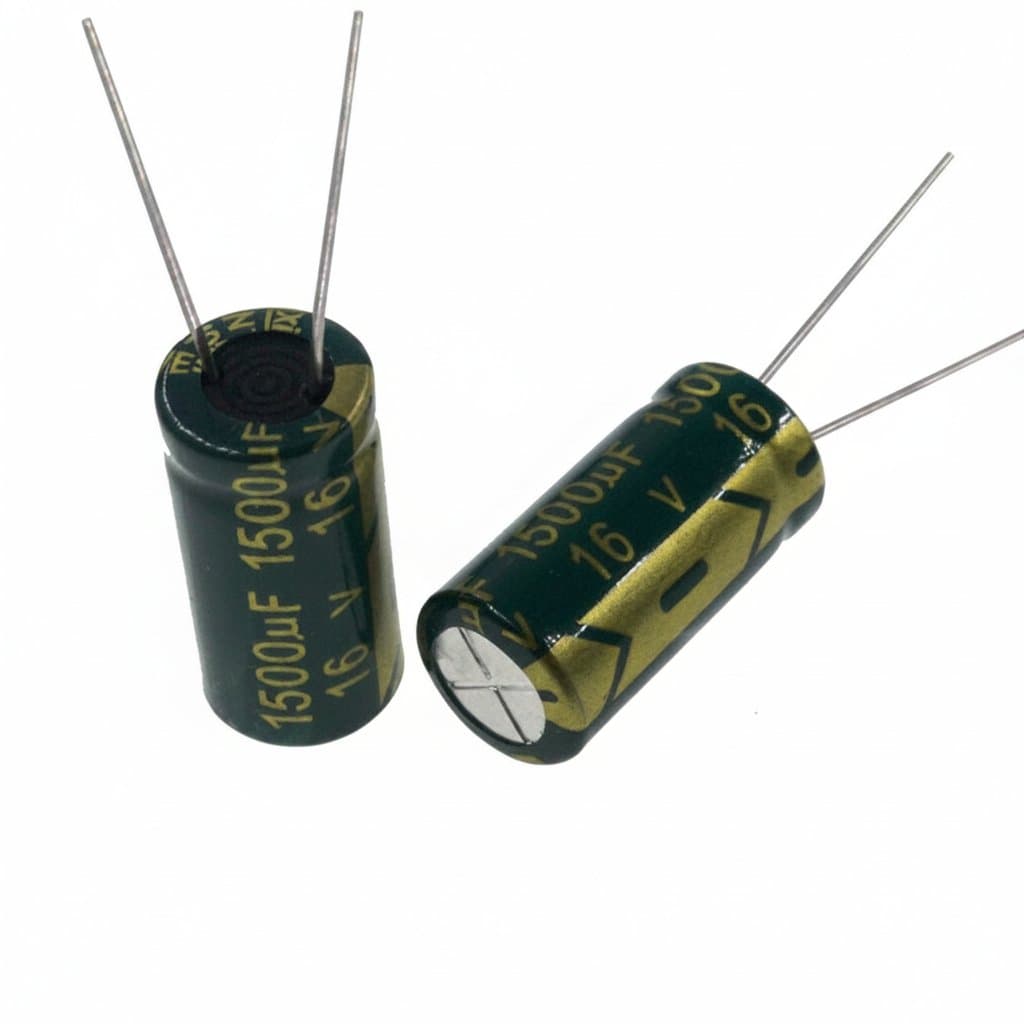

Physical compatibility is just as important as electrical specifications during circuit repair or board population. Dual in-line packaging (DIP) and radial lead configurations are standard for through-hole circuit boards. Our DIP components feature standard lead diameters of 0.6 mm and standard radial lead spacing of 2.54 mm (0.1 inch).

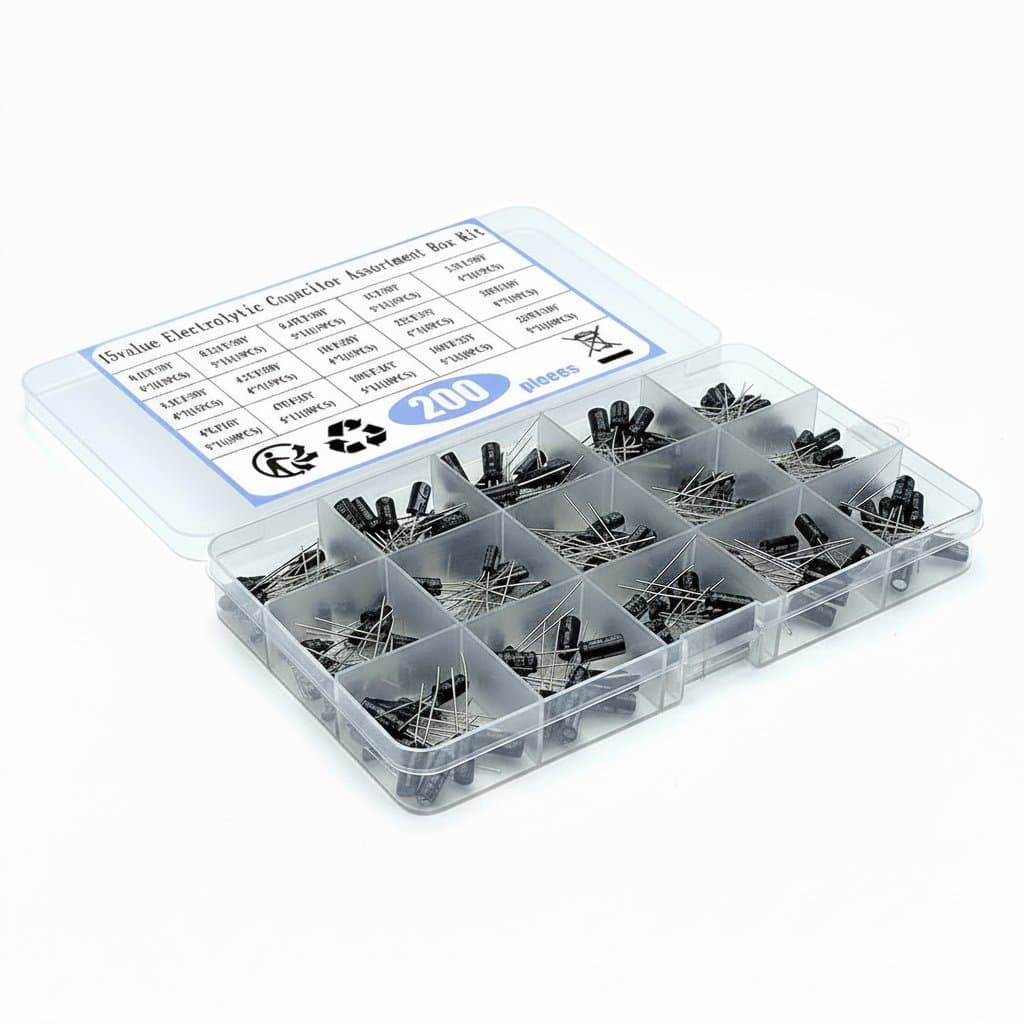

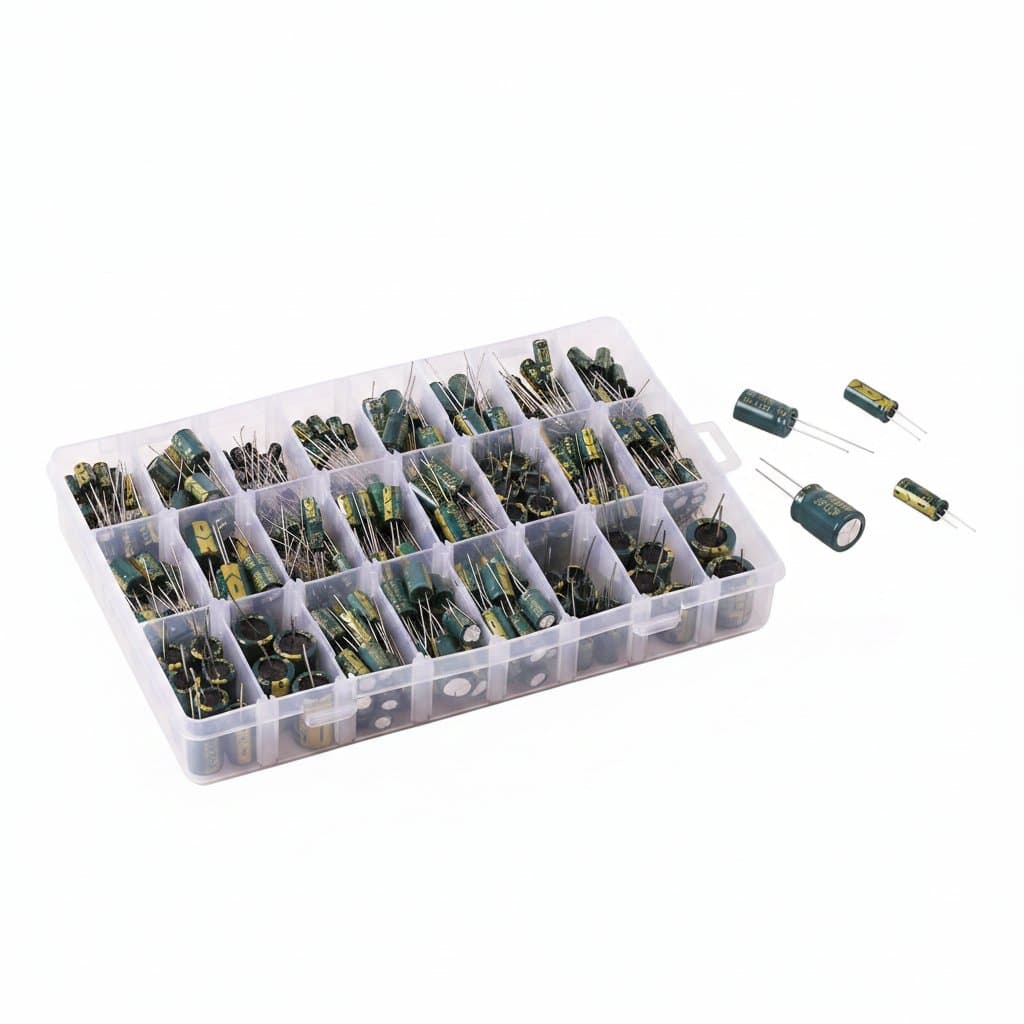

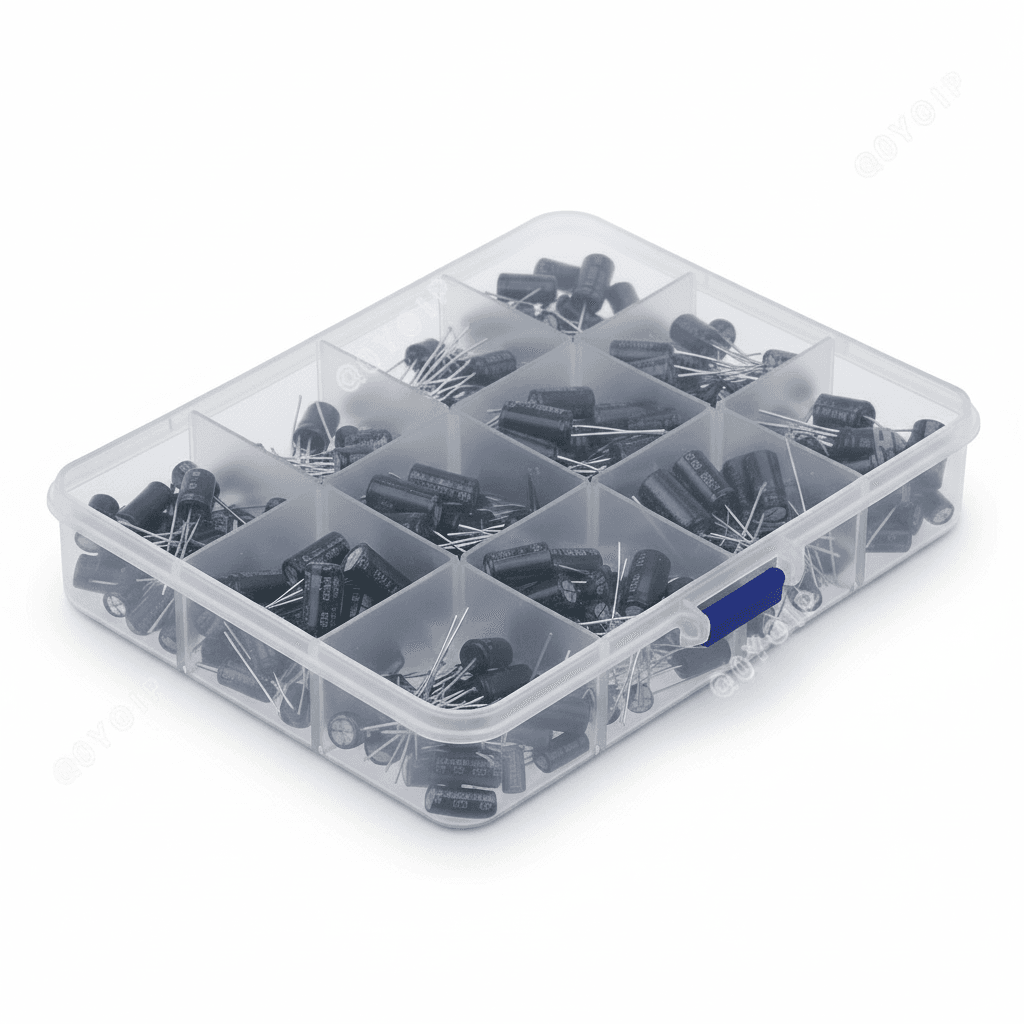

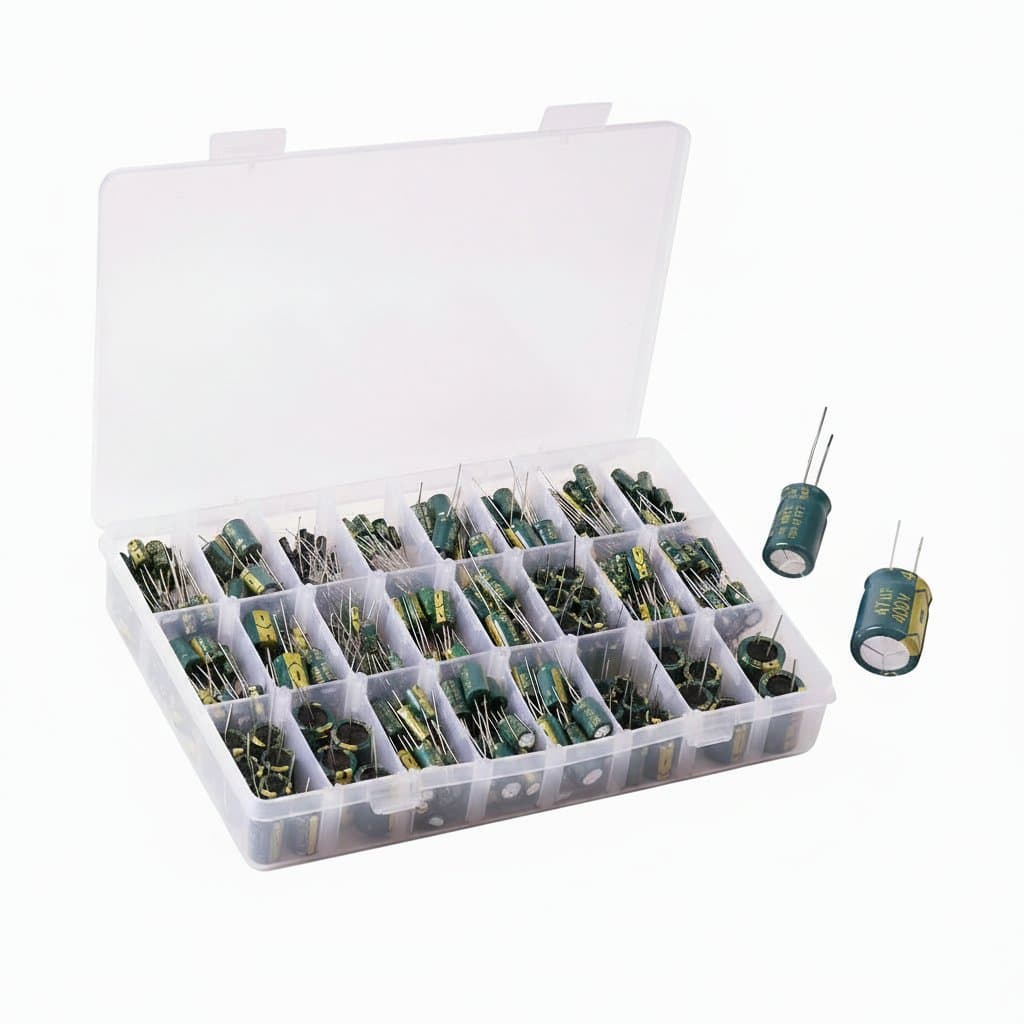

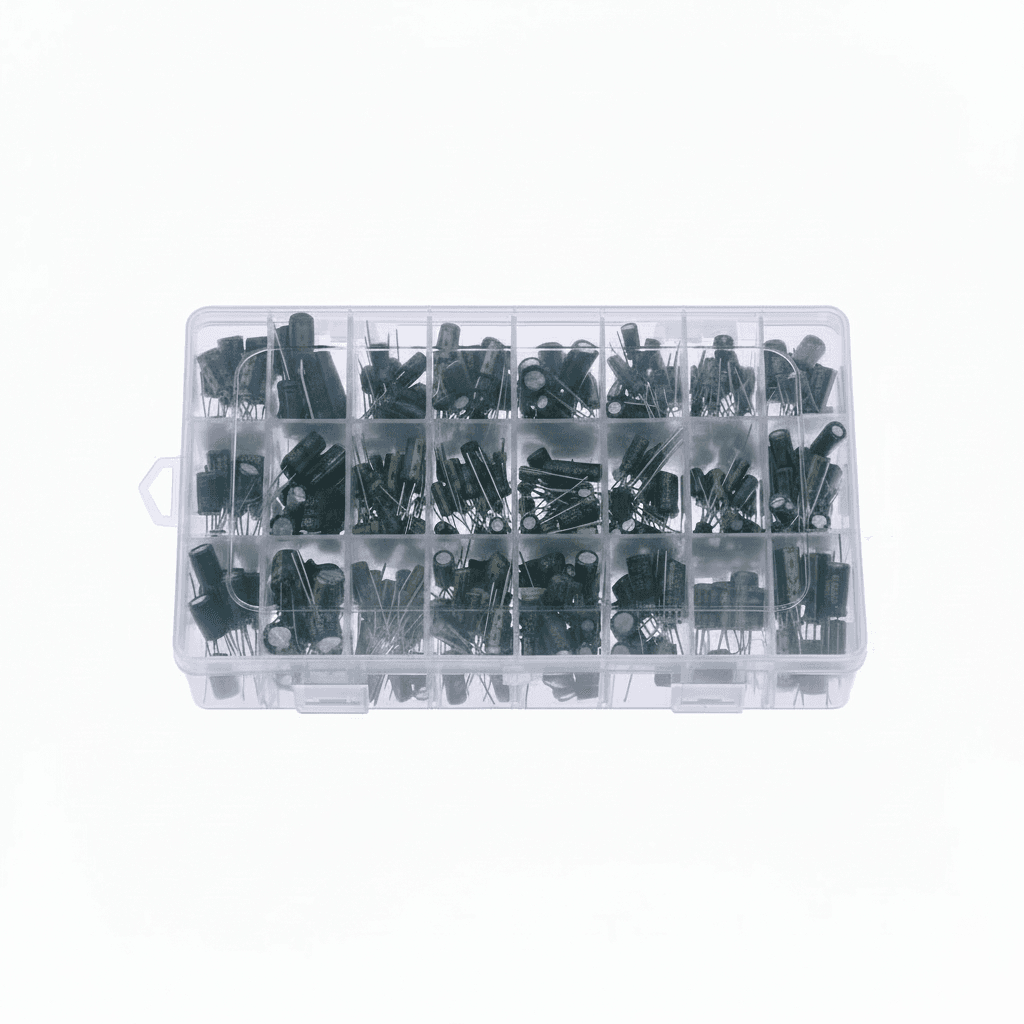

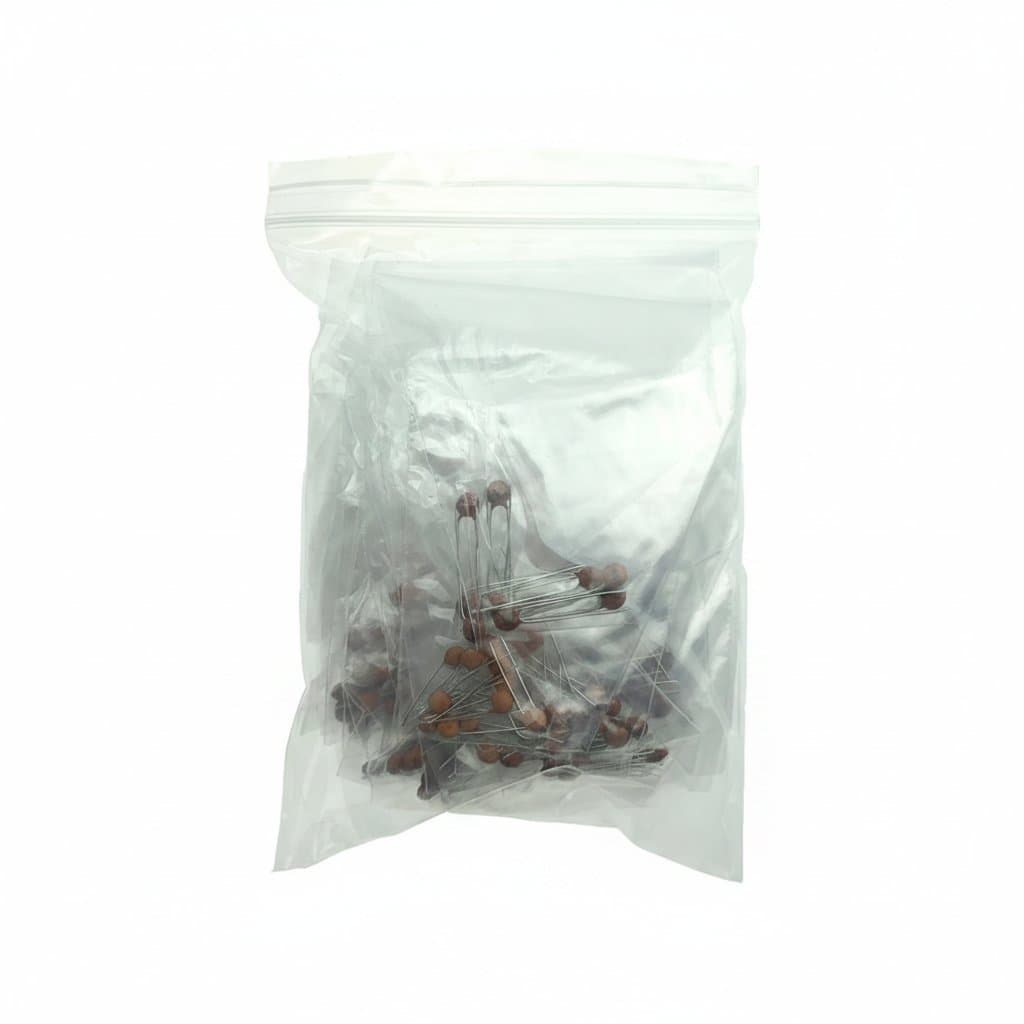

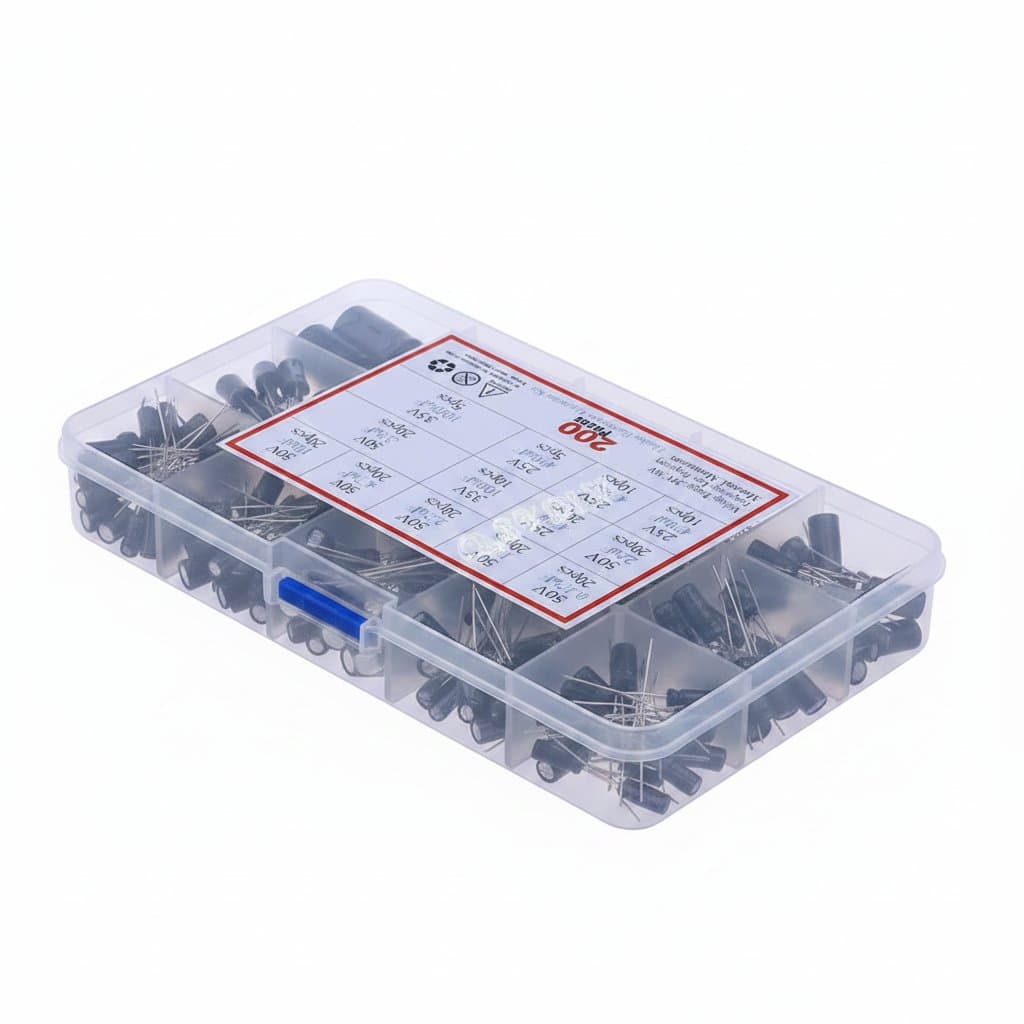

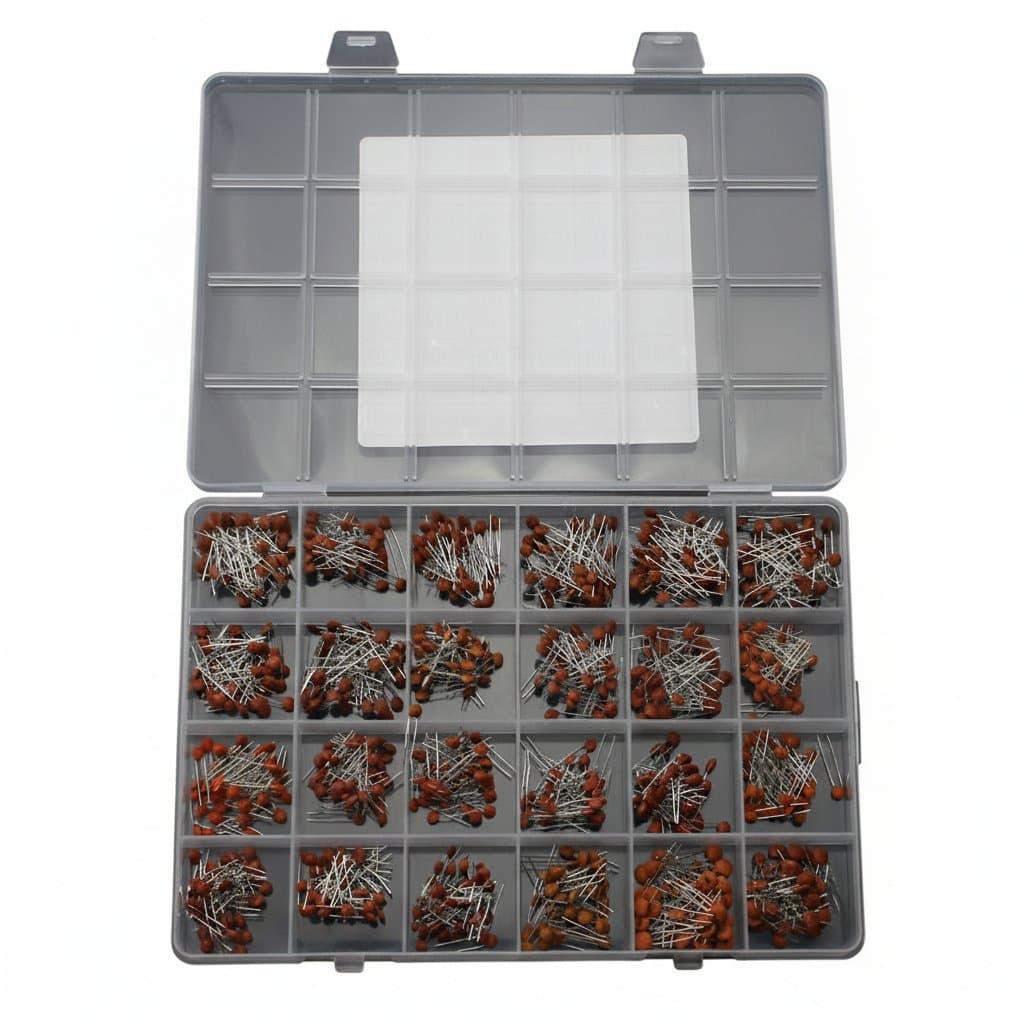

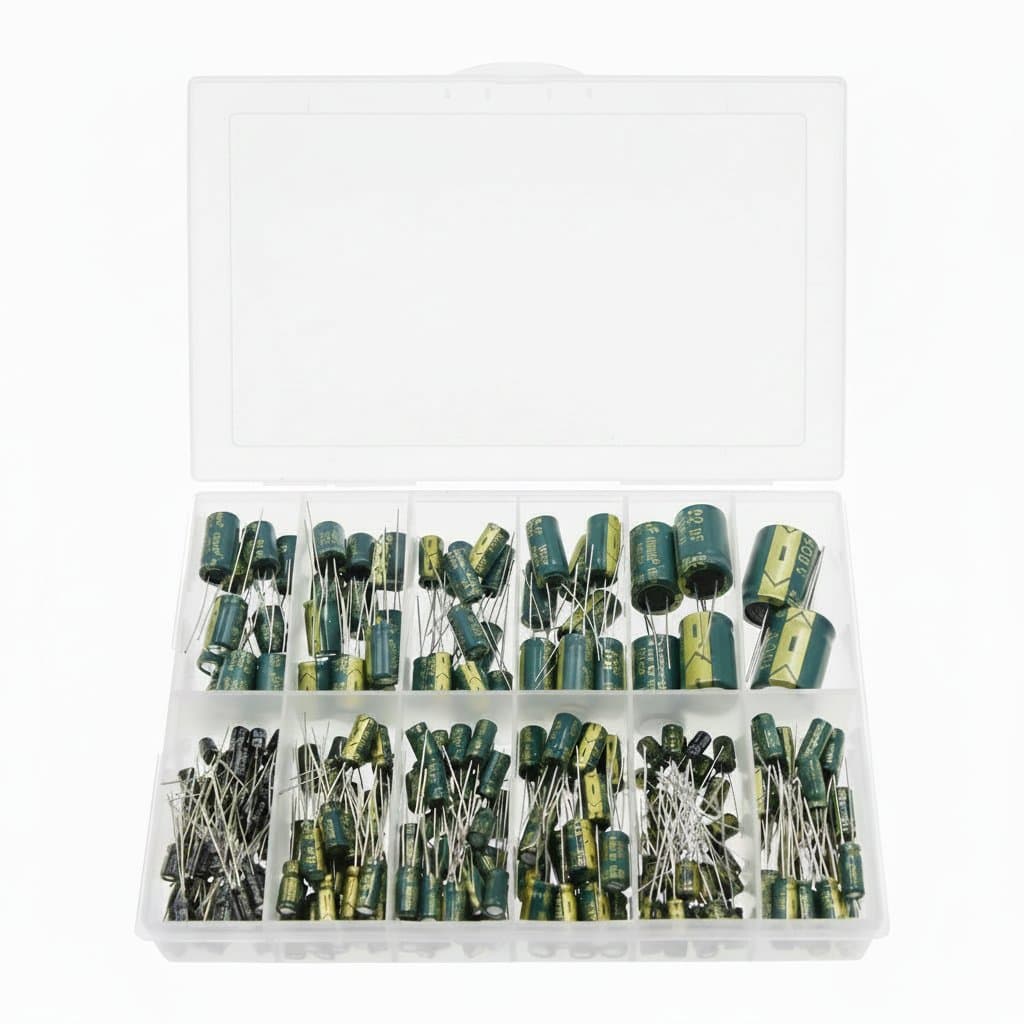

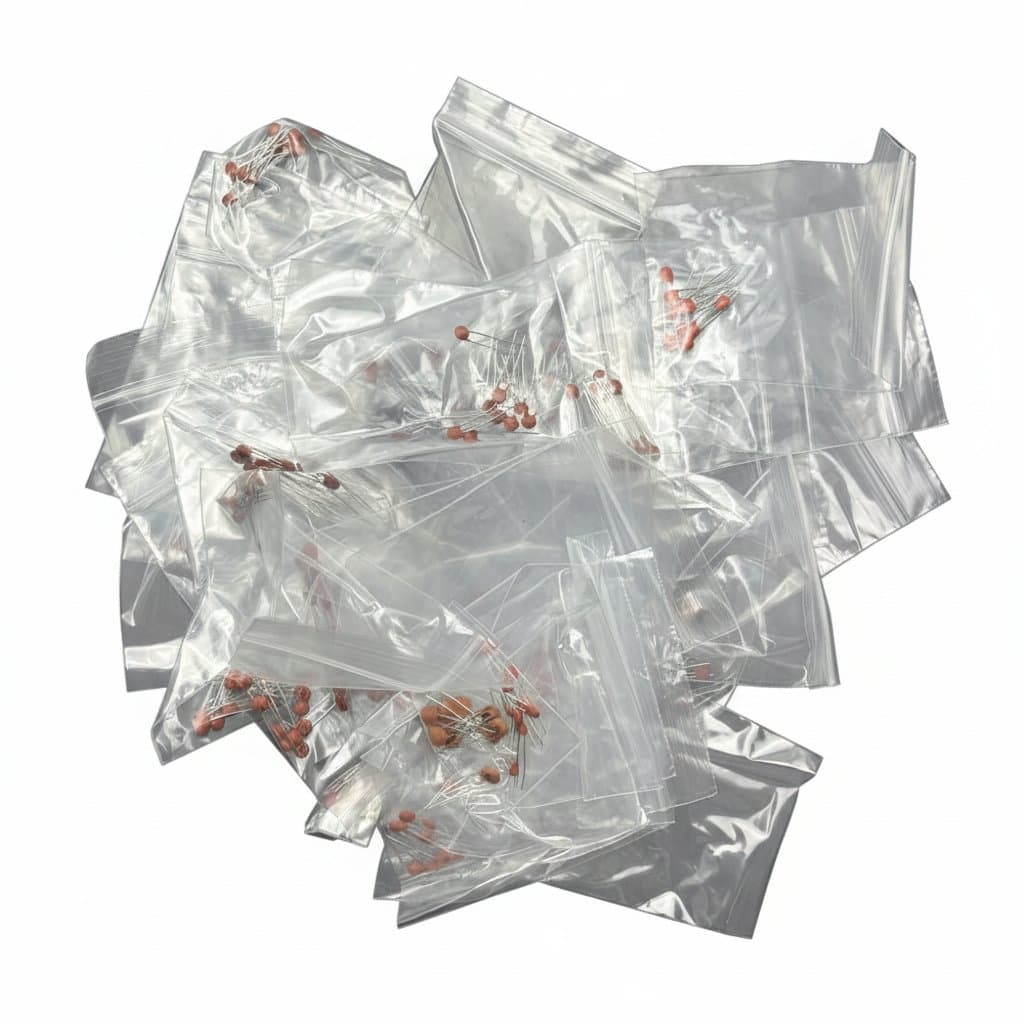

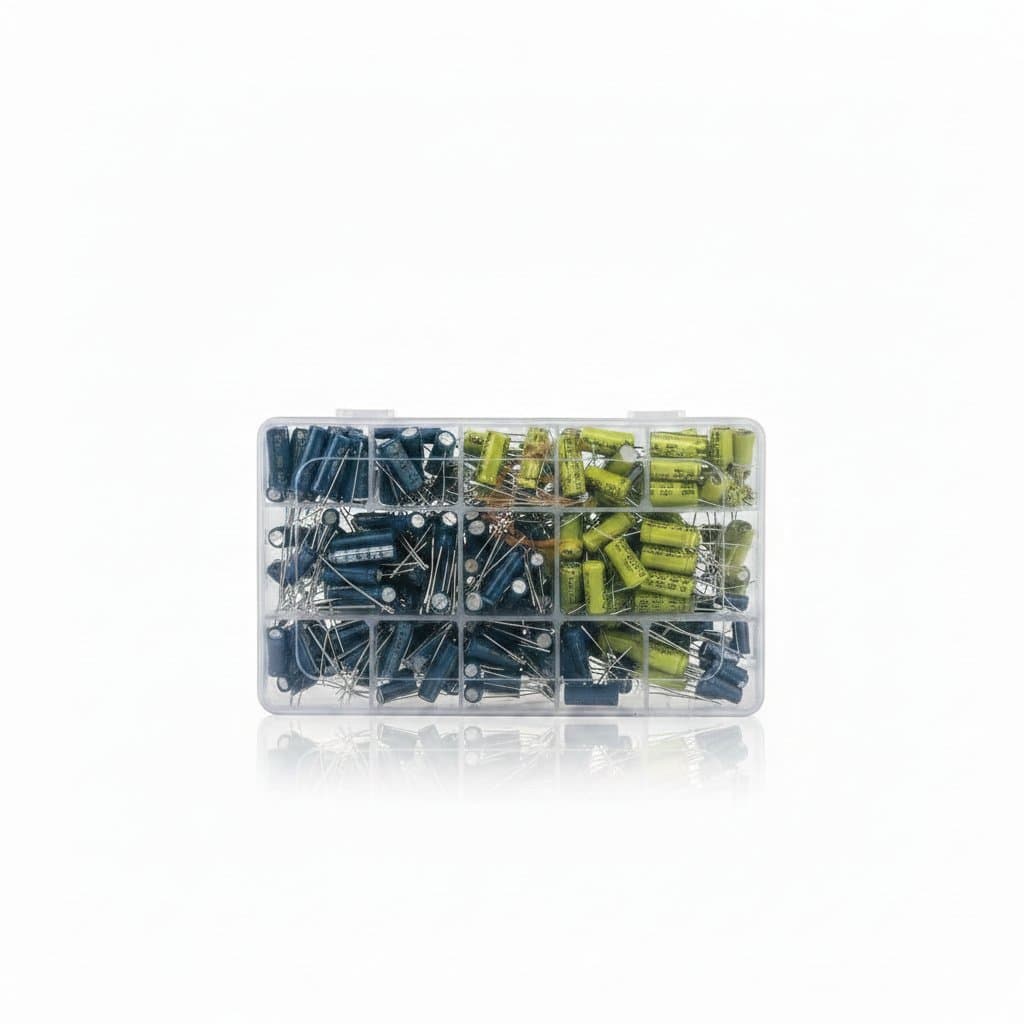

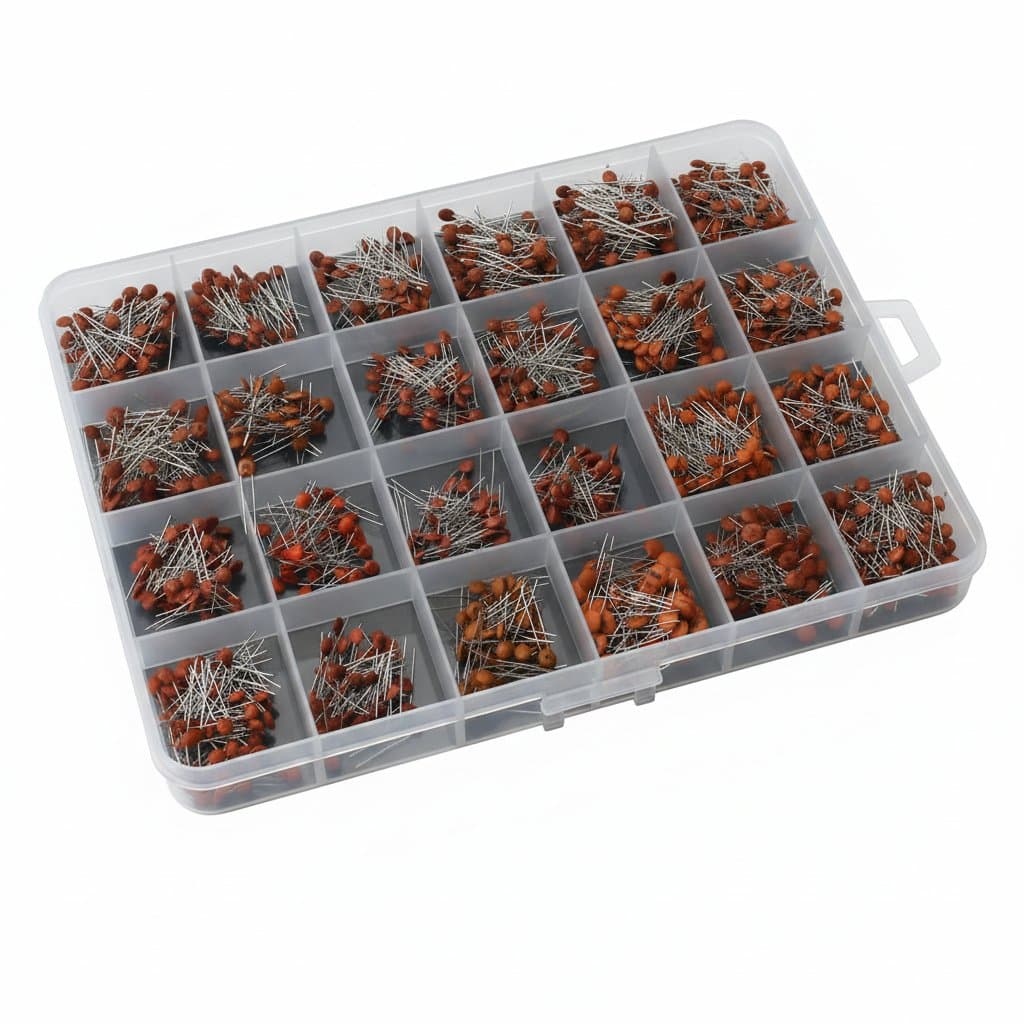

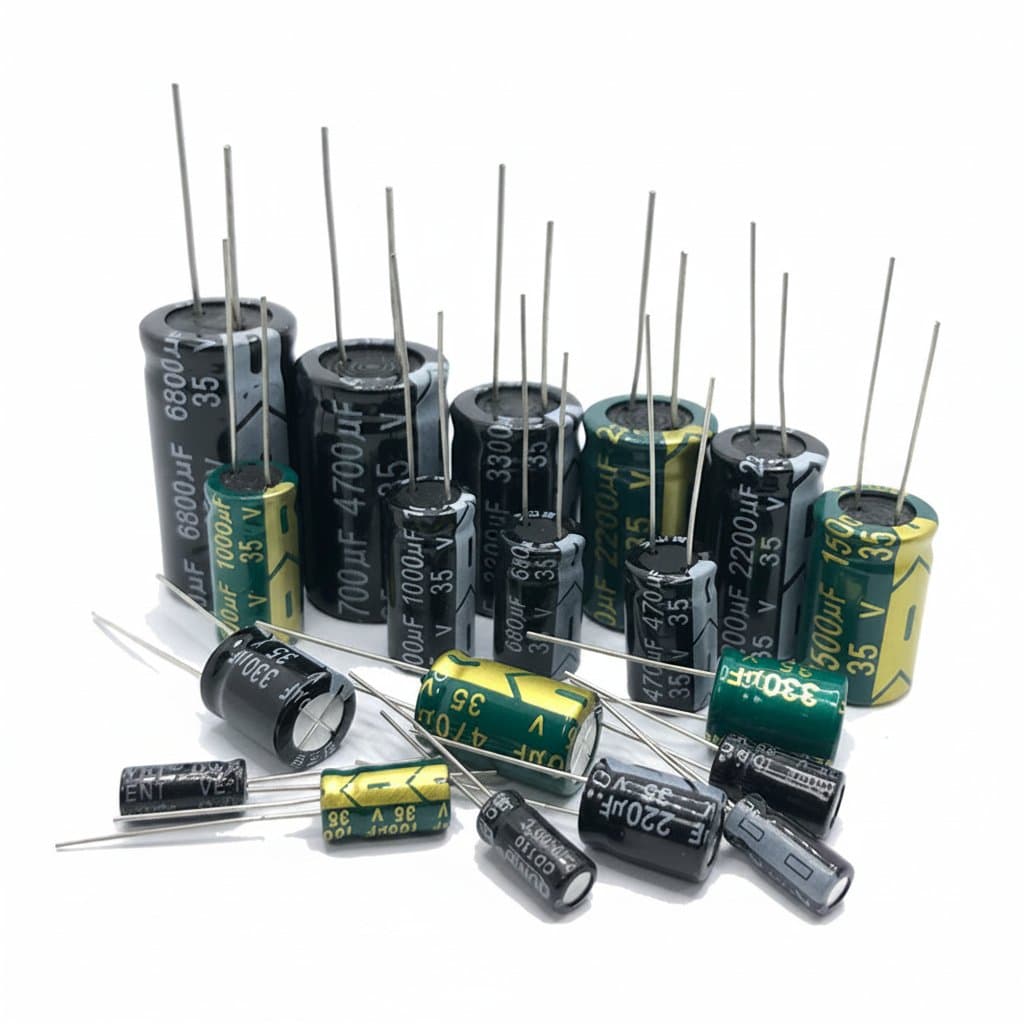

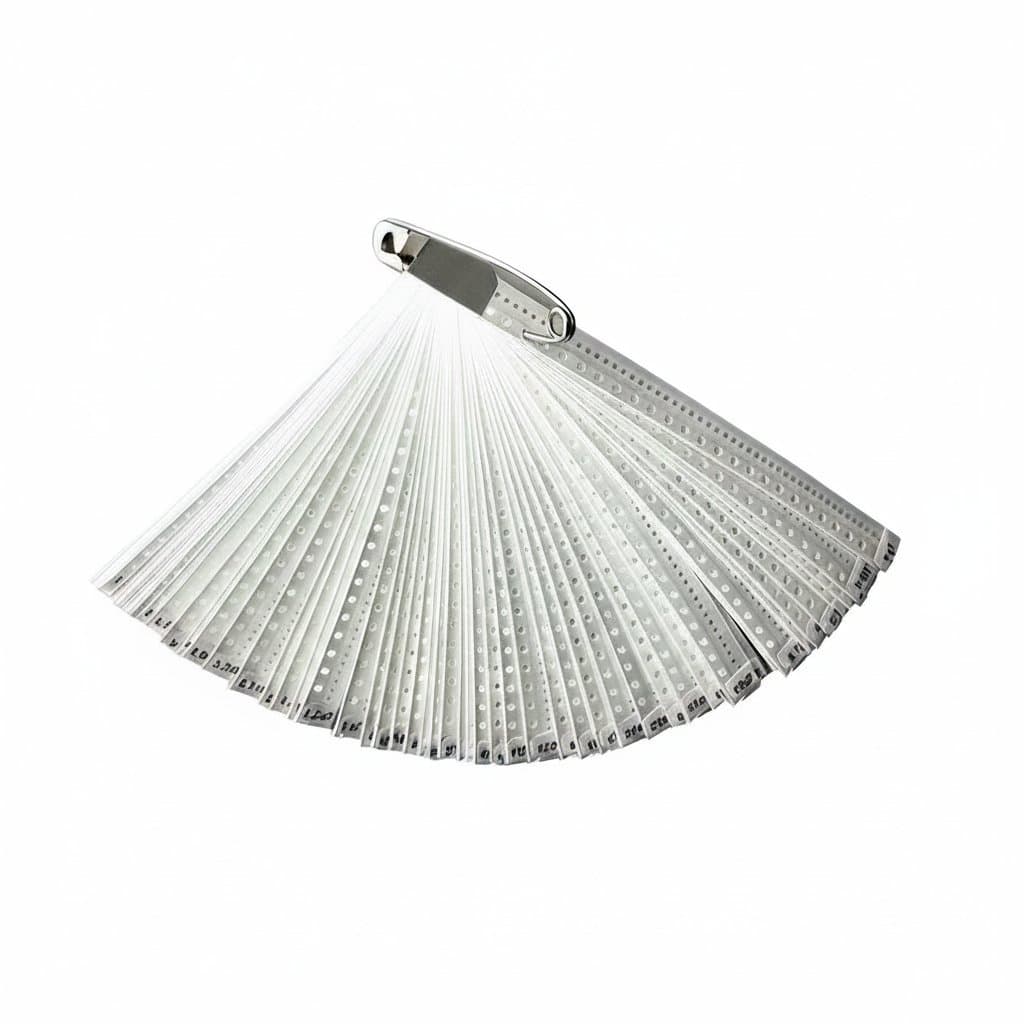

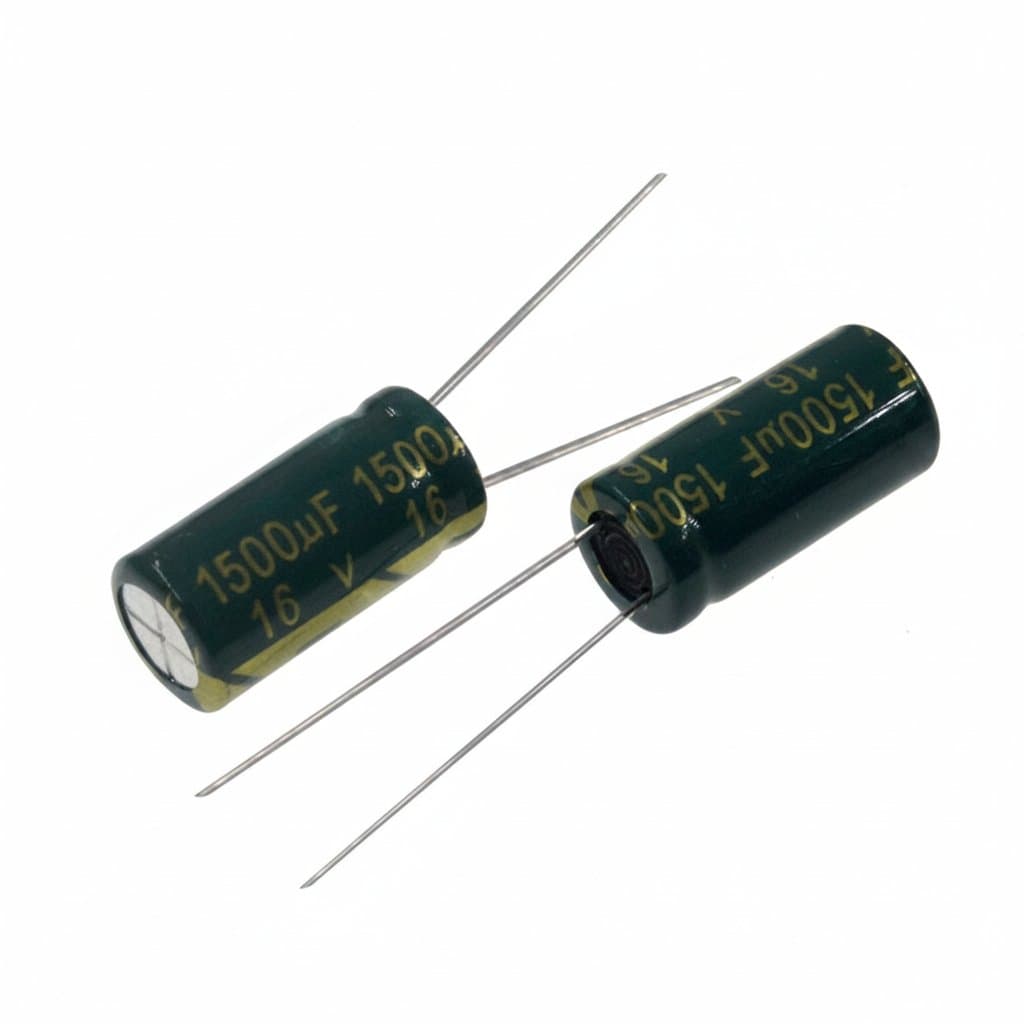

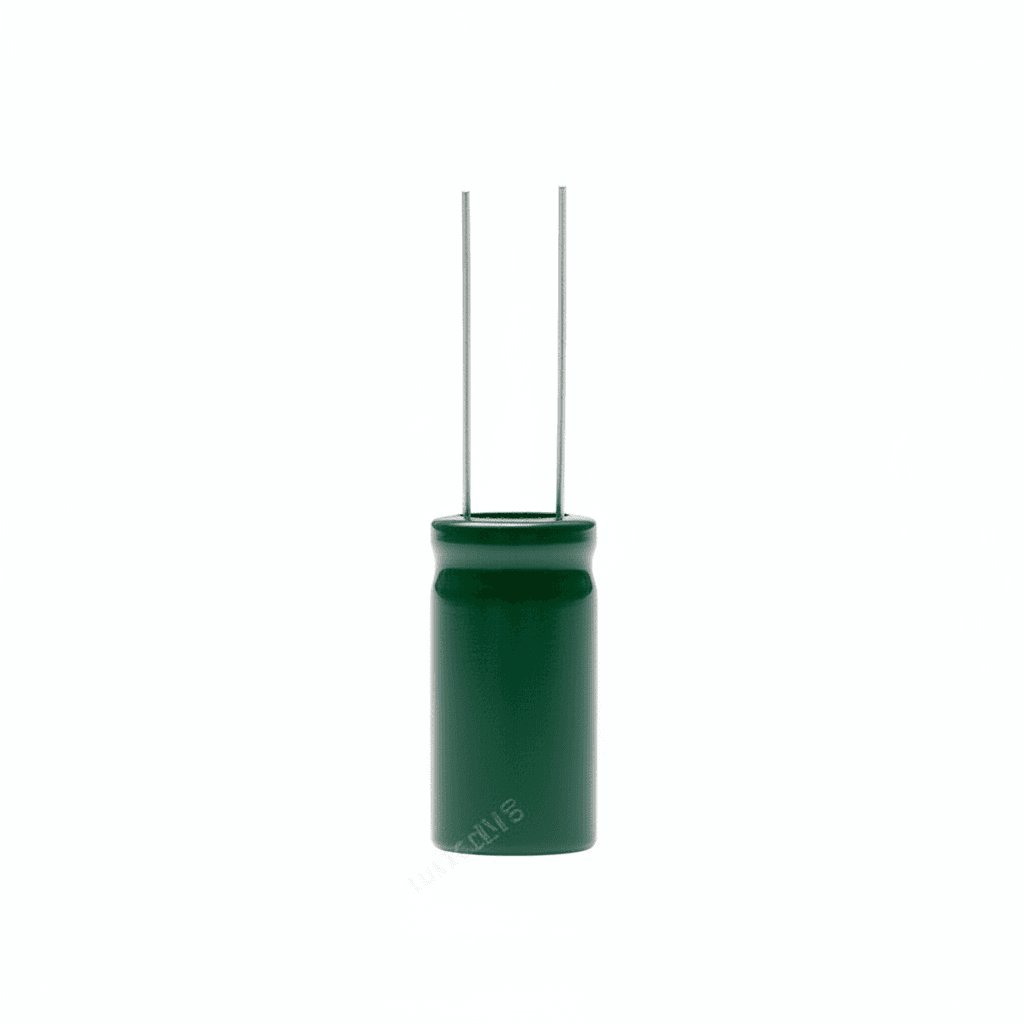

For repair shops and prototyping benches, keeping individual values on hand is often impractical. Assortment kits solve this by providing indexed storage of common values, from 120-piece DIP capacitor kits to 300-piece ceramic disc selections. This ensures your technicians can quickly replace blown components during emergency machinery repairs.

• Verify lead spacing matches your PCB footprint (standard 2.54 mm pitch for quick insertion).
• Check case diameter and height clearances inside compact industrial enclosures.
• Utilise pre-sorted engineering kits to keep common replacement values accessible on the shop floor.
