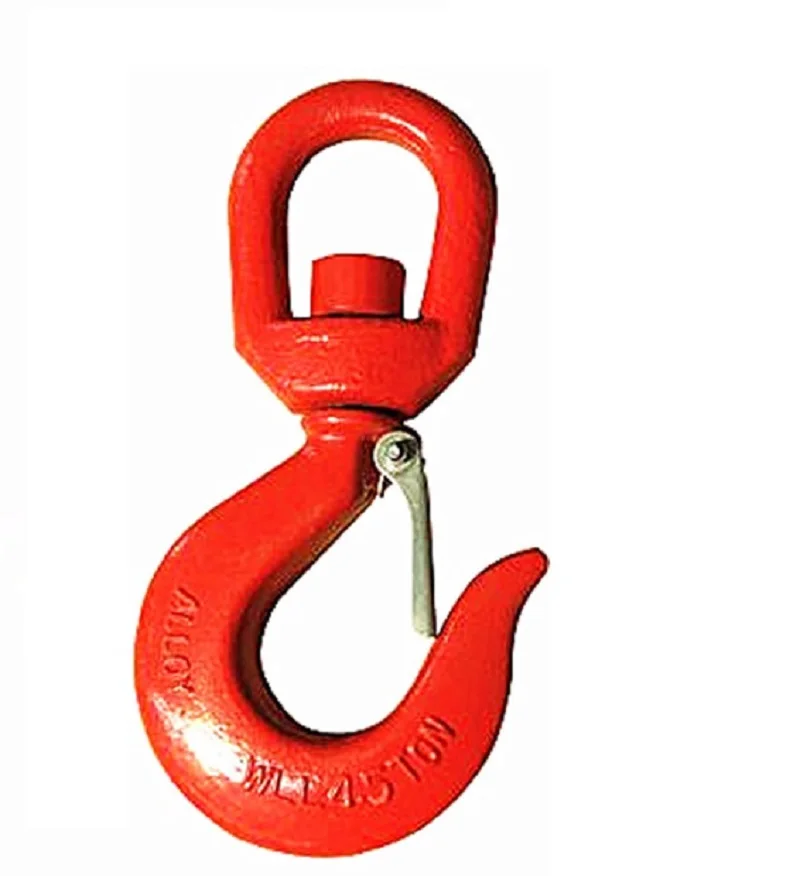

Engineered for demanding lifts, the 1.12T-3Ton swivel sling hook with latch provides a critical 322-degree rotation to prevent dangerous chain twisting under load. This industrial-grade forged alloy steel hook offers a reliable working load limit up to 3 tons, ensuring safe and efficient rigging for crane, winch, and hoist operations. Features and Benefits
- Forged Alloy Steel Construction - Provides superior strength-to-weight ratio and exceptional durability compared to cast alternatives, resisting deformation under heavy loads.
- 322-Degree Swivel Action - Allows the hook to rotate freely, preventing chain or wire rope kinks and torsional stress that can weaken rigging components.
- Safety Latch - Features a secure spring-loaded latch to prevent slings or attachments from accidentally disengaging from the hook during operation.
- 1.12 to 3 Ton Capacity Range - Offers versatile load handling for various job requirements, with a clear working load limit for safe planning.
- Industrial Grade Finish - Corrosion-resistant coating protects against rust and wear in harsh outdoor or workshop environments, extending service life. Applications
- Crane and Hoist Rigging - Essential for connecting slings to loads, allowing for proper alignment and safe lifting of machinery, construction materials, or industrial equipment.
- Winch and Pulling Operations - Used as a secure termination point for winch lines or come-alongs in recovery, positioning, or tensioning tasks.
- General Material Handling - Ideal for shop lifts, loading docks, and warehouse applications where durable, swiveling attachment points are needed for repetitive use.
- Trucking and Transport Securement - Functions as a robust anchor point for tie-down chains when securing heavy equipment on flatbeds or trailers. Note
Always inspect hardware before use and ensure the load does not exceed the rated working load limit. Proper rigging techniques are essential for safety.
Shank Thread Size: 1-1/8" - 7. Material: Forged Alloy Steel. Application: Industrial Lifting, Rigging, Hoist, Crane, Winch Chain. Hook Type: Swivel Hook with Safety Latch. Minimum Breaking Load (MBL): 5.6 Tonnes (12,500 lbs) (Typical for WLL 1.12T). Model Number: 1301-011. Product Type: Swivel Sling Hook with Latch. Proof Test Load: 2.24 Tonnes (5,000 lbs) (Typical for WLL 1.12T). Shank Bore Diameter: 32 mm. Shank Thread Type: UNC (Standard). Working Load Limit (WLL): 1.12 Tonnes (3 Tons). Shank Eye Diameter: Estimated 26 mm (1.02 inches) for compatibility with chain. Material: Forged Alloy Steel. Maximum Load Capacity: 3 Tonnes (6,614 lbs). Temperature Range: -40°C to 200°C (-40°F to 392°F) for alloy steel. Design Standard: Compliant with ASME B30.10, OSHA, and other relevant lifting standards. Customization: Available. Forging Process: Drop-forged for superior grain structure and strength. Hardness: 40-45 HRC typical for forged alloy steel hooks. Hook Throat Opening: Estimated 32 mm (1.26 inches) based on model number convention. Hook Type: Swivel Hook with Safety Latch. Intended Use: Industrial lifting, rigging, hoist, crane, winch chain applications. Latch Type: Spring-loaded safety latch. Model Number: 1301-011. Product Type: Forged Alloy Steel Swivel Sling Hook with Latch. Proof Test Load: 2.24 Tonnes (4,938 lbs) (Typically 2x WLL). Safety Factor: Minimum 4:1 (based on 3T break / 1.12T WLL). Surface Finish: Typically black oxide or electro-galvanized for corrosion resistance. Swivel Type: 360-degree rotation ball bearing swivel. Working Load Limit (WLL): 1.12 Tonnes (2,469 lbs). Q: What are the exact specifications and dimensions of this 1.12T-3Ton swivel sling hook? A: This product is the Model 1301-011, a forged alloy steel swivel hook with a latch. It is rated for a working load limit (WLL) ranging from 1.12 to 3 tons, making it suitable for various industrial lifting tasks. The specific dimensions are not provided in the listing, but it is a customizable product.. Q: How durable is this forged alloy steel lifting hook for industrial use? A: This hook is built for demanding industrial use. It is forged from high-strength alloy steel, which provides exceptional durability and resistance to deformation under heavy loads. The swivel design and secure latch ensure reliable, long-lasting performance in rigging and hoist applications.. Q: Can this swivel hook be used with my existing crane winch and chain setup? A: Yes, this industrial-grade swivel sling hook is designed for compatibility with standard rigging hardware, including crane winches and lifting chains. Its 1.12T-3Ton capacity and swivel function make it a versatile component for connecting loads safely and efficiently in various lifting configurations.. Q: Does this product come with any warranty or guarantee? A: The product listing indicates it is a customized item (iscustomized: Yes). For specific warranty or guarantee details, it is best to contact the seller directly prior to purchase to confirm the coverage provided for this Model 1301-011 forged alloy steel hook.. Q: Is this 3-ton swivel hook a good value compared to premium brand options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its forged alloy steel construction and industrial-grade 3-ton capacity, making it a cost-effective choice for rigging and lifting tasks..
