Engineered for demanding lifts, this 3-ton swivel lifting hook features a G80 alloy steel construction for superior strength and durability. The 360-degree rotating eye and integrated safety latch provide secure, tangle-free rigging, ensuring reliable performance under maximum load capacity. Features and Benefits
- 3-Ton (6,000 lbs) Working Load Limit - Confidently handles heavy-duty lifting applications with a built-in safety margin
- G80 Alloy Steel Construction - Provides exceptional tensile strength and impact resistance for long-term reliability

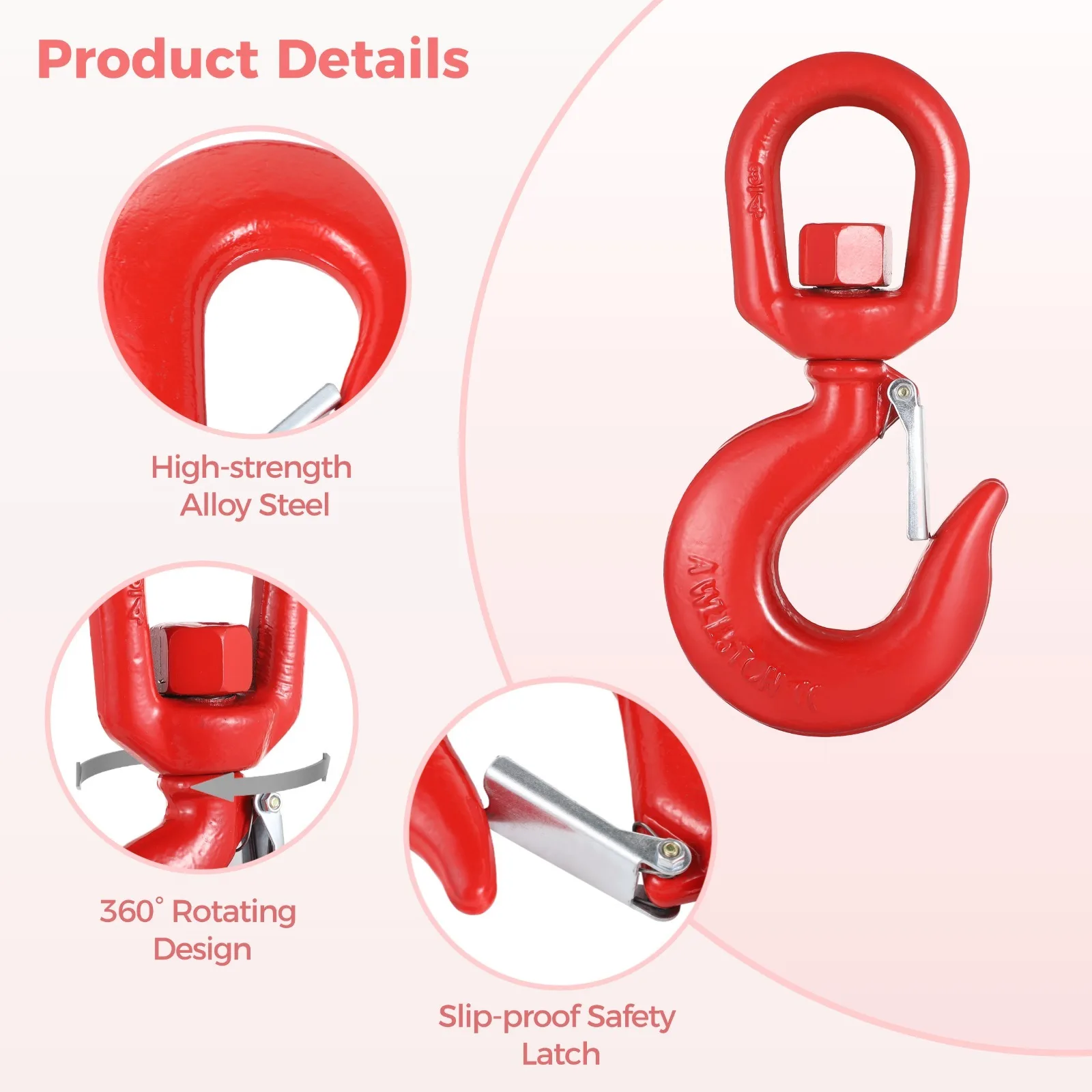

- 360-Degree Swiveling Hook - Rotates freely to prevent cable or sling twisting, reducing wear and improving load control
- Spring-Loaded Safety Latch - Automatically closes to securely retain slings and attachments, preventing accidental disengagement
- Forged and Heat-Treated Design - Ensures a consistent, high-integrity grain structure for optimal durability under stress
- Rotatable Eye Design - Allows the hook to align naturally with the load direction, minimizing side-load stress points Applications
- Workshop and Garage Lifting - Ideal for engine hoists, gantry cranes, and positioning heavy machinery or vehicle components
- Construction and Material Handling - Securely lift steel beams, construction materials, and equipment on job sites
- Industrial Maintenance and Rigging - A reliable component for factory maintenance, installation tasks, and staged lifting operations
- Agricultural and Forestry Use - Suitable for lifting farm equipment, logs, and other heavy loads in demanding outdoor environments

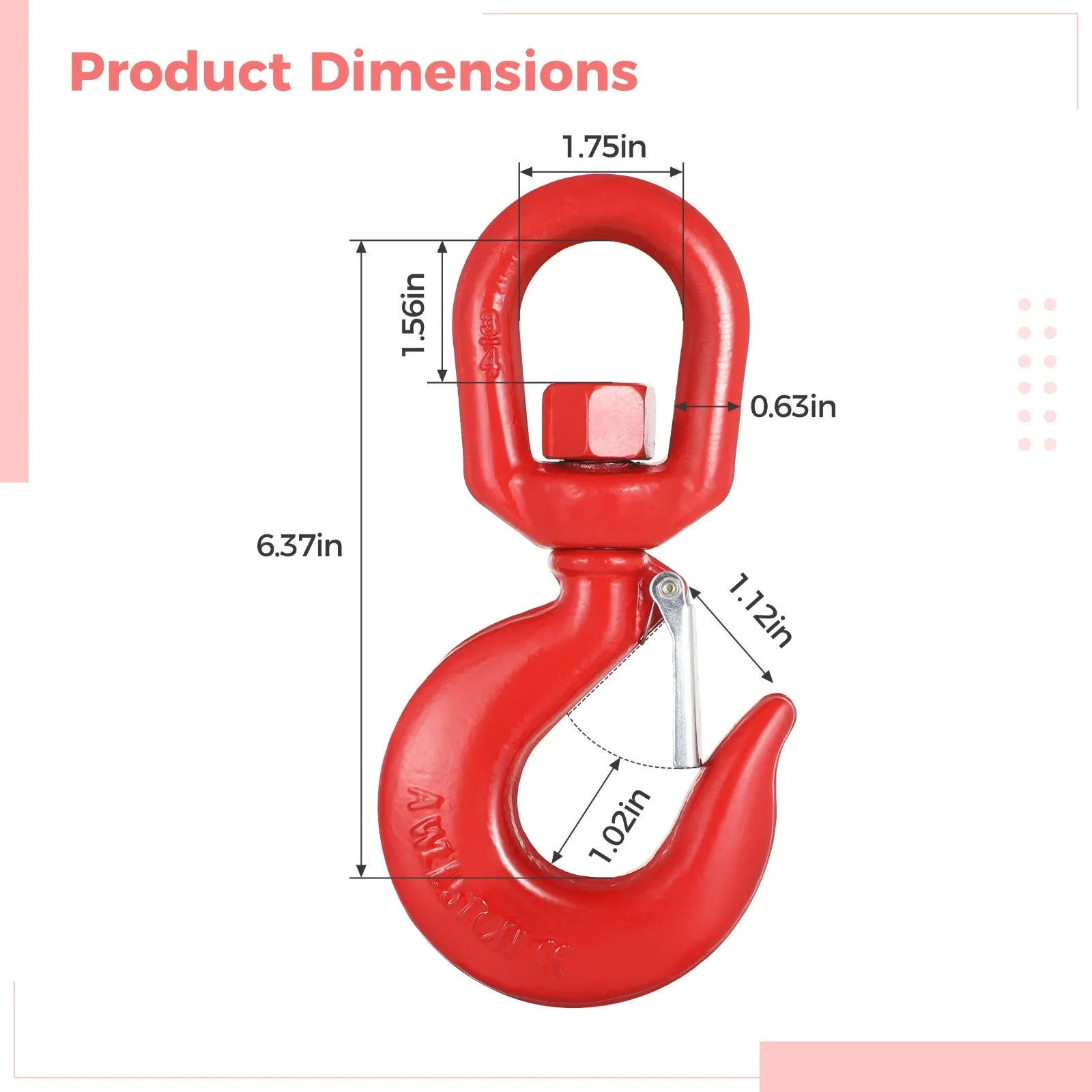

Material: Alloy Steel. Application: Sling Hook for Rigging and Lifting. Grade: G80. Hook Type: Swivel Hook with Rotatable Eye. Safety Feature: Safety Latch. Shank Type: Eye Shank. Working Load Limit: 3 metric tons (3000 kg). Shank Inner Diameter: Approximately 32 mm (Inferred for 3T G80). Material: Alloy Steel. Material Grade: G80 (per ASTM A489). Temperature Range: -40°C to 200°C (Inferred for G80 Alloy Steel). Compliance Standard: Meets or exceeds ASME B30.10, EN 1677-1. Application: For use with wire rope slings, chain slings, and synthetic slings in rigging. Hook Point to Bearing Center Distance: Approximately 115 mm (Inferred). Hook Throat Opening: Approximately 48 mm (Inferred for 3T G80). Hook Type: Swivel / Rotatable Eye Hook. Latch Type: Positive Locking (Self-Closing). Marking: WLL (3T), Grade (G80), Manufacturer ID permanently marked. Product Type: Swivel Lifting Hook with Safety Latch. Rotation: 360° Continuous Free Rotation. Safety Factor: 4:1 (Minimum Breaking Load: 12 Tons / 12000 kg). Safety Feature: Spring-Loaded Safety Latch. Shank Type: Eye (Forged Eye for Sling Attachment). Surface Finish: Electro-Galvanized or Yellow Zinc Plated (Corrosion Resistant). Swivel Bearing Type: Heavy-Duty Thrust Bearing Assembly. Working Load Limit (WLL): 3 Tons (3000 kg / 6614 lbs). Q: What are the specifications and dimensions of this 3-ton swivel lifting hook? A: This lifting hook is rated for a 3-ton (6,000 lb) working load limit and is constructed from G80 alloy steel for high strength. The swivel hook features a rotatable eye and a safety latch to prevent slings from slipping off during use.. Q: How durable is this G80 alloy steel rigging hook for regular lifting tasks? A: The G80 alloy steel construction provides excellent durability and is heat-treated for superior toughness and wear resistance. It is designed to withstand the demands of regular lifting, making it a reliable choice for both workshop and job site applications.. Q: Can this rotatable eye sling hook be used with my existing chain or wire rope slings? A: Yes, the rotatable eye is designed to be compatible with standard shackles, chain links, or wire rope fittings. The swivel action helps prevent twisting in your sling assembly, making it versatile for various rigging setups.. Q: Does this crane swivel hook come with any warranty or guarantee? A: Product warranties are typically provided by the seller or manufacturer, so please check the specific product listing for details. This hook is built to industry standards for G80 alloy steel lifting components to ensure quality and safety.. Q: Is this swivel hook with safety latch a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with key safety features like the G80 rating and safety latch included..
