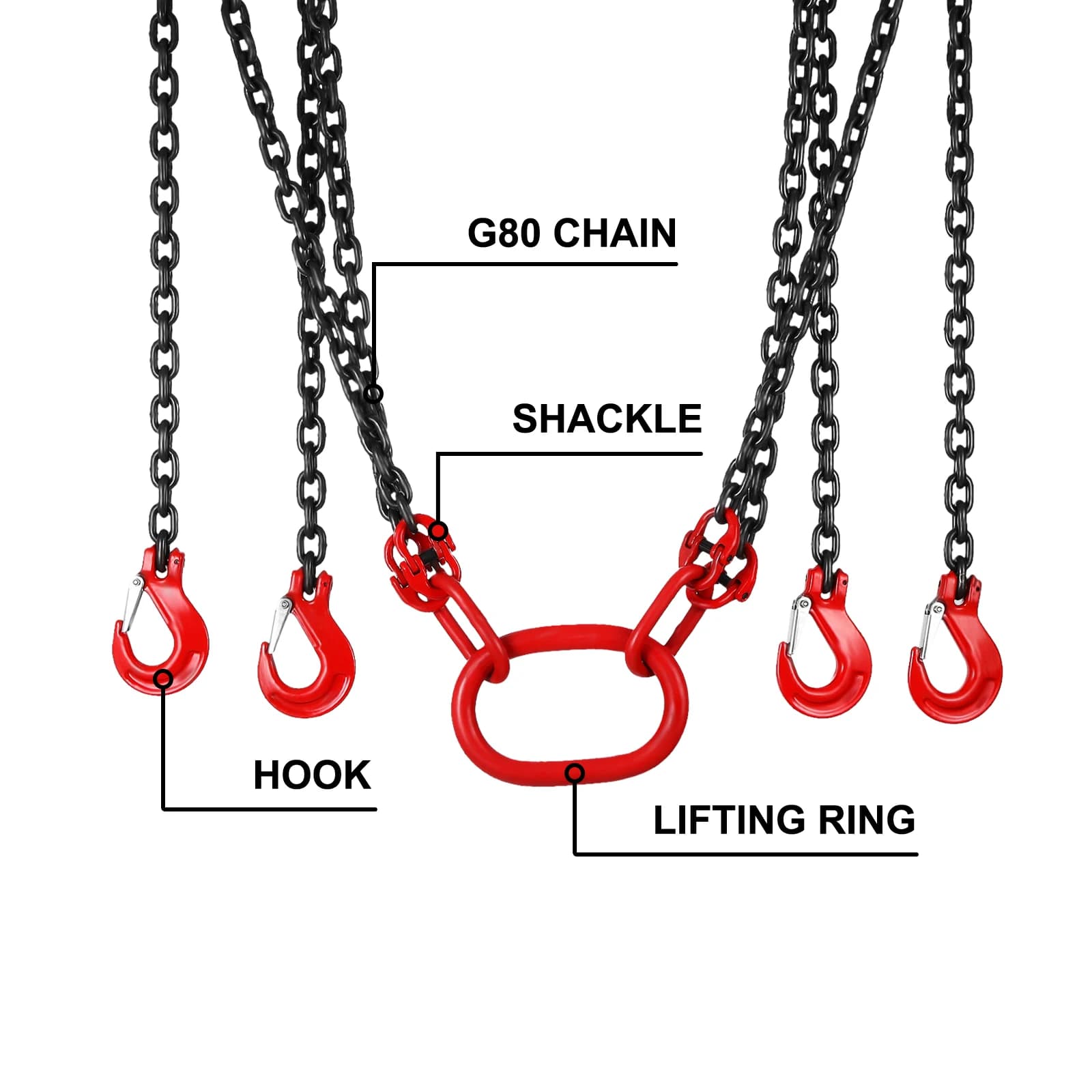

Engineered for demanding lifts, the SucceBuy 5-Ton Lifting Chain Sling provides reliable, heavy-duty performance with its G80 alloy steel construction. Available in 1.5M, 3M, and 4M lengths with 5/16-inch chain, this 4-leg sling features adjustable hooks for precise load balancing and secure handling of up to 5,000 kg. Features and Benefits
- G80 Alloy Steel Construction - Offers superior strength-to-weight ratio and excellent durability for repeated heavy lifting with a 4:1 design factor

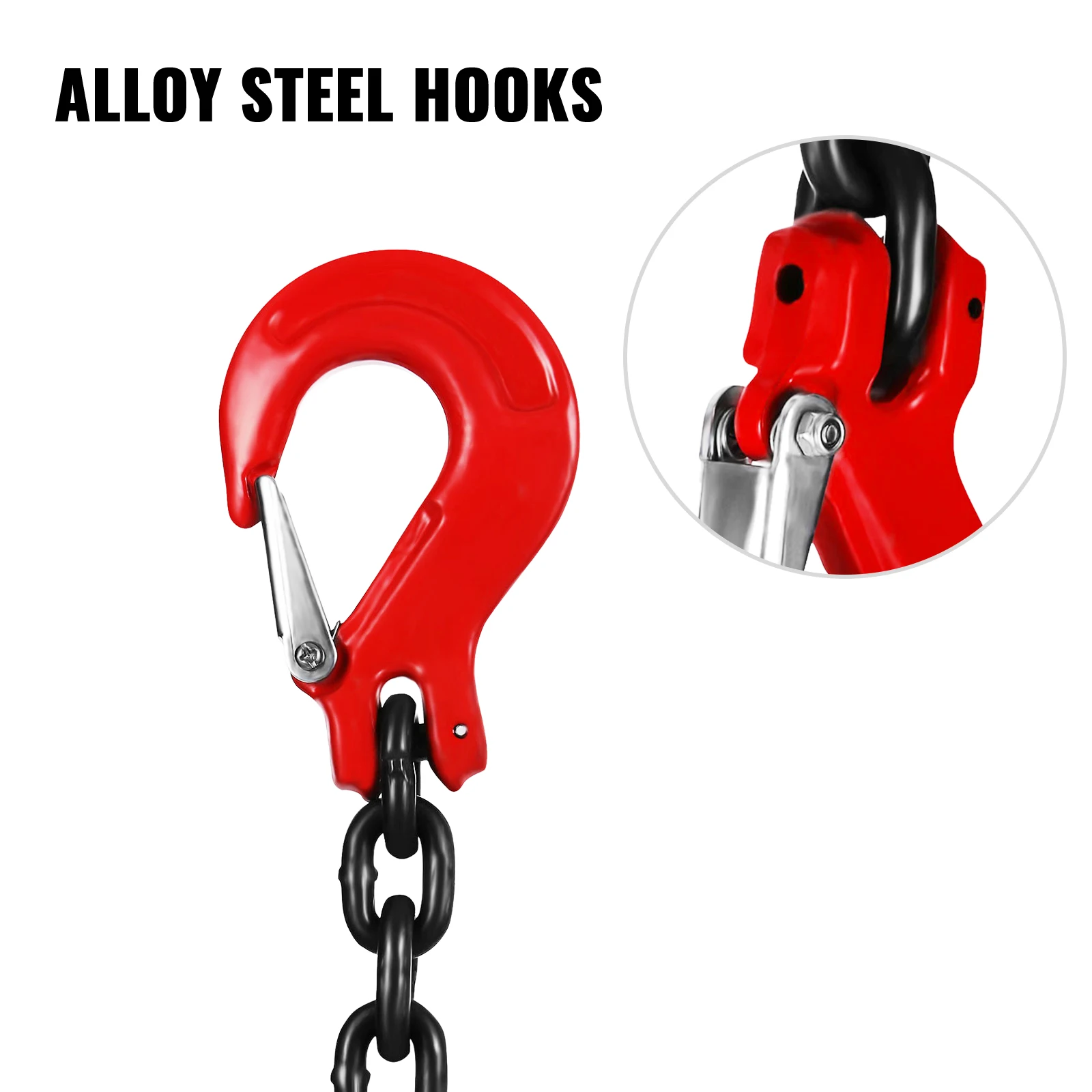

- Four Adjustable Legs with Grade Hooks - Enables balanced load distribution and secure attachment points, allowing for customization to various load sizes and shapes
- 5-Ton (10,000 lb) Working Load Limit - Provides the capacity for industrial-grade lifting tasks with a significant safety margin
- Multiple Length Options (1.5M, 3M, 4M) - Delivers versatility for different working heights and clearance requirements on the job site

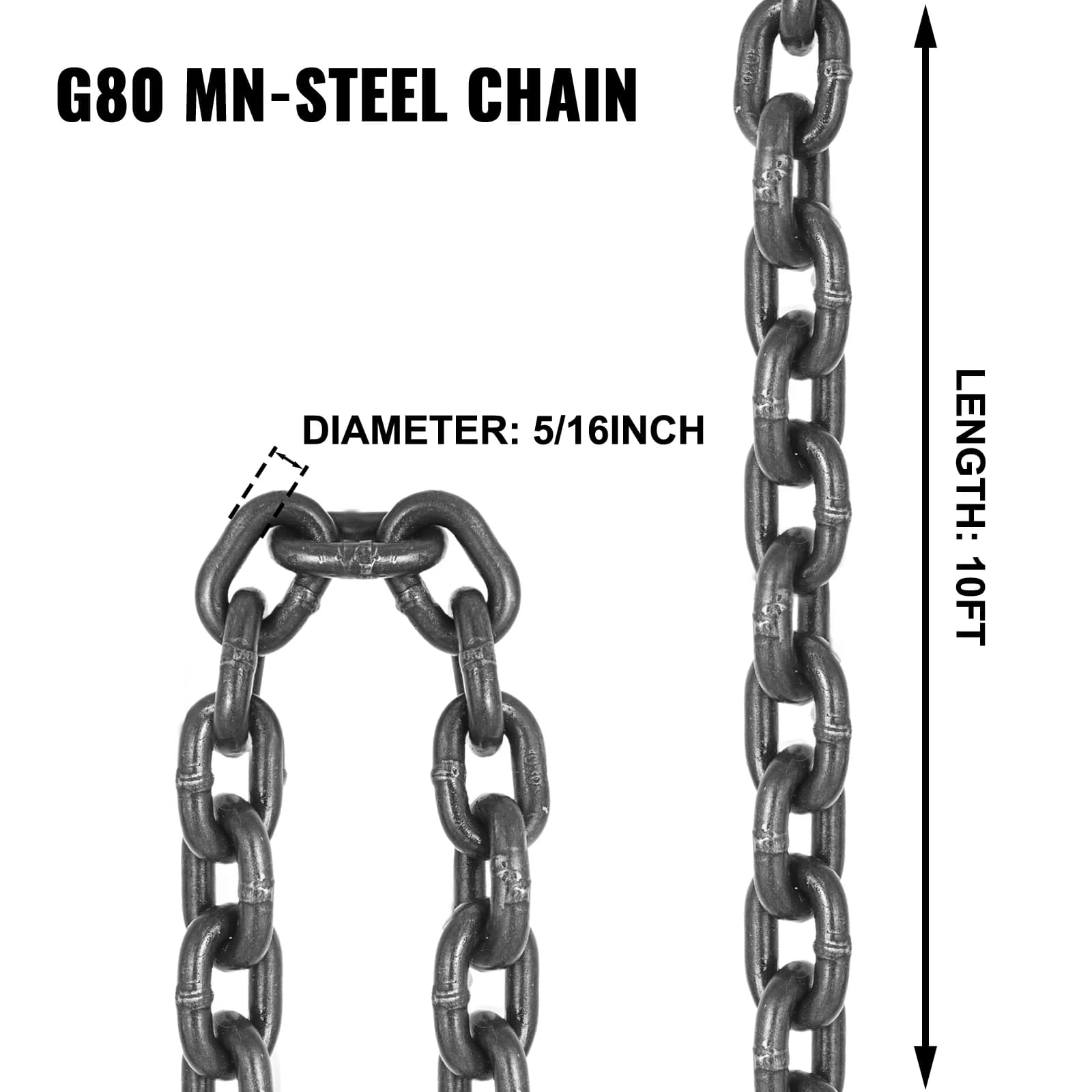

- 5/16-Inch Heavy-Duty Chain - Ensures robust performance and resistance to abrasion and deformation during regular use Applications
- Machinery Installation and Relocation - Ideal for safely positioning heavy industrial equipment, engines, and manufacturing components
- Construction and Rigging - Perfect for lifting steel beams, concrete forms, and other bulky construction materials
- Automotive and Agricultural - Suitable for hoisting vehicle assemblies, tractor attachments, and other heavy farm implements
- Warehouse and Logistics - Effective for moving large, irregularly shaped loads and palletized goods where standard slings are insufficient Note
Always inspect the sling before use and adhere to all rated working load limits. Ensure proper training in rigging techniques for safe operation.
Chain Material: Alloy Steel. Adjuster Type: Master Link with Sliding Adjuster. Chain Diameter: 5/16 inch (7.94 mm). Chain Grade: G80. Chain Length (per leg): 1.5 m, 3 m, 4 m. Configuration: 4-Leg. Finish: Electro-Galvanized. Hook Grade: Grade H (H-Class). Hook Quantity: 4. Hook Type: Grab Hook. Minimum Breaking Load (MBL): 25 t. Product Type: Lifting Chain Sling. Safety Factor: 5:1. Working Load Limit (WLL): 5 t. Leg Length Options: 1.5 Meters, 3 Meters, 4 Meters. Nominal Chain Size: 5/16 Inch (8 mm). Material: G80 Alloy Steel. Temperature Range: (Inferred) -40°C to 200°C (For G80 Alloy Steel). Compliance Standard: (Inferred) ASME B30.9 / OSHA. Chain Finish: (Inferred) Electro-Galvanized or Self-Colored. Design Factor: 4:1 (Based on G80 WLL to Break Force). Grade: Grade 80 / G80. Hook Throat Opening: (Inferred) Approximately 1.5 - 2 Inches. Hook Type: Heavy Duty Grade Hooks. Master Link Type: Adjustable (Adjuster). Maximum Included Angle (4-Leg): 90 Degrees. Maximum Load per Leg at 90°: 3,535 lbs (1,604 kg). Minimum Breaking Force: 20 Tons (40,000 lbs / 18,144 kg). Number of Legs: 4. Product Type: 4-Leg Chain Sling Assembly. Working Load Limit (WLL): 5 Tons (10,000 lbs / 4,536 kg). Q: What are the exact specifications and dimensions of the SucceBuy lifting chain sling? A: This heavy-duty lifting sling is rated for 5 tons (10,000 lbs) and comes with 4 legs. The chain is 5/16 inch thick and is available in 1.5M, 3M, and 4M lengths. It features Grade 80 (G80) alloy steel construction and includes 4 hooks with an adjuster for precise length control.. Q: How durable is the G80 alloy steel used in this 5-ton chain sling? A: The G80 alloy steel is highly durable and designed for heavy-duty lifting. It offers excellent strength and wear resistance, making it suitable for demanding industrial, workshop, and farm applications. The grade indicates it meets specific standards for hardness and load capacity.. Q: Can this 4-leg chain sling lift an engine or heavy machinery safely? A: Yes, this 4-leg chain sling is ideal for lifting engines, machinery, and other bulky, heavy objects. The adjustable legs and 5-ton capacity provide stable and secure lifting points. Always ensure the load is balanced and does not exceed the rated Working Load Limit (WLL).. Q: Does the SucceBuy heavy-duty chain sling come with a warranty? A: Warranty details are not specified in the provided product information. For specific warranty coverage, we recommend contacting the seller directly or checking the product listing page for the most current manufacturer or seller guarantees.. Q: Is this SucceBuy lifting sling a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its G80 alloy steel construction and 5-ton capacity, making it a cost-effective solution for demanding tasks..
