EV & Battery Systems

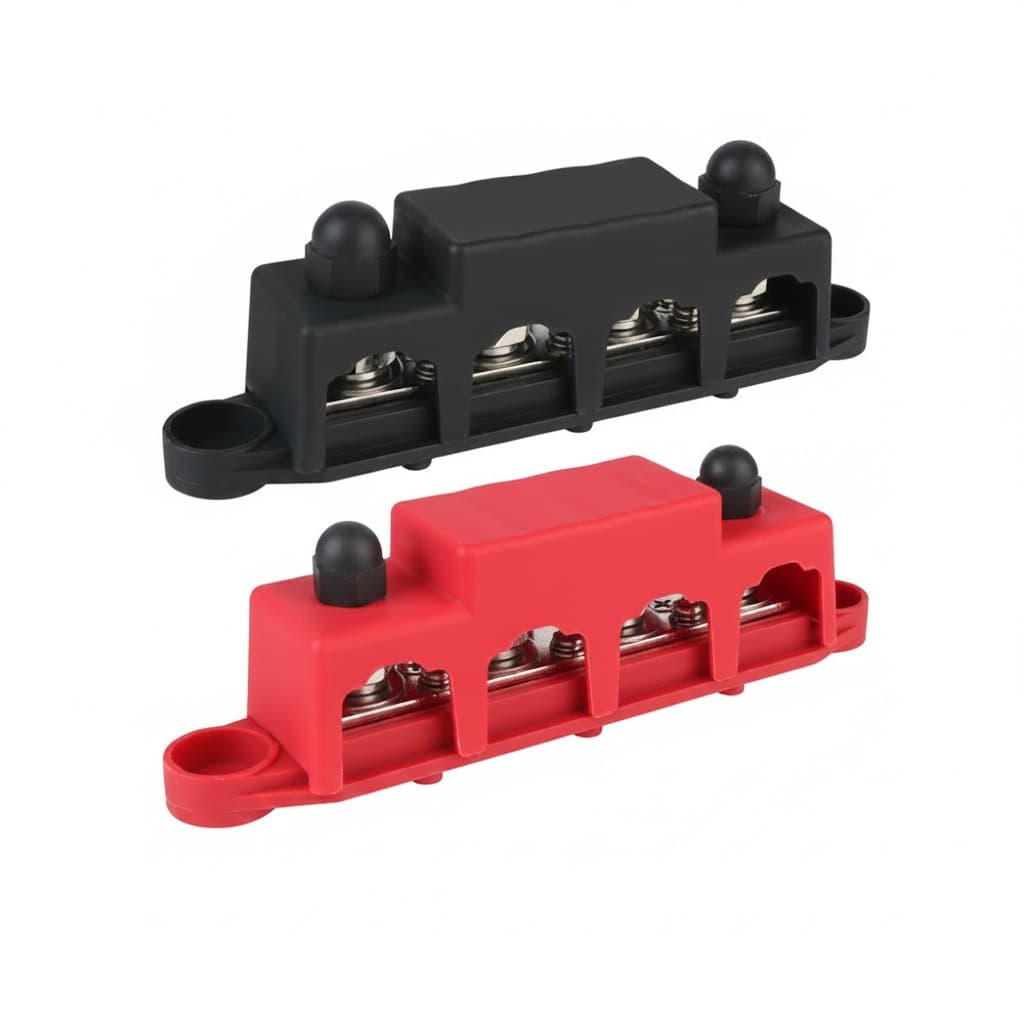

Selecting the Right Power Distribution Blocks

When configuring low-voltage auxiliary systems or marine power distribution, matching the bus bar to your system's maximum current draw is critical. For heavy-duty applications, look for distribution blocks rated up to 48V DC and 250A. Ensure the conductor body is a high-conductivity copper alloy to minimize resistance and heat generation under peak loads.

• Verify stud compatibility: Use mixed M8 and M10 terminal studs to accommodate different cable lug sizes on a single block.
• Check the insulation: Thermoplastic bases provide vital thermal and electrical isolation against surrounding metal chassis.

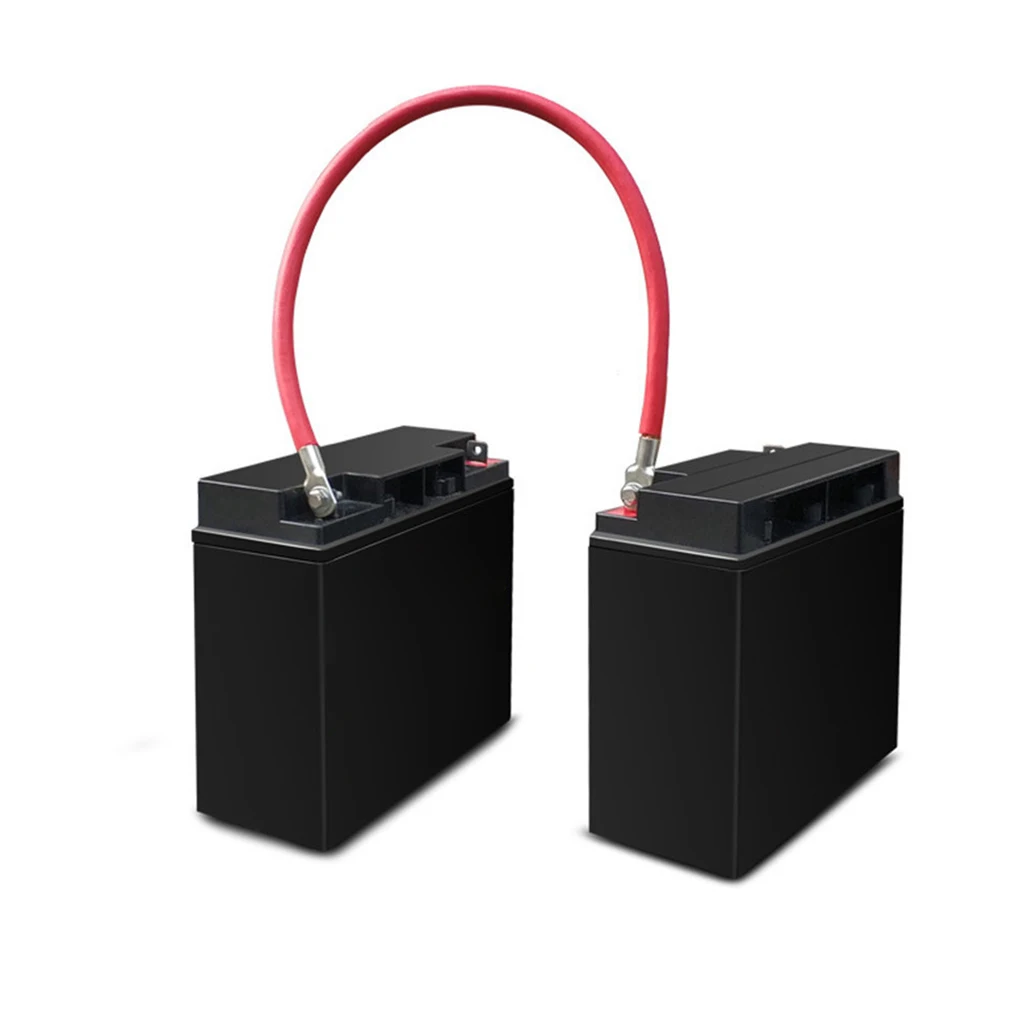

Specifying Cable Gauge and Insulation for High-Current Lines

High-current battery connections demand cables that resist environmental degradation while maintaining low resistance. For inverter runs and battery links, 4 AWG (21.2 mm² cross-sectional area) tinned copper conductor wire is the industry standard. Tinned copper prevents oxidation, especially in marine or high-humidity environments where bare copper fails.

• Insulation material: Silicone rubber insulation provides excellent flexibility in tight automotive engine bays and resists high operating temperatures.
• Length and termination: Short 30CM runs minimize voltage drop in critical links between batteries and distribution blocks.

Sourcing Specialized Tools for EV Battery Enclosures

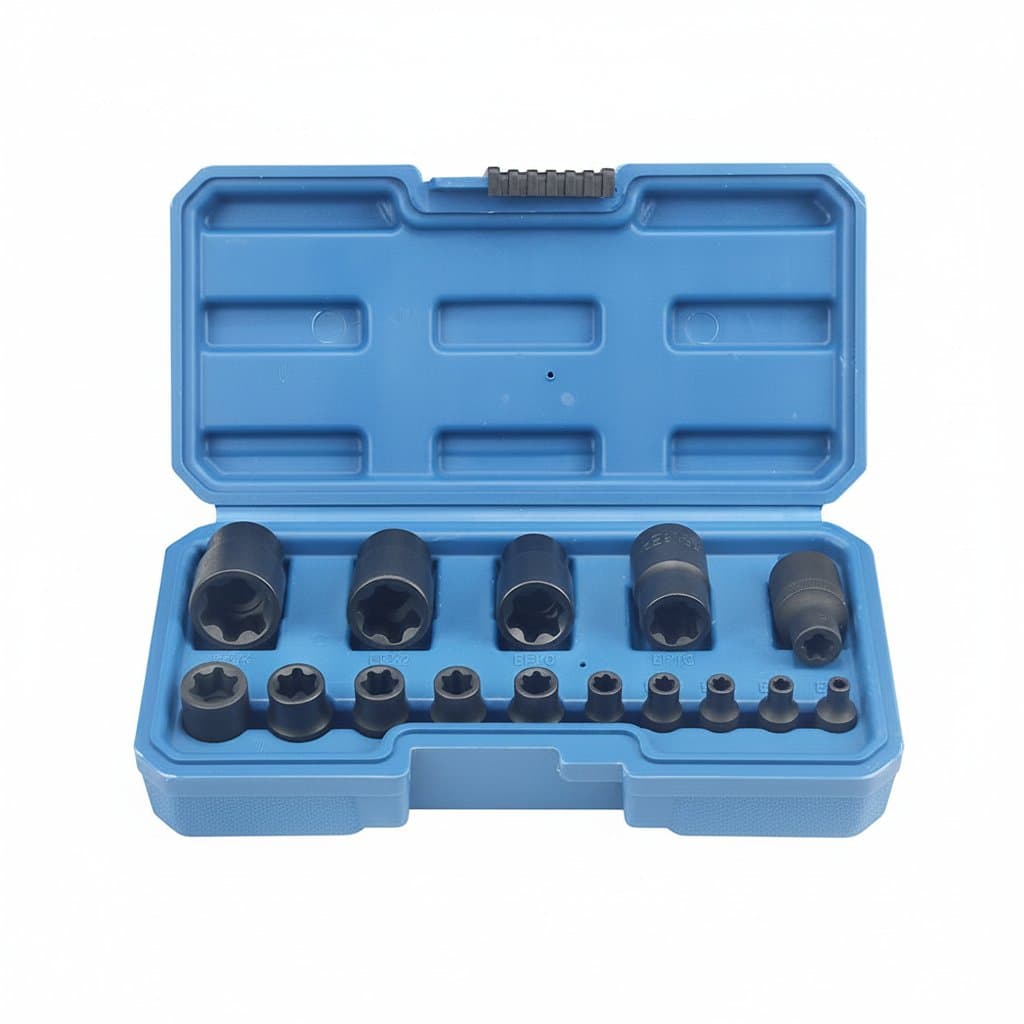

Servicing modern electric vehicle battery packs requires high-precision, non-standard drive profiles. Standard hex or Torx tools will damage specialized fasteners, such as those securing Tesla battery covers. Technicians must use dedicated EP (five-tooth) wrench sets to ensure secure engagement without stripping the heads.

• Profile range: Keep a 15-piece EP set ranging from EP4 to EP24 to cover all enclosure fastener variants.
• Tool construction: Choose Chromium Vanadium (Cr-V) steel tools with a 1/4-inch drive for high torque resistance.
