Selecting the Right Manifold Gauge Configuration

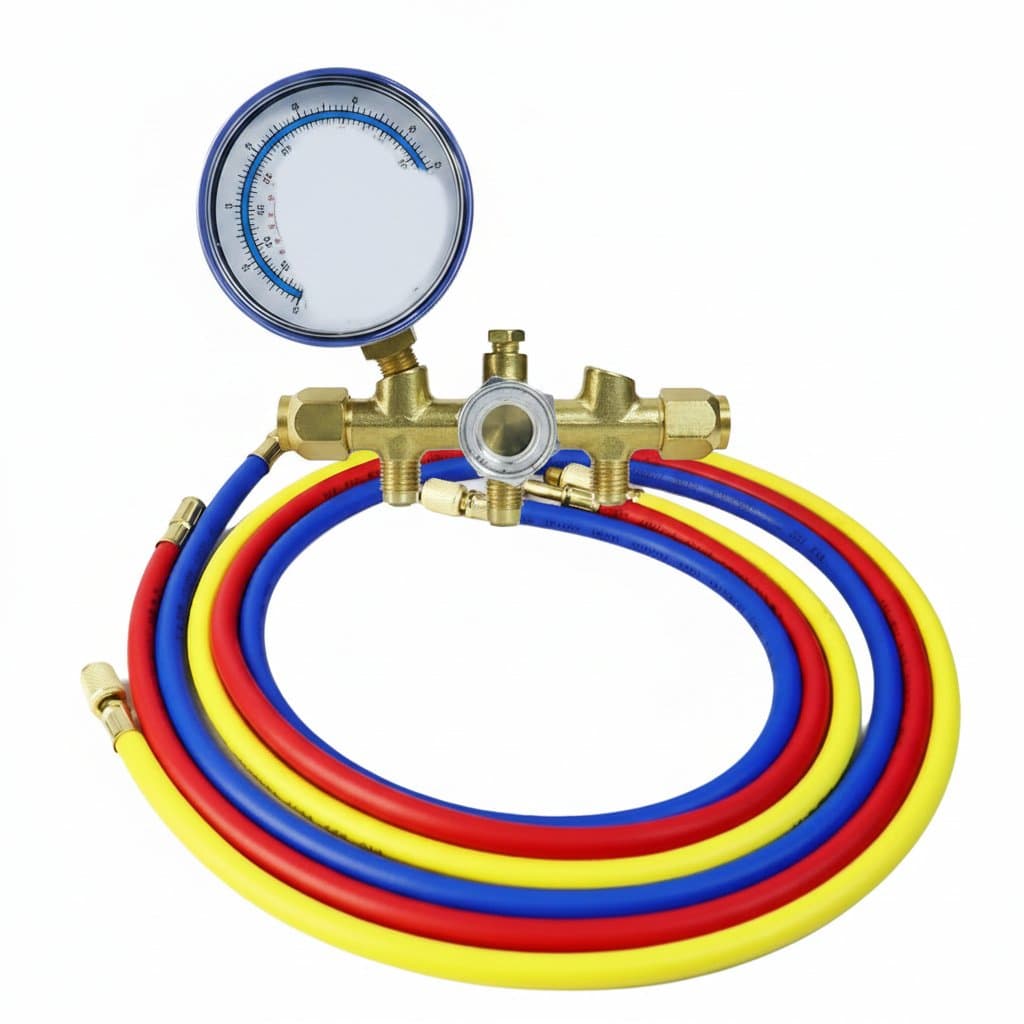

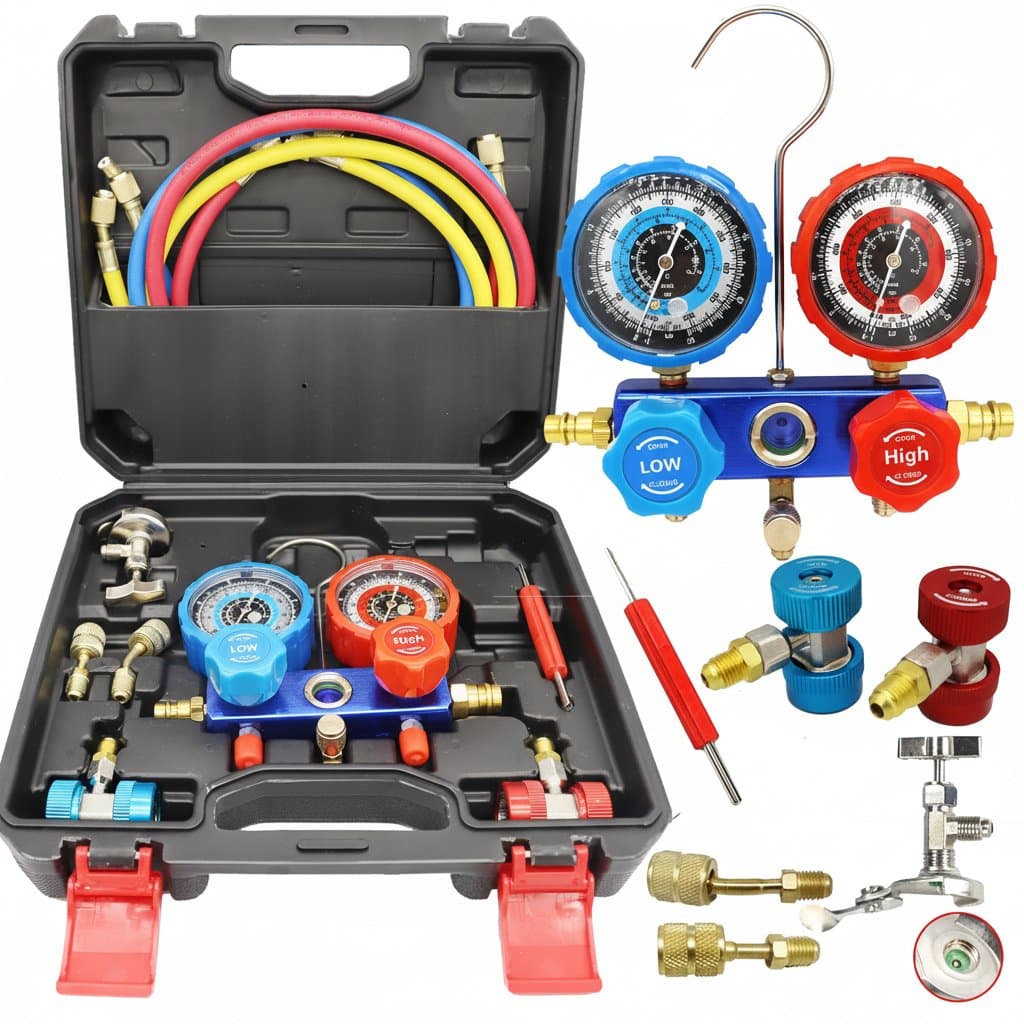

Technicians must choose between 3-way and 4-way manifold gauge sets based on the complexity of the service task. A 3-way manifold gauge is the industry standard for basic diagnostic checks, system evacuation, and standard charging. It features ports for the low-side blue hose, high-side red hose, and a central yellow utility hose.

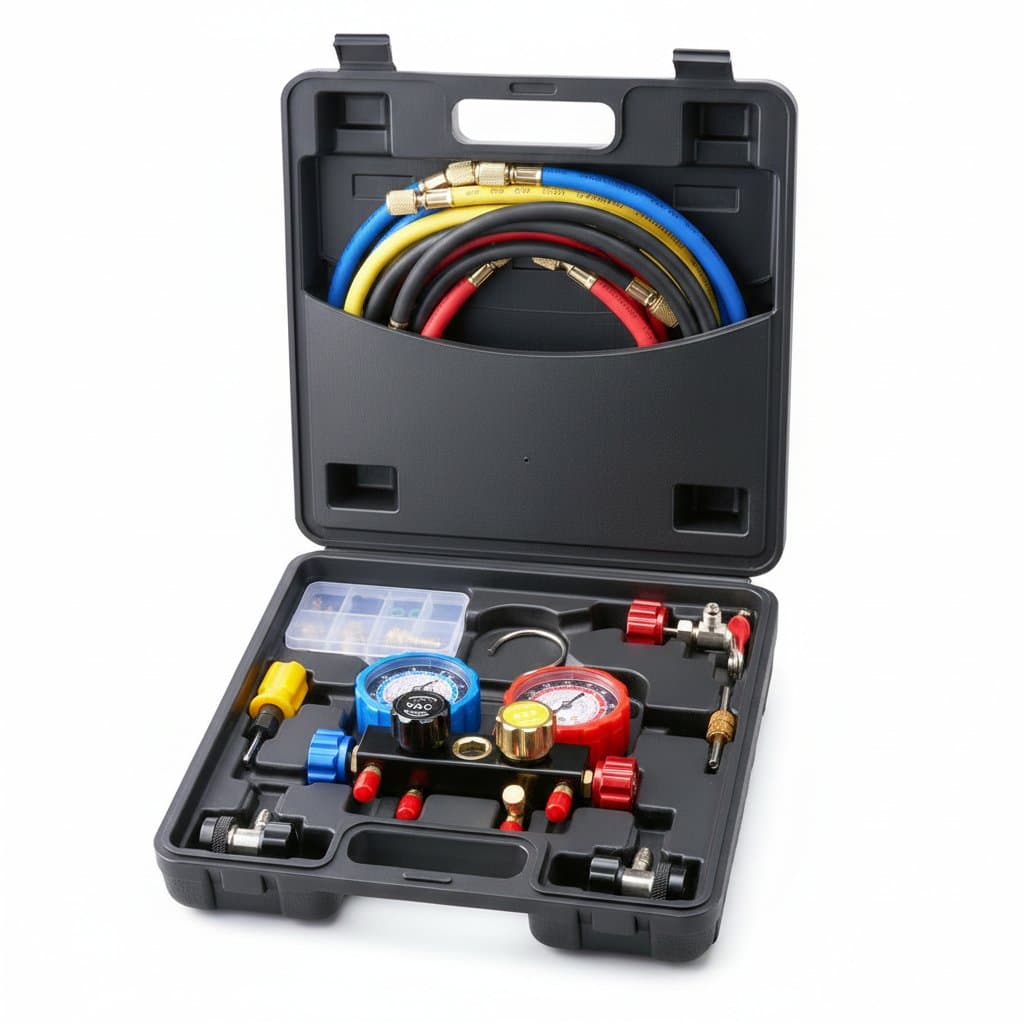

For high-volume workshops, a 4-way manifold gauge set provides a dedicated fourth port. This design allows technicians to connect a vacuum pump and a refrigerant recovery machine simultaneously, saving time during full system evacuations.

• 3-Way Manifolds: Best for mobile service vans and standard system top-offs.
• 4-Way Manifolds: Ideal for complete system overhauls and rapid evacuation cycles.
• Refrigerant Compatibility: Ensure the gauge face displays temperature scales for your target gases, such as R134a, R12, R22, or R410A.

Coupler and Adapter Specifications

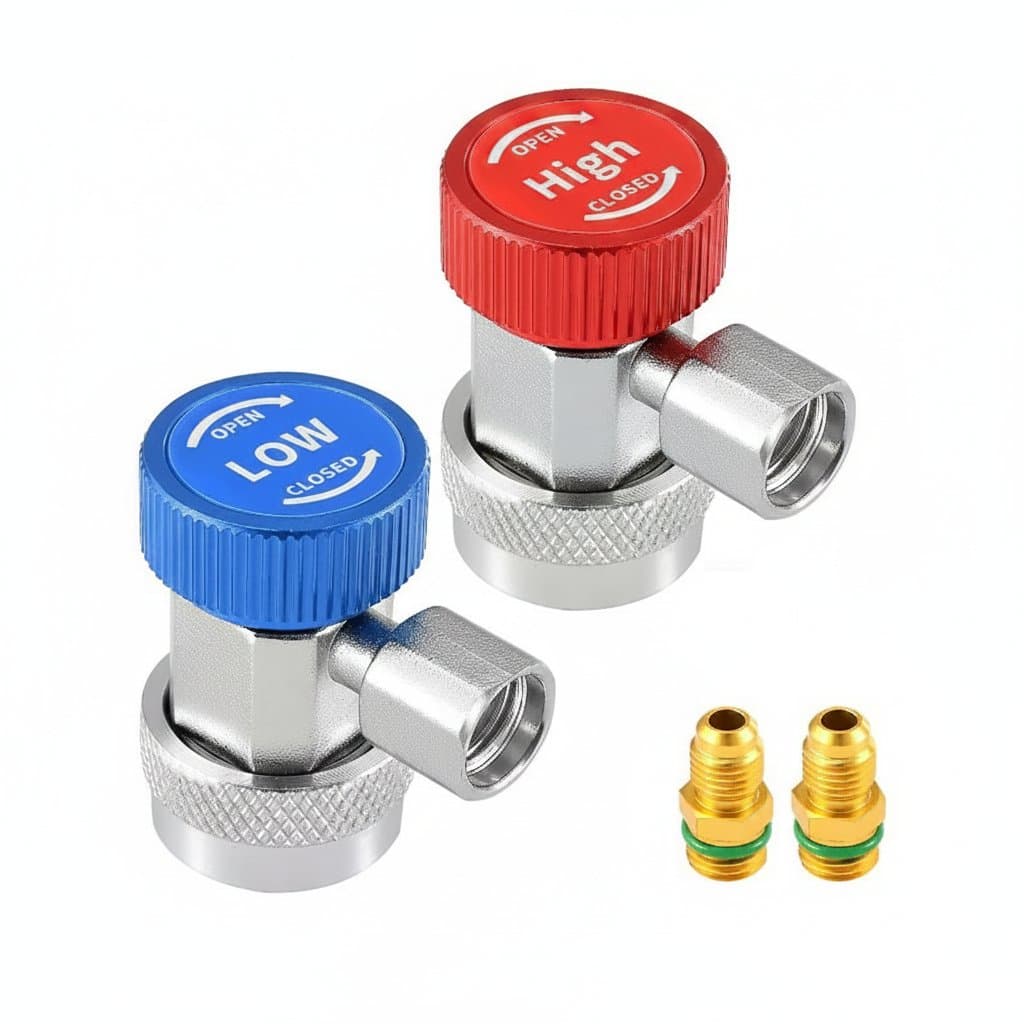

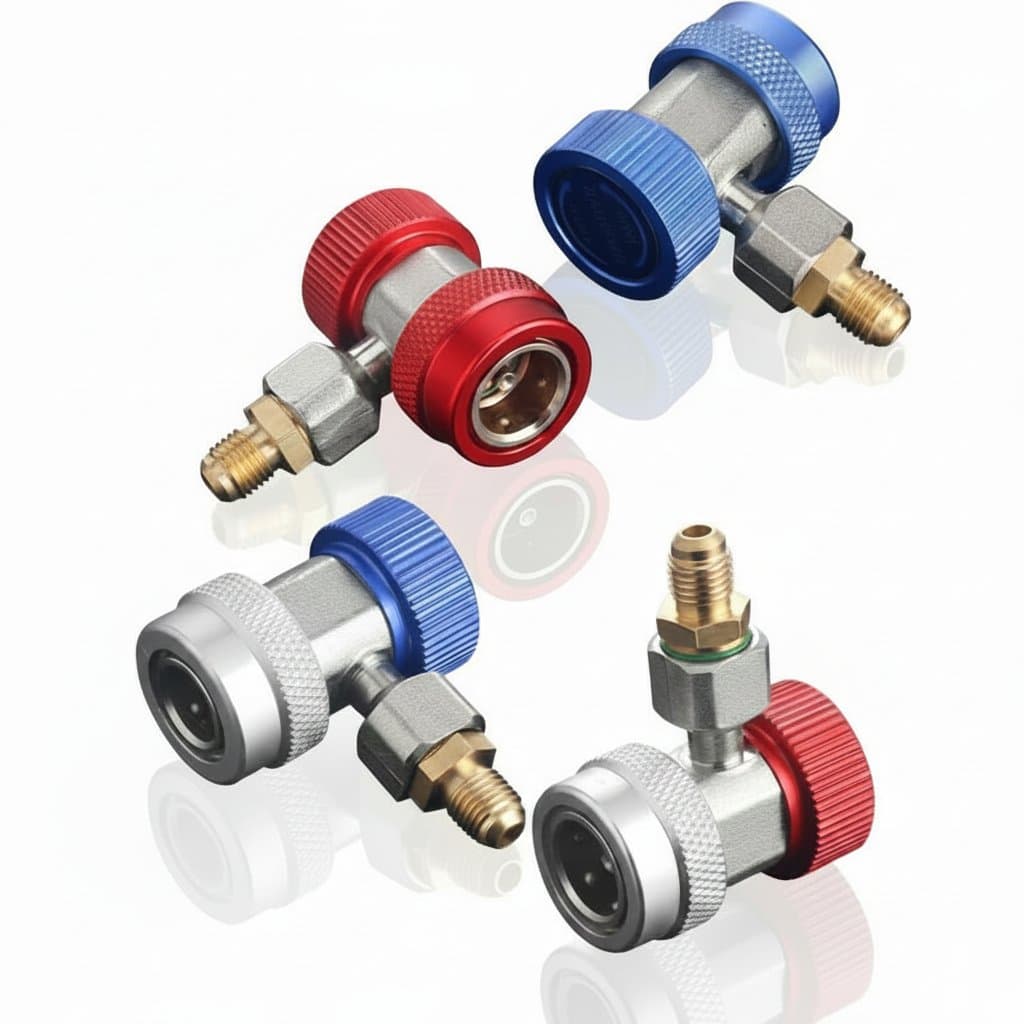

Safety and environmental regulations require leak-free connections during refrigerant transfer. Standard R134a systems utilize quick couplers that snap onto the high and low-side service ports. Newer vehicles frequently use R1234yf refrigerants, which require dedicated adjustable coupler adapters to prevent cross-contamination.

Look for 90-degree low-side quick couplers when working in tight engine bays. Adjustable manual couplers allow you to control the valve pin, protecting the vehicle service ports from premature wear.

• R134a Quick Couplers: Standard push-to-connect design for older passenger and commercial vehicles.
• R1234yf Adapters: Required for modern automotive air conditioning systems to meet updated environmental mandates.
• Thread Connections: Verify compatibility with your existing charging hoses, typically 1/4-inch SAE flare fittings.

Hose Length and Pressure Requirements

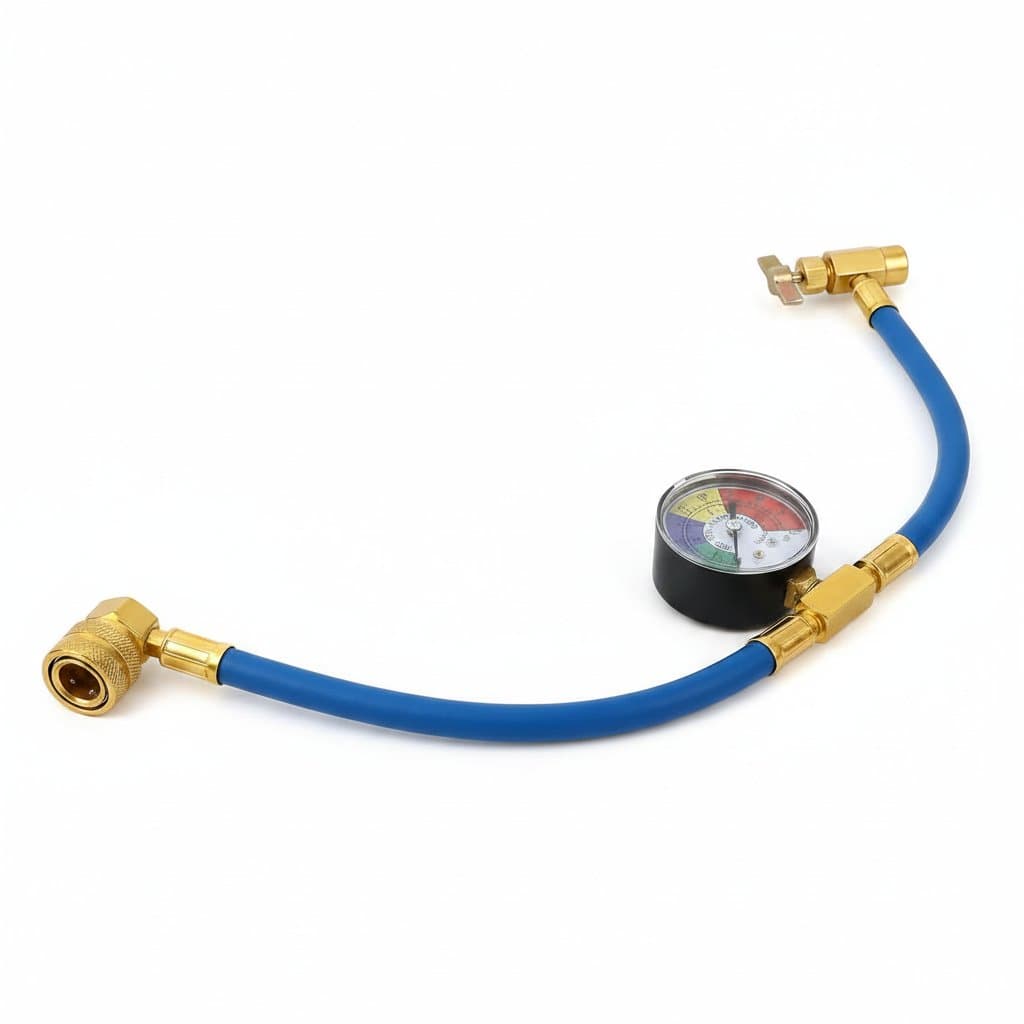

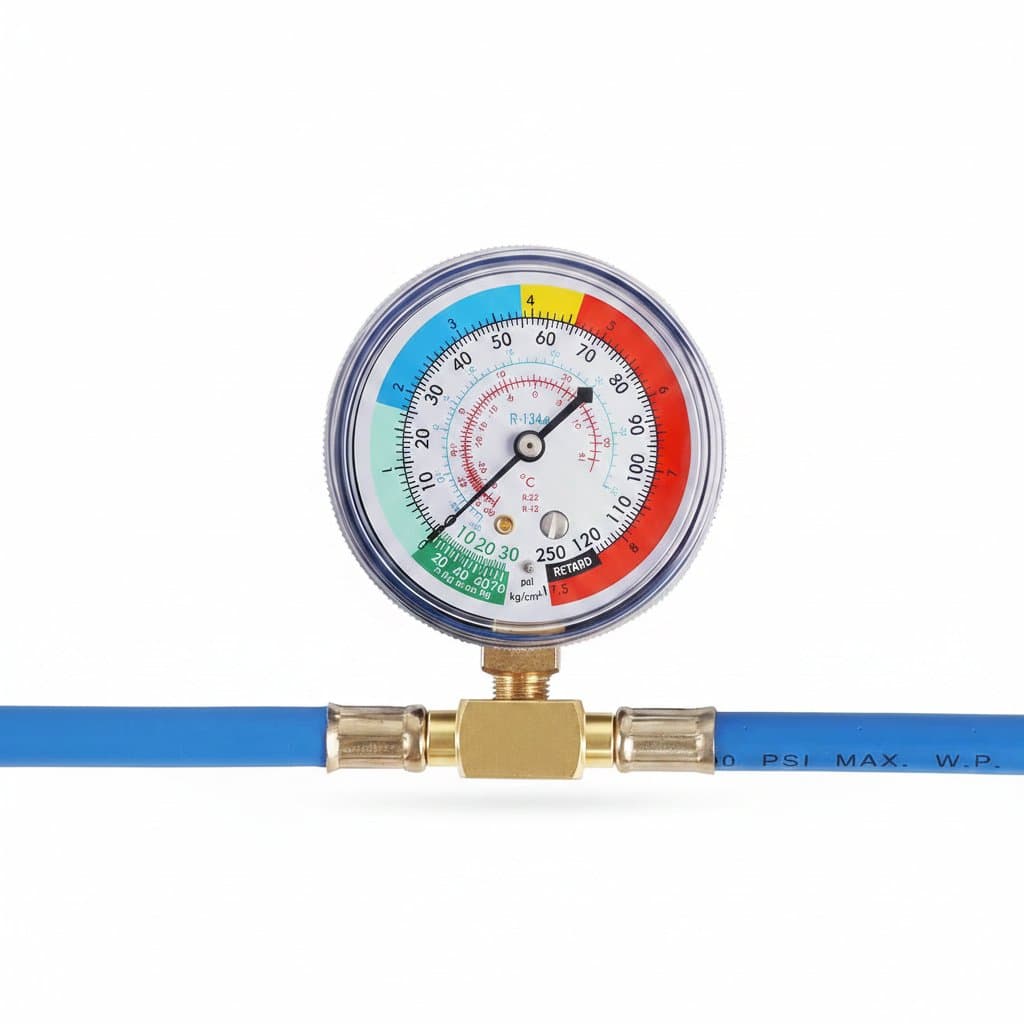

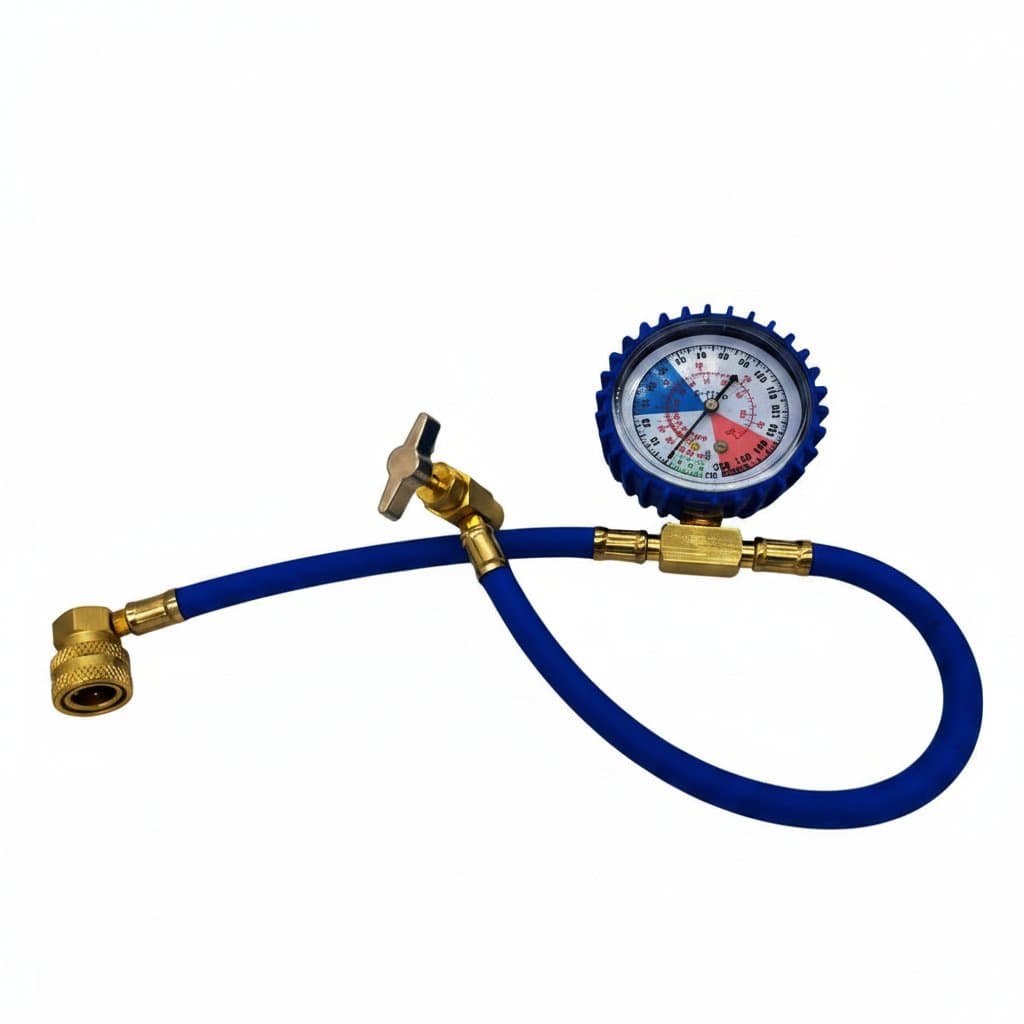

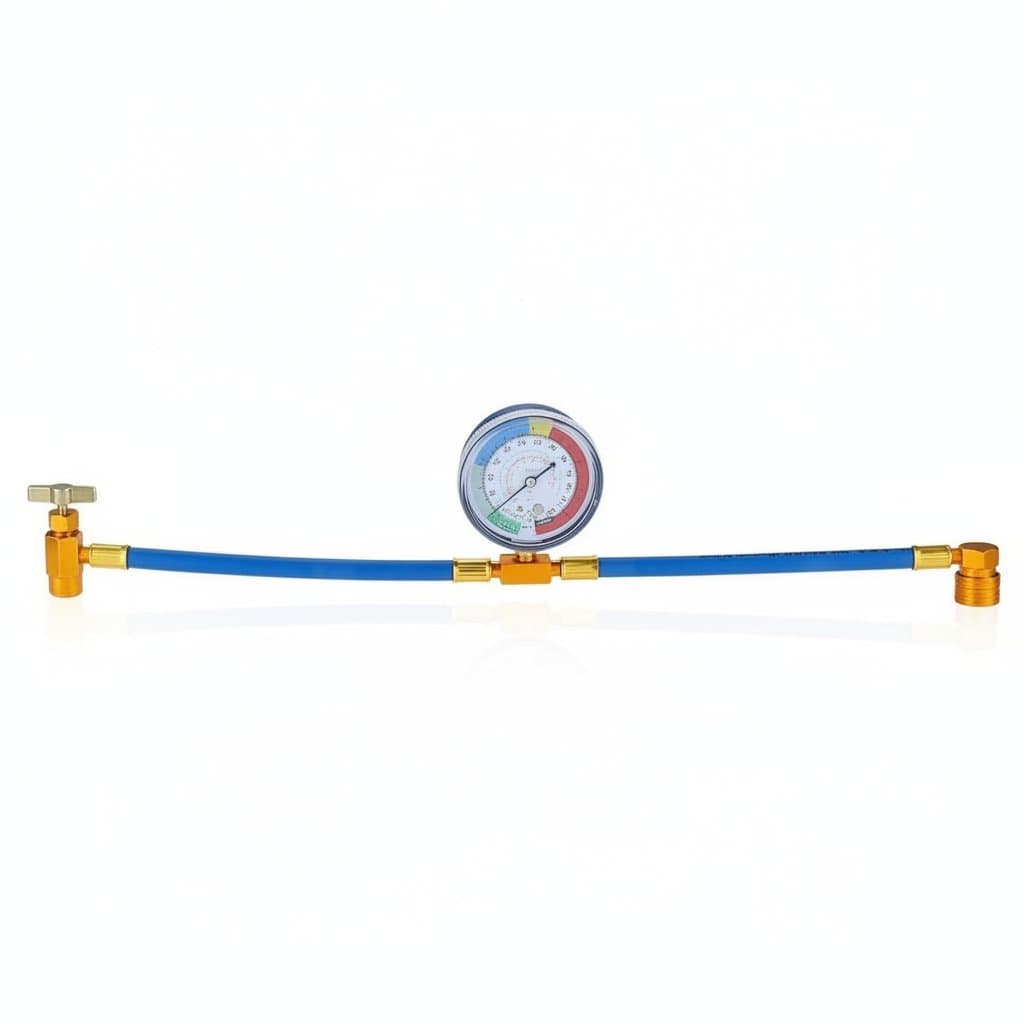

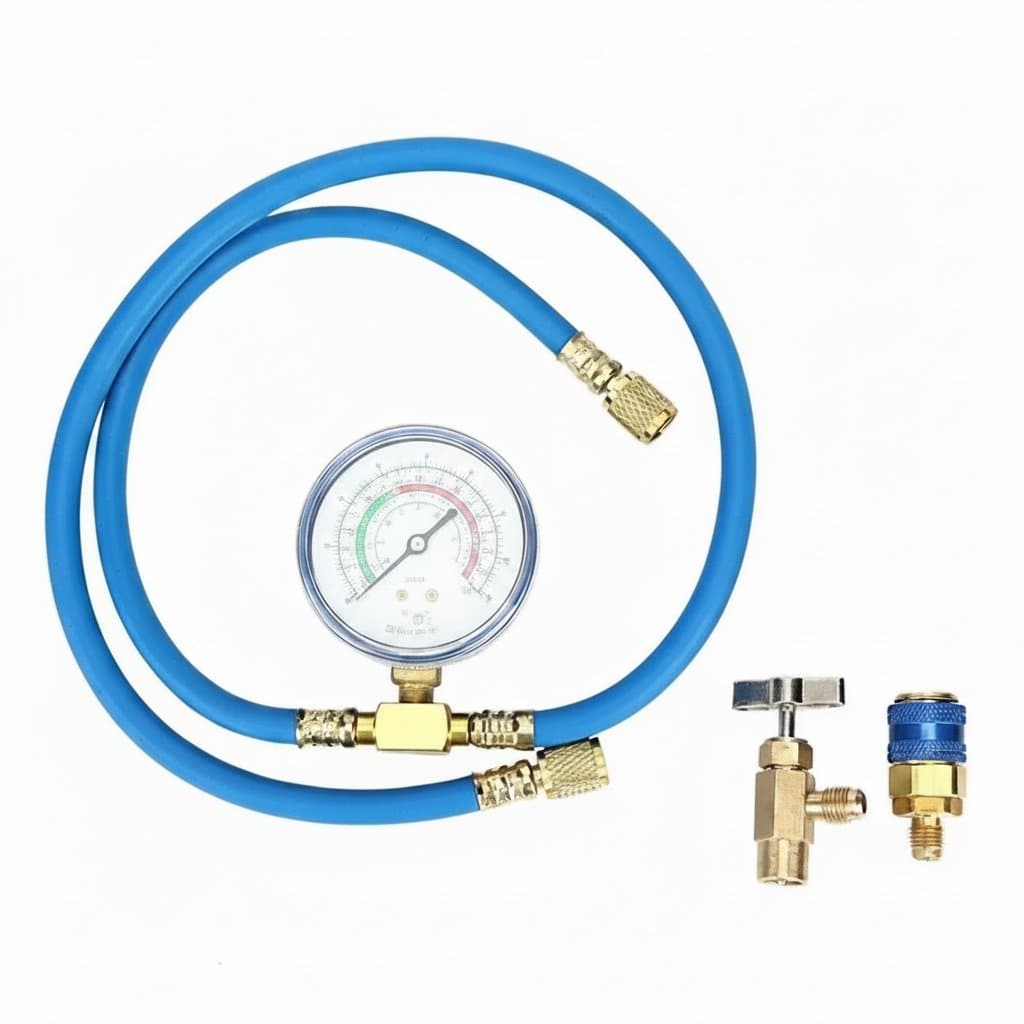

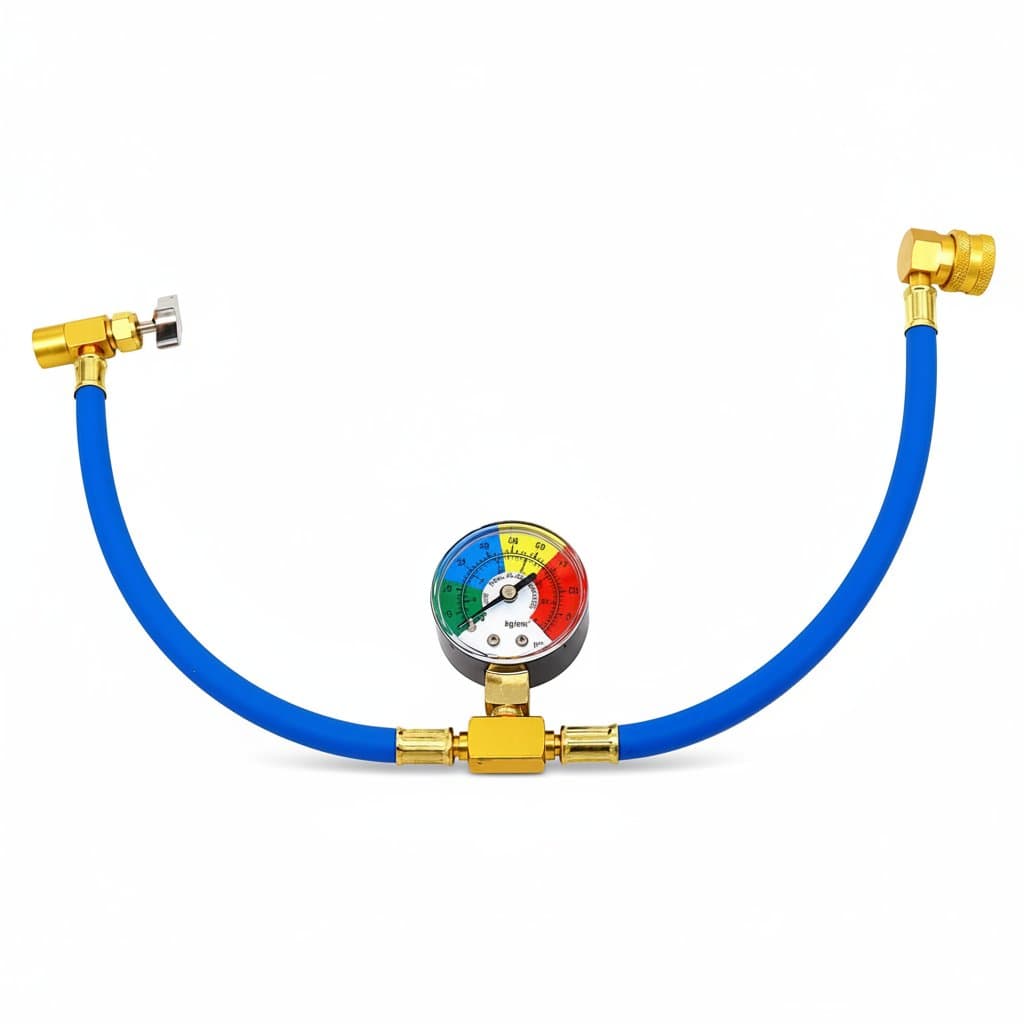

Hose selection directly impacts technician safety and ease of use. Short, non-powered charging hoses measuring around 30 cm are perfect for quick pressure checks using an integrated low-side gauge. However, full system evacuations require longer hoses to keep equipment clear of hot engine components.

Standard commercial kits feature 1.5-meter (5-foot) color-coded diagnostic hoses. These hoses must withstand high working pressures and feature secure fittings to prevent atmospheric moisture from entering the system during evacuation.

• Short Hoses (30 cm): Compact and easy to store, ideal for quick diagnostics and direct can-to-port charging.
• Long Hoses (1.5m / 5ft): Provide the reach necessary to position heavy manifold gauge sets safely on an engine hook.
• Color Coding: Blue represents the low side, red represents the high side, and yellow is designated for charging or evacuation.
